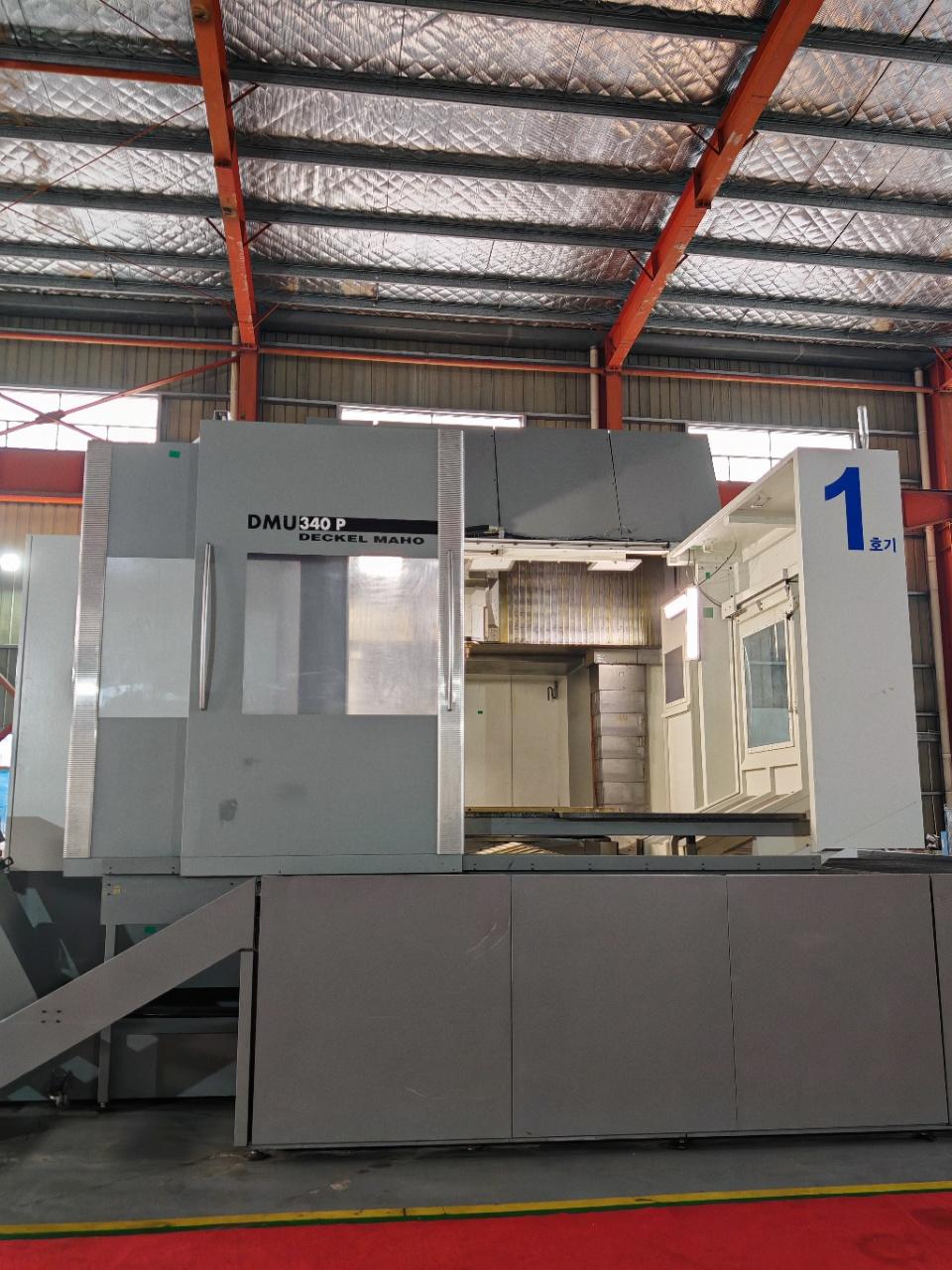

DMG DMU340P Universal Machining centre
[Product Information]:
- Inventory number：87585
- Brand：DMG
- Model：DMU340P
- Origin：Germany
- Location：China
- Year：2008
- Create Time：2025-05-29
Specifications:

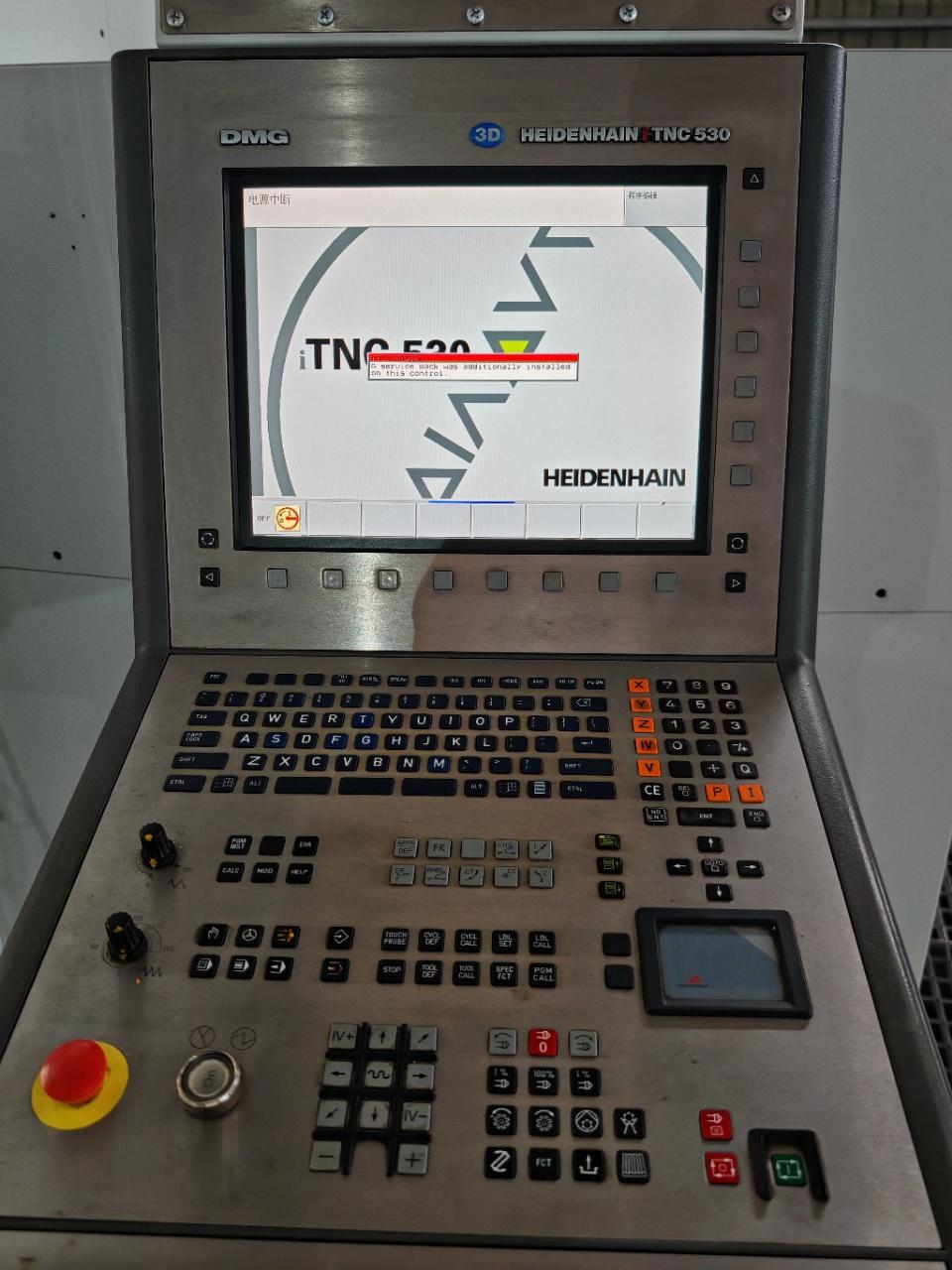

CNC CNC System: Heidenhain ITNC 530 HSCI

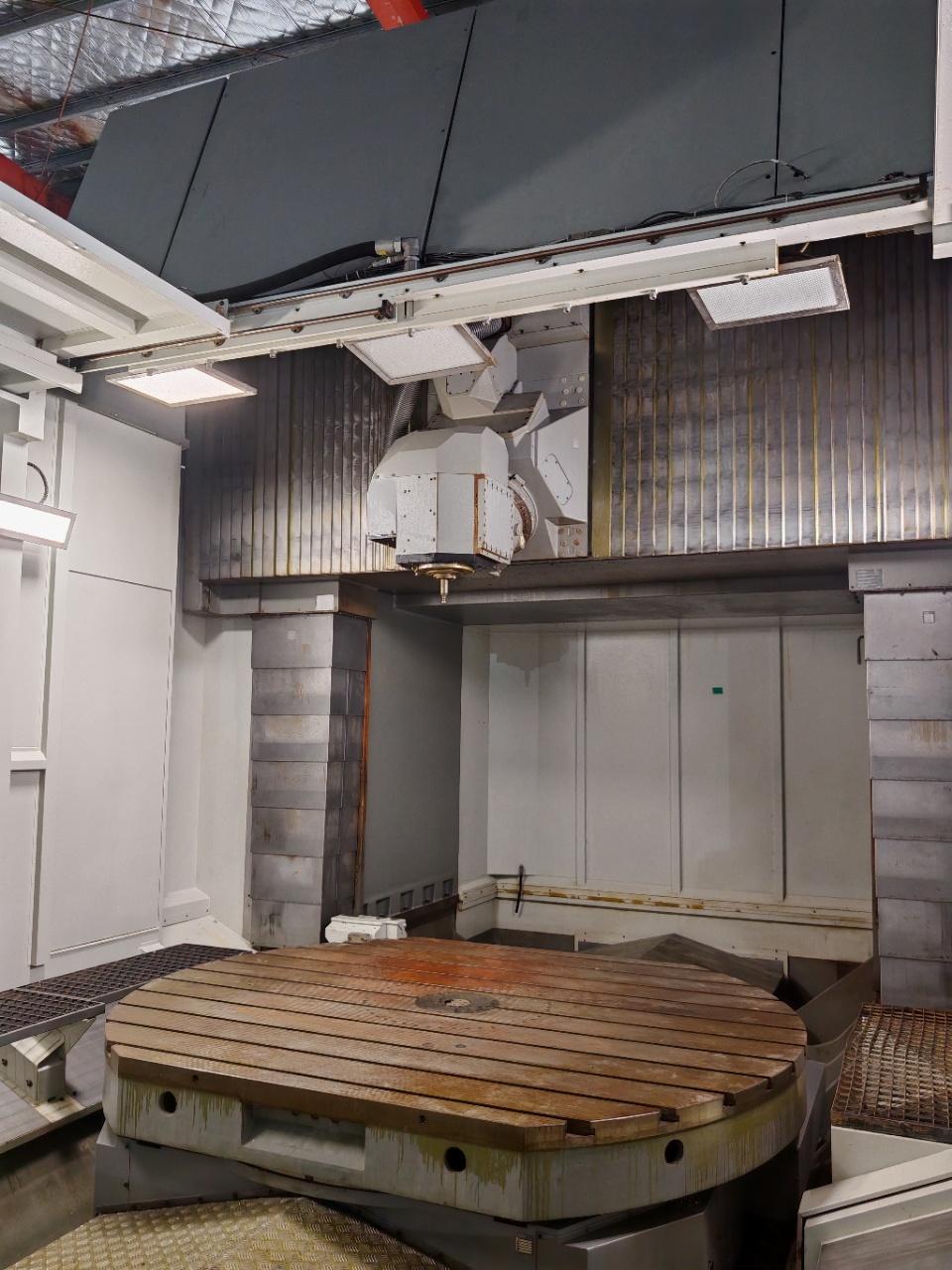

WorkWorktable size: 2600×2200mm
Maximum workpiece: 3500×2500mm
Gantry Width: 2860mm
three-axis travel: 2800×3400×1600mm
B axis: -30º to +180º
C-axis: 360º
spindle: SK50
Spindle speed: 6300rpm
Electric spindle power: 20/16kw
Electric spindle torque: 33 Nm
tools magazine: 120
power: 44/32 kW
Torque: 1550Nm
Accessories:

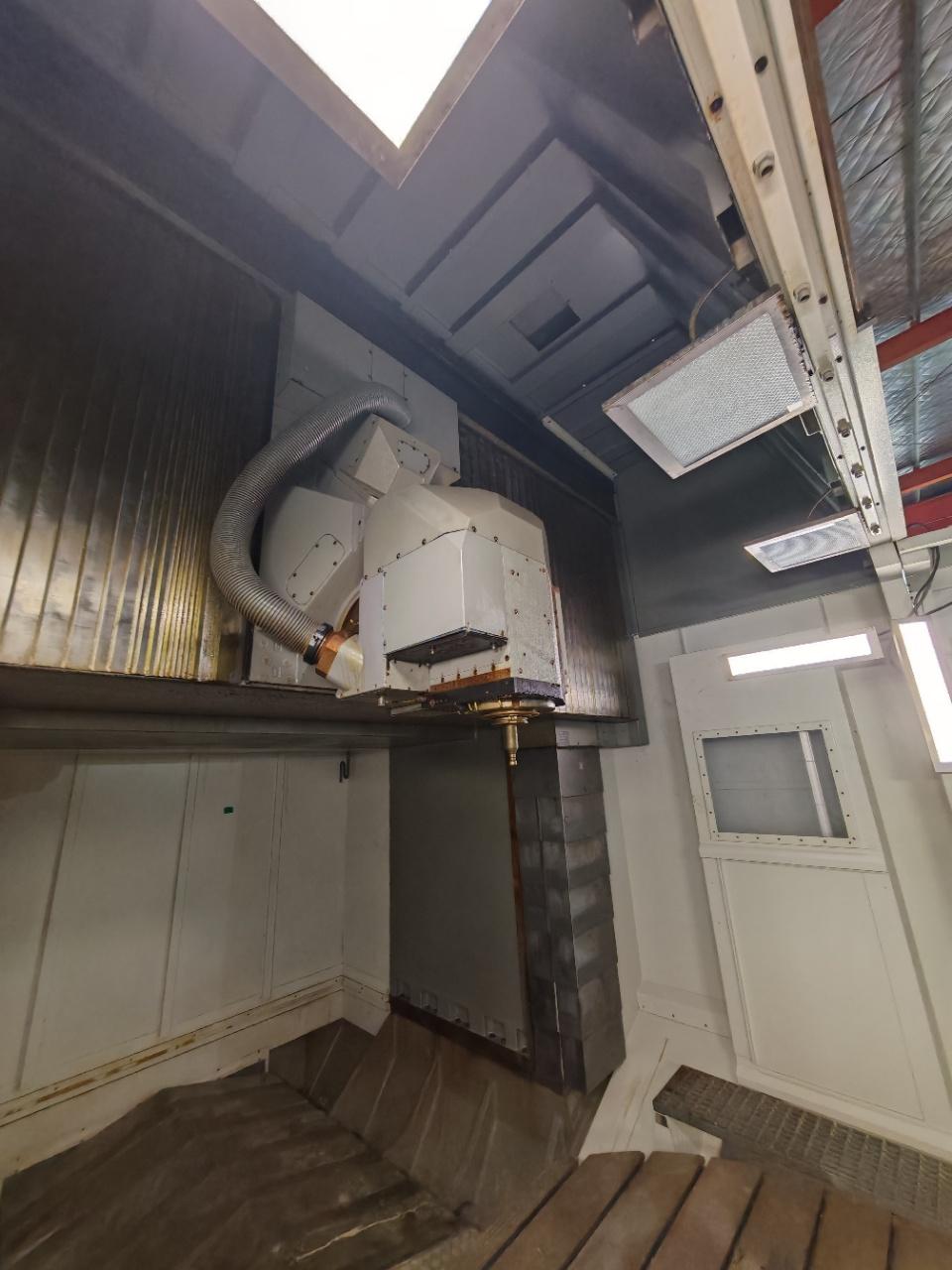

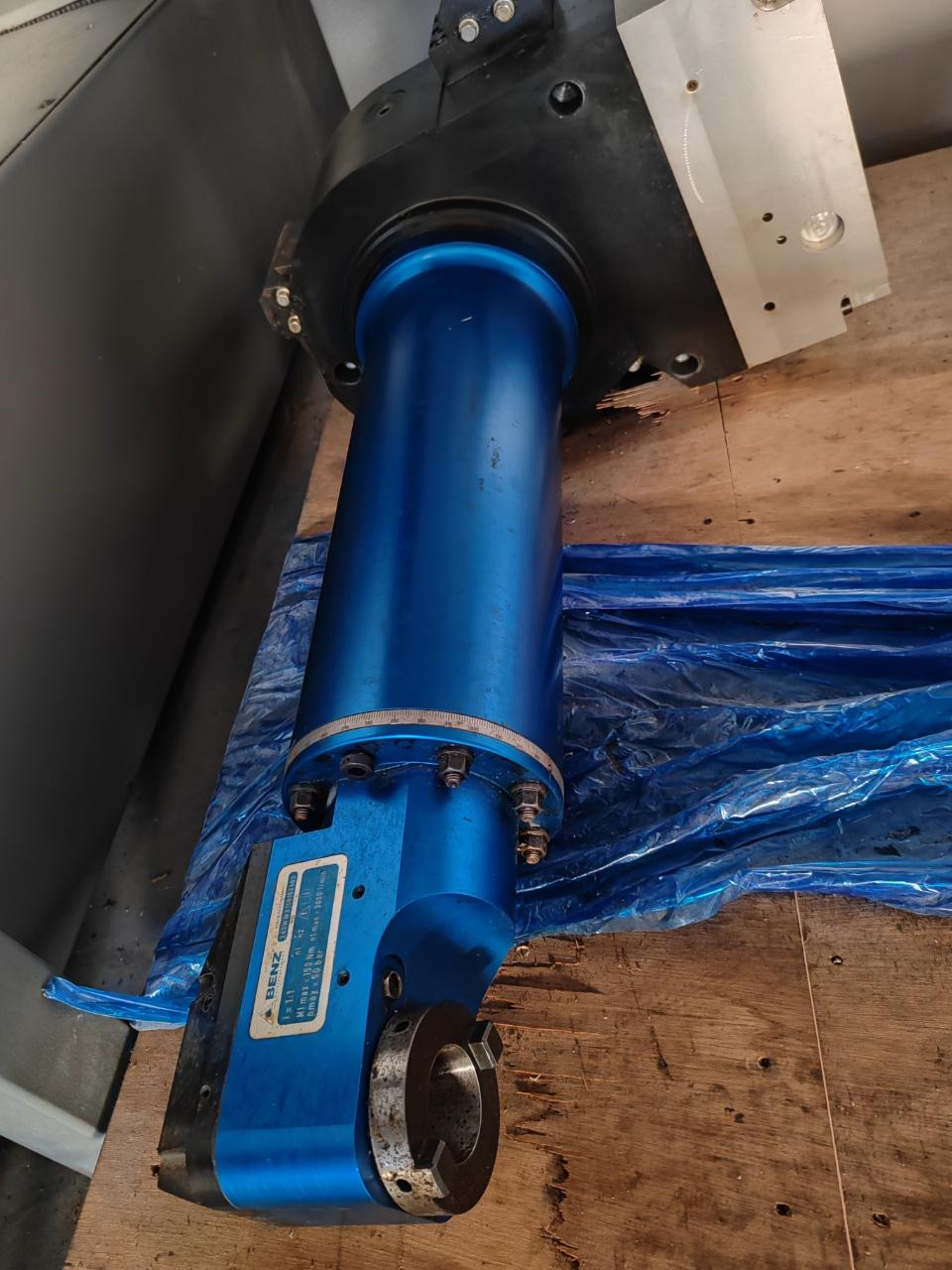

Universal milling head with controlled B-axis
The coolant Water tank is 2,500 liters
The internal coolant supply through spindle is 40 bar
Infrared probe
In-machine Tool Aligner Blum
3D quickSET Toolkit
Detection of Tool damage
A flushing gun with a pump
oil mist collector with mechanical filter
Coolant device
The appVertical machining centertion adjustment cycle ATC
Power-off protection
