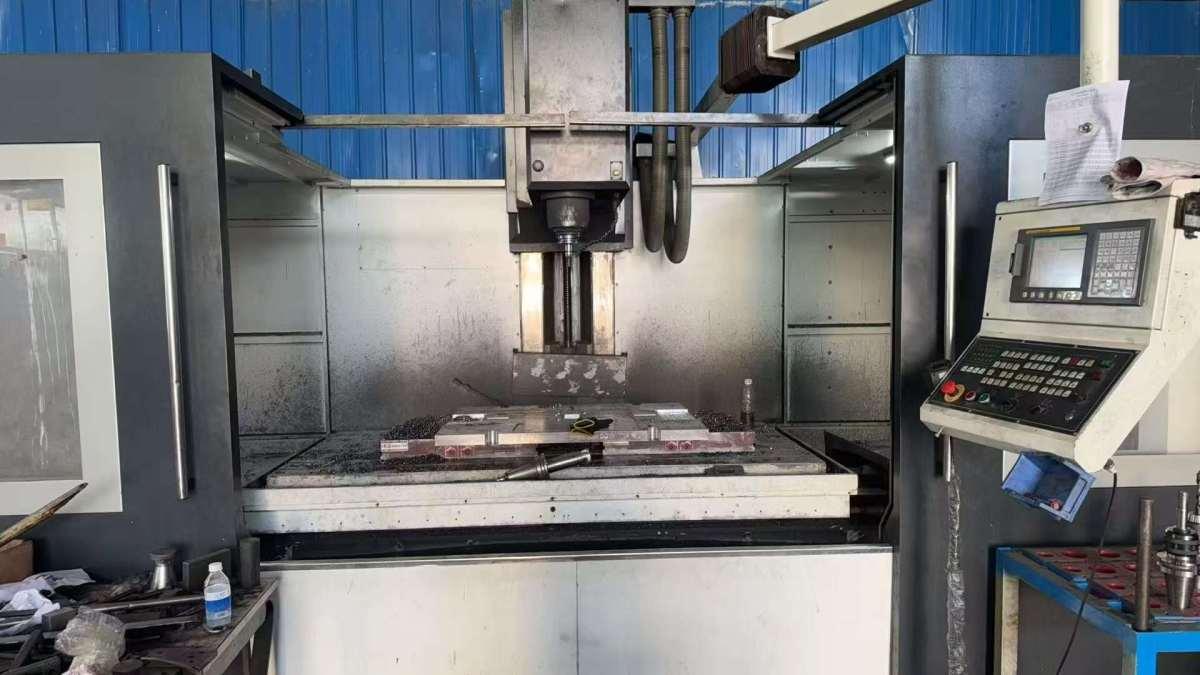

Taikan T-12 CNC milling machine

Workbench size: 1360 * 700mm

Three axis stroke: 1200 * 700 * 600mm

T-groove: 5-18 * 152.5mm

Distance from spindle nose to workbench: 160-760mm

Distance from spindle center to fuselage end face: 785mm

Spindle speed: 50-6000rpm

Spindle taper: tb50

Three axis rapid movement rate: 12000mm / min

Cutting rate: 1-10000mm / min

Spindle power: 11 / 15kw

Total power: 30KW

Positioning / repeated positioning accuracy: 0.01/0.006mm

Load: 1000kg

Overall dimension: 3590 * 2960 * 2900mm
