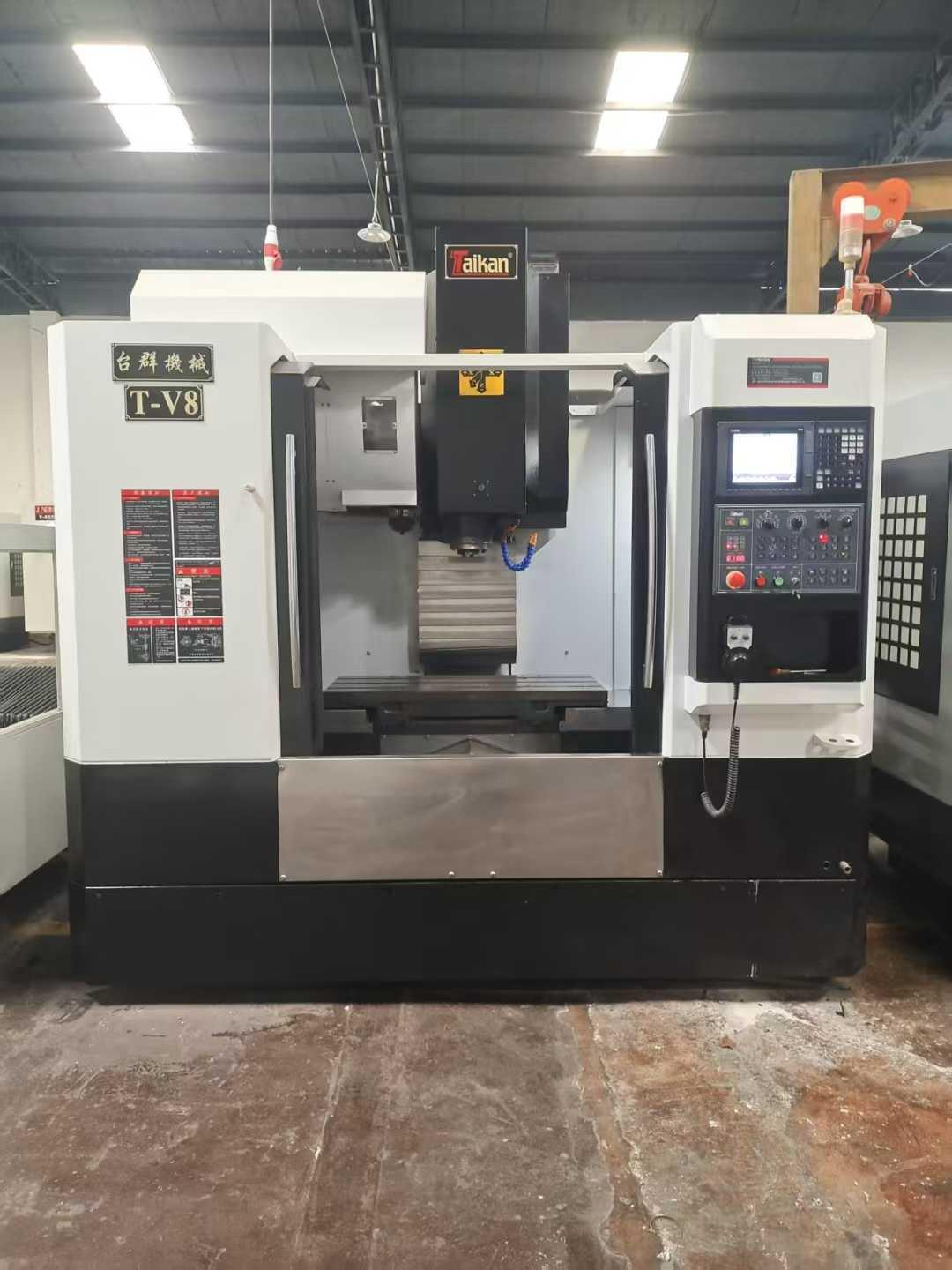

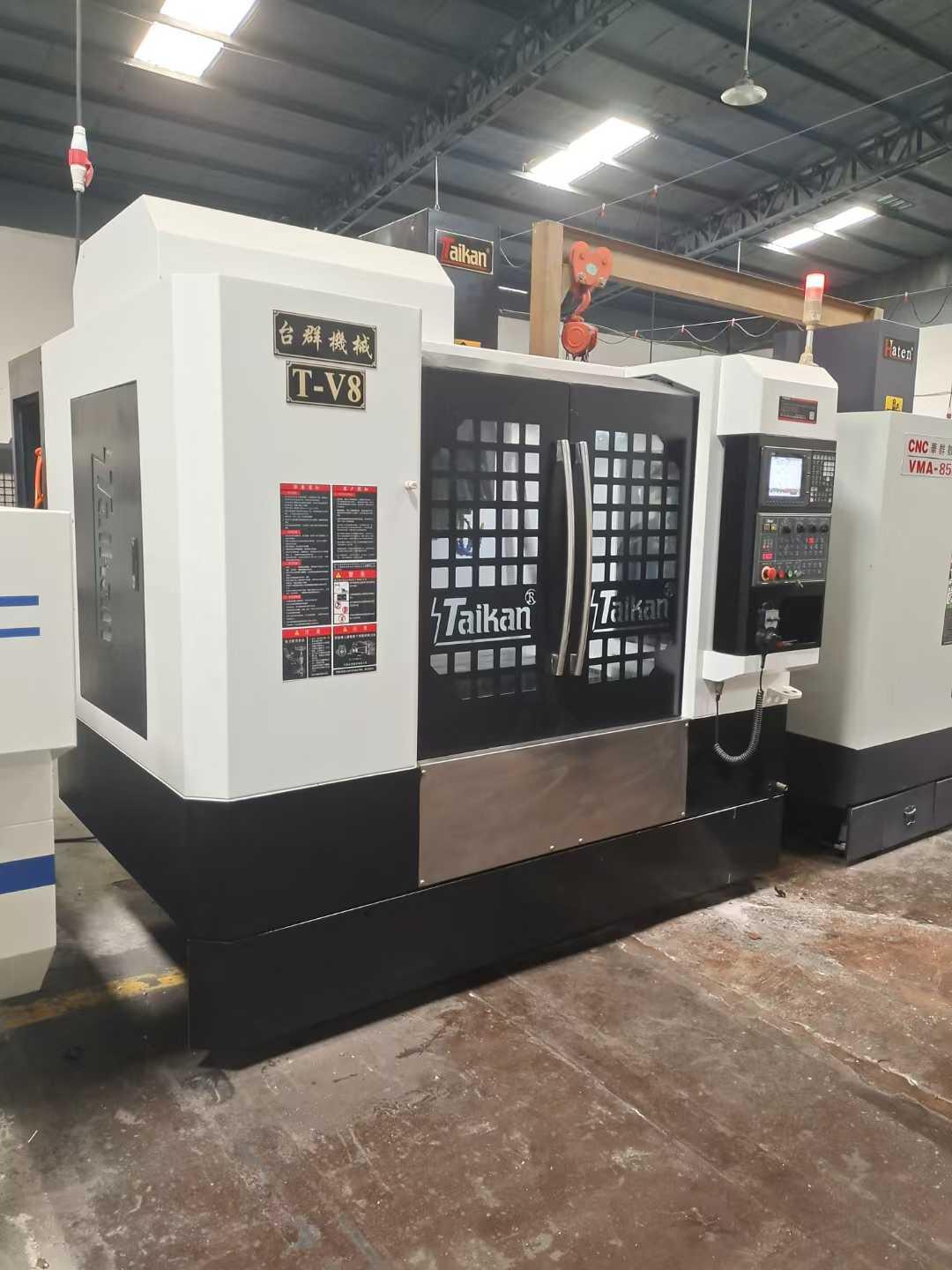

Taikan T-V8 Machining centre

WorkWorktable size :900*450mm

three-axis travel :800*500*530mm

T-slot :3*18-130mm

From the nose surface of spindle to workWorktable :100-650mm

From the center of spindle to the end face of machine body :579mm

Spindle speed: 10,000 RPM

spindle taper :BT40

spindle power :7.5kw

Fast movement :36/36/36m/min

Cutting rate :8000mm/min

Positioning precision :0.003/300mm

Weight: 6,200 kg
