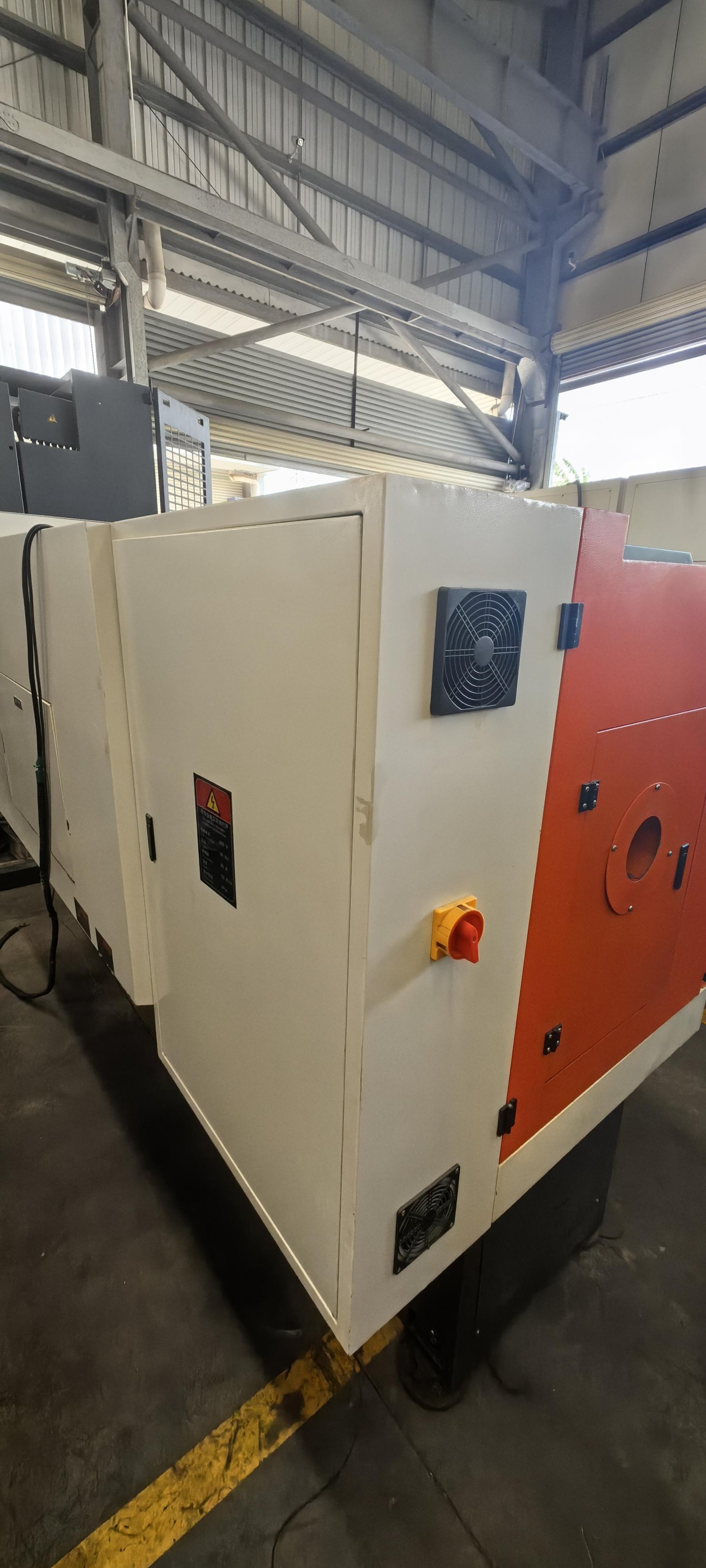

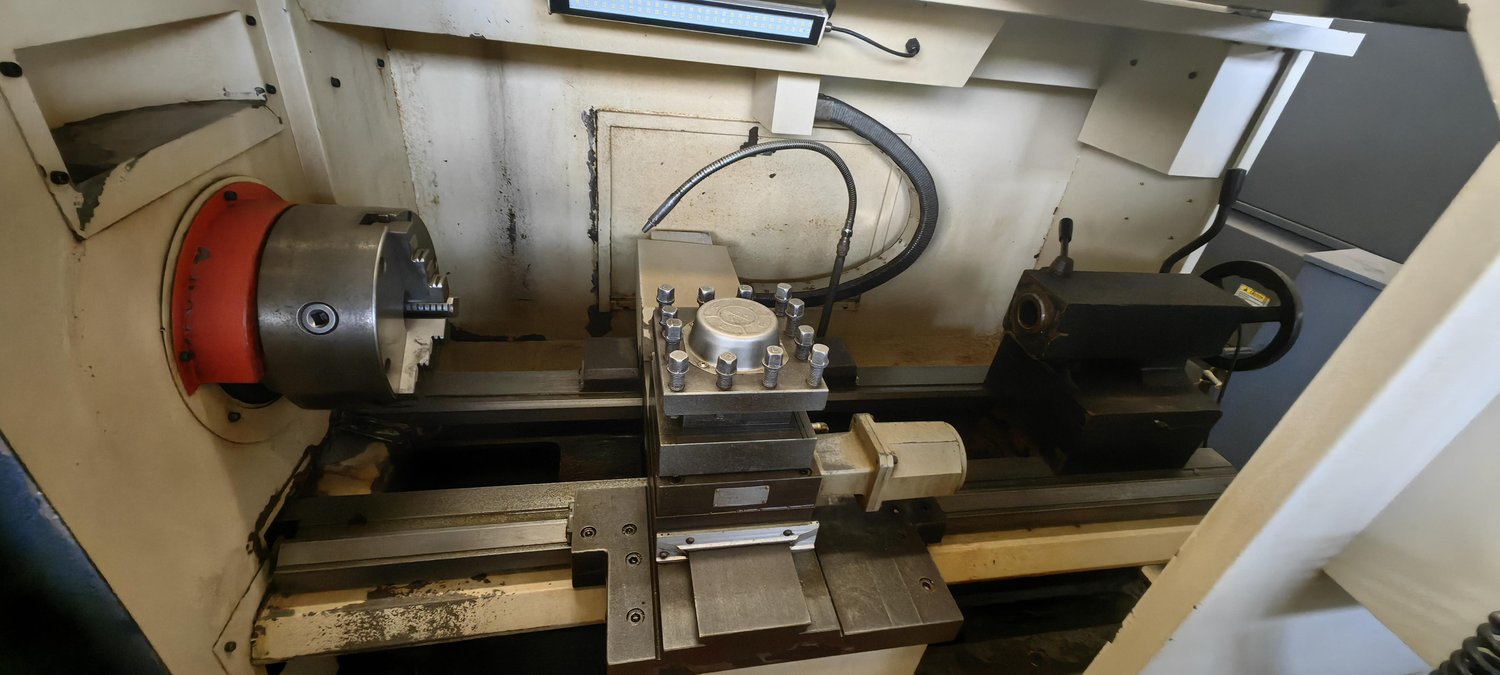

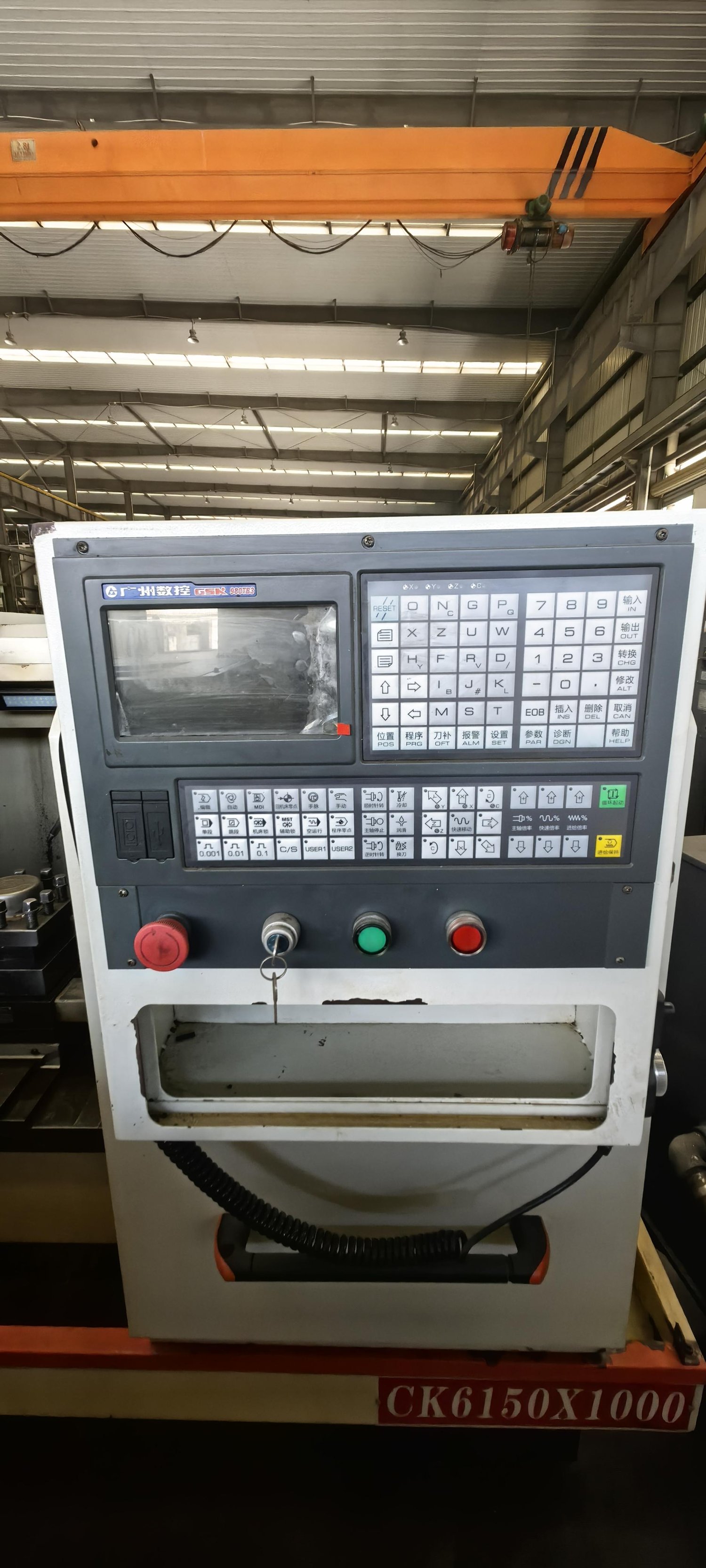

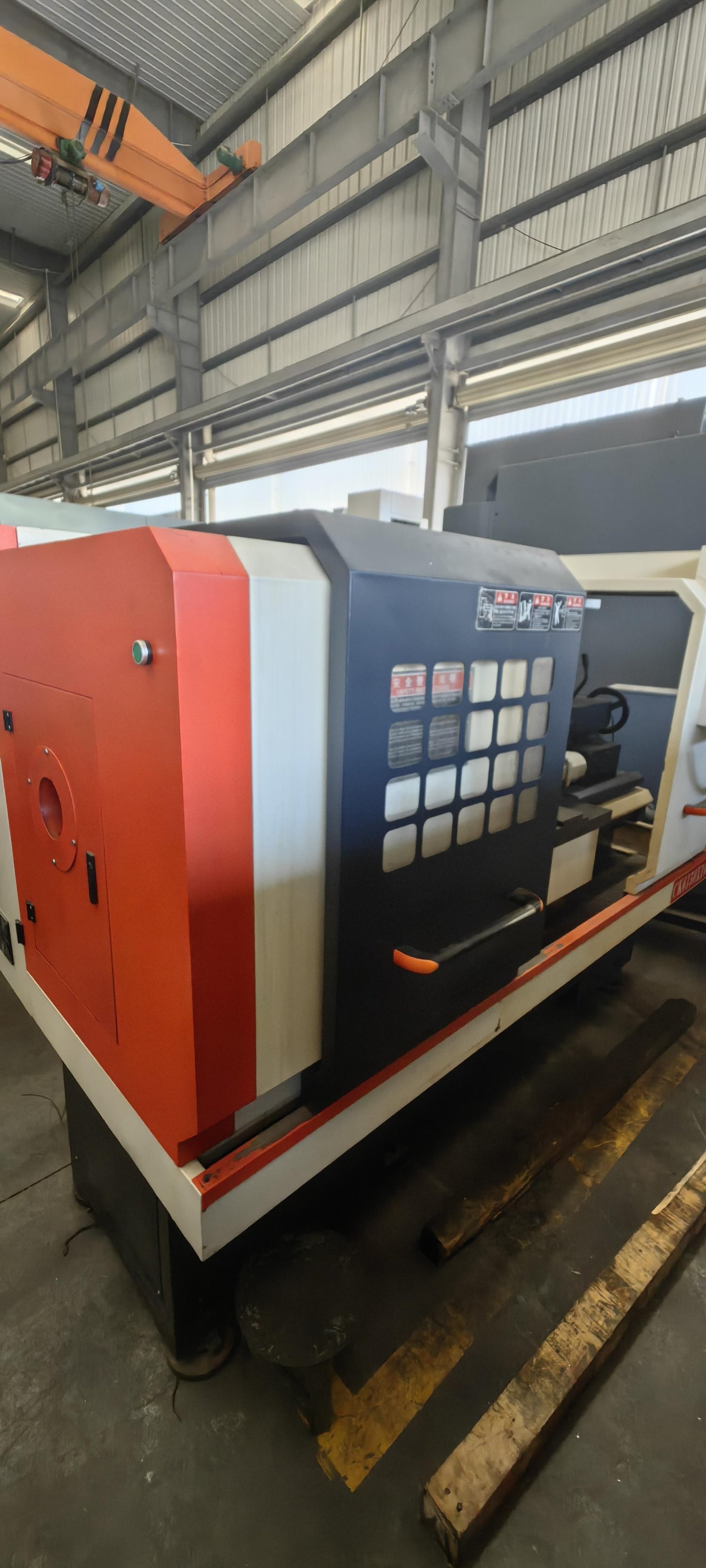

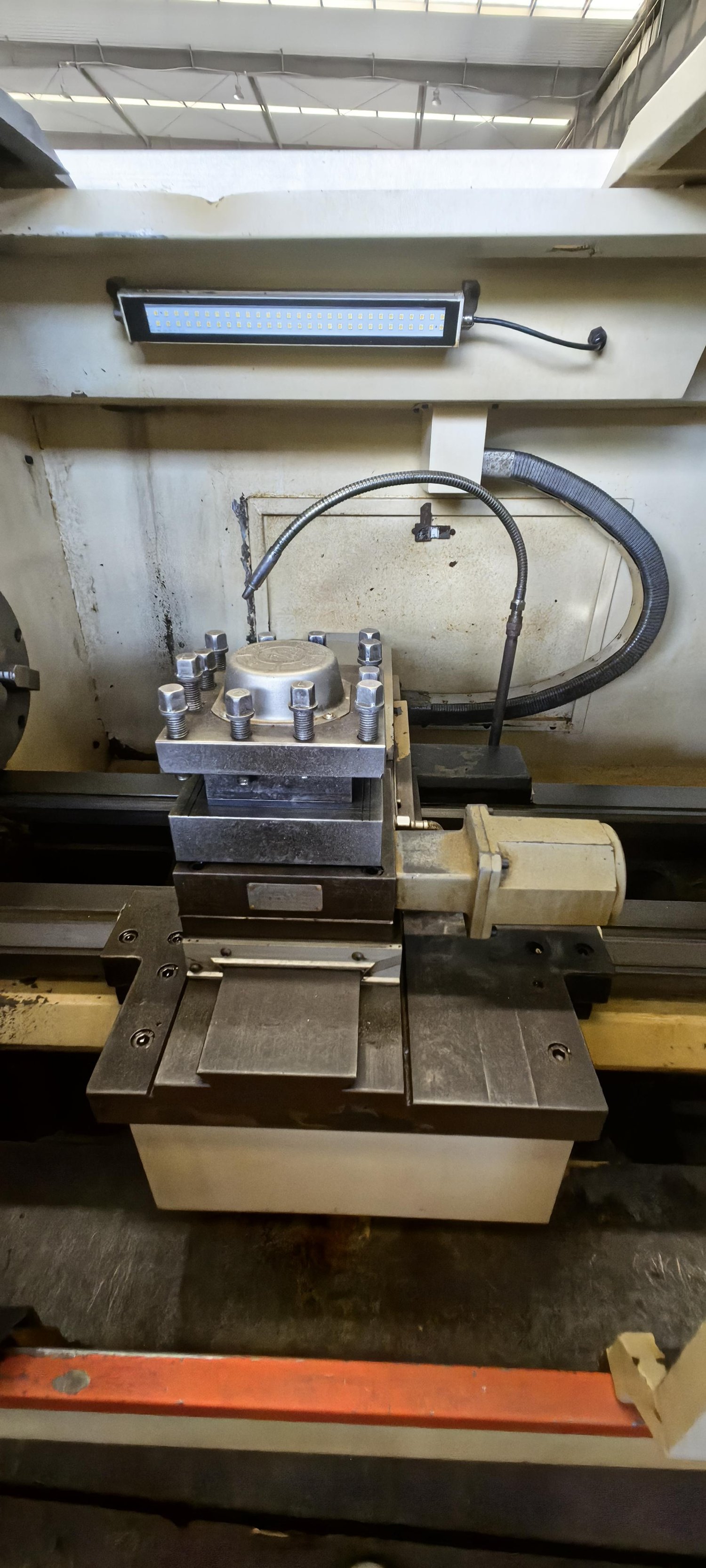

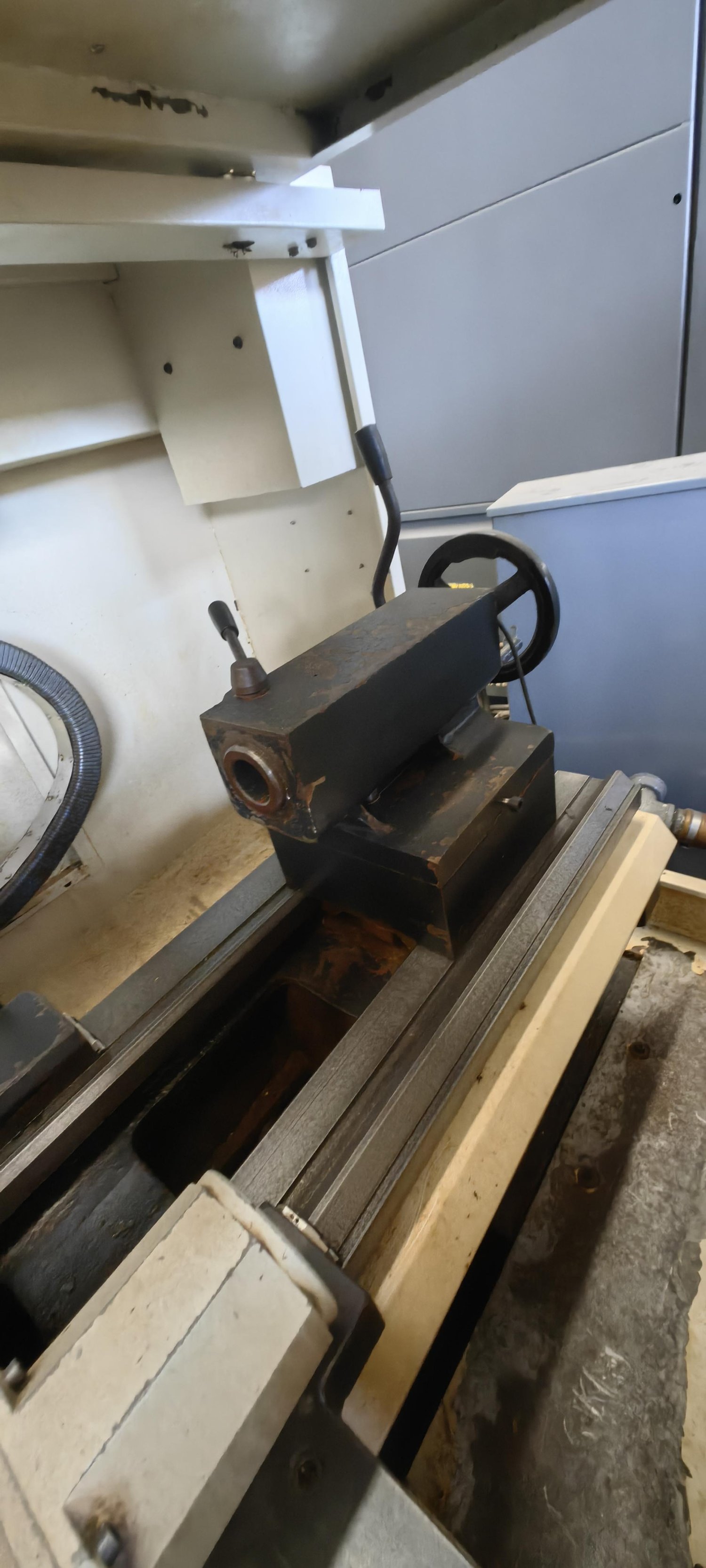

Nanjing Machine Tool CK6150X1000 CNC turning lathe
[Product Information]:
- Inventory number：64197
- Brand：Nanjing Machine Tool
- Model：CK6150X1000
- Origin：China
- Location：China
- Year：2020
- Create Time：2025-04-23
Specifications:
The maximum rotational diameter of the workpiece on the bed : Φ500mm
The maximum workpiece rotary diameter on the slide plate is : Φ225mm
Maximum workpiece length : 1000mm
Width of the bed guideway : 400mm
Maximum travel of the slide plate (X direction) : 510mm
The maximum travel of the Z-direction support plate : 850mm
The diameter of spindle through hole is : 82mm
Spindle speed: 1700rpm
Main motor power : 7.5kW
tailstock quill shaft taper : MT5
tailstock quill shaft diameter : 75mm
tailstock quill shaft travel : 150mm
Positioning precision : 0.008mm
