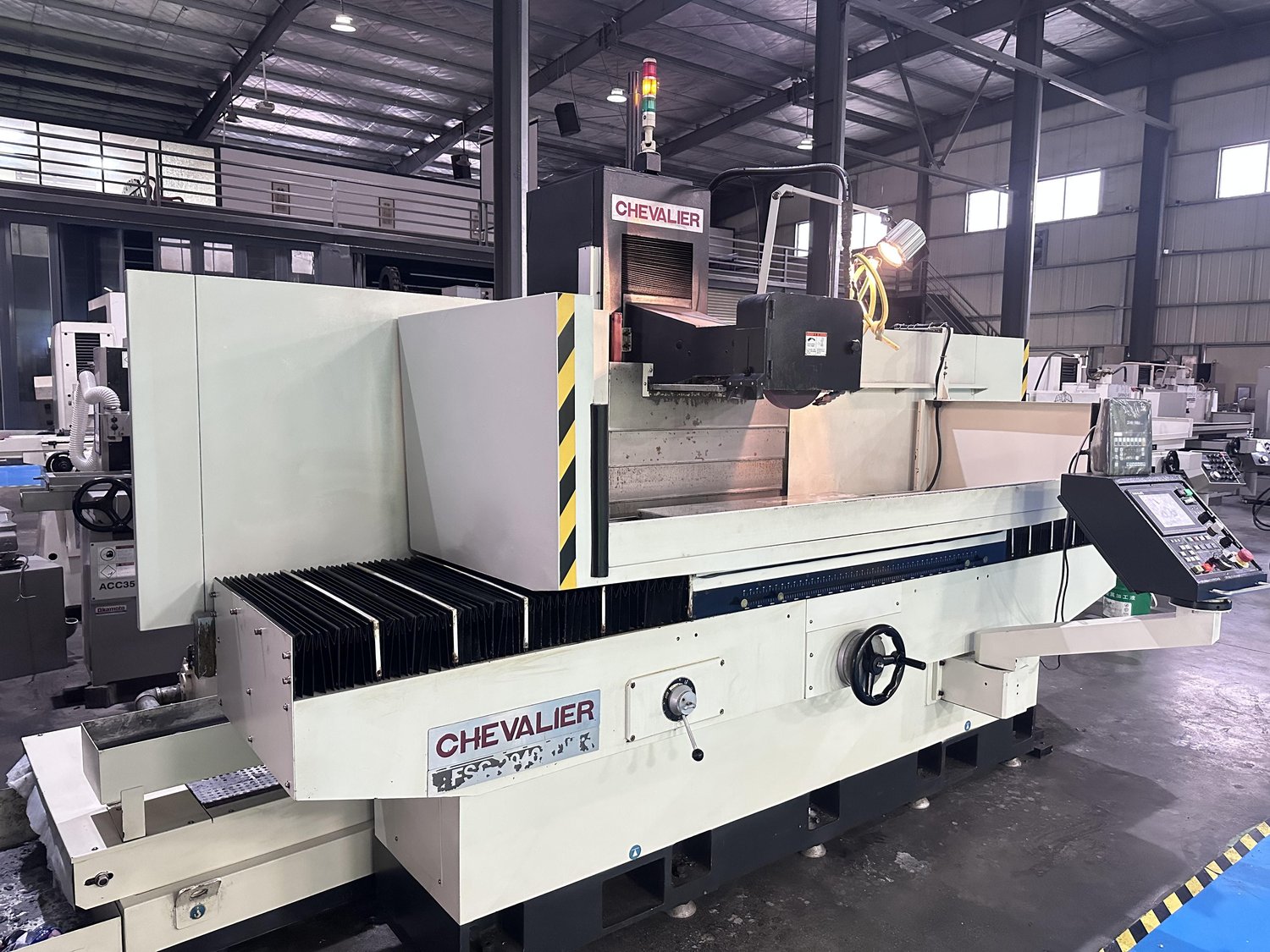

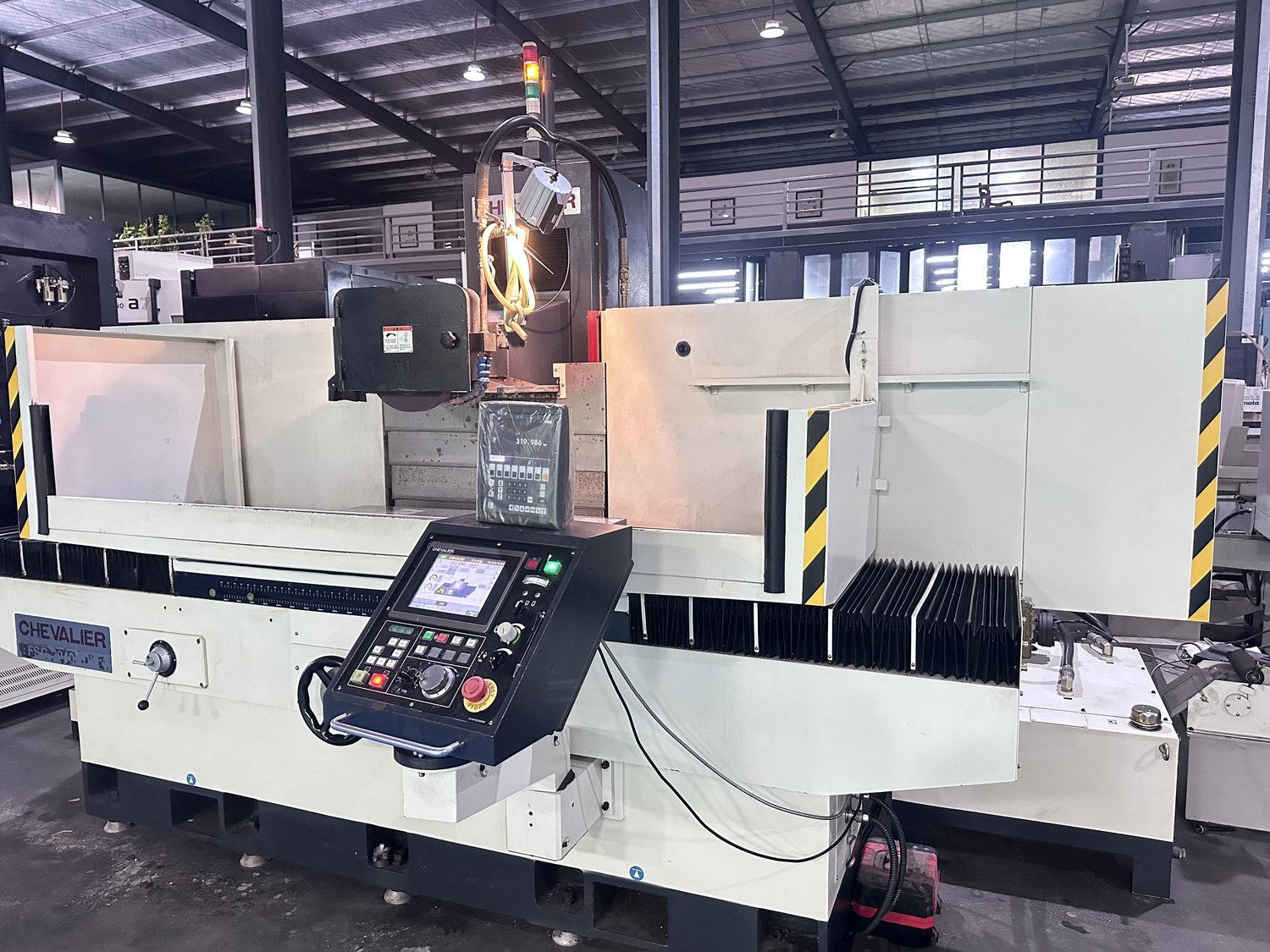

Chevalier FSG-2040ADIII Grinding machines

Capacity capacity Grinding length - left-right direction: 1000mm

Grinding width - forward and backward: 500mm

Distance from workWorktable to the center of spindle: 730mm

WorkWorktable size: 500x1000

T-slot: 14x160x3

Distance from workWorktable to the ground: 990mm

Lateral movement travel: 560mm

Fast vertical movement of the wheel head: 400mm/min

Each scale: 0.001mm

Spindle speed: 1,750rpm

grinding wheel (external diameter x width x hole diameter) : 035mm x050mm x0127mm

spindle motor: 5.6kW

Power supply capacity: 13.5kW

Mechanical Footage: Mechanical height: 2,719mm

Floor area: 3,810mmx 2,997mm

Machine weight: 6,200Kg
