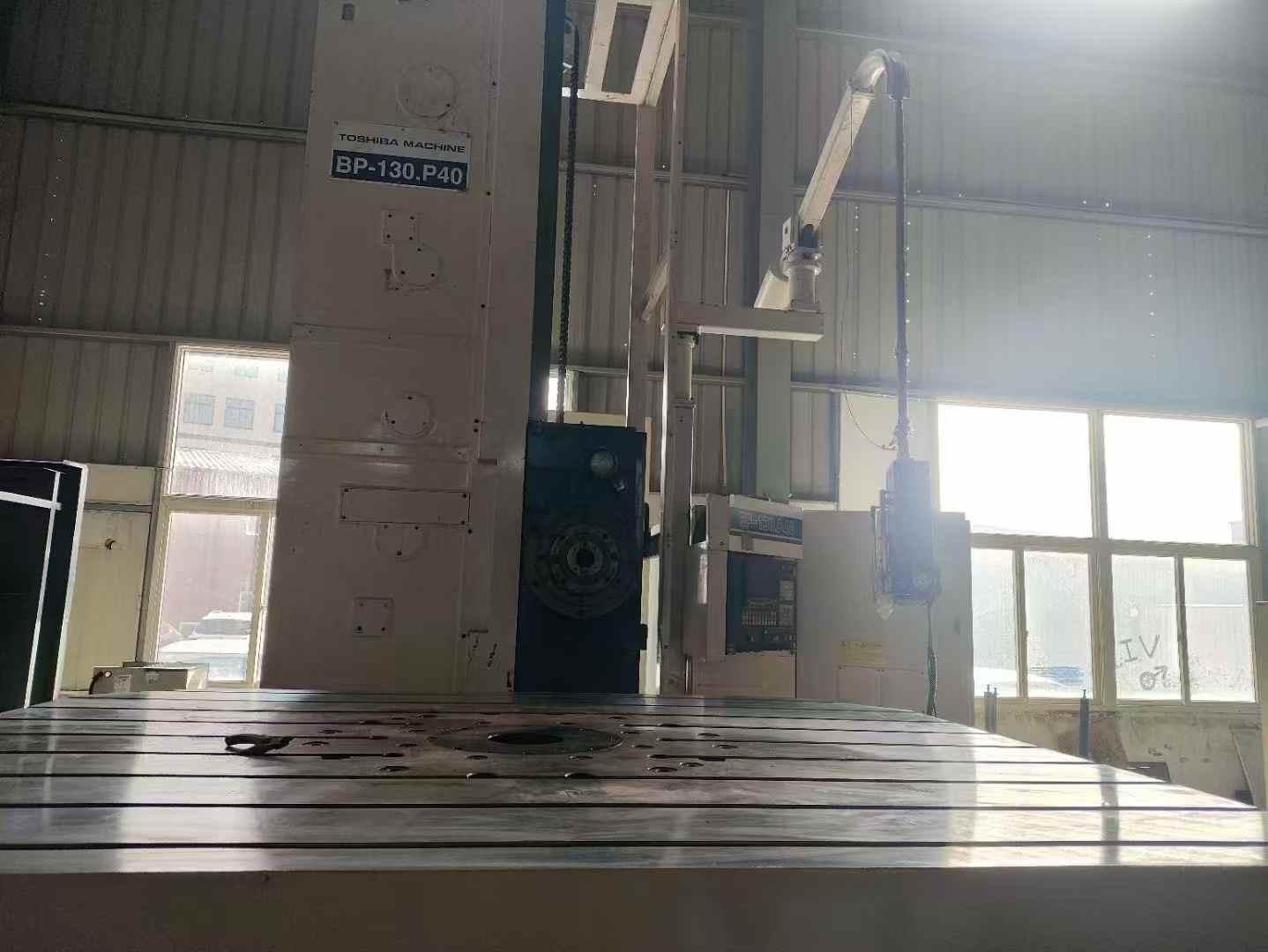

Toshiba BP-130.P40 Boring and milling machine

Four-axis travel: 4064*2540*1524*711.2mm

Distance from the surface of workWorktable to the centerline of spindle: 101.6-2646.6mm

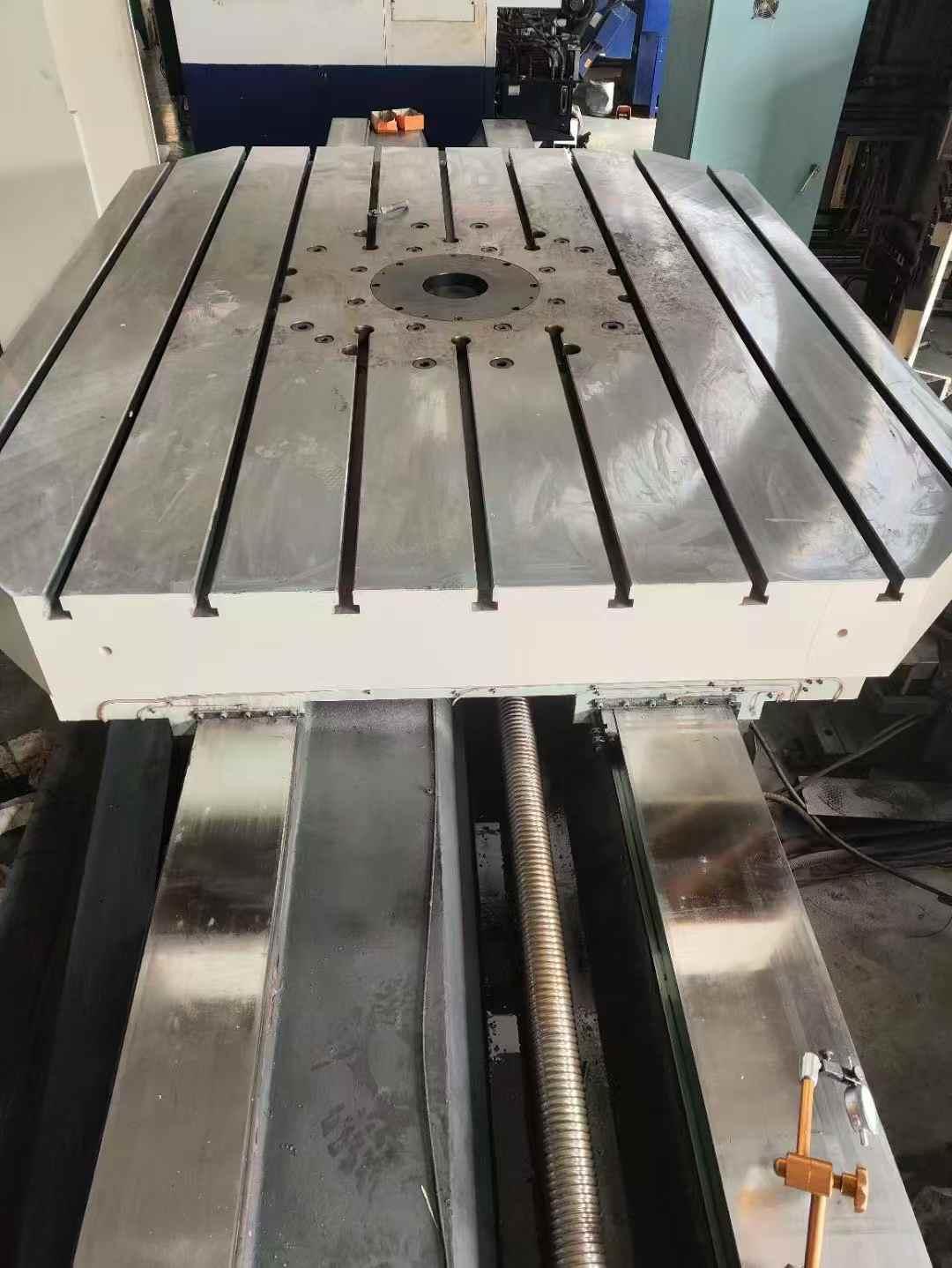

WorkWorktable size: 1778*3937mm

The maximum loading capacity of workWorktable is 25,000 kg

Spindle diameter: 130mm

Spindle speed: 2500rpm

The rapid conveying speed of the X*Y*Z*W axis is 10,000 * 10,000 * 10,000 *5000mm/min
