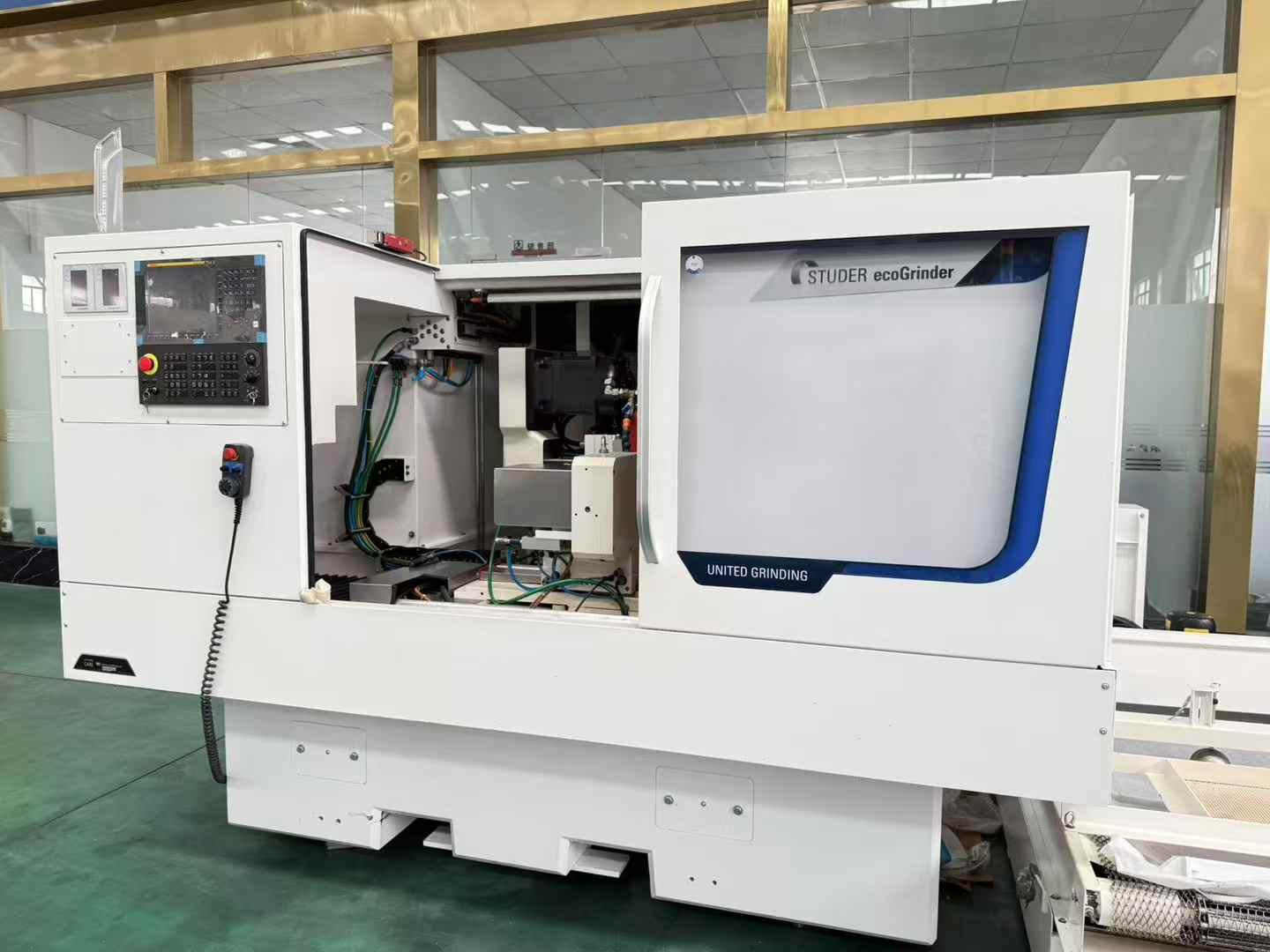

STUDER ecoGrinder other

Distance between centers: 650mm

Center height: 175mm

workpiece Load: 80kg

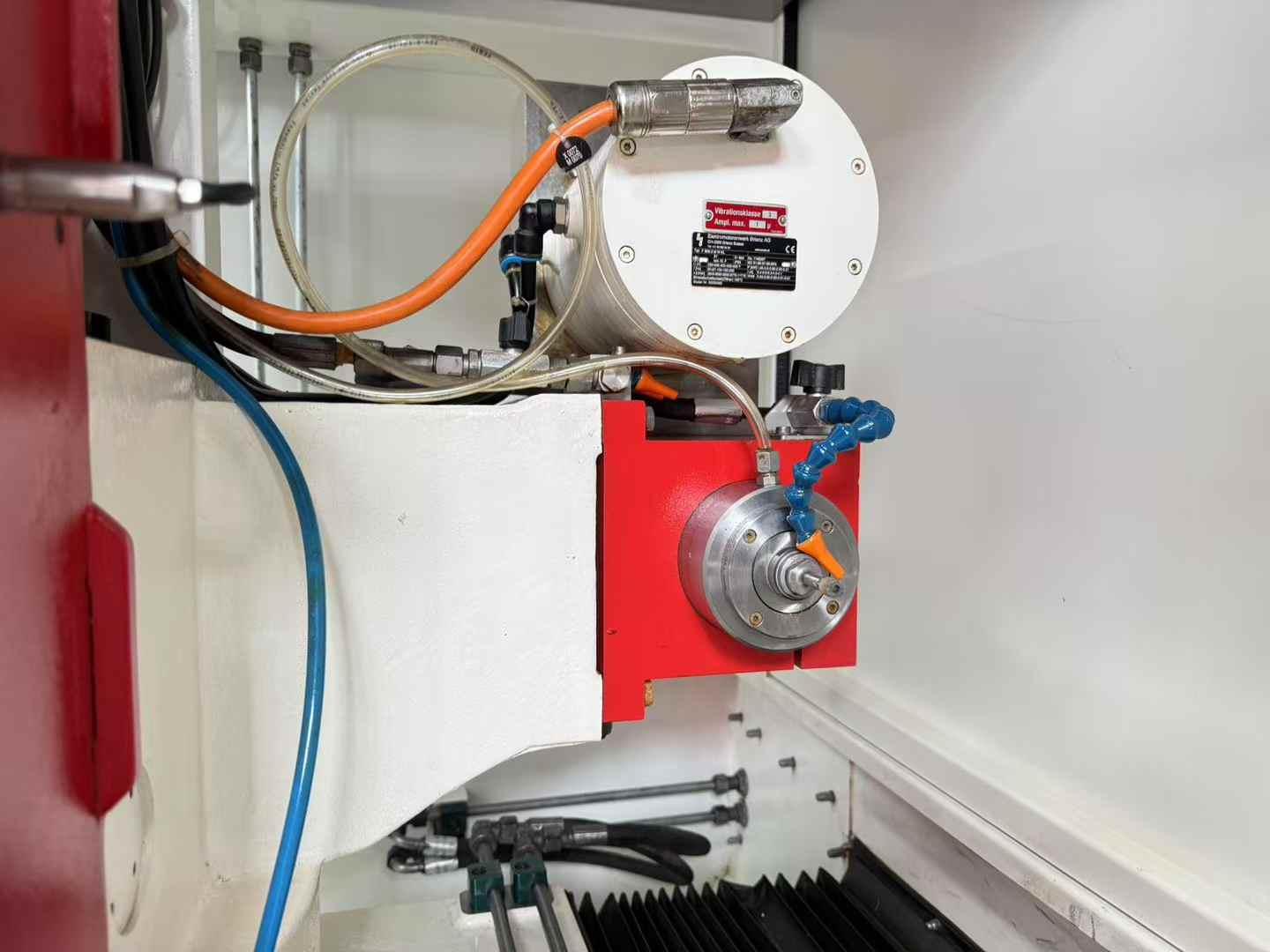

60,000rpm internal grinding head (oil mist lubrication)

B1 rotation axis: -15° ~ +195°

Worktable rotation: 8.5°

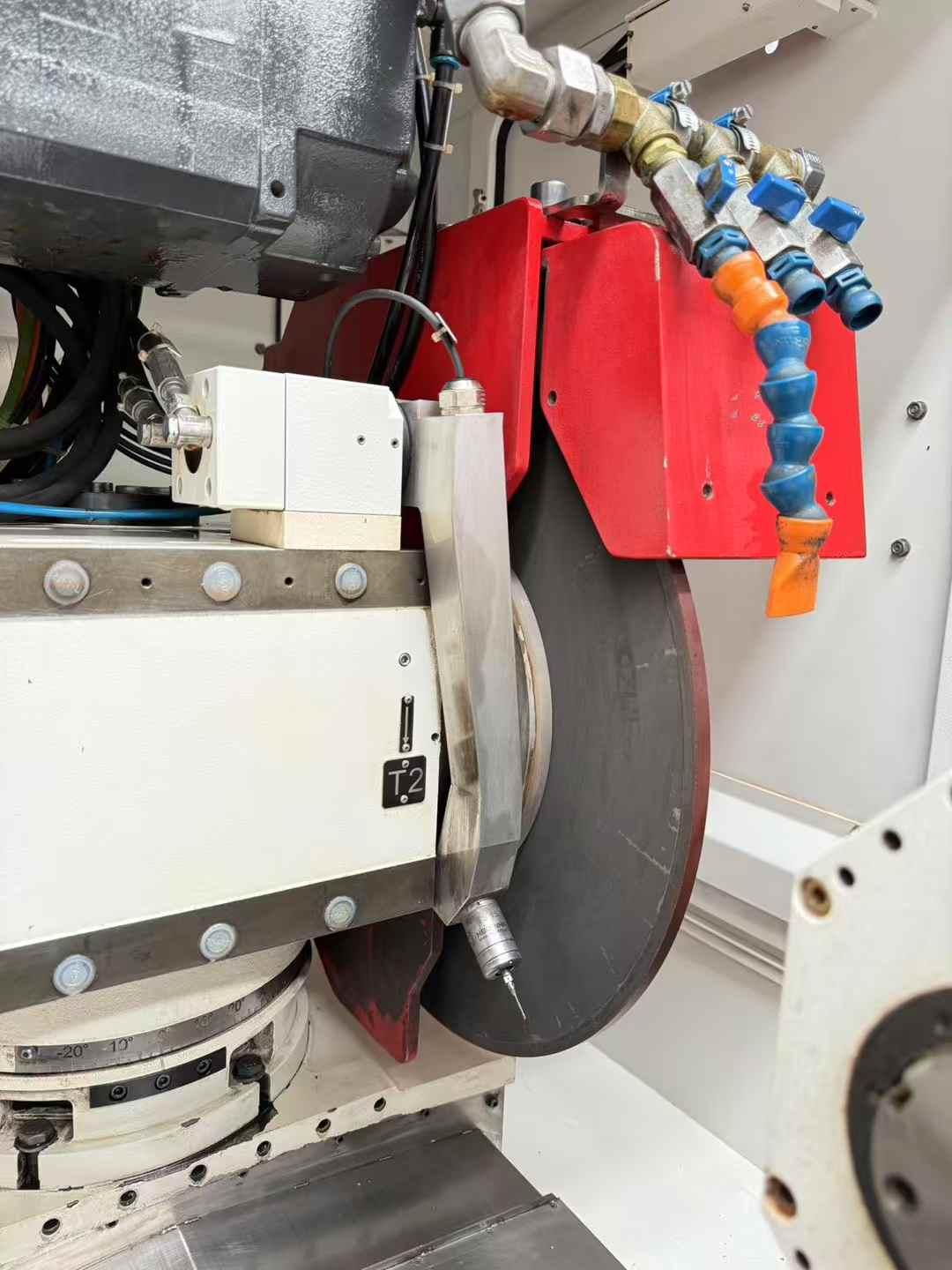

grinding wheel diameter: 500*63*203mm

spindle grinding roundness: 0.0004

Straight degree: 0.0025mm

Settings:

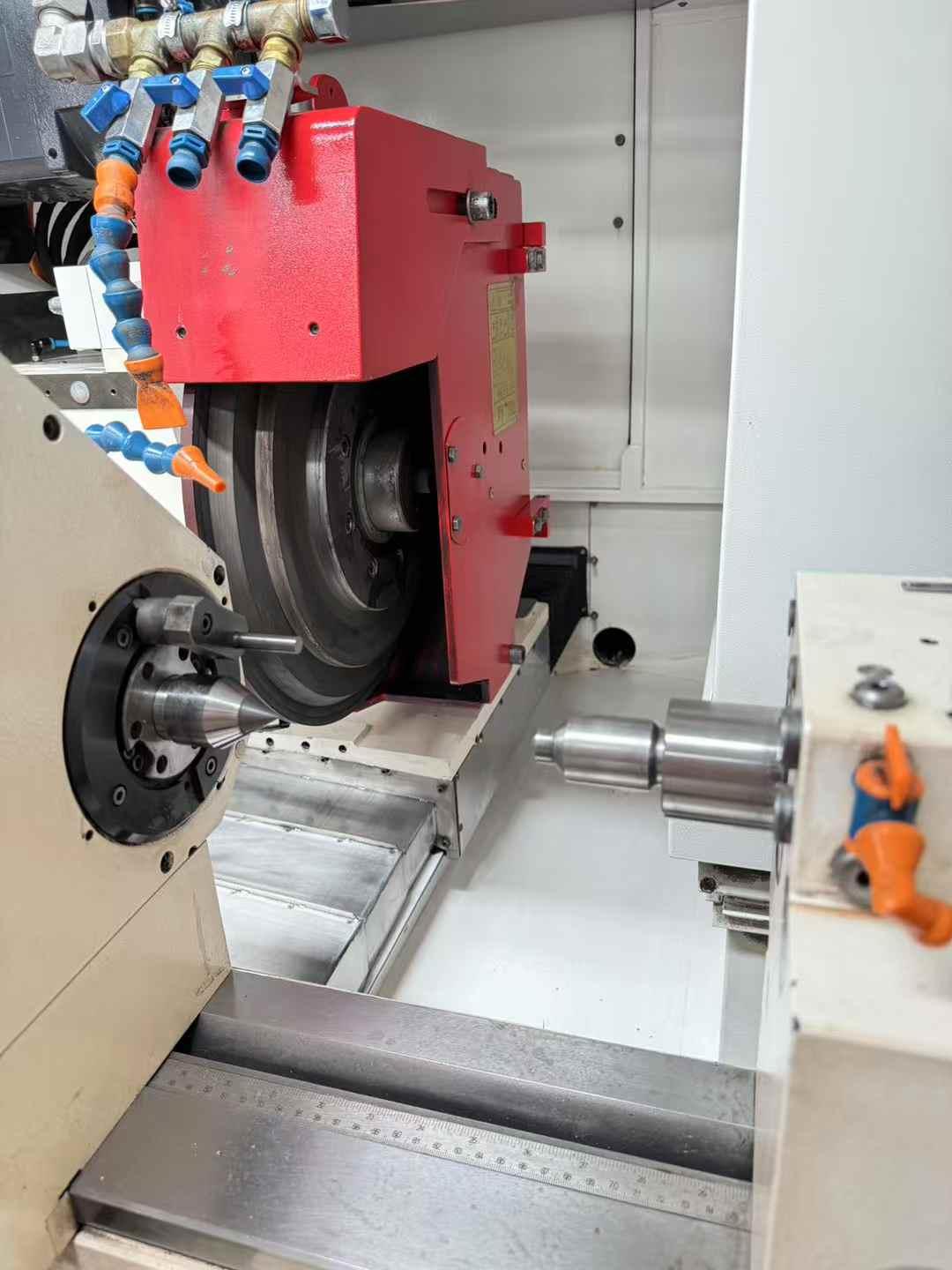

Internal and external circular double grinding head

Granite bed

Taper fine-tuned tailframe MT3

workpiece Workhead MT4/70

FANUC Control CNC System

Studer  GRIND programming software

Marposs cut detection/dynamic balance detection

Heidenhain end detection

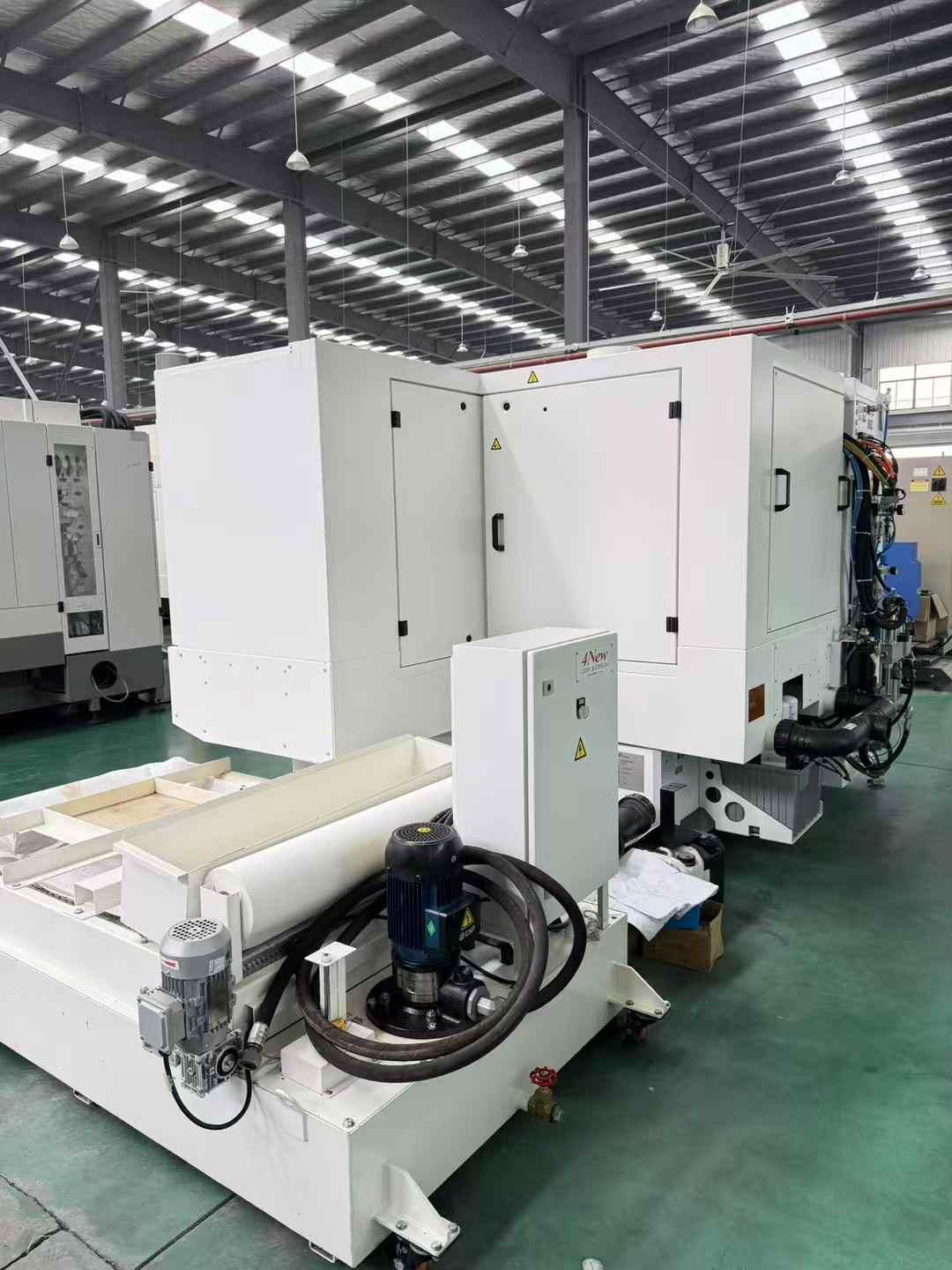

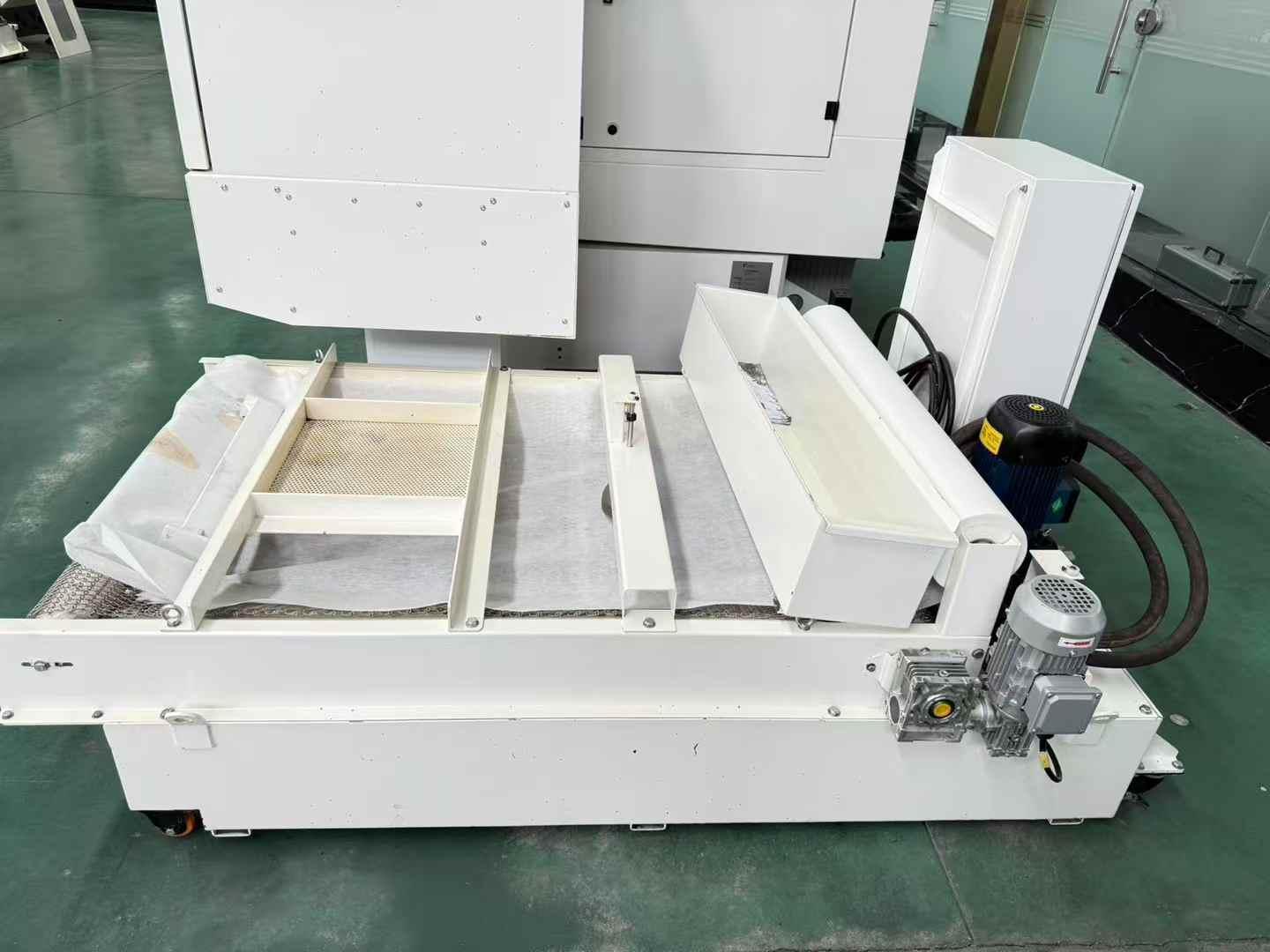

Paper tape filtration CNC System
