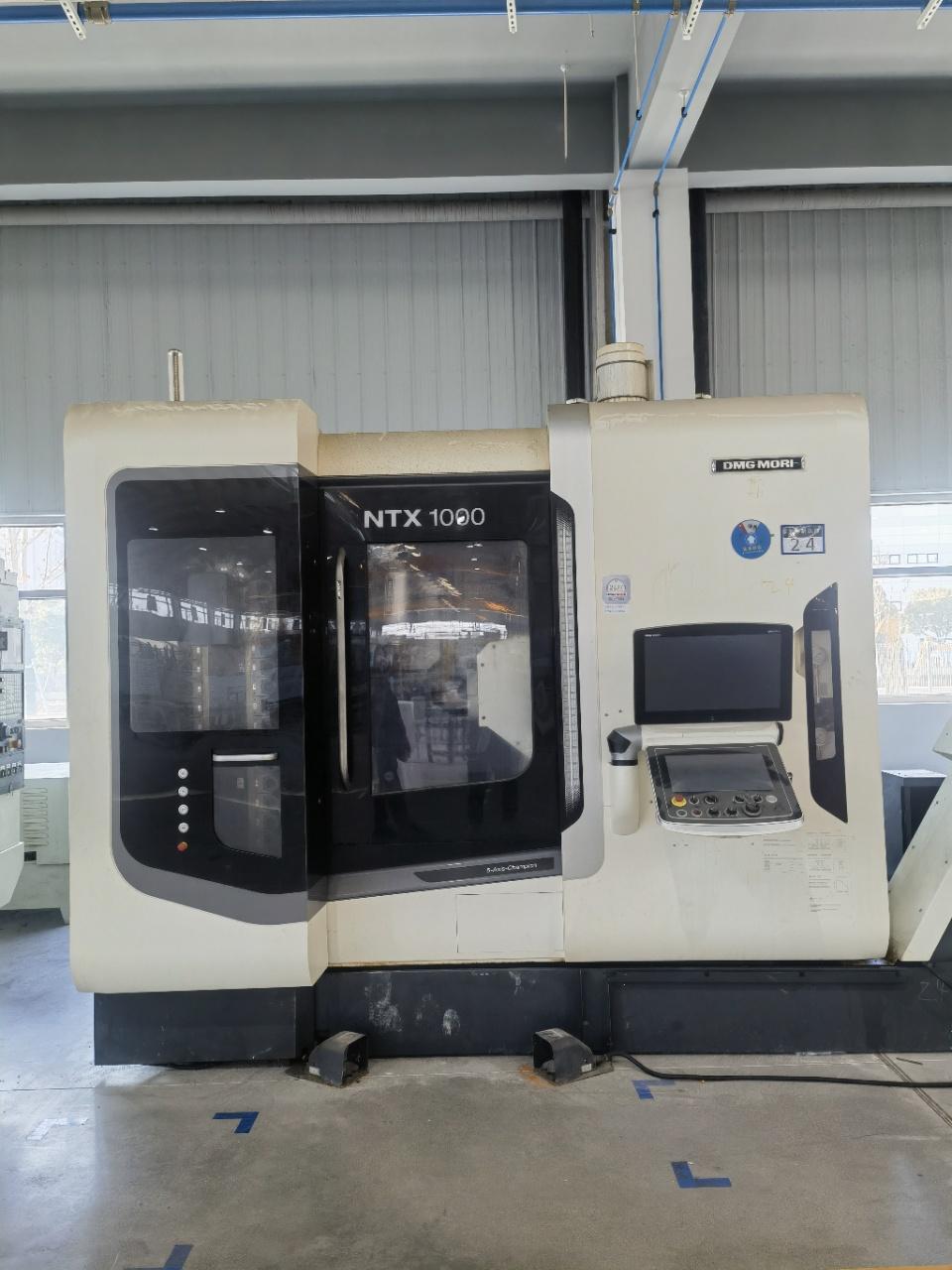

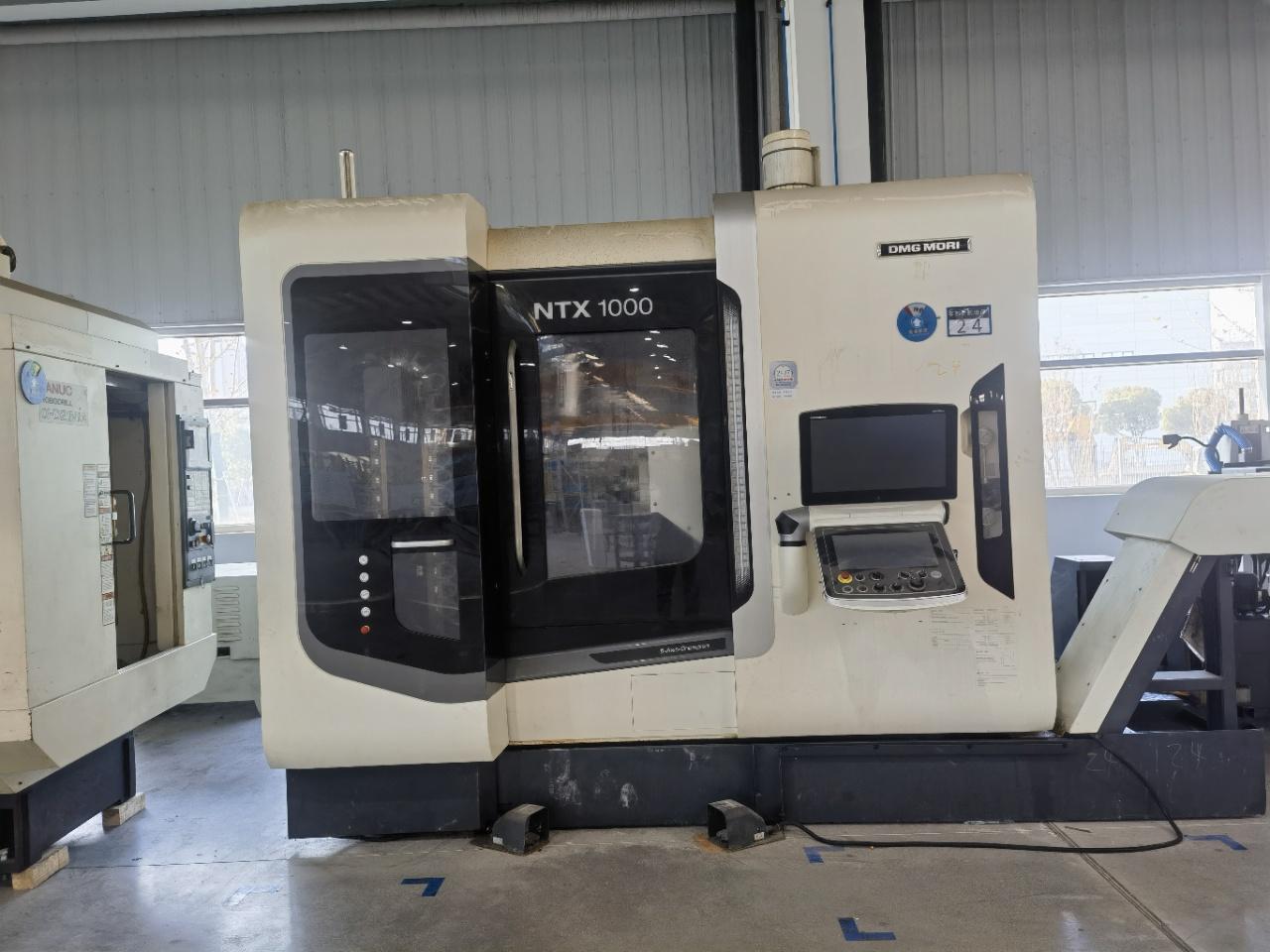

NTX1000 NTX1000 Turn Mill Machining Centre
[Product Information]:
- Inventory number：4486117
- Brand：NTX1000
- Model：NTX1000
- Origin：Germany
- Location：China
- Year：2018
- Create Time：2025-03-22
Specifications:
X axis travel: 455 mm
Y-axis travel: 210 mm
Z-axis travel: 800 mm
B axis: ±120°
Maximum rotating diameter: 450 mm
Maximum turning diameter: 430 mm
Maximum length machining : 800 mm
Tool Spindle speed: 12000 rpm

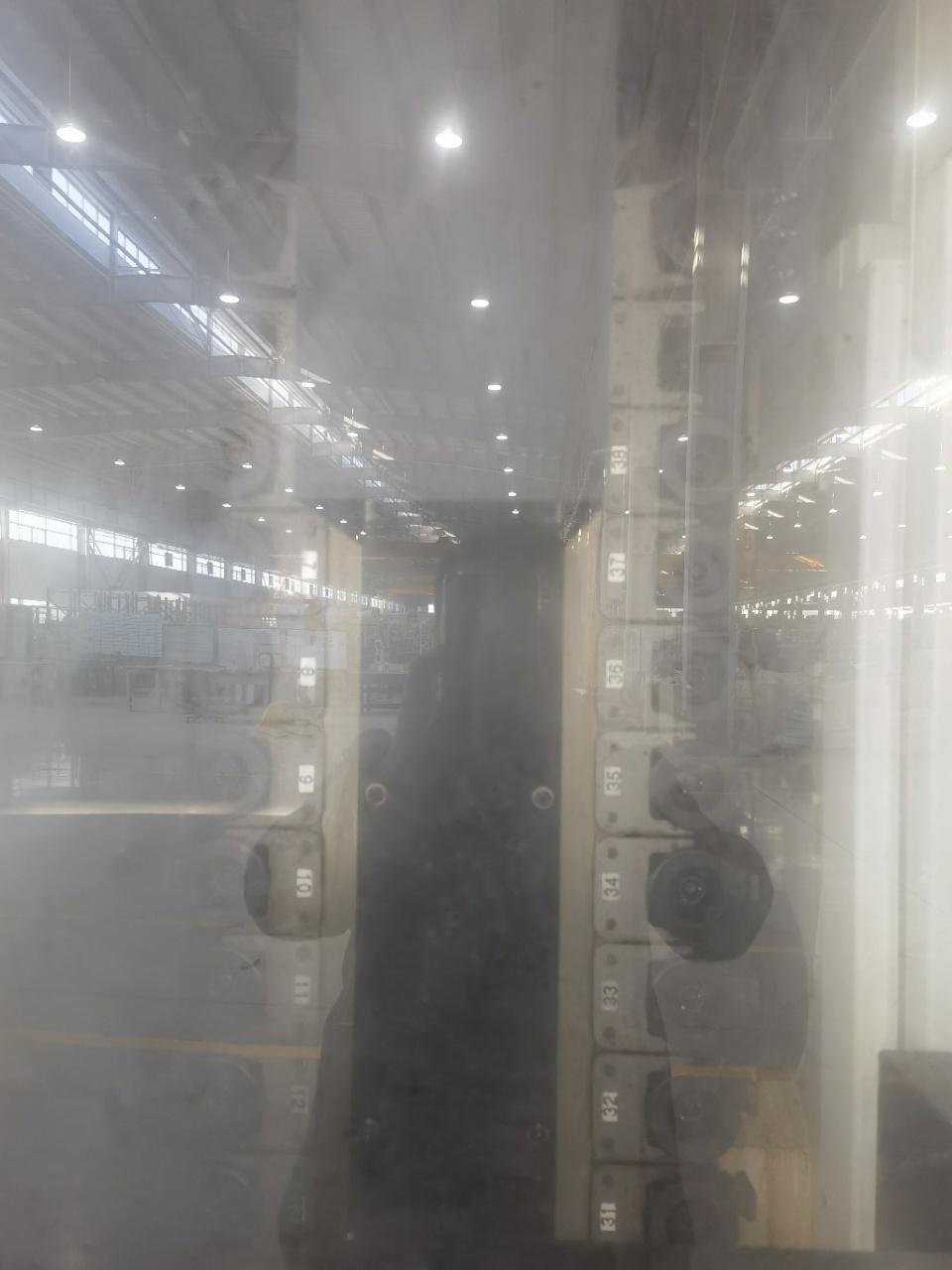

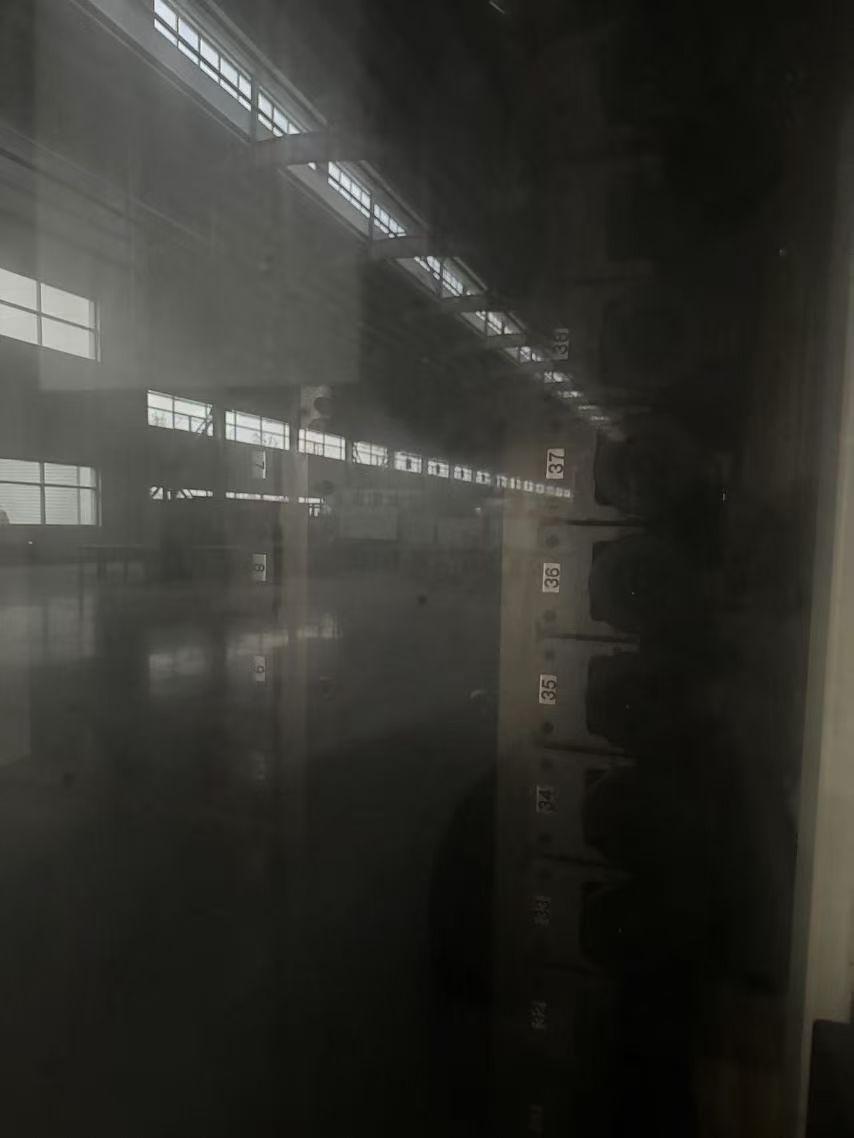

tools magazine: 38
spindle/Subspindle speed: 6000 rpm
Chuck size: 6 inches
Settings:
The high pressure Center flushing water is 3.5 Mpa
Chip conveyor
Water gun
Oil mist collector

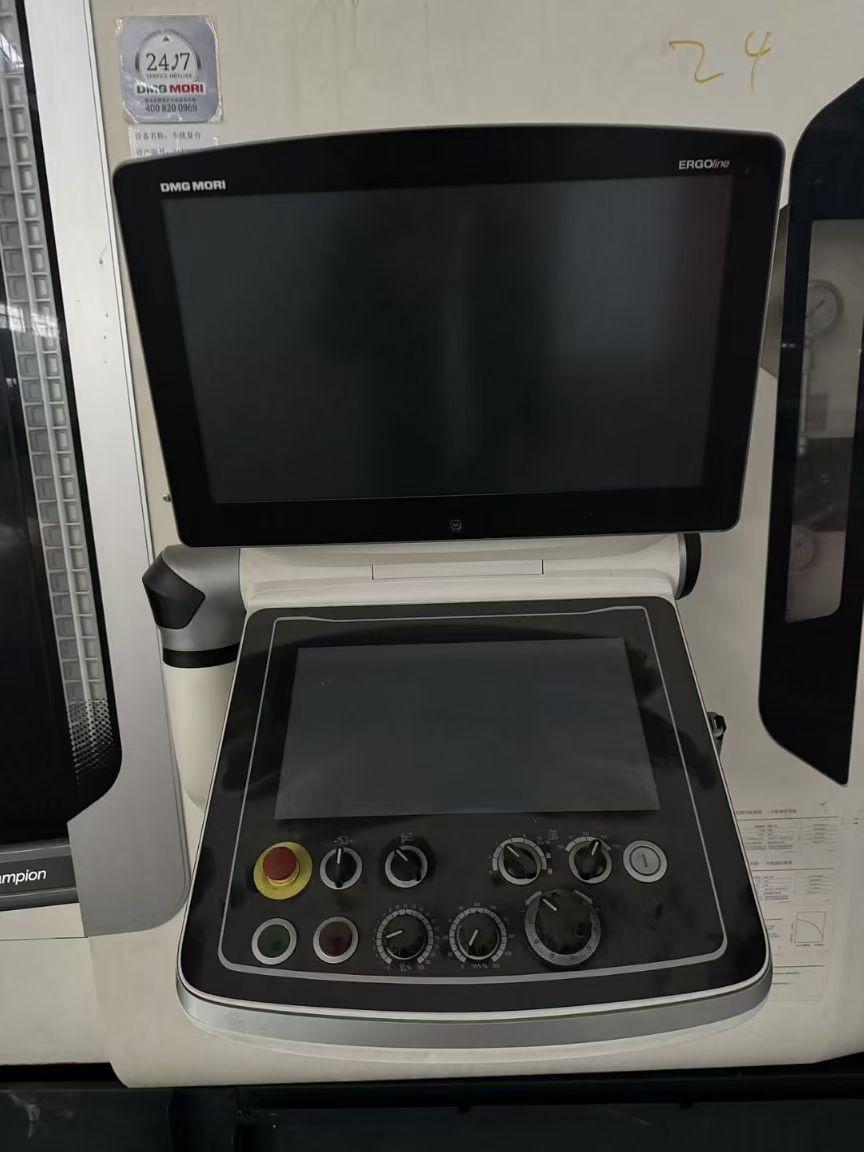

Tool measuring CNC System
On-line workpiece measurement CNC System
Each axis glass scale (magnetic glass scale)
