DMG NEF400 CNC turning lathe

Maximum rotating diameter of the bed: 385mm

Maximum turning diameter on the slide plate: 350 mm

chuck  diameter: 200mm

Maximum cutting diameter: 350 mm

Maximum cutting length: 550 mm

X axis travel: 255 mm

Z-axis travel: 600 mm

X Fast movement: 30 m/min

Z Fast movement: 30 m/min

X Maximum thrust: 6000 N

Z Maximum thrust: 8500 N

Spindle speed: 4000 rpm

Maximum power: 11.5kW

Maximum torque: 340 Nm

spindle nose: A2-6

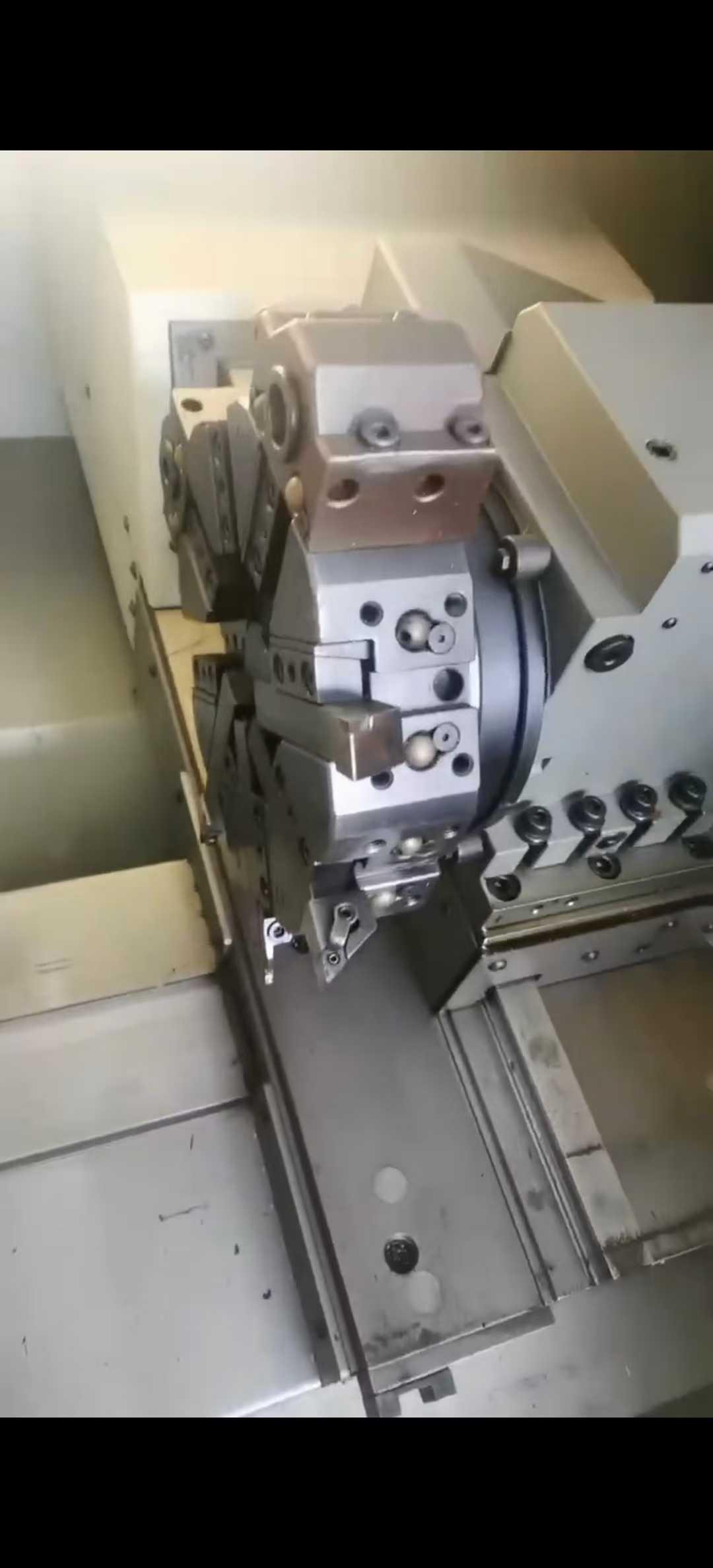

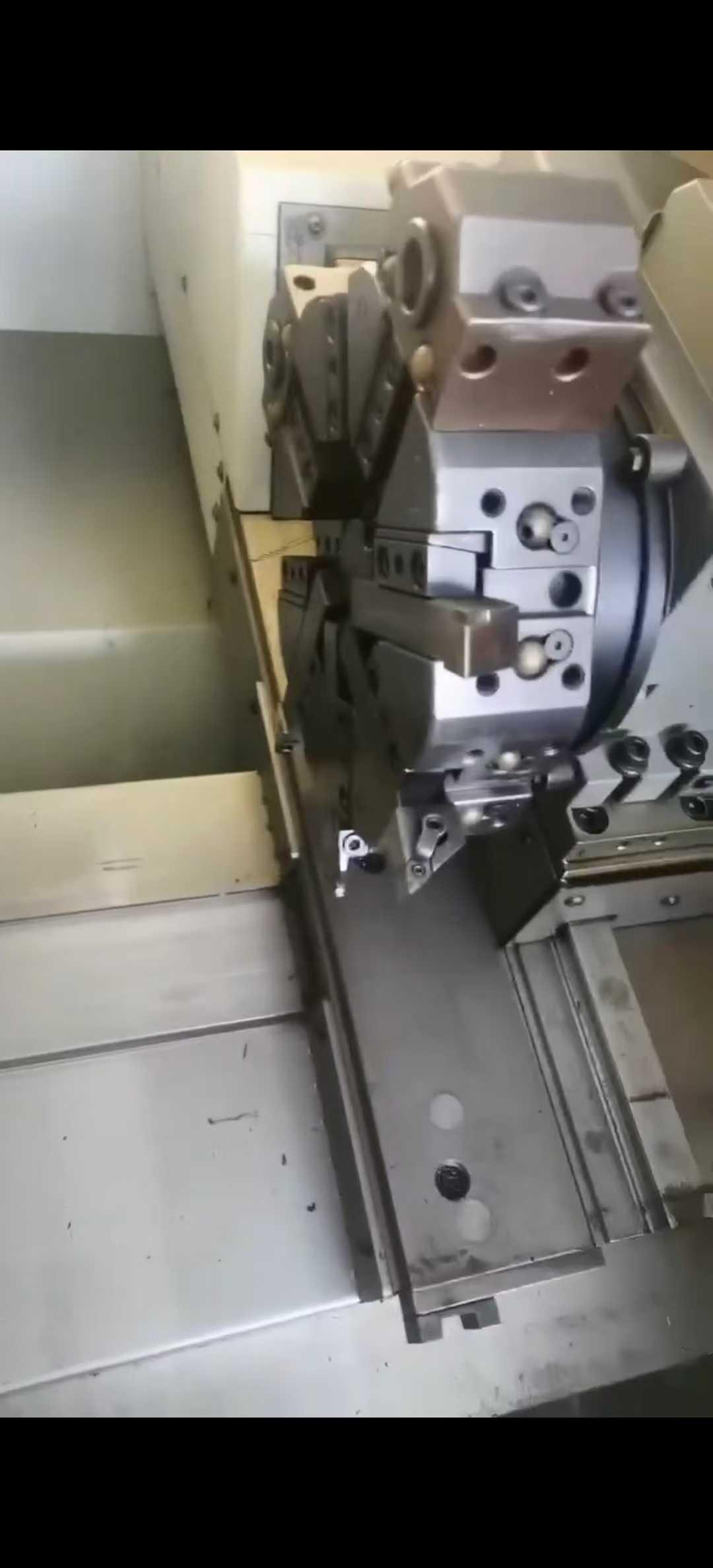

tools magazine: 8
