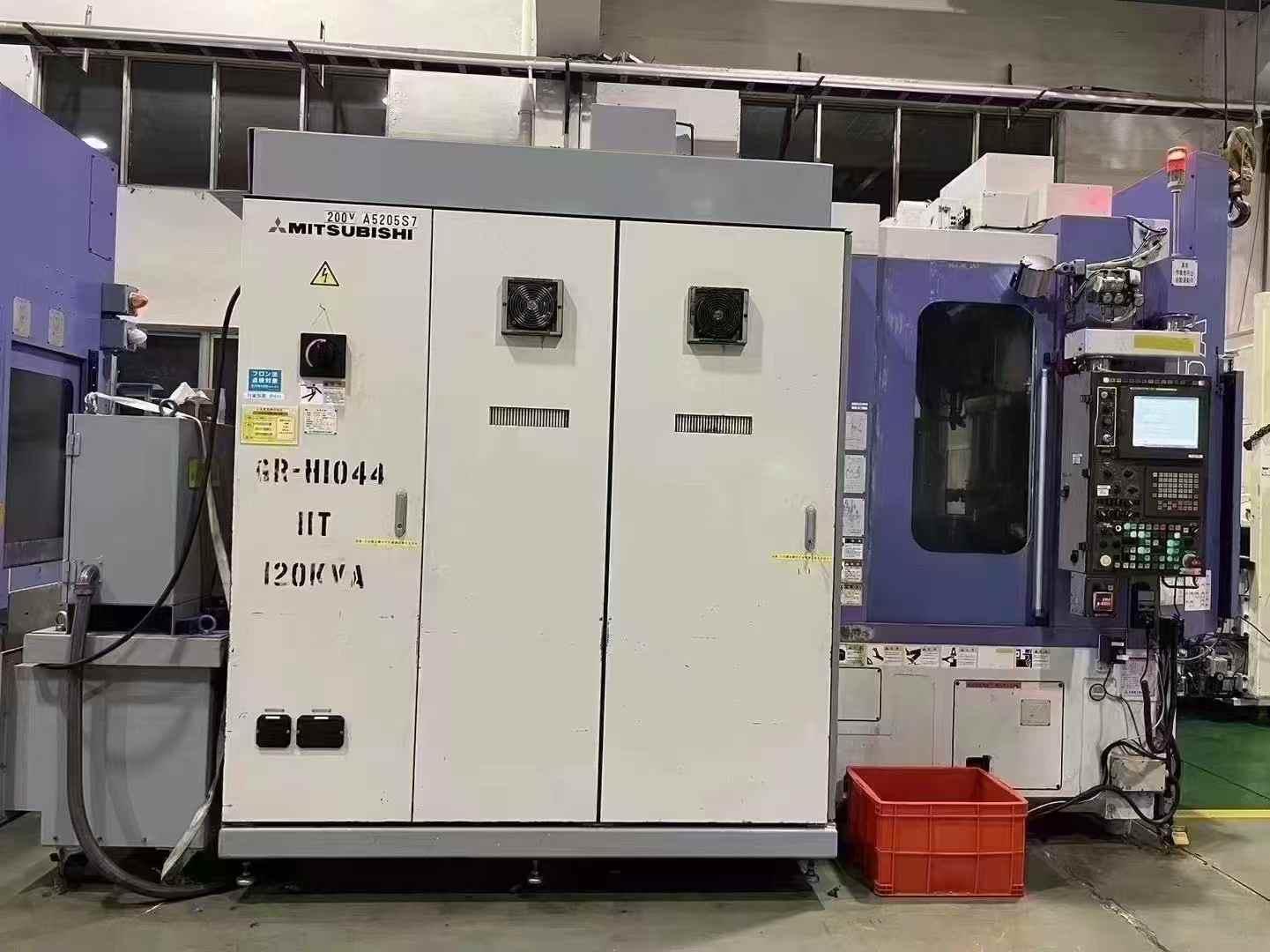

Mitsubishi ZE15A Gear grinding machine

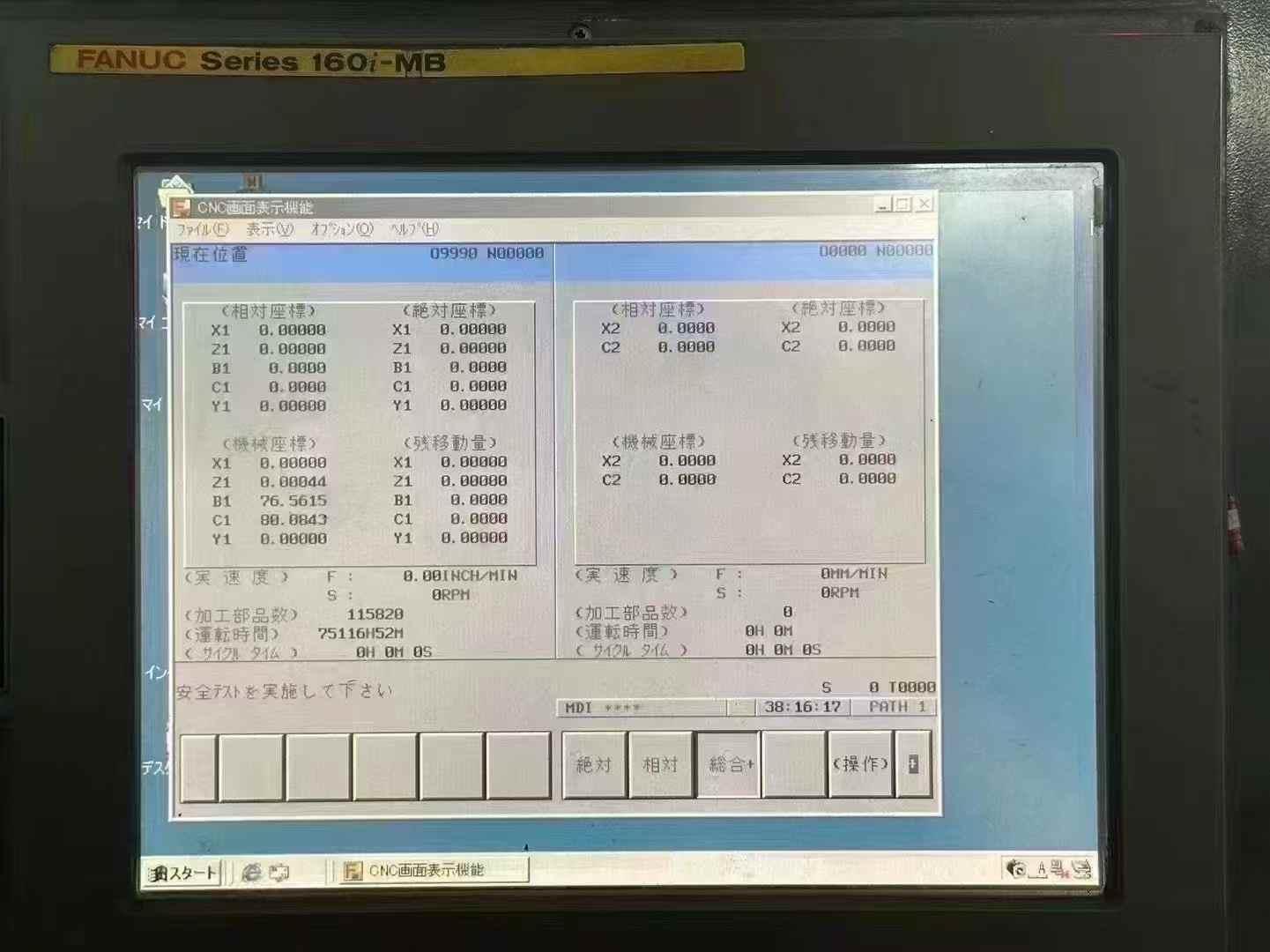

CNC CNC System: FANUC  SEREINes  16Oi-MB

Maximum working diameter: 150mm

machining  module: 1 ~ 4mm

grinding wheel size: 300*125*150mm

grinding wheel displacement: 200mm

grinding wheel speed: 4500min

Axial feed: 250mm

Distance between grinding wheel center and WorkWorktable surface: 190 ~ 440mm

Maximum rotating speed: 1500min

Radial fast feed rate: 10000mm/min

Main motor: 17KW

Oil pressure: 7MPa

Equipment size: 3860*4500*2720mm

Total electricity consumption: 120KVA
