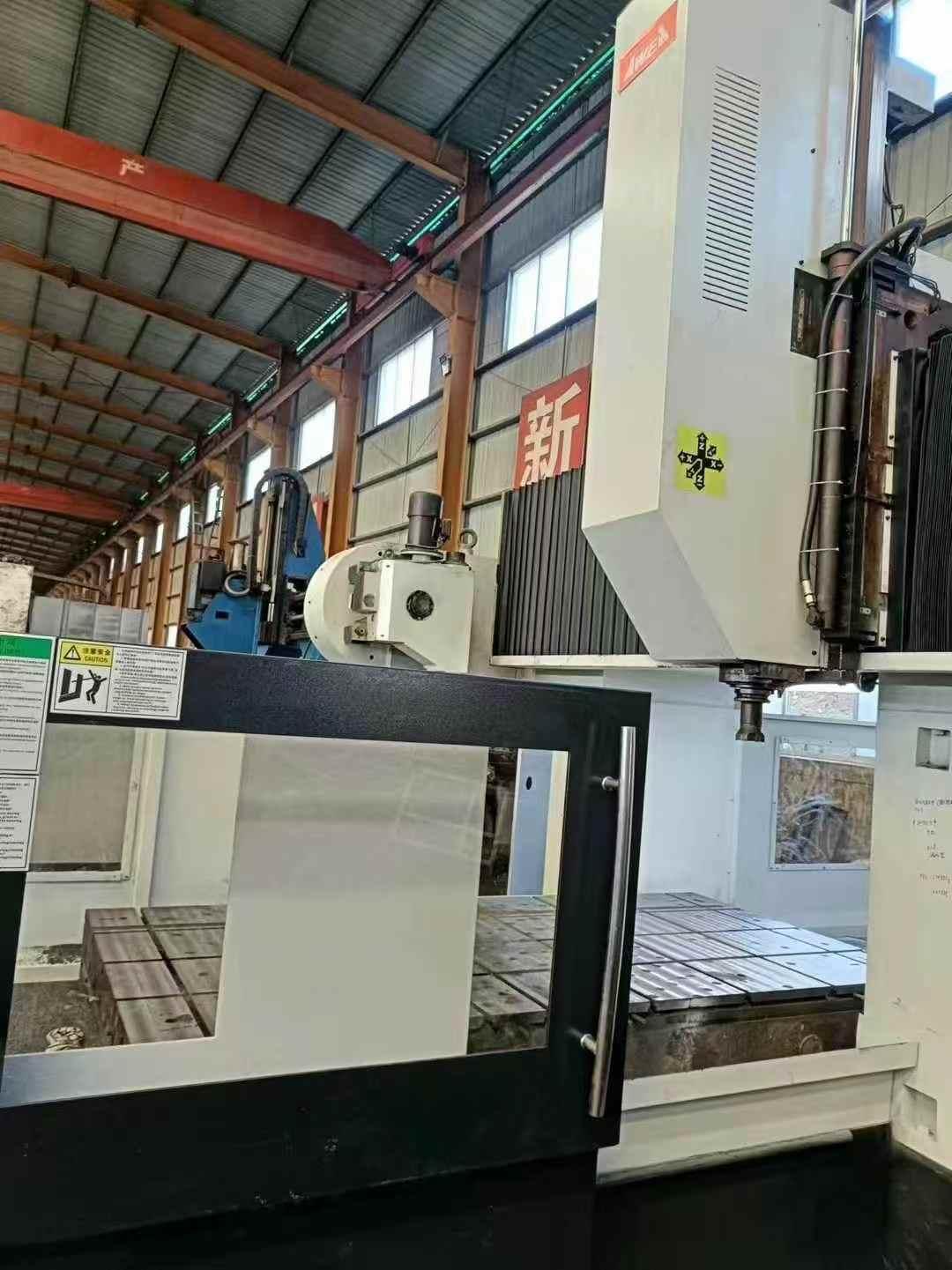

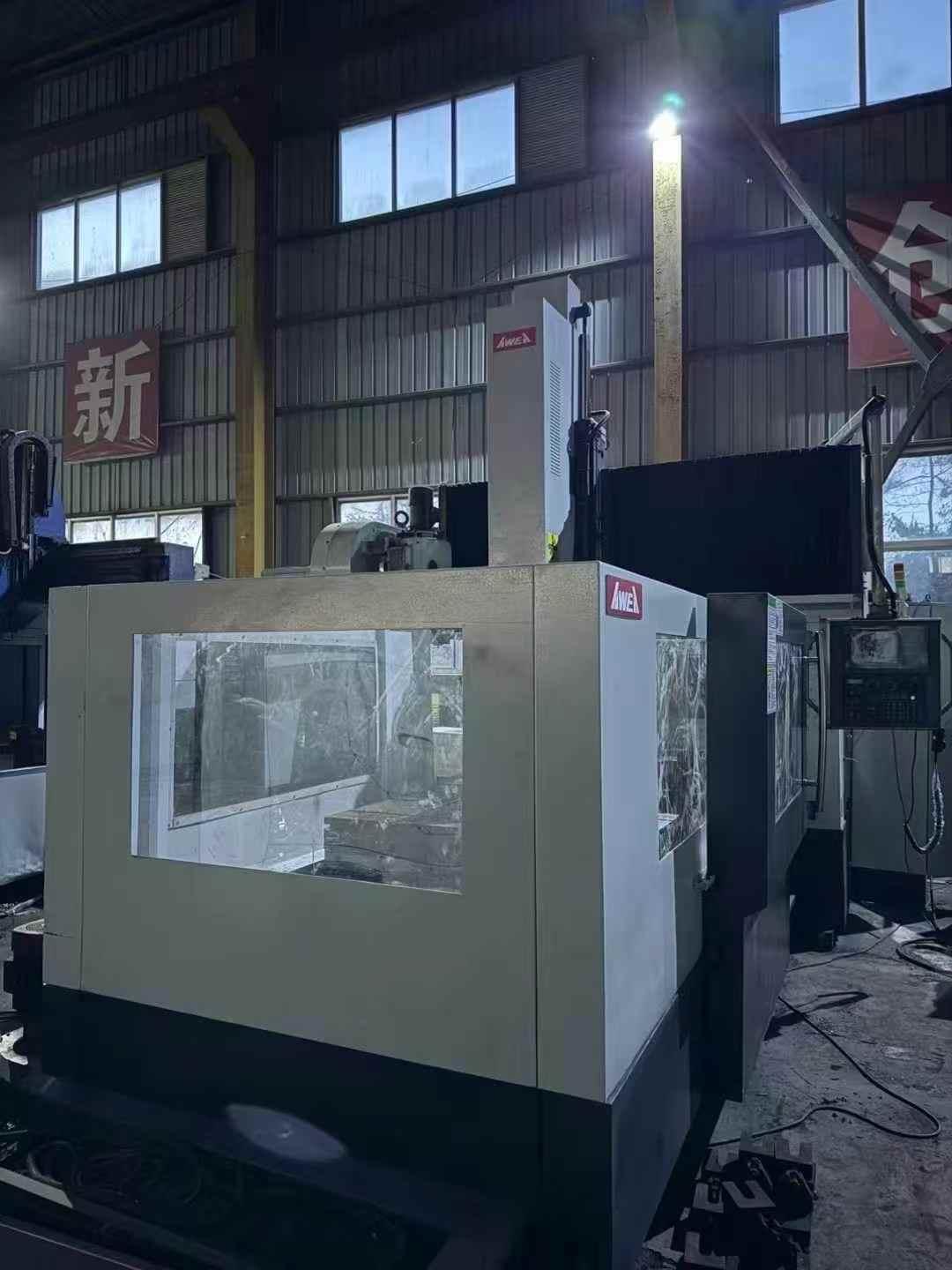

AWEA SP2500 Gantry machining centre

[Product Information]:

CNC CNC System: FANUC mf plu

‌ WorkWorktable size ‌ : 3000*1500mm

‌X axis travel ‌ : 2700mm

‌ Y-axis travel ‌ : 1550mm

‌Z axis travel ‌ : 900mm

‌ Distance from nose of spindle to workWorktable surface ‌ : 200~960mm

‌ workWorktable load ‌ : 5500kg

‌ spindle maximum speed ‌ : 1-6000rpm

‌ Maximum Tool length ‌ : 350mm

‌ Spindle type ‌ : BT50

‌ spindle output power ‌ : 15KW

‌ spindle bearing Internal diameter ‌ : 70mm

‌ Positioning precision/Repeat precision VDI4331‌ : 0.02/0.015

‌ express transmission displacement speed ‌ : 20/20/20m/min
