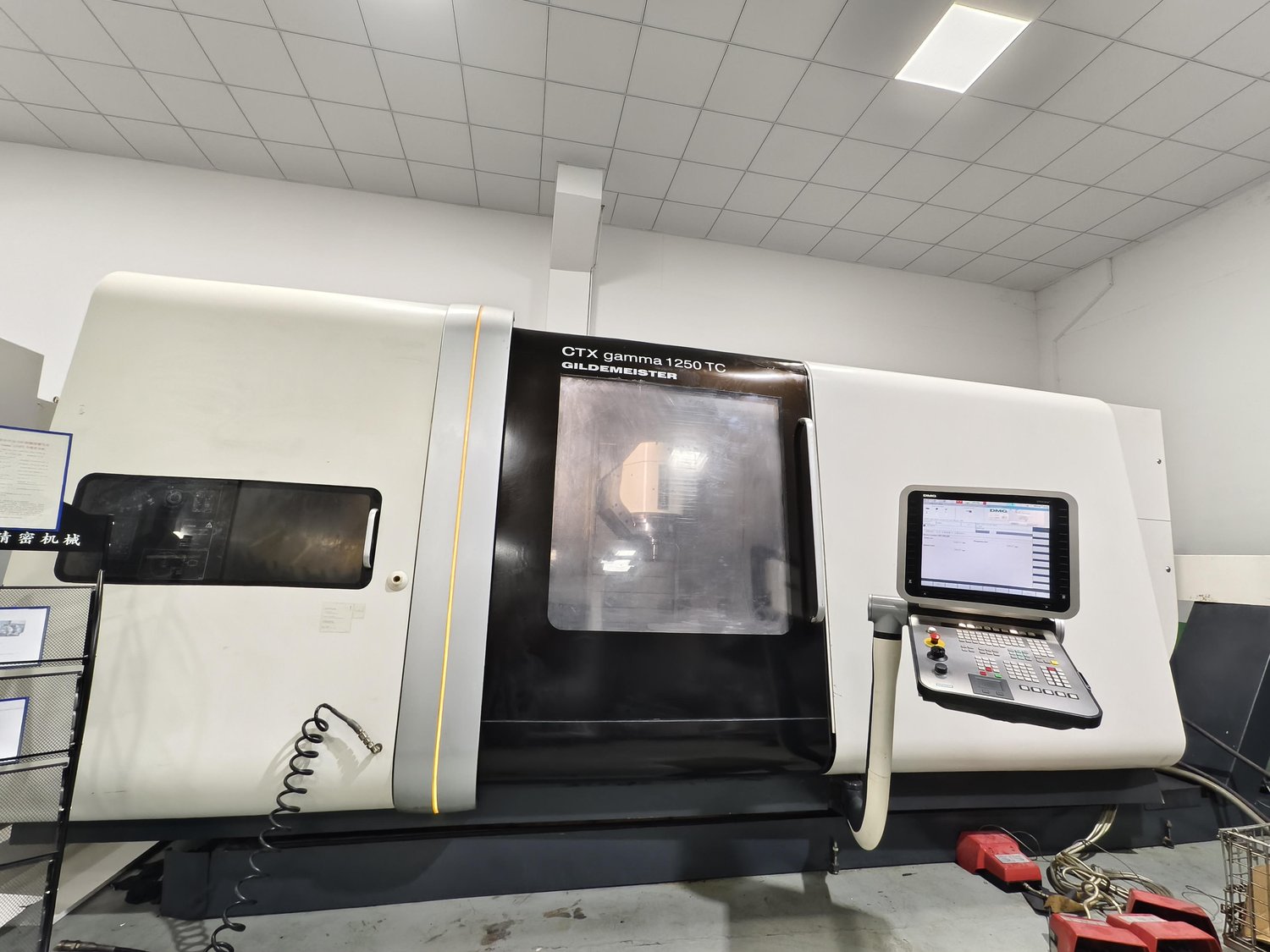

DMG CTX Gamma 1250TC Turn Mill Machining Centre

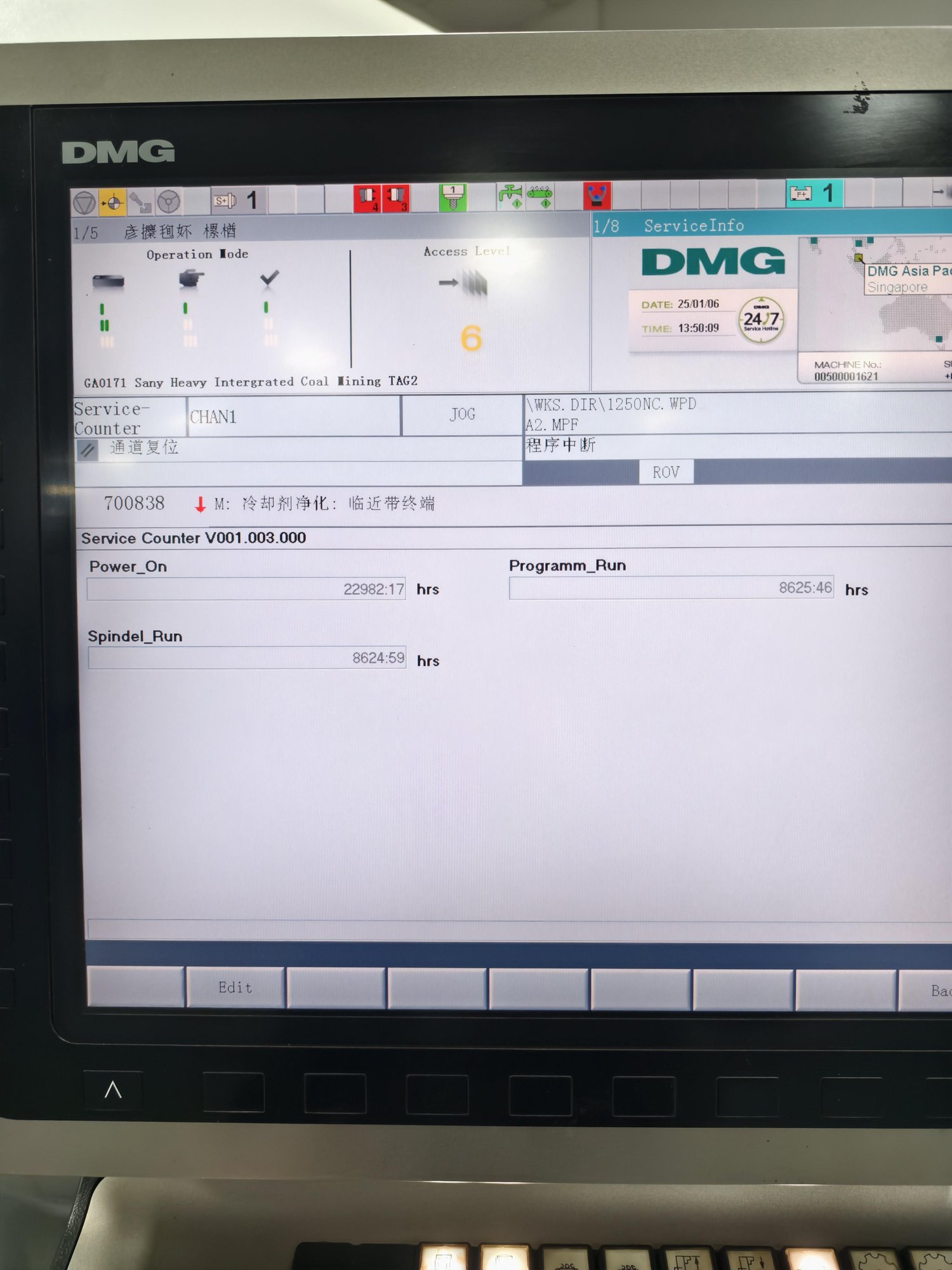

Running time: 8625h, use time: 8624h

3 axes maximum travel: 800*420*1300mm

With C axis 0.001°

WorkWorktable size: 1250*700mm

Maximum workpiece diameter: 700mm

Maximum workpiece length: 1250mm

Maximum turning diameter : 700mm

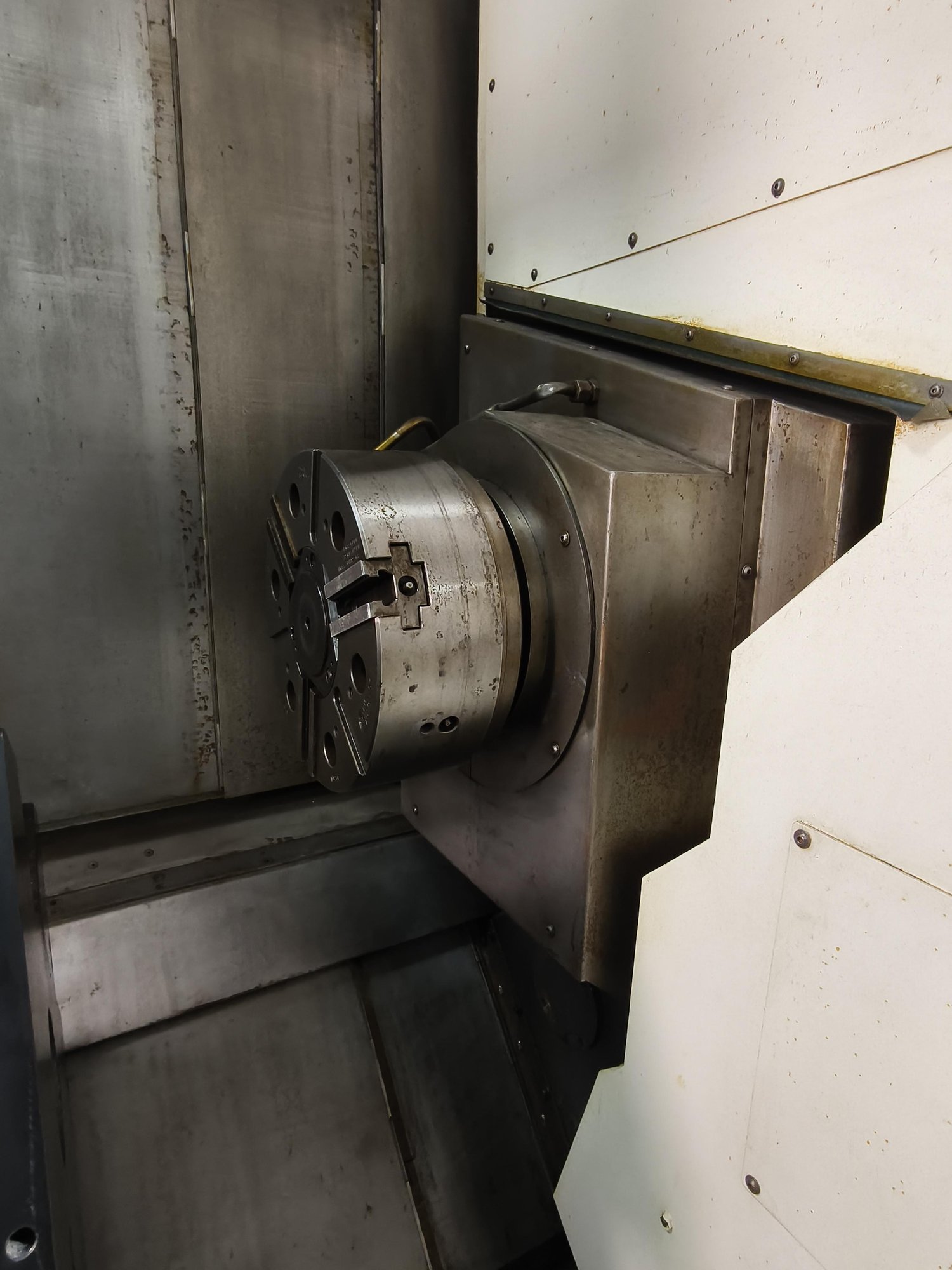

spindle (standard) : ISM 102

Maximum turning diameter (disc or chain tools magazine) : 630/700 mm

Distance from spindle to tailstock (without chuck) : 1177.5mm

Maximum workpiece length with tailstock (can be tailstock length) : 1160mm

Distance from spindle to Subspindle (without chuck ) : 1510mm

The maximum workpiece length of the Subspindle (can be spindle length) mm 1,300

Electrical spindle (ISM) with C-axis (0.001°) : 5000rpm

Drive power/torque (40% DC) : 45/770kW/Nm

spindle bearing - front bearing diameter: 160 mm

Tube drawing - Internal diameter: 104 mm

center rest holding range: 35-304mm

spindle head (flat flange)/ Max chuck  diameter: 220h5/400mm

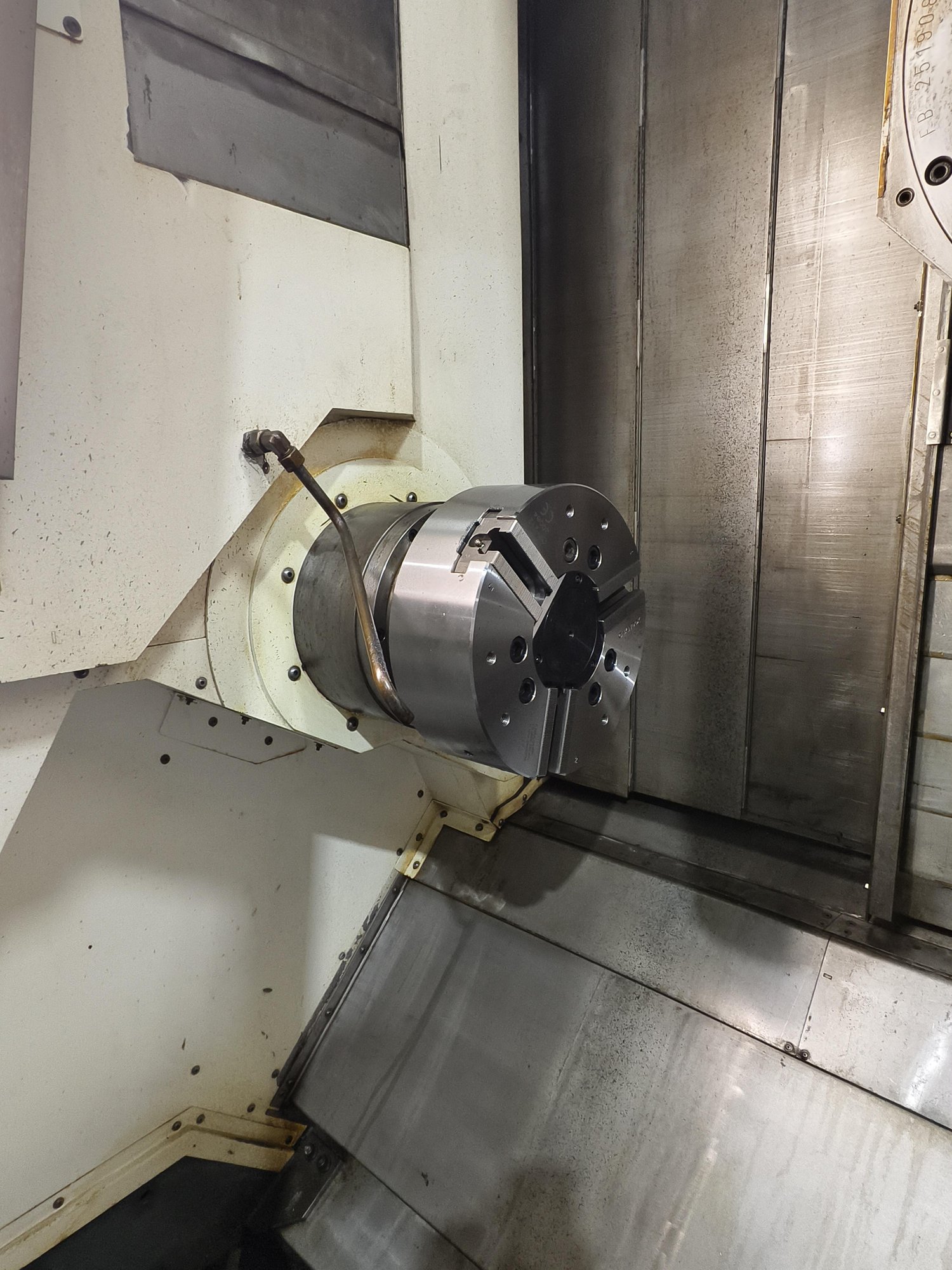

Secondary spindle: ISM 76

Electric Spindle speed (ISM), with C-axis (0.001°) : 5000rpm

Drive power: 34 kW

Torque (40% DC) : 380Nm

spindle bearing - front bearing diameter: 130mm

Tube drawing - Internal diameter: 67mm

spindle head (flat flange)/ Max chuck  diameter: 170 h5/315mm

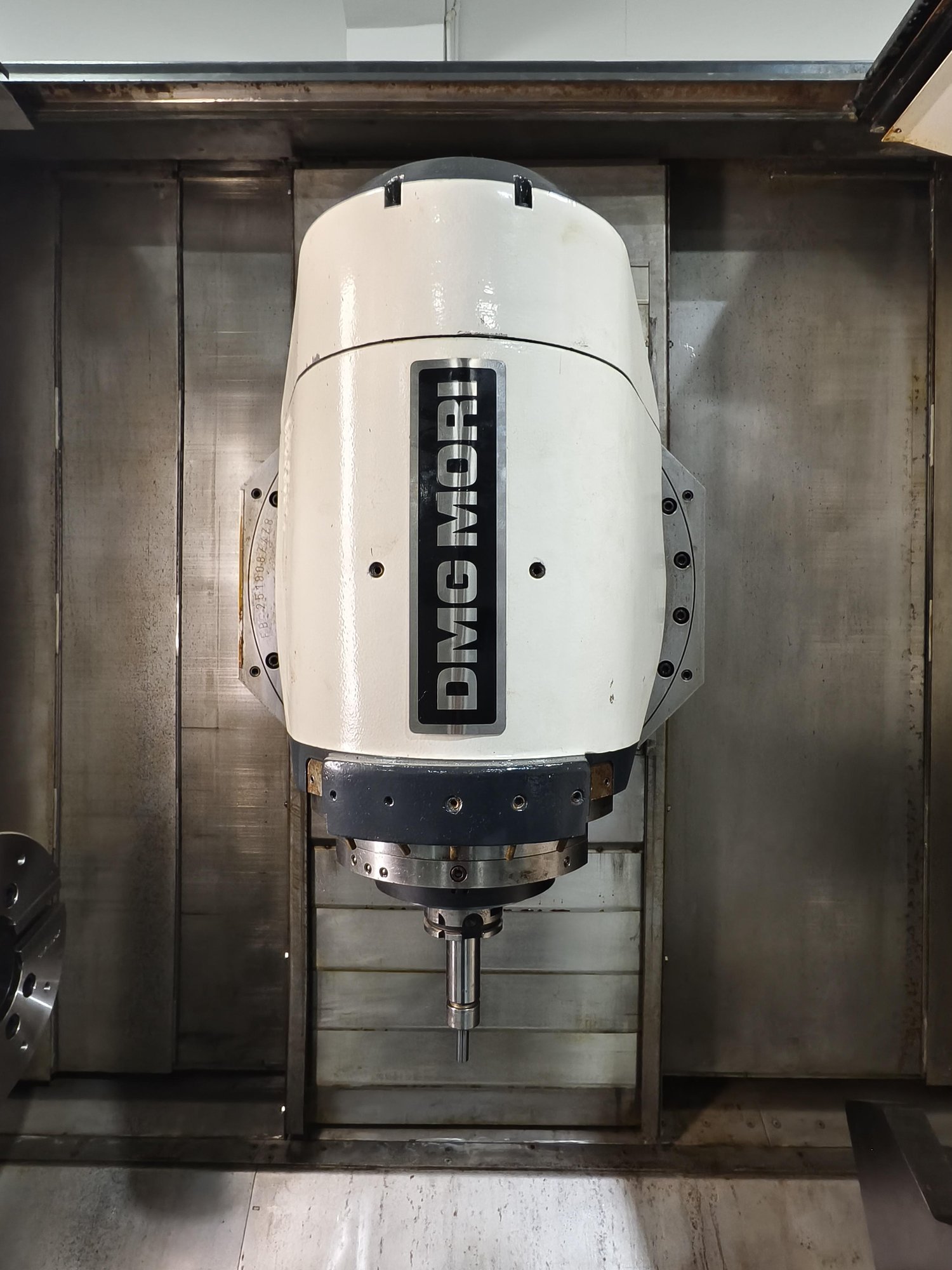

Spindle speed: 12000rpm

Drive power: 36kW

Torque (40% DC): 220Nm

B axis swing range: ±120

B axis Fast moving rate: 100 rpm

lower turret 12xVDI 40 with TRIFIX

Number of power Tools: 12

Power tools maximum speed: 4000rpm
