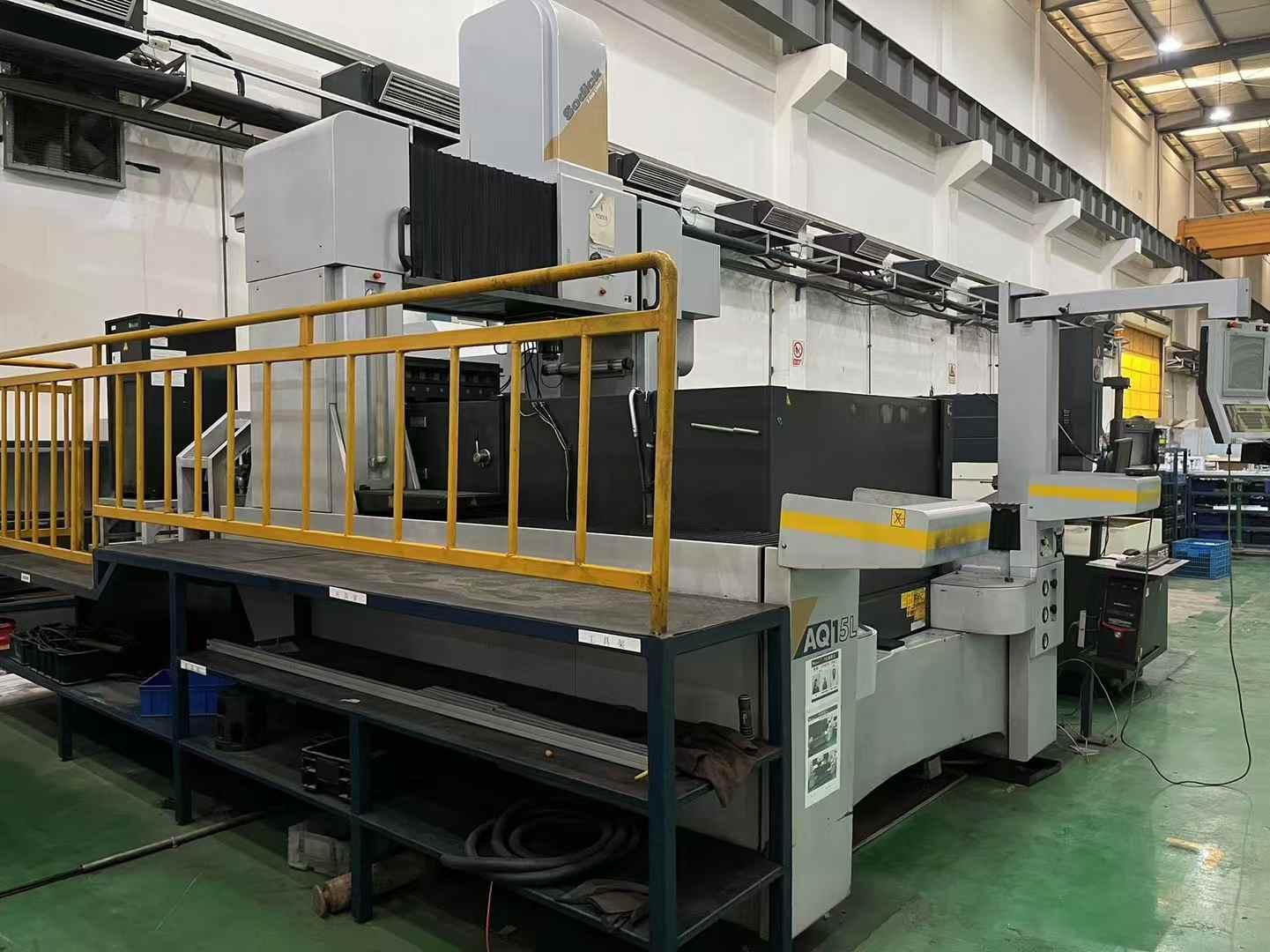

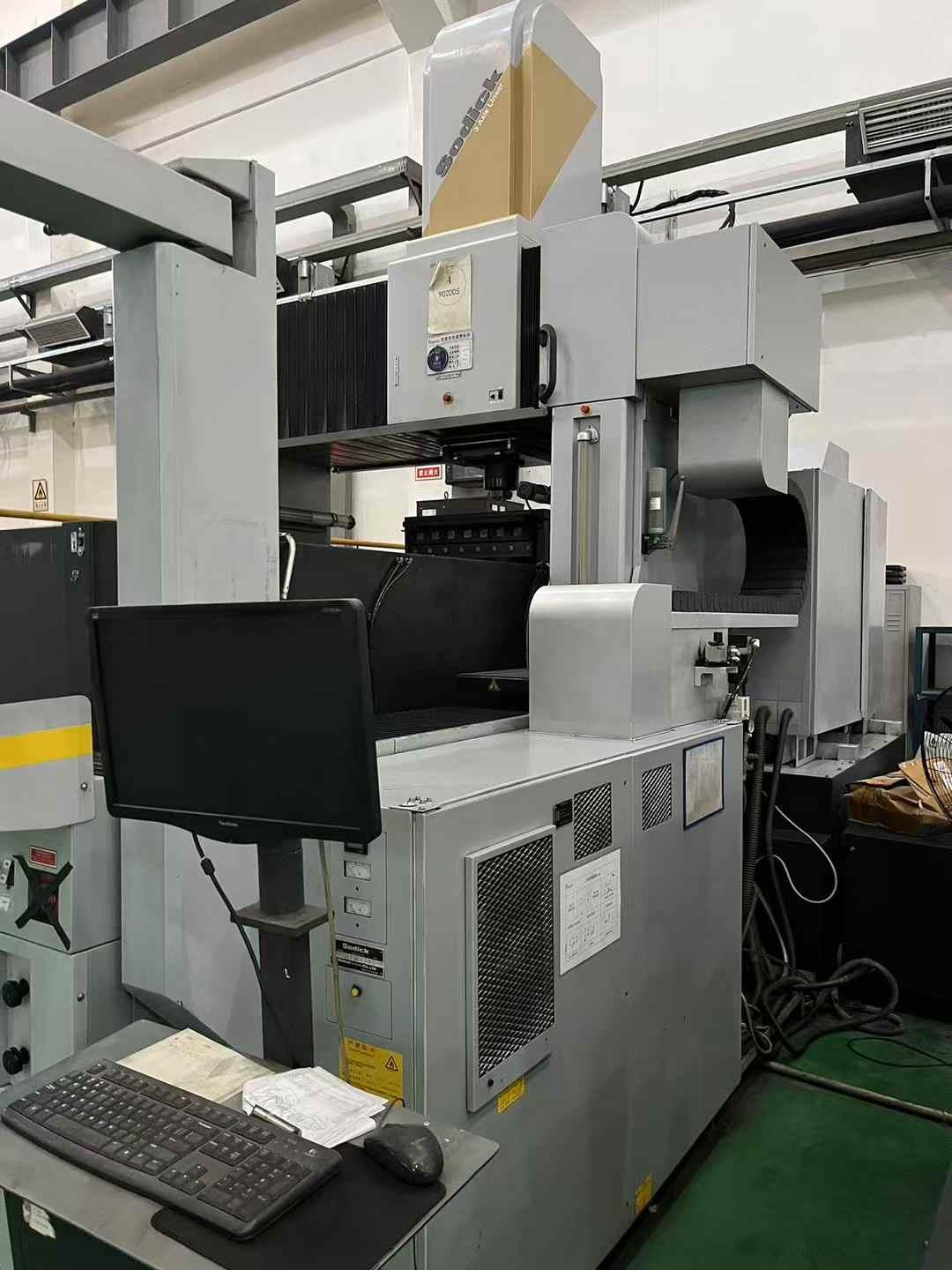

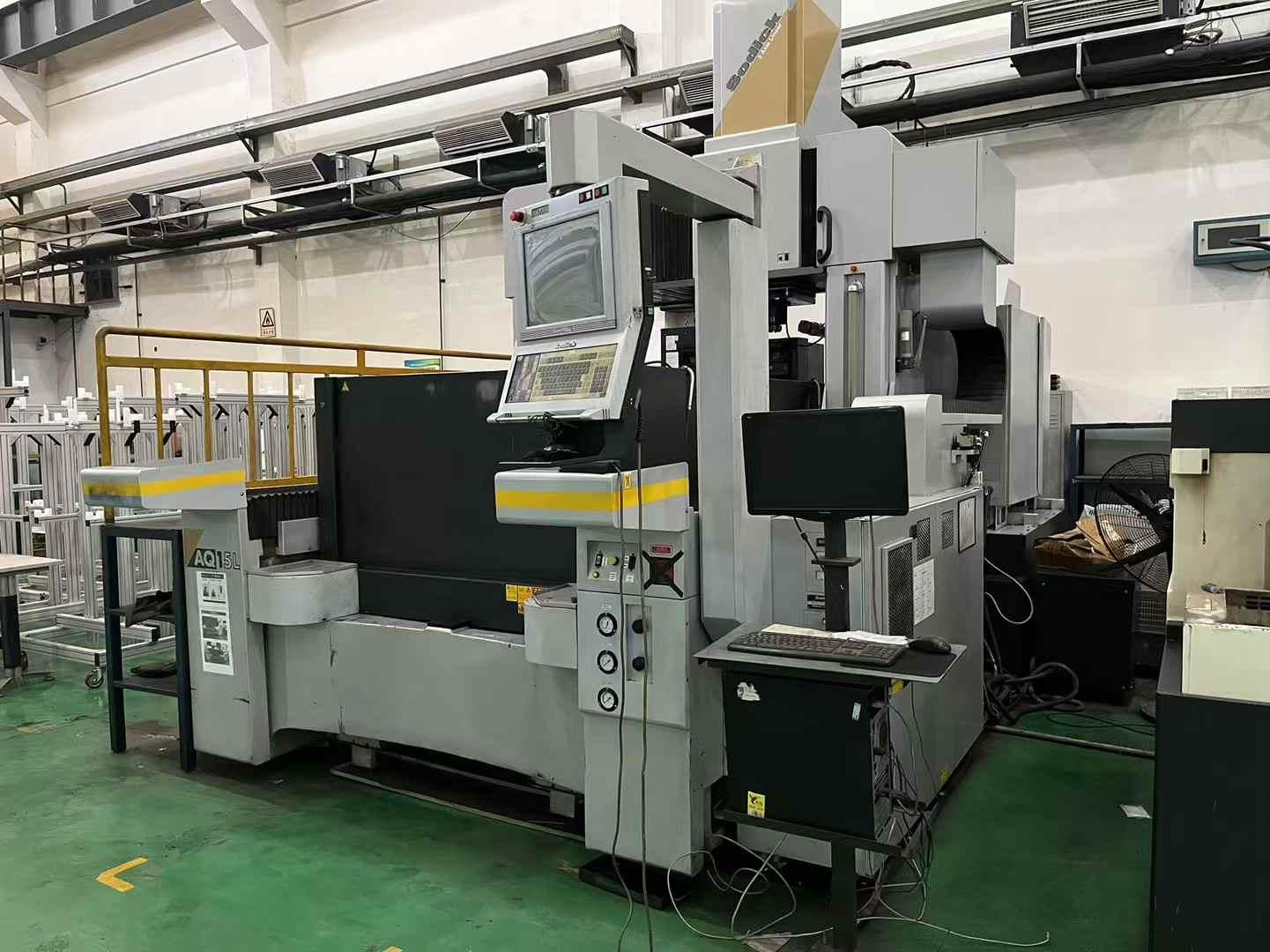

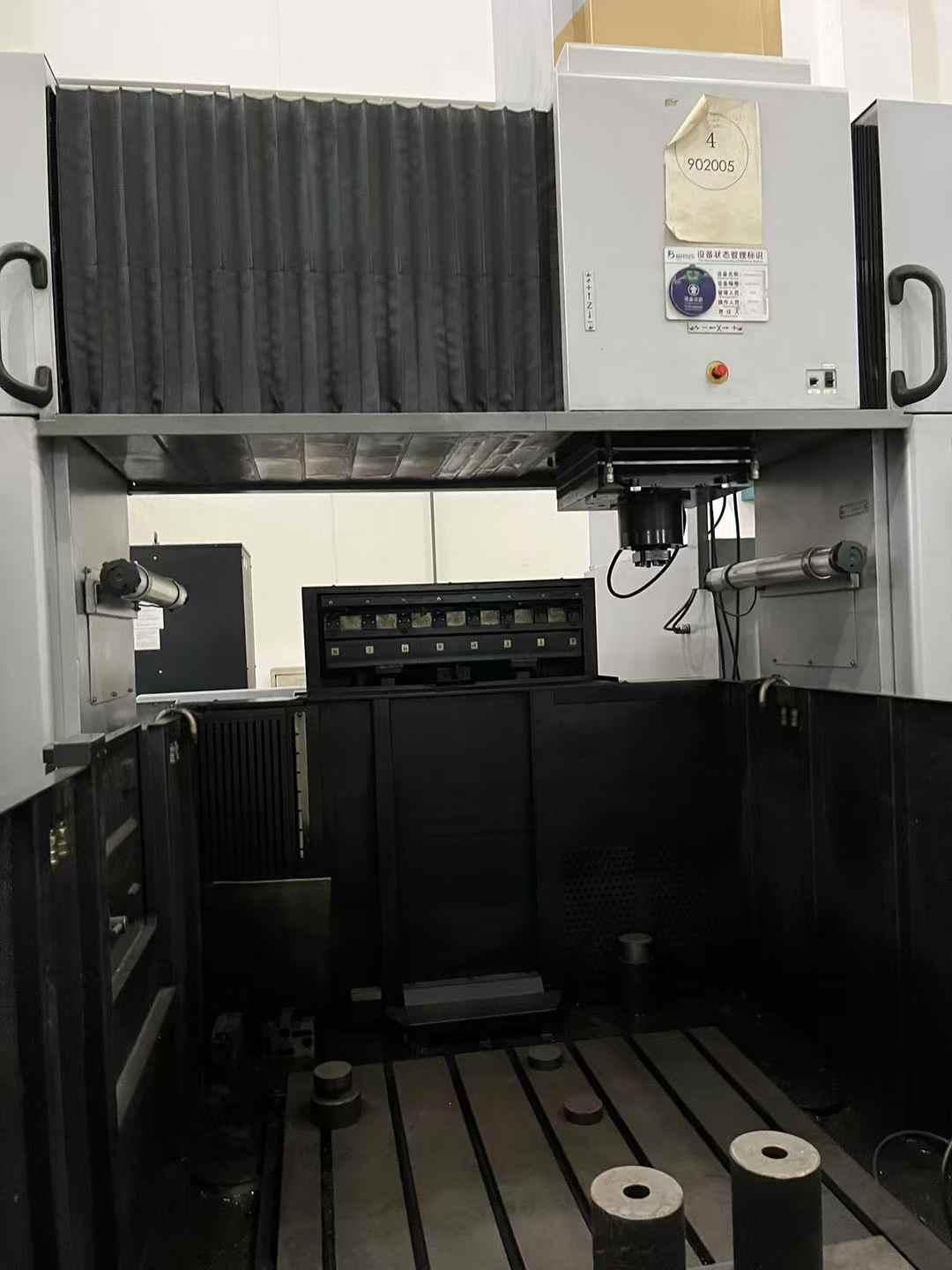

Sodick AQ15L Spark eroder

three-axis travel :  1500*900*600mm

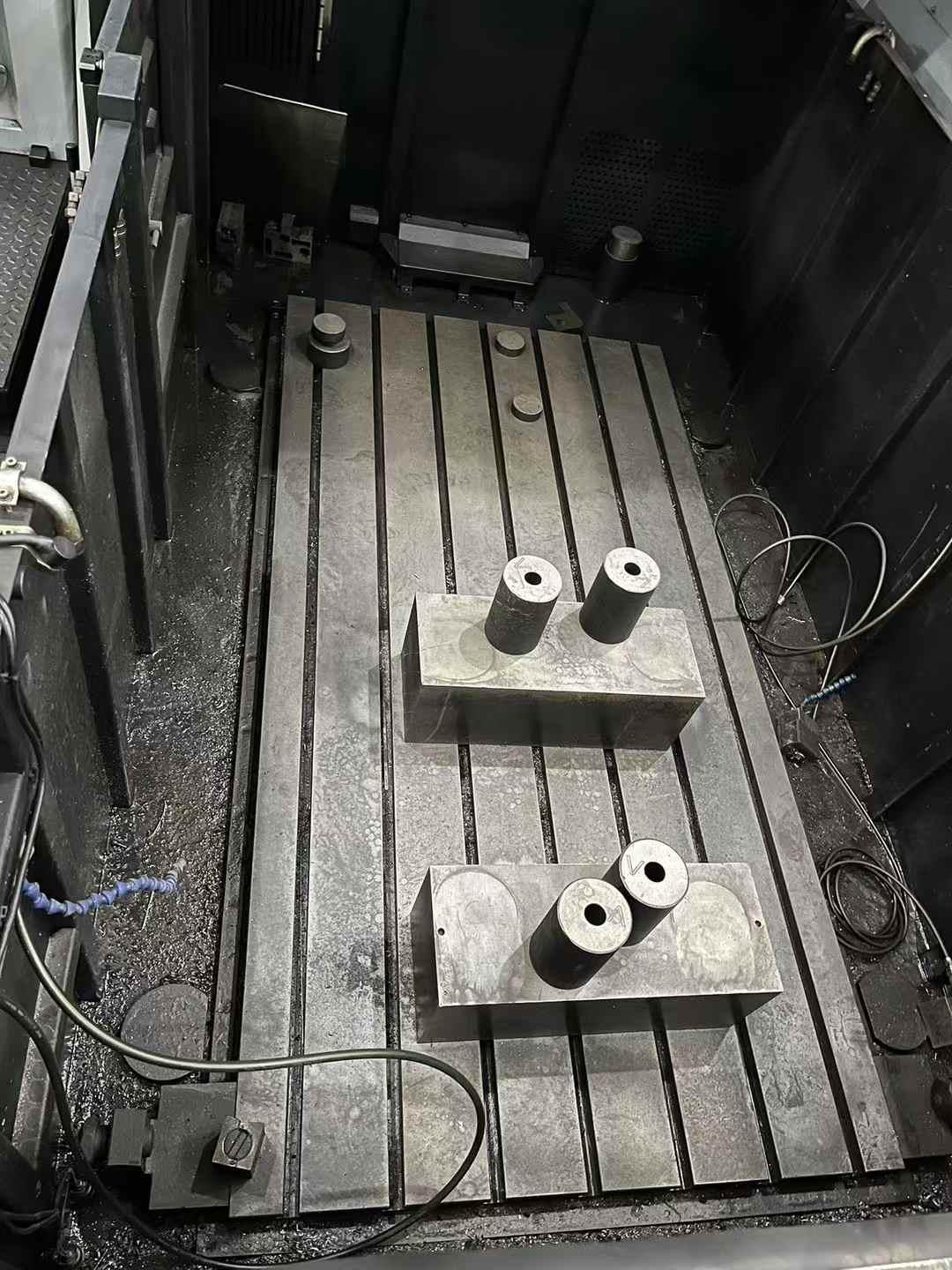

AdjusWorktable range of working dielectric level :  400-750mm

Distance between electrode mounting surface and WorkWorktable :  583-1183mm

Distance from ground to workWorktable surface :  1000mm

Electrode weight: 100KG

Maximum workpiece weight: 10000KG

Floor area: 3050*5295*4220mm

Settings:

3R jig (3R Macro jig)

Linear motor drive (Linear motor drive)

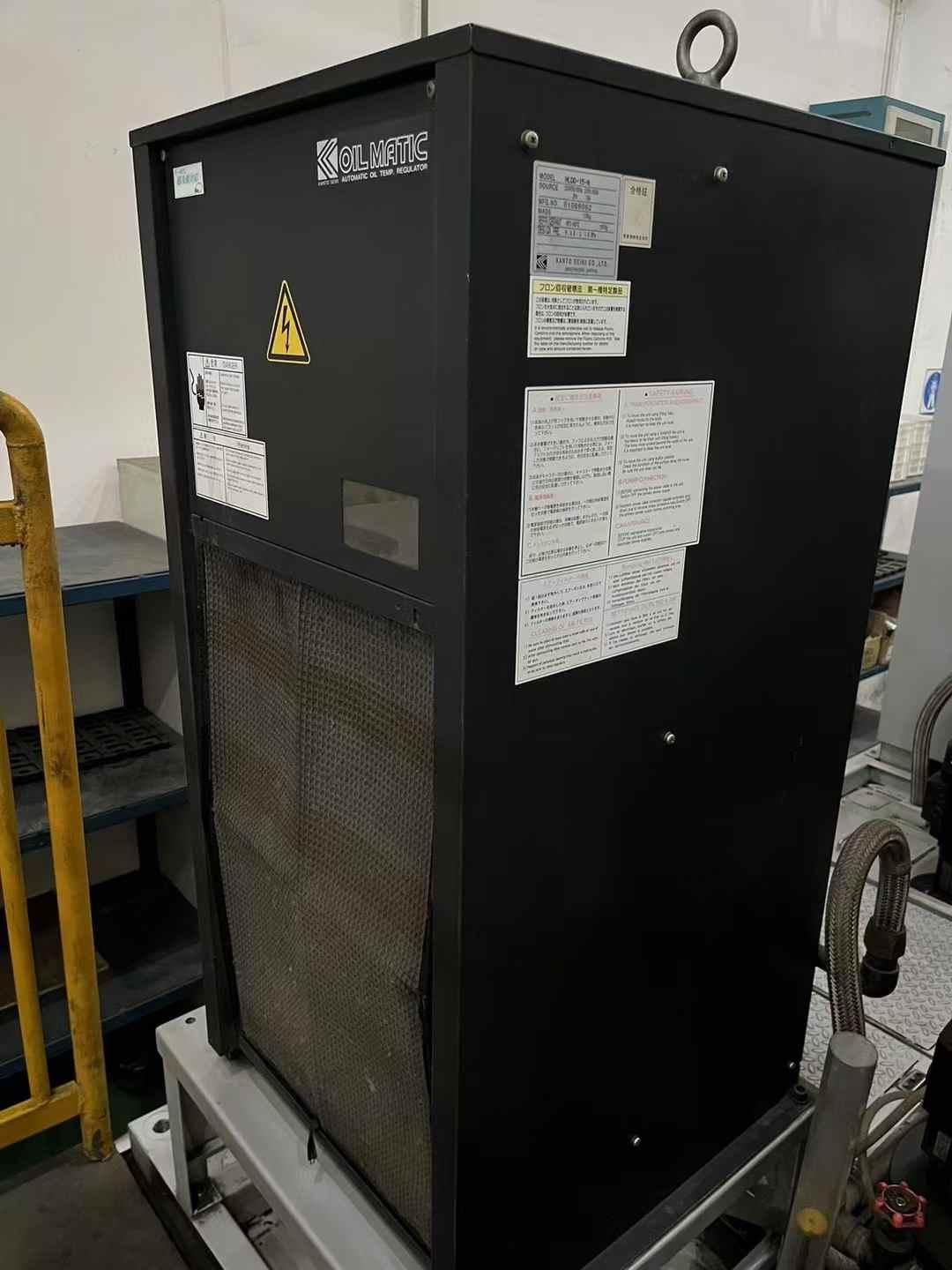

Linear filter machining  liquid cooling device 1.5kw

Automatic Tool Exchanger (ATC(8 copies))

Automatic Air balancer position determination fixture

c-axis
