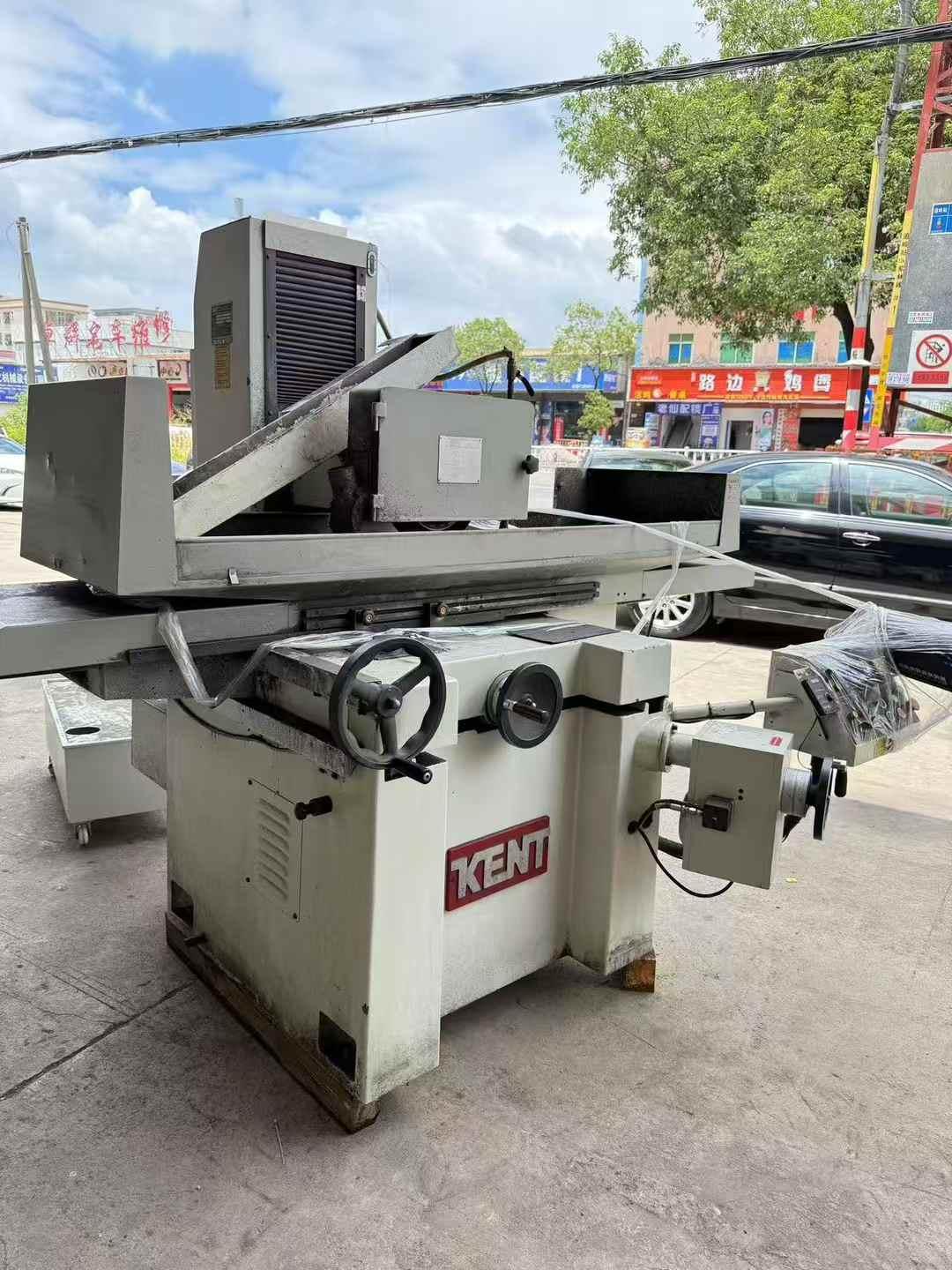

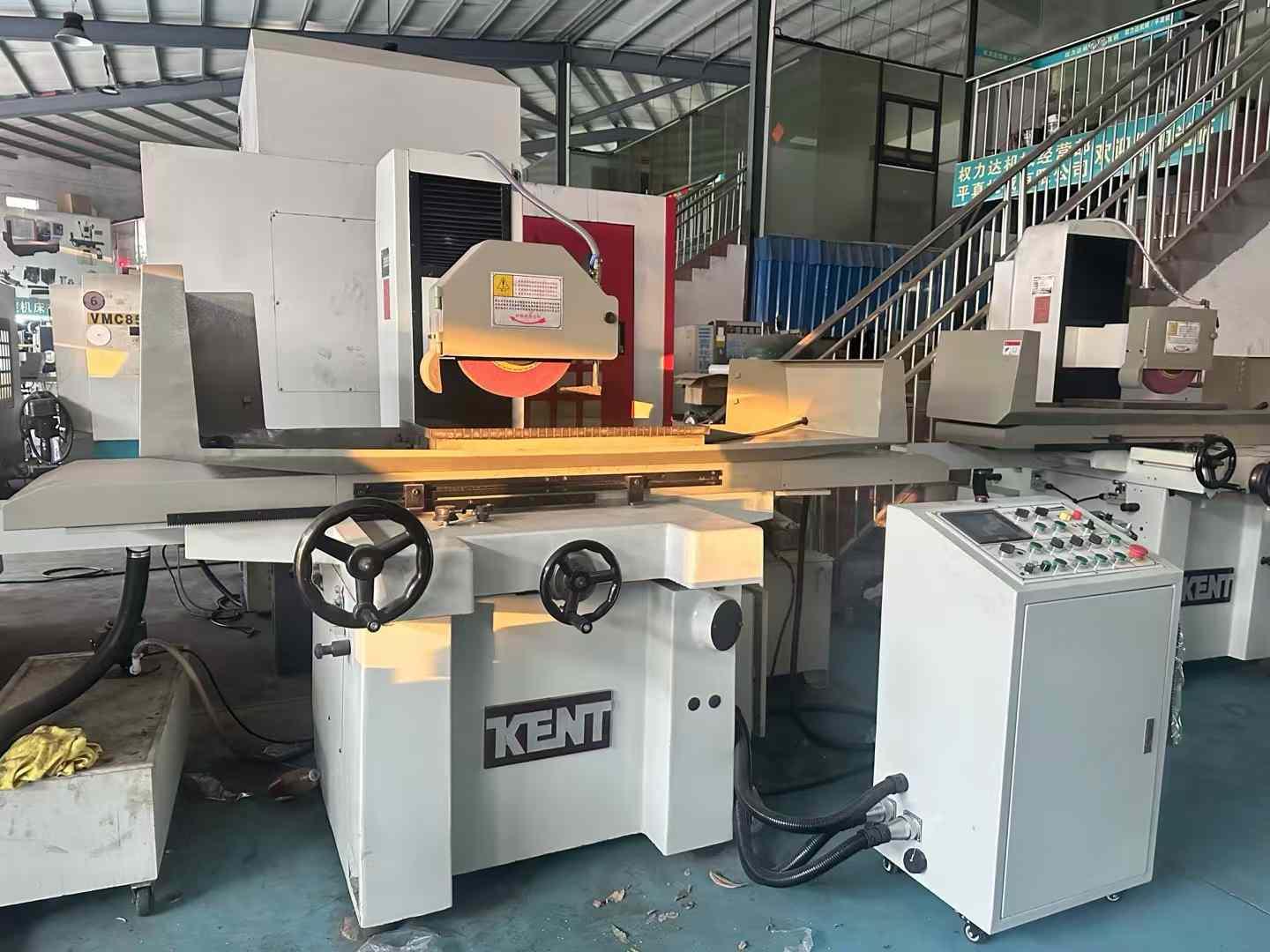

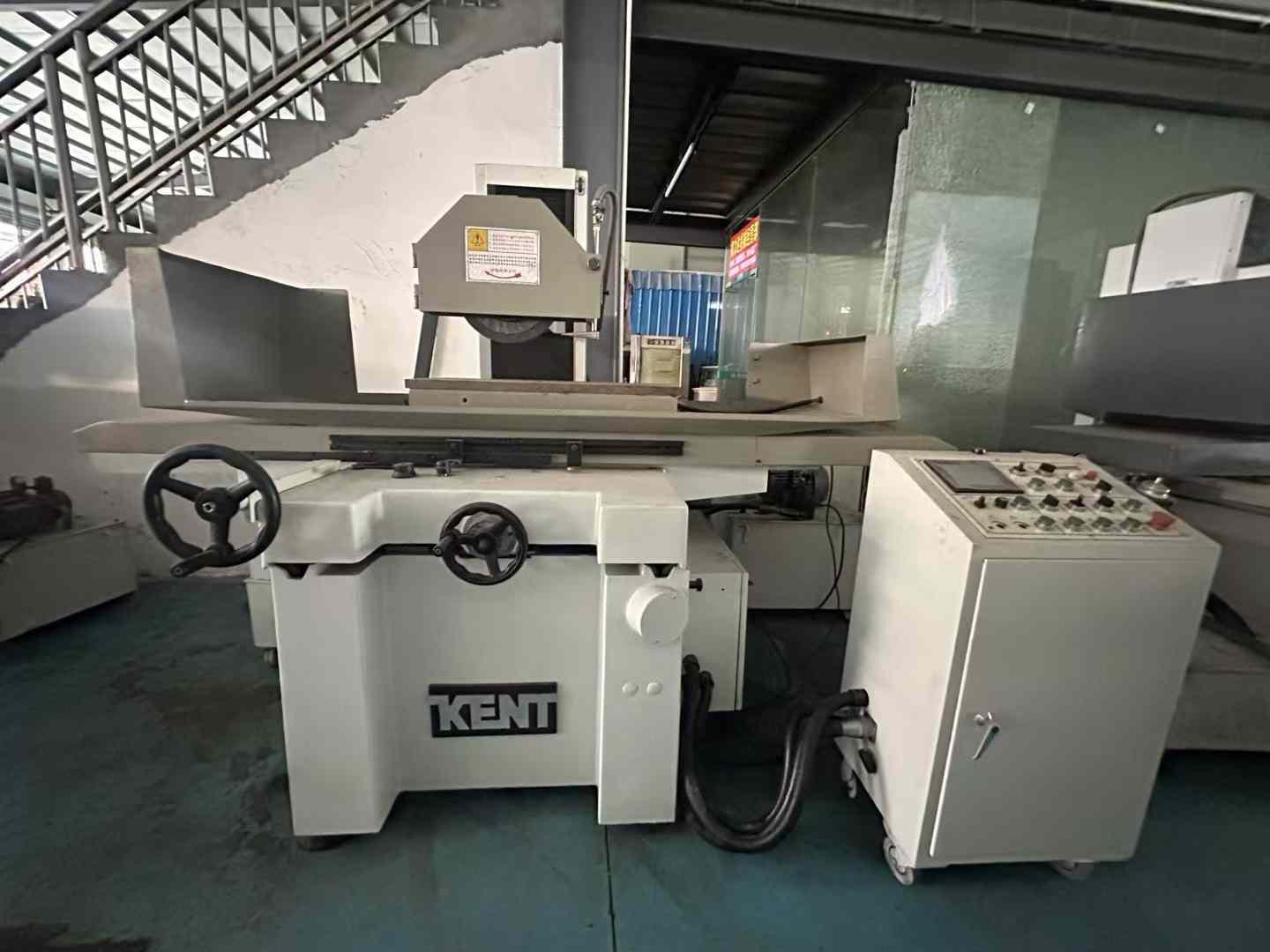

KENT KGS-84WM Grinding machines

[Product Information]:

WorkWorktable size: 800*400mm

Worktable left-right travel: 920mm

WorkWorktable forward and backward momentum: 450mm

Up and down feed travel: 300mm

grinding wheel Footage (external diameter x thickness x Internal diameter)Φ355x20-40x diameter 127mm

Maximum distance from workWorktable surface to spindle center :580mm

Overall plane precision: 0.005mm

Spindle speed: 1450rpm
