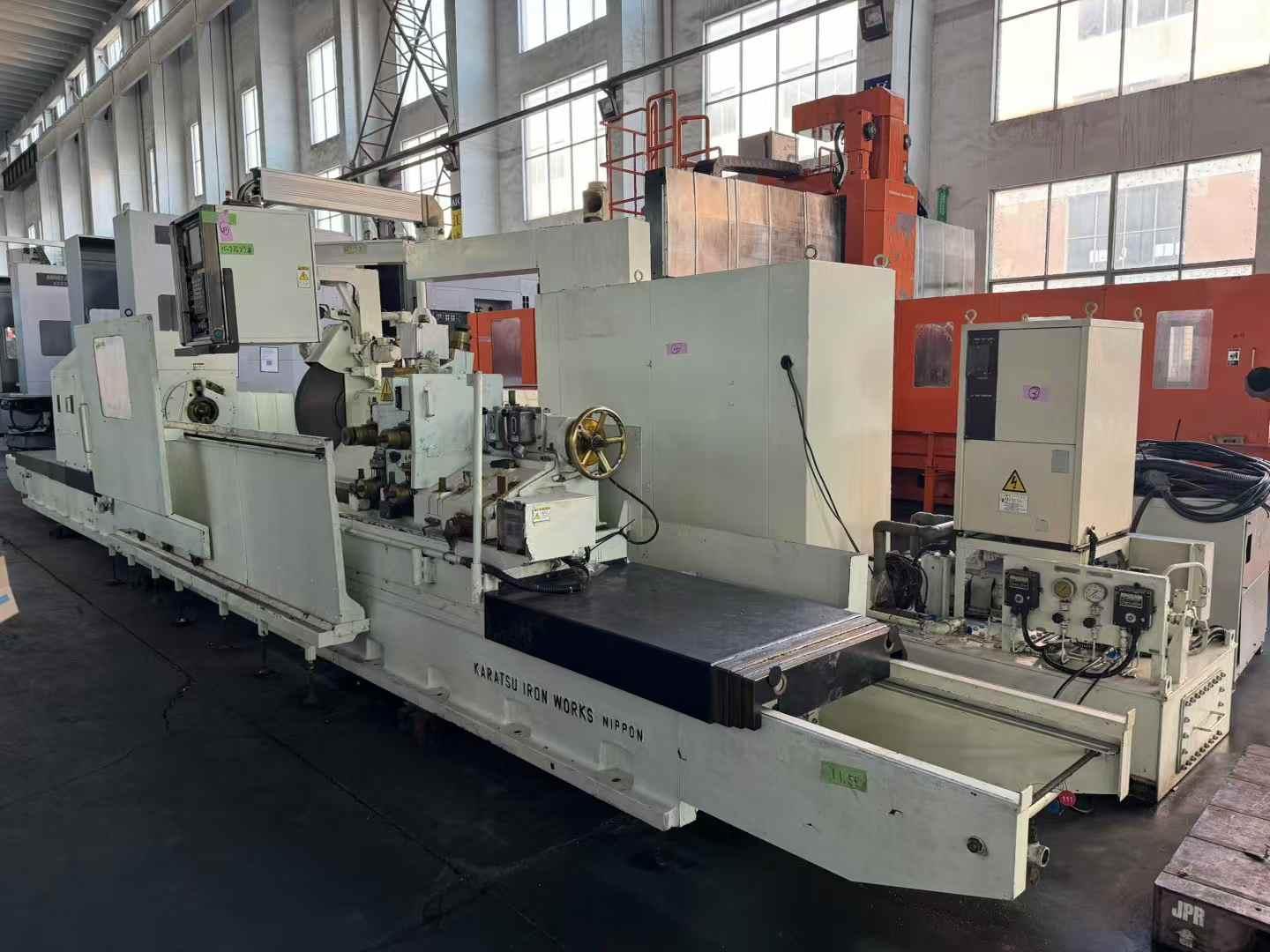

KARATSU IRON WORKS NIPPON CNC Cylindrical grinder

Maximum distance between the two centers: 3500mm

Rotating diameter of Worktable: φ670mm

Distance between centers between workpiece center and sand wheel shaft: 370-770mm

Working parameters of grinding wheel diameters of different sizes:

grinding wheel (grinding wheel size =φ915mm) Maximum workpiece diameter: φ610mm

grinding wheel (grinding wheel size =φ760mm) Maximum workpiece diameter: φ670mm

grinding wheel (grinding wheel size =φ450mm) The minimum workpiece diameter that can be ground: φ290mm
