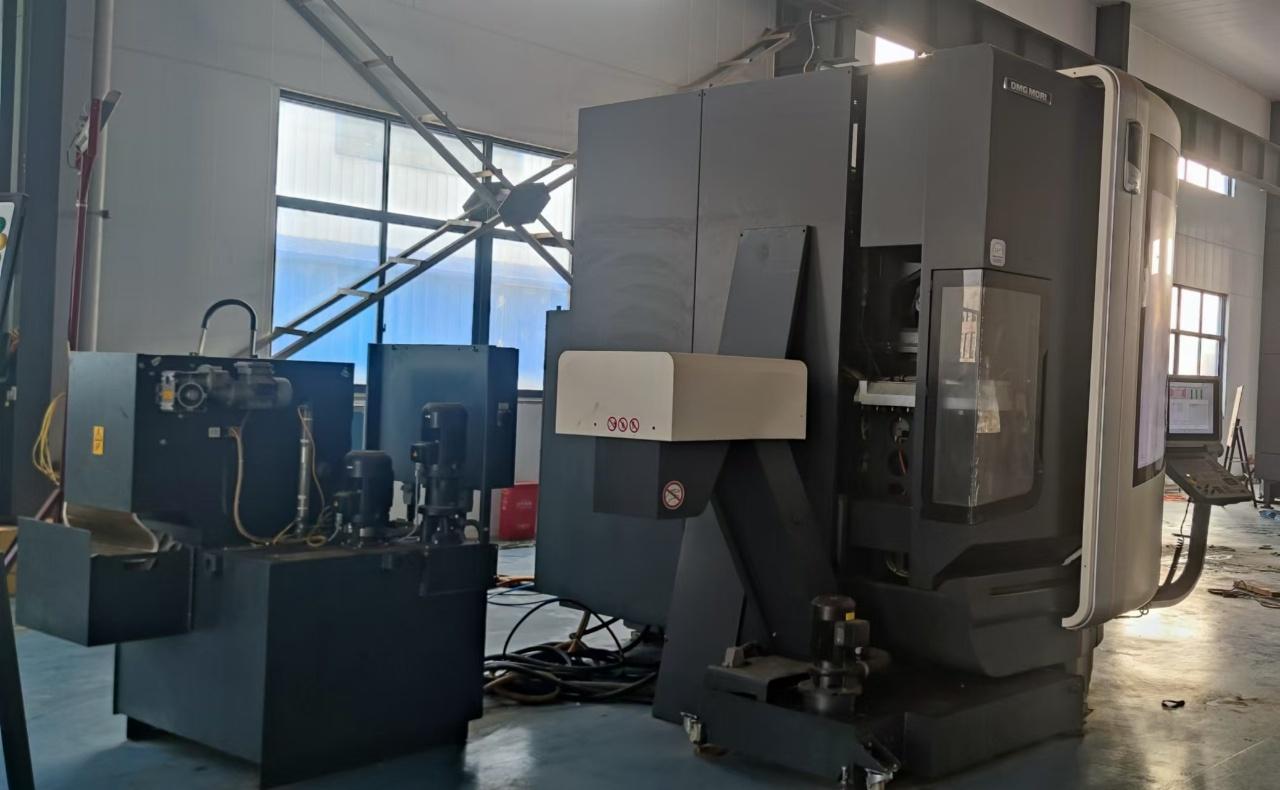

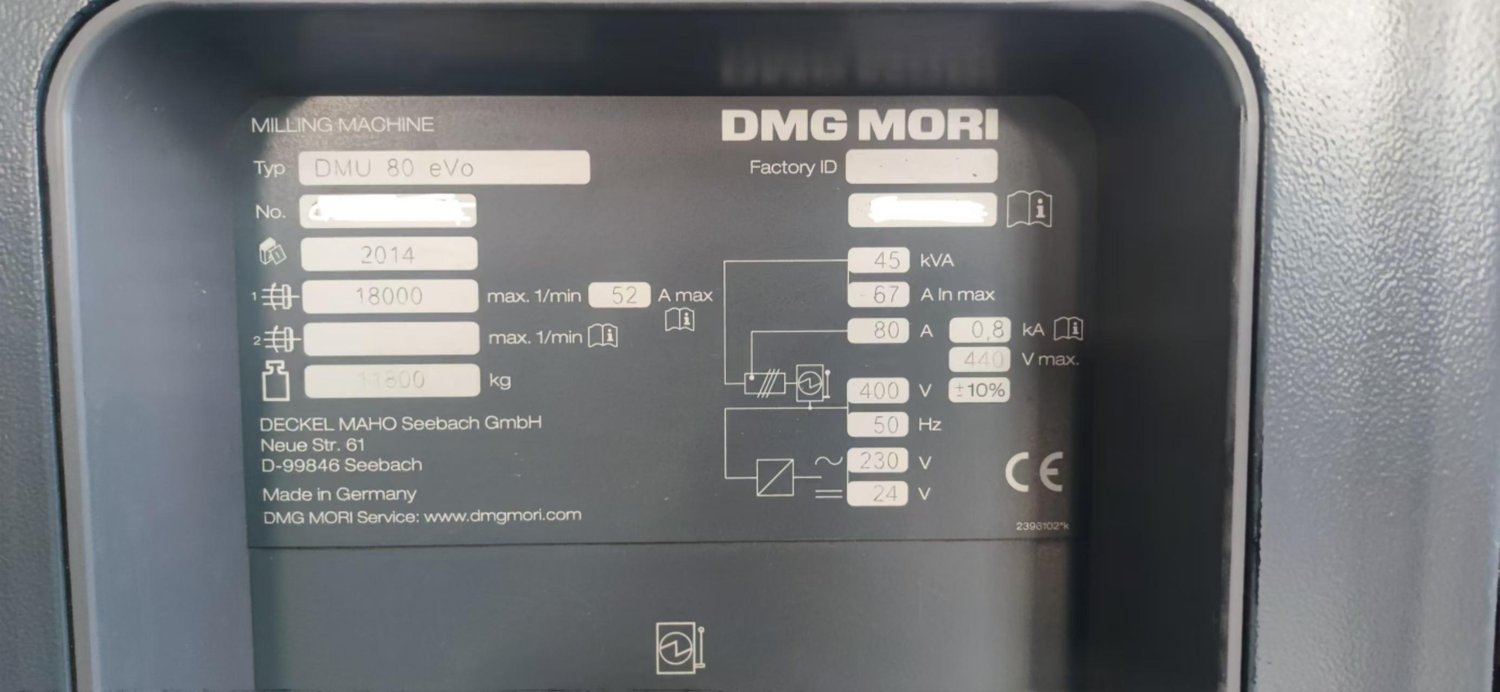

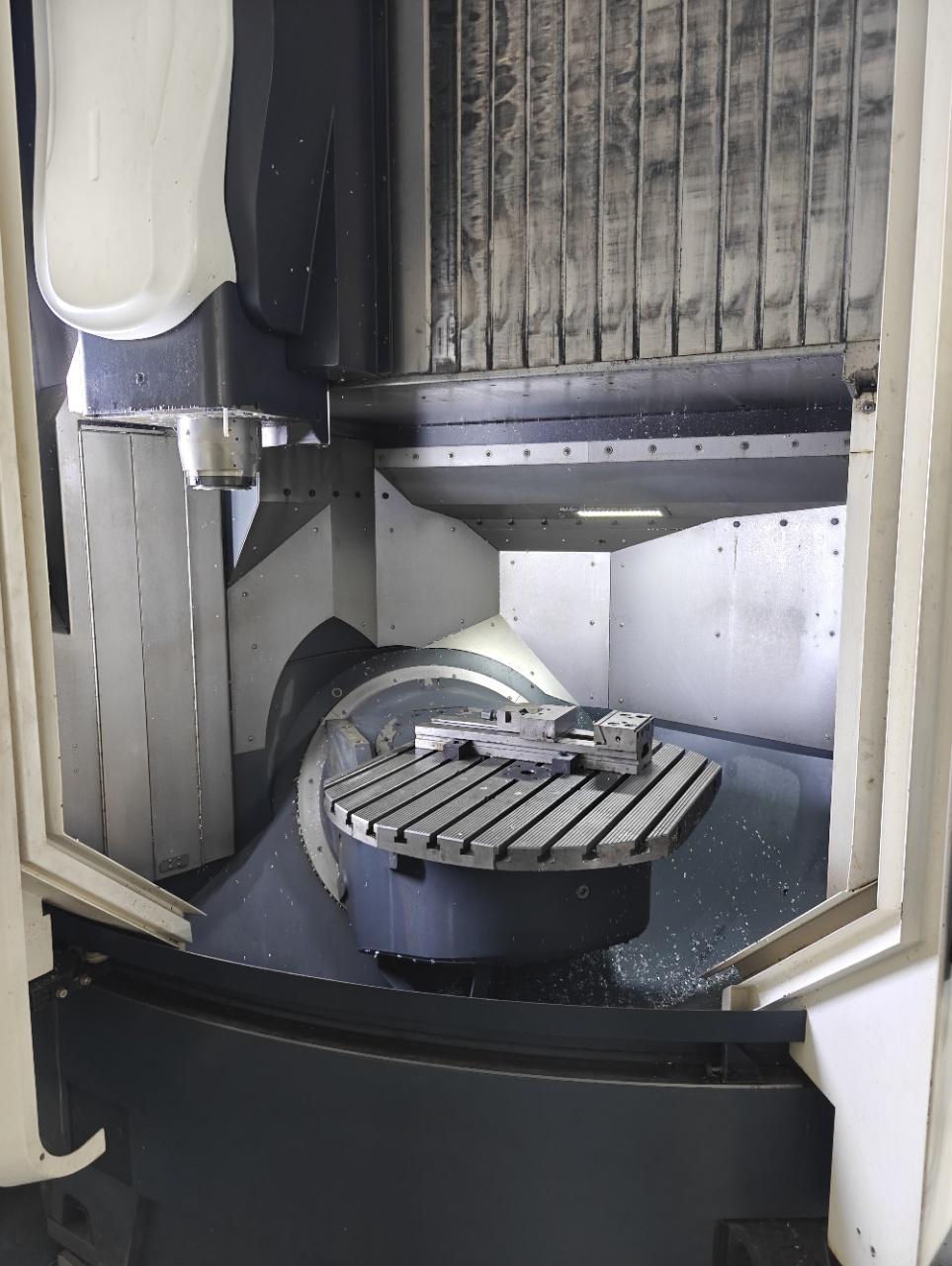

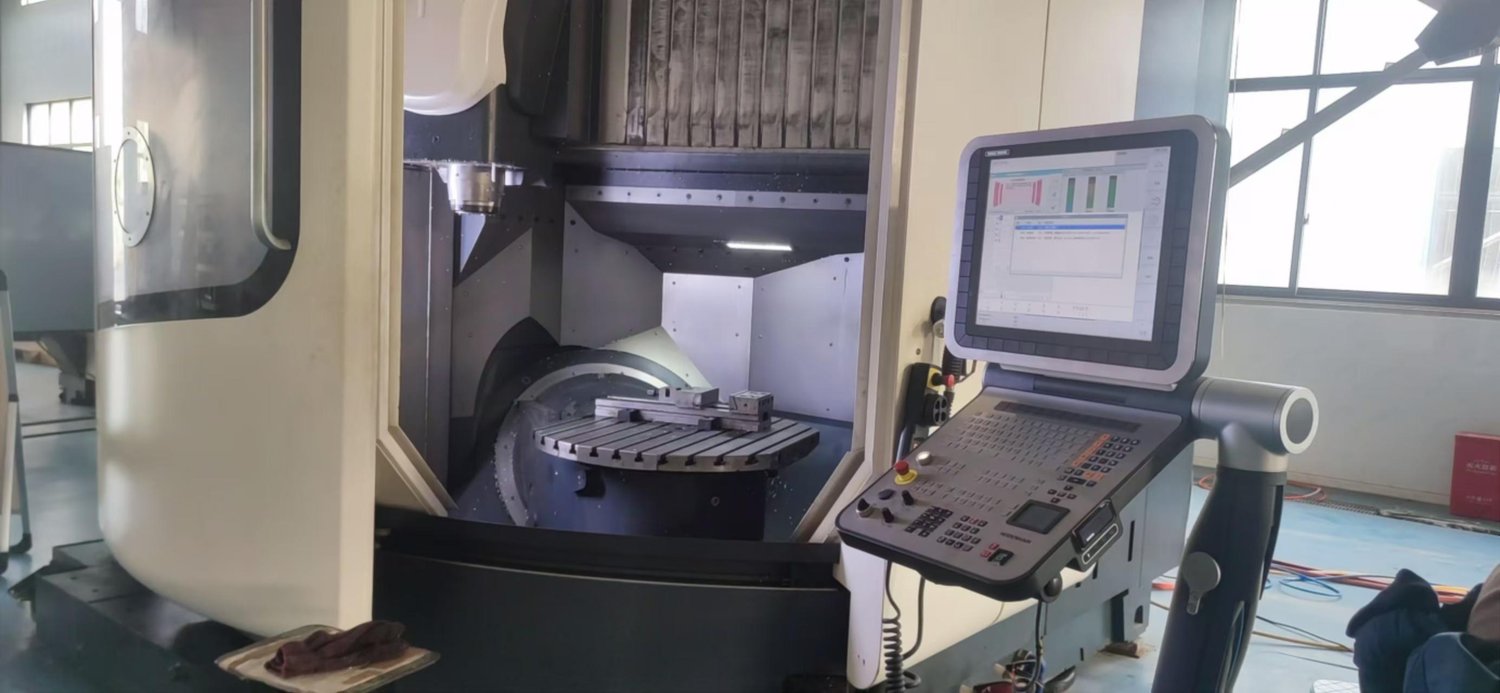

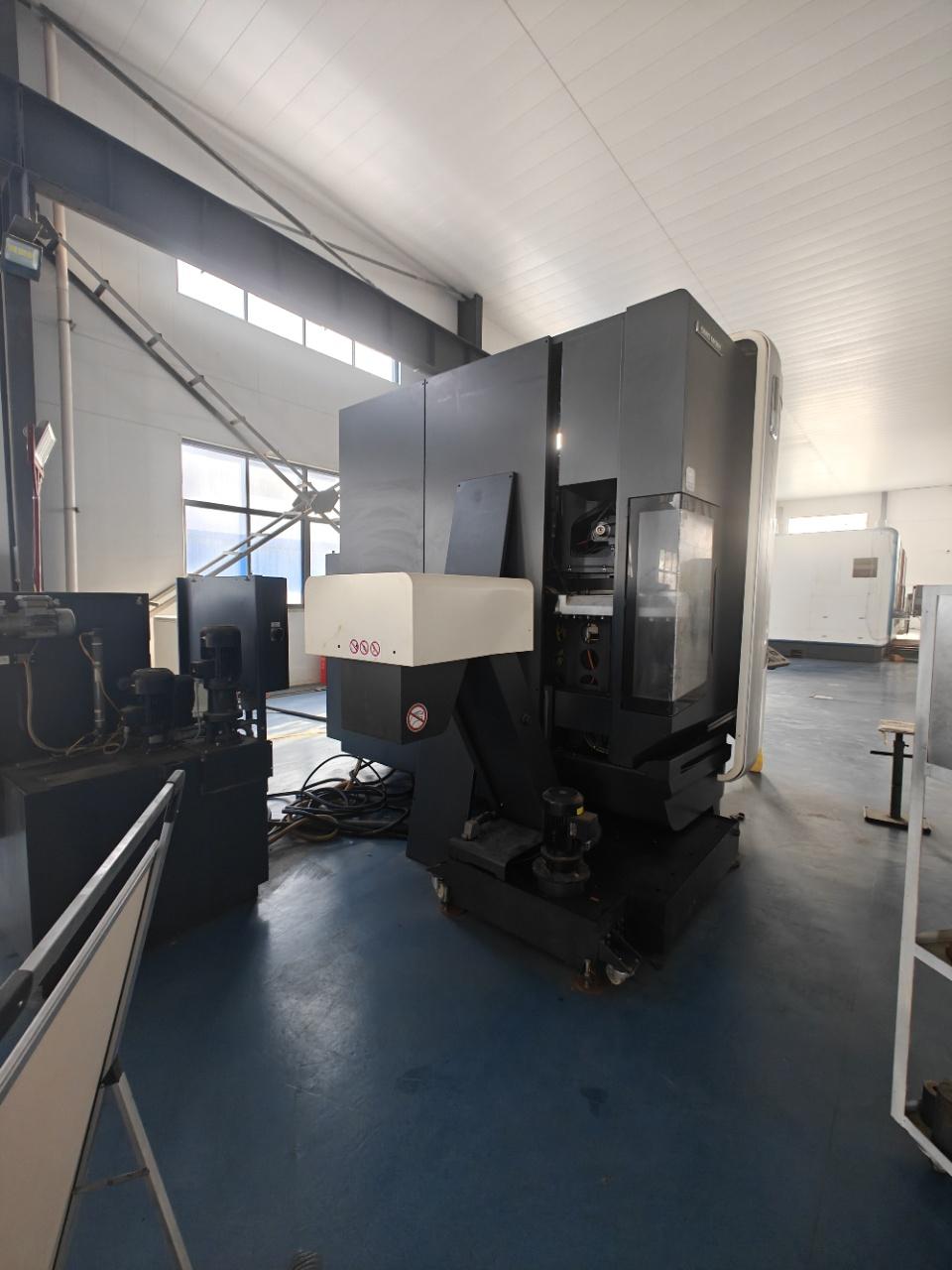

DMG DMU 80 evo 5 axis machining centre

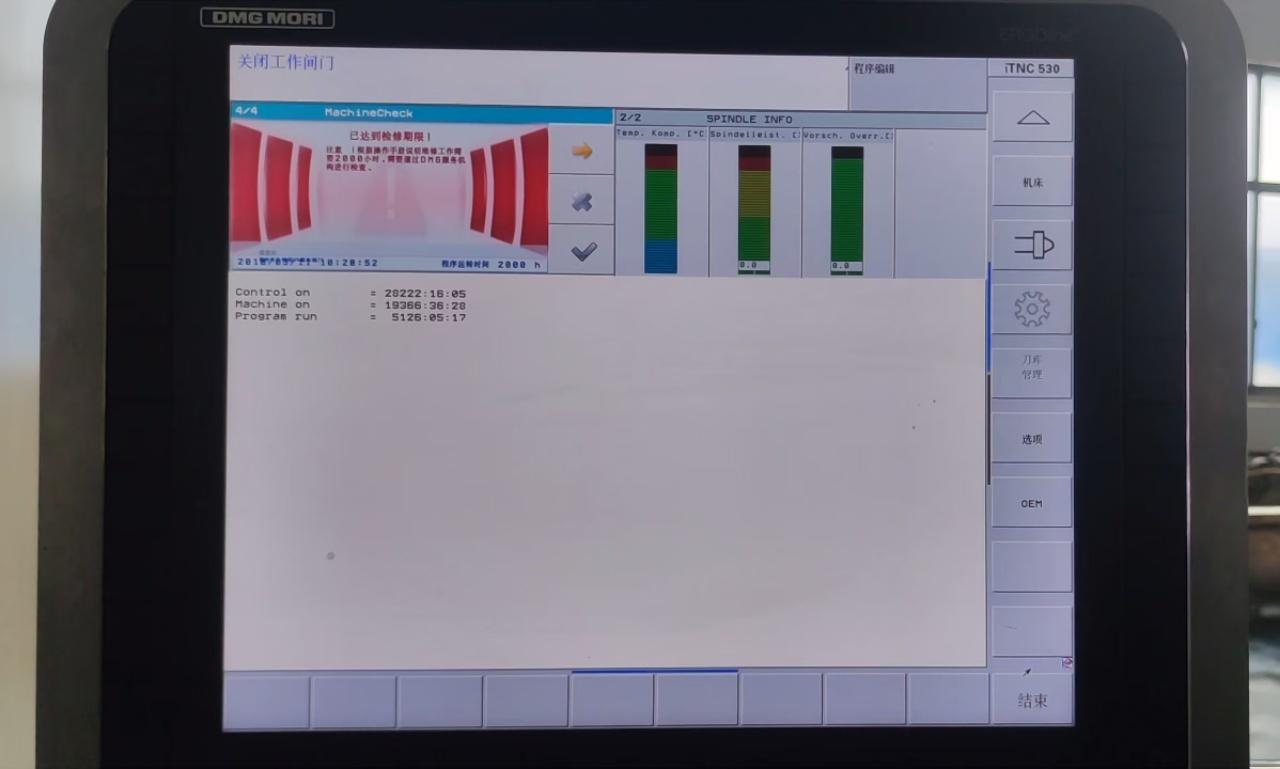

CNC CNC System: HEIDENHAIN ITNC 530

three-axis travel :850*650*550mm

B-axis :-5/+110 degree

C-axis :360 degree

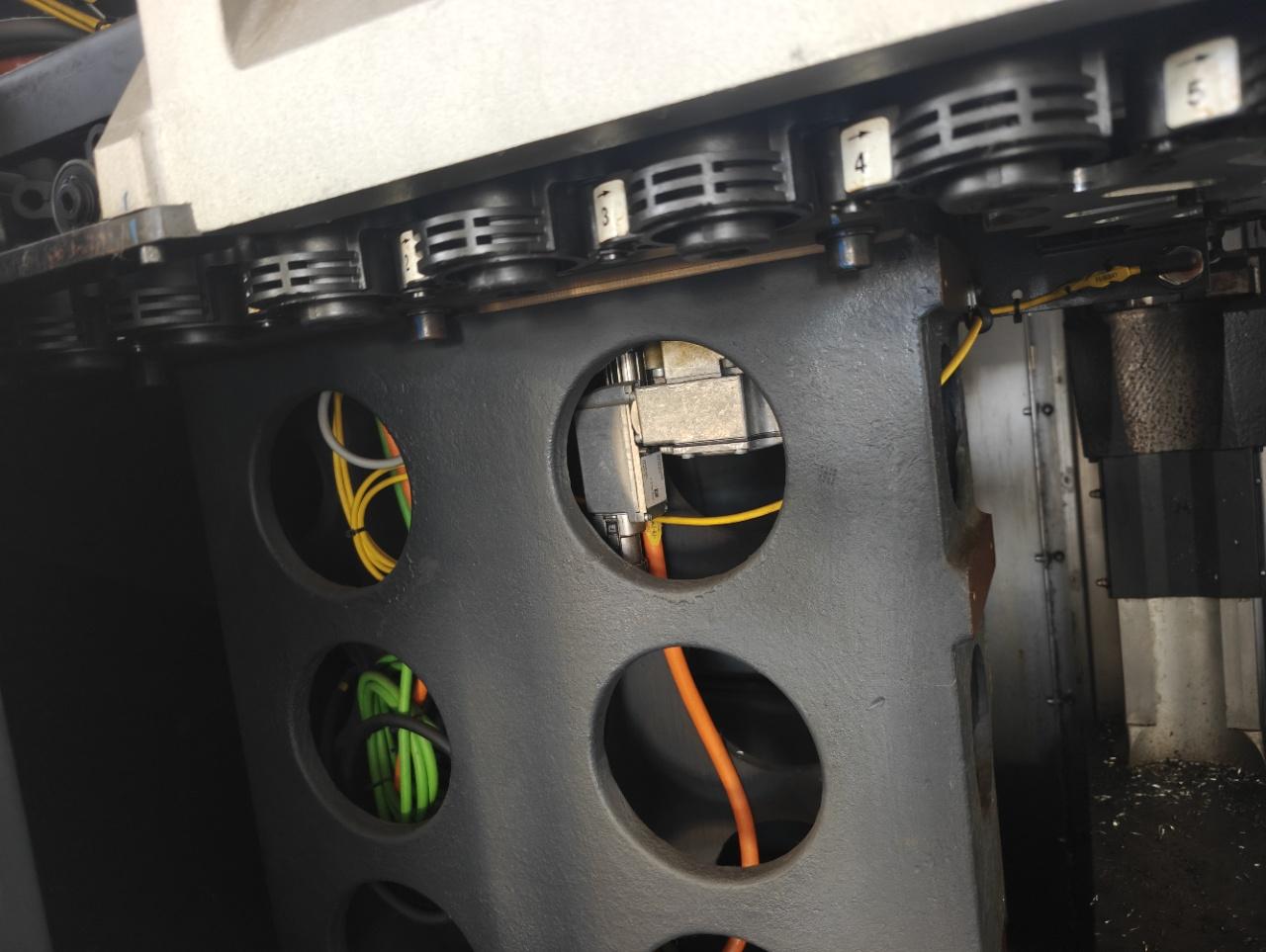

tools magazine :60

Maximum Tool weight :6 kg

Tool maximum diameter :80 mm

Maximum Tool length: 300mm

Tool holder :HSK-A63

Spindle speed range :18000 rpm

Tool tension :25kn

3 axes Fast moving rate :80 m/min

Feed range (straight line):80000 mm/min

Resolution :0.001mm

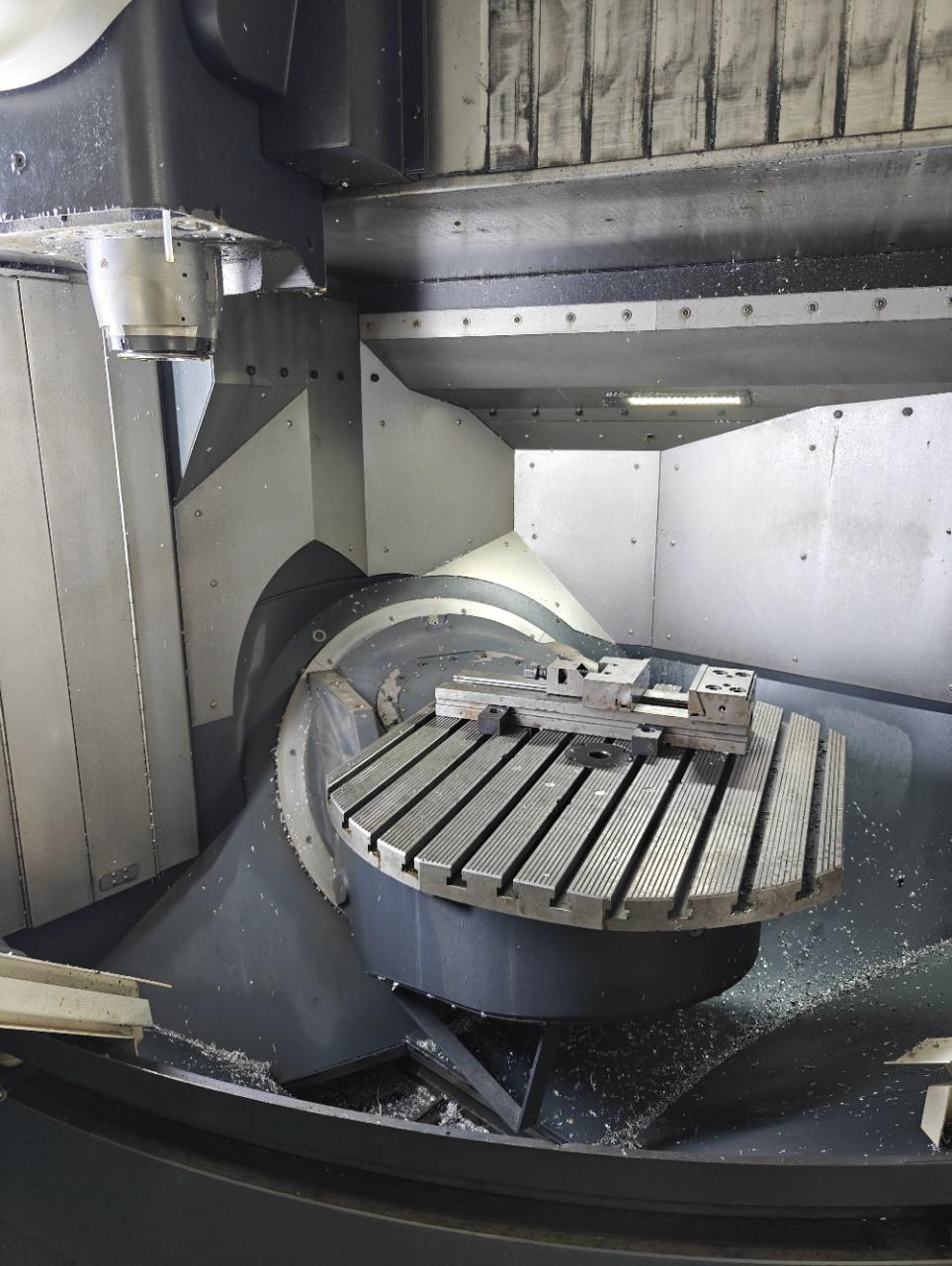

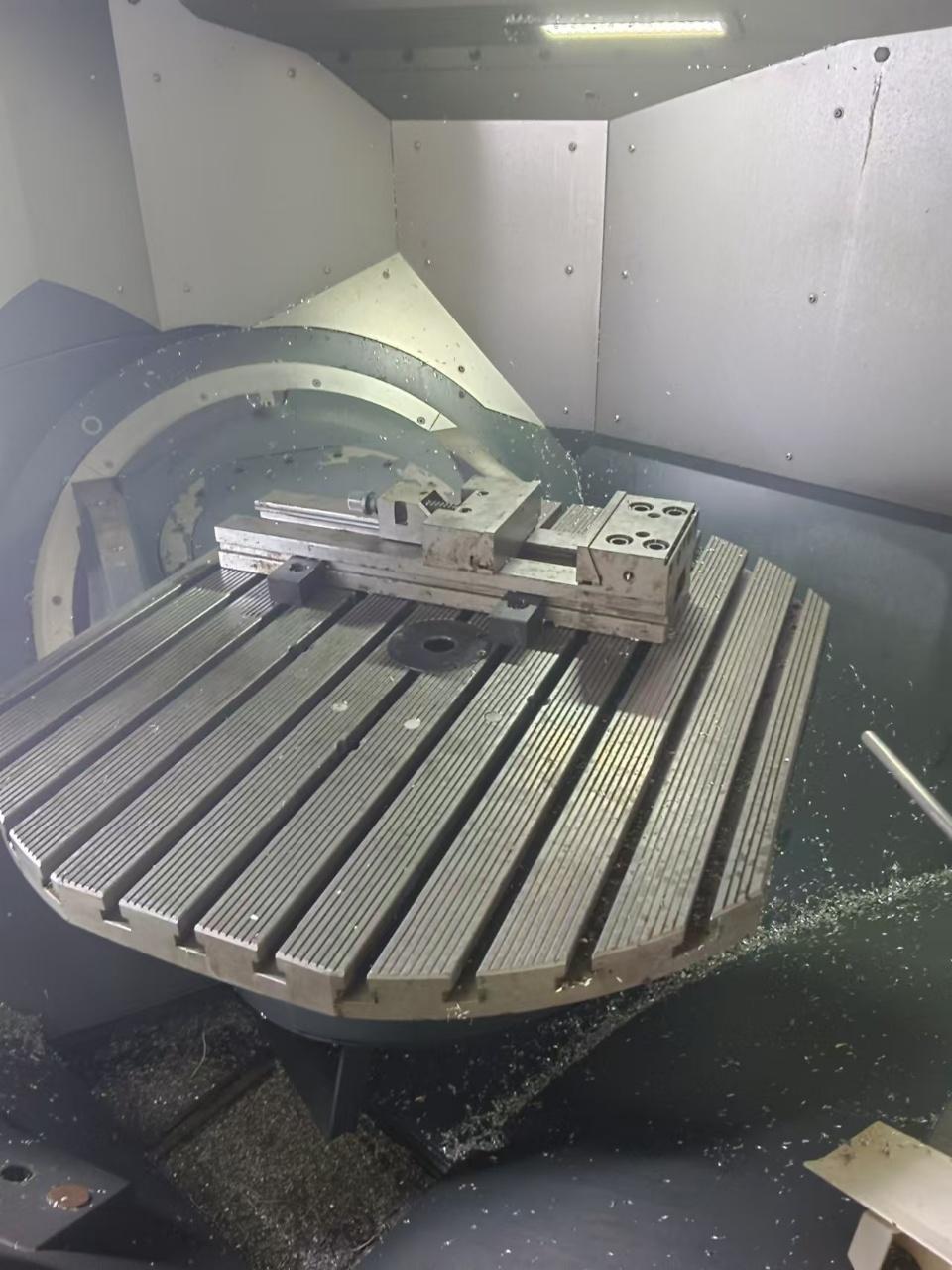

Fixed WorkWorktable size :800*700mm

WorkWorktable load (bearing weight):600kg

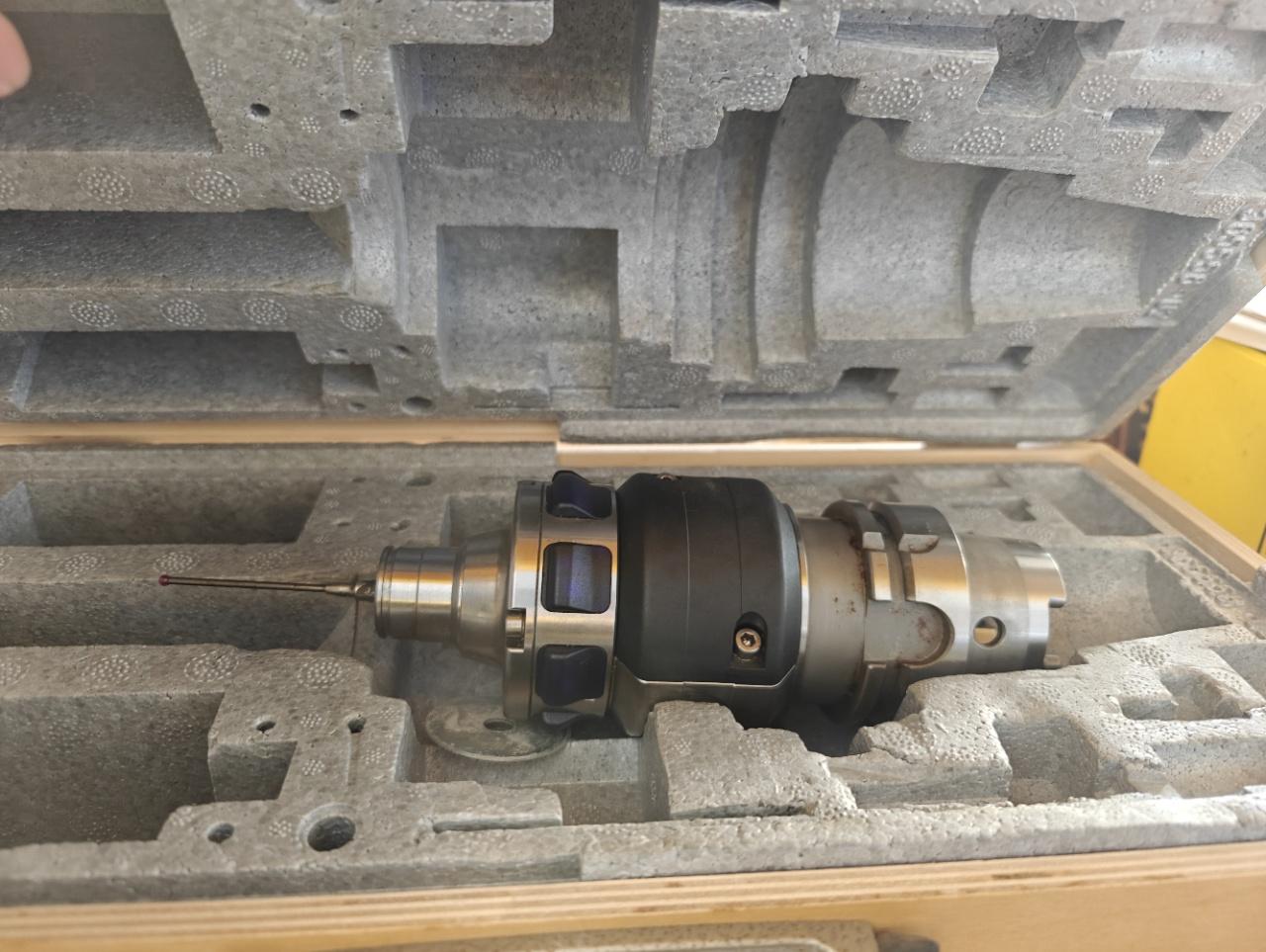

Additional functions: center flushing, Chip conveyor, ruby probe.
