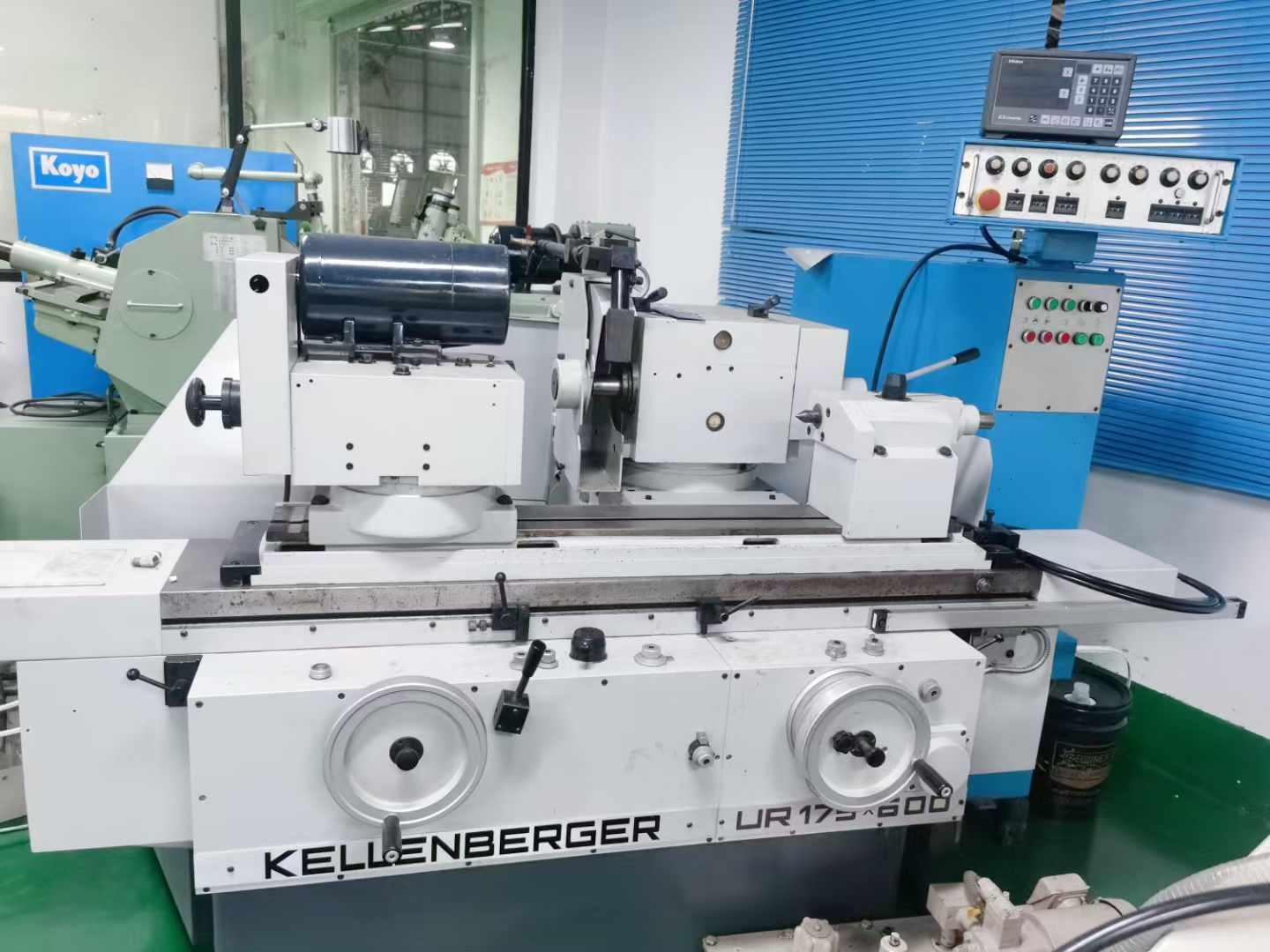

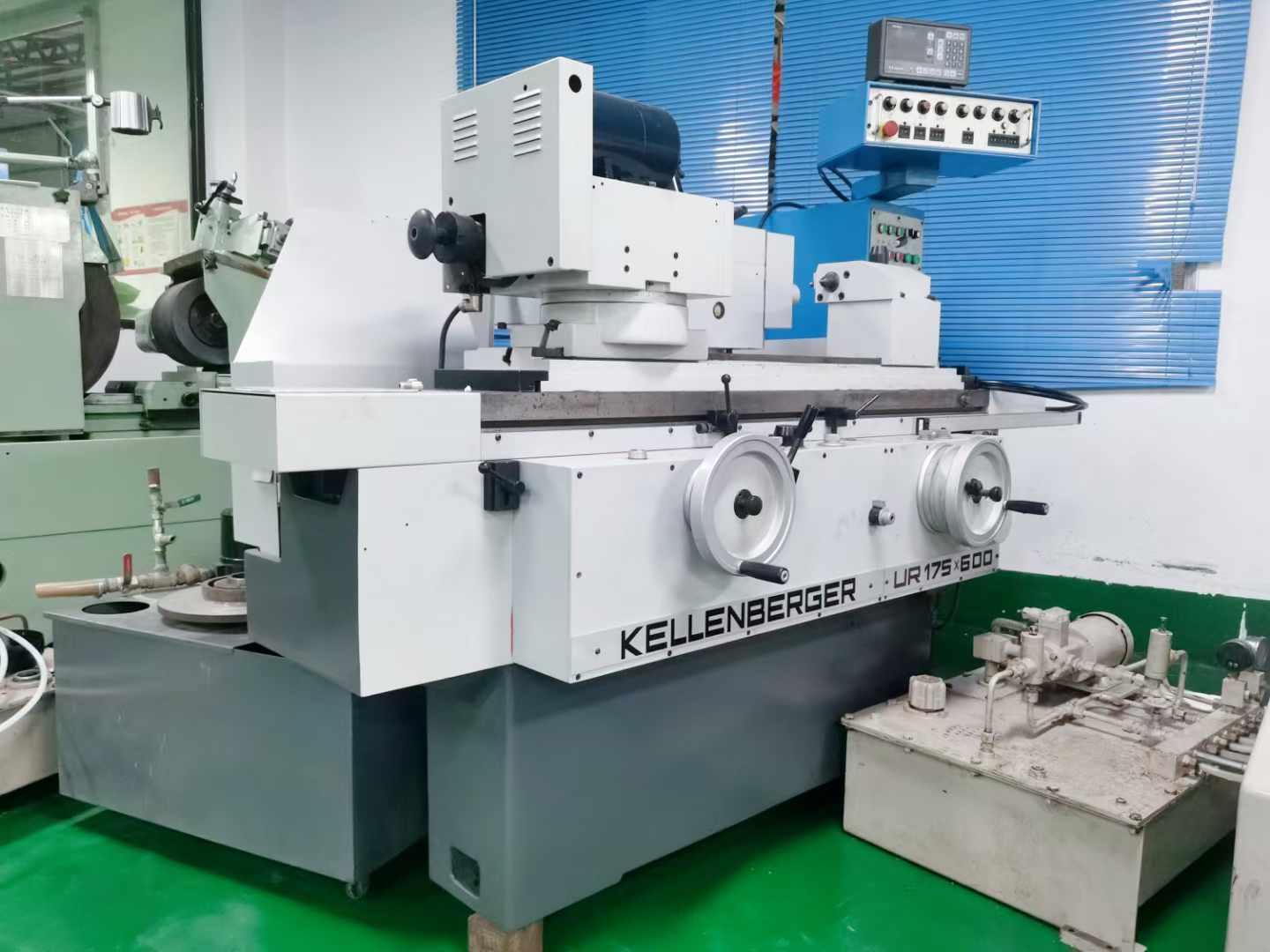

Kellenberger UR-175*600 Cylindrical grinder

Distance between centers: 600 mm

Center height: 175 mm

travel X*Z:   320   x 750 mm

Resolution X * Z: 0.0001mm

grinding wheel retainer headstock automatic rotation direction: -210/+10° grinding wheel degree cell

Maximum workpiece weight (between centers) : 100KG

Left external grinding: grinding wheel Footage (diameter X width X boring) 400 x 63 x 127mm

Right external grinding: grinding wheel size (diameter X width X boring) : 300x 40 x 127mm

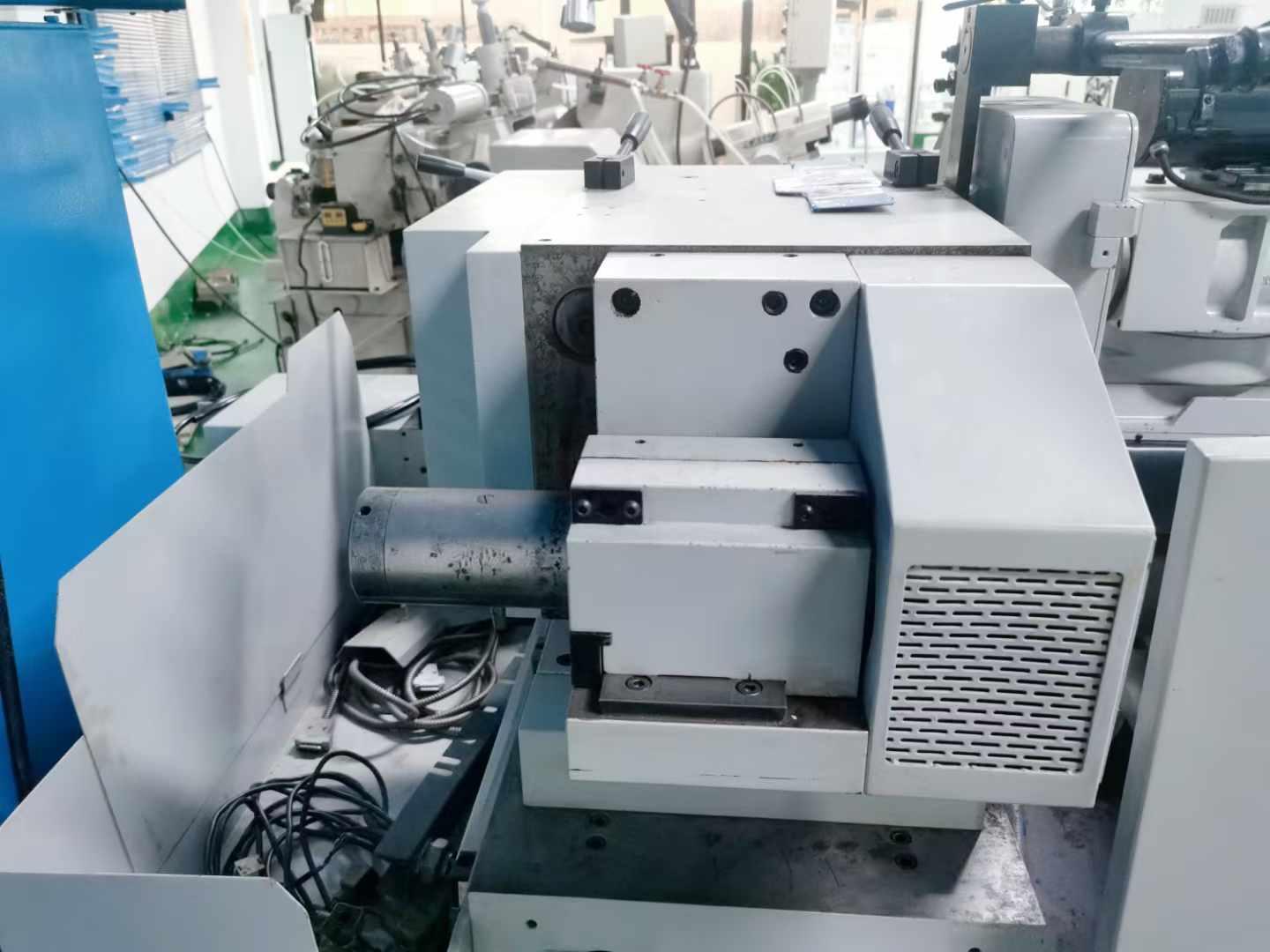

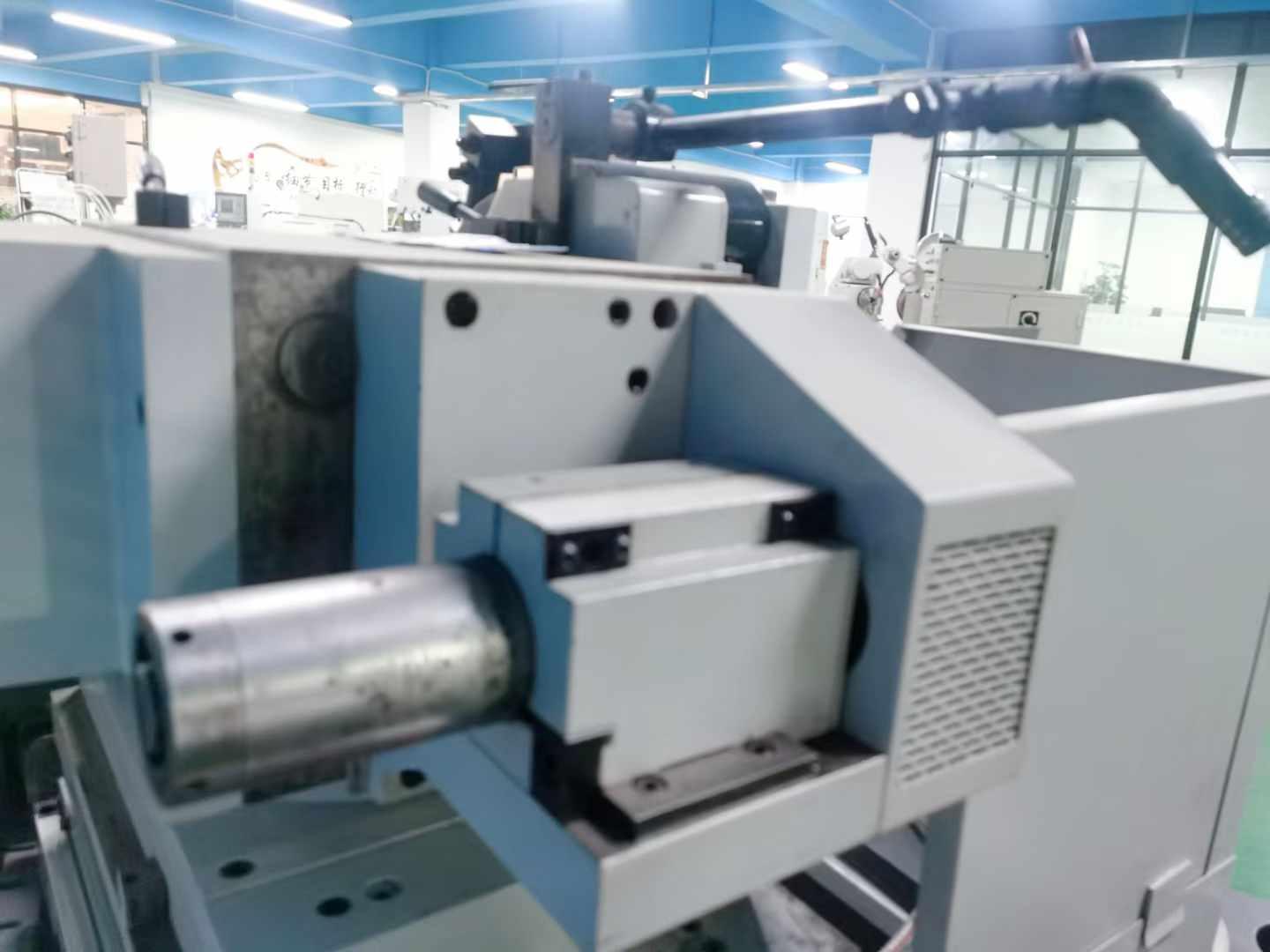

Internal grinding * speed: 6000-28000rpm

Power supply voltage: 400 volts

Machine Footage: 2400 x 1700 x 1800 mm

Machine weight: 3500 kg
