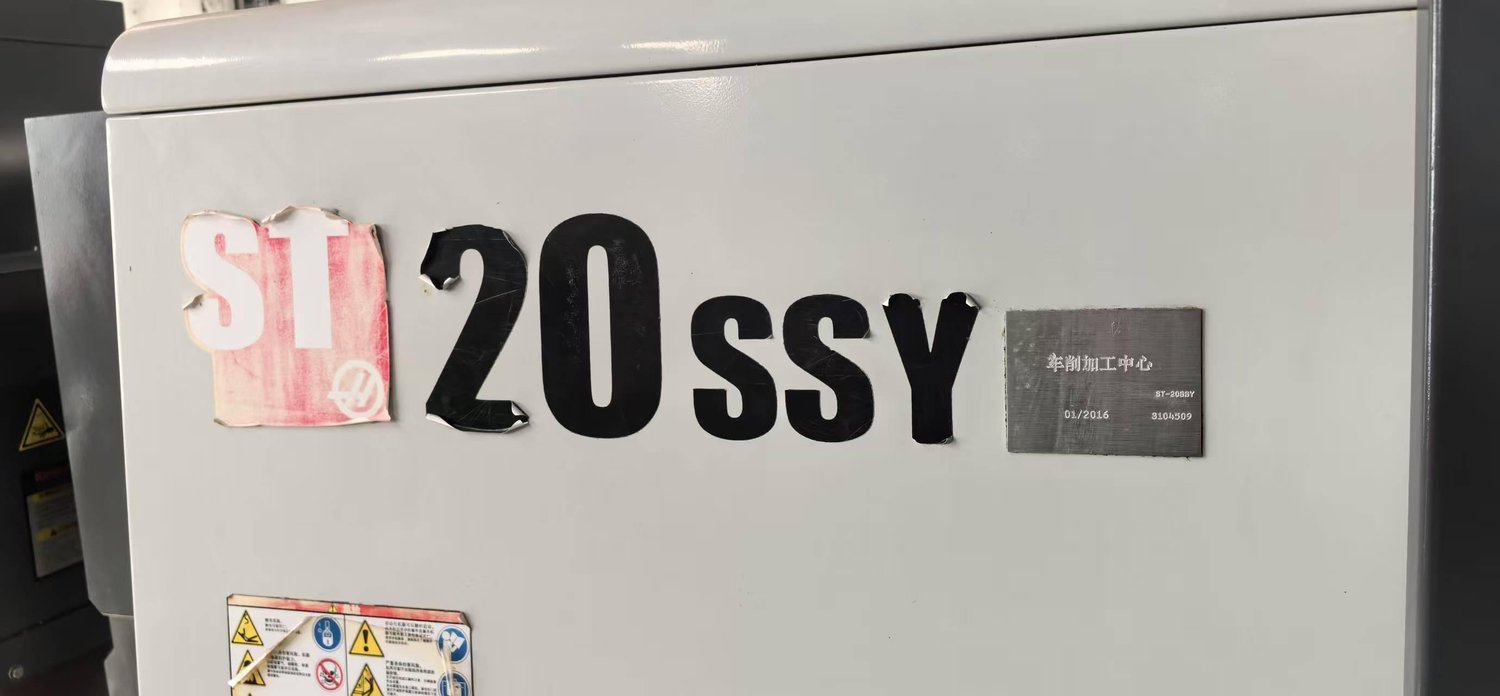

HAAS ST-20SSY Turn Mill Machining Centre
[Product Information]:
- Inventory number：86228
- Brand：HAAS
- Model：ST-20SSY
- Origin：America
- Location：China
- Year：2016
- Create Time：2025-01-16
Specifications:

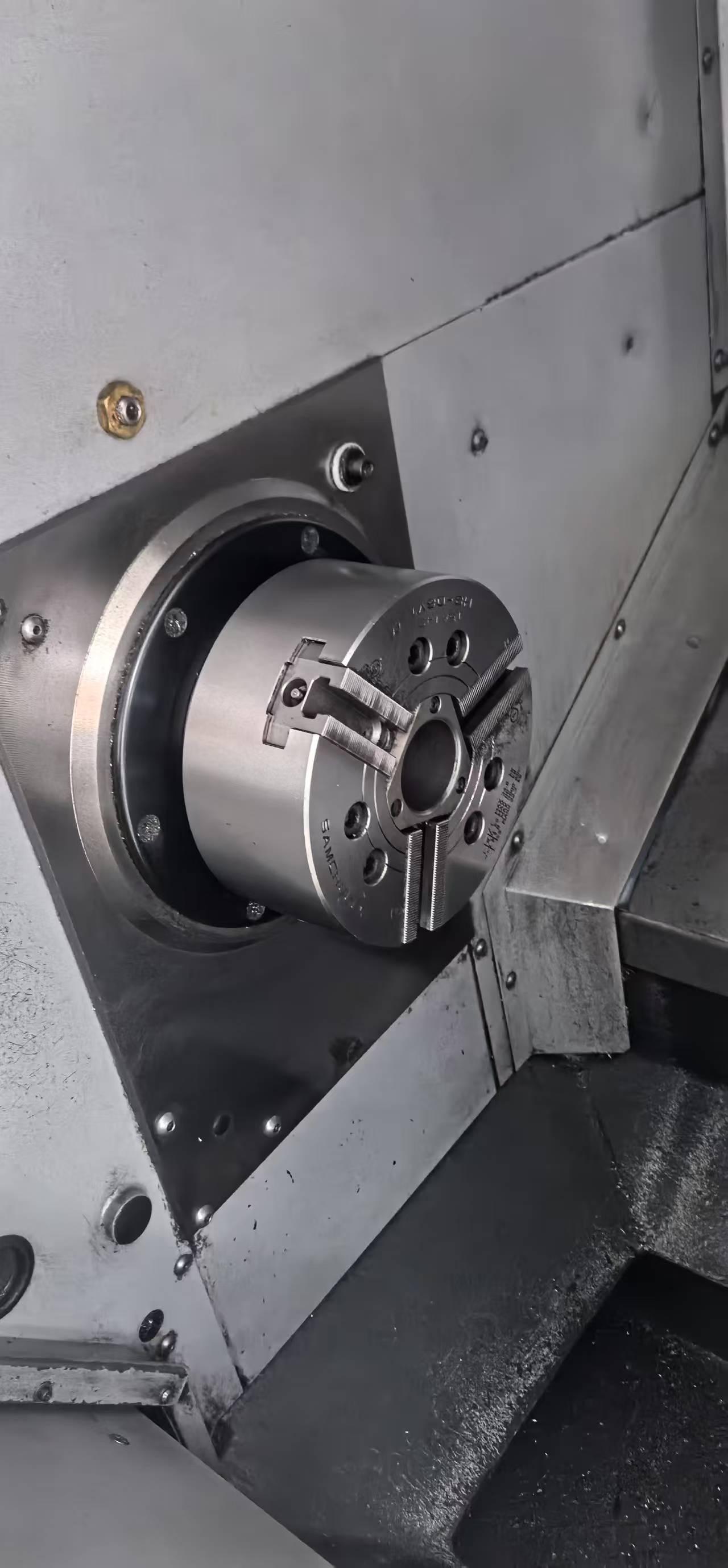

Chuck size: 210mm
Maximum turning diameter: 254mm
Maximum Machining length: 533mm
Bar capacity: 51mm
spindle maximum speed: 5000rpm
Maximum motor power: 22.4kw
Maximum torque: 190NM
spindle nose: A2-6
Maximum rotating diameter of the bed: 806mm
Maximum rotating diameter on the slider: 527mm
Maximum rotating diameter on tailstock: 584mm
three-axis travel: 236mm*51mm*533mm
X-axis Fast moving rate: 12*12*30m/min
