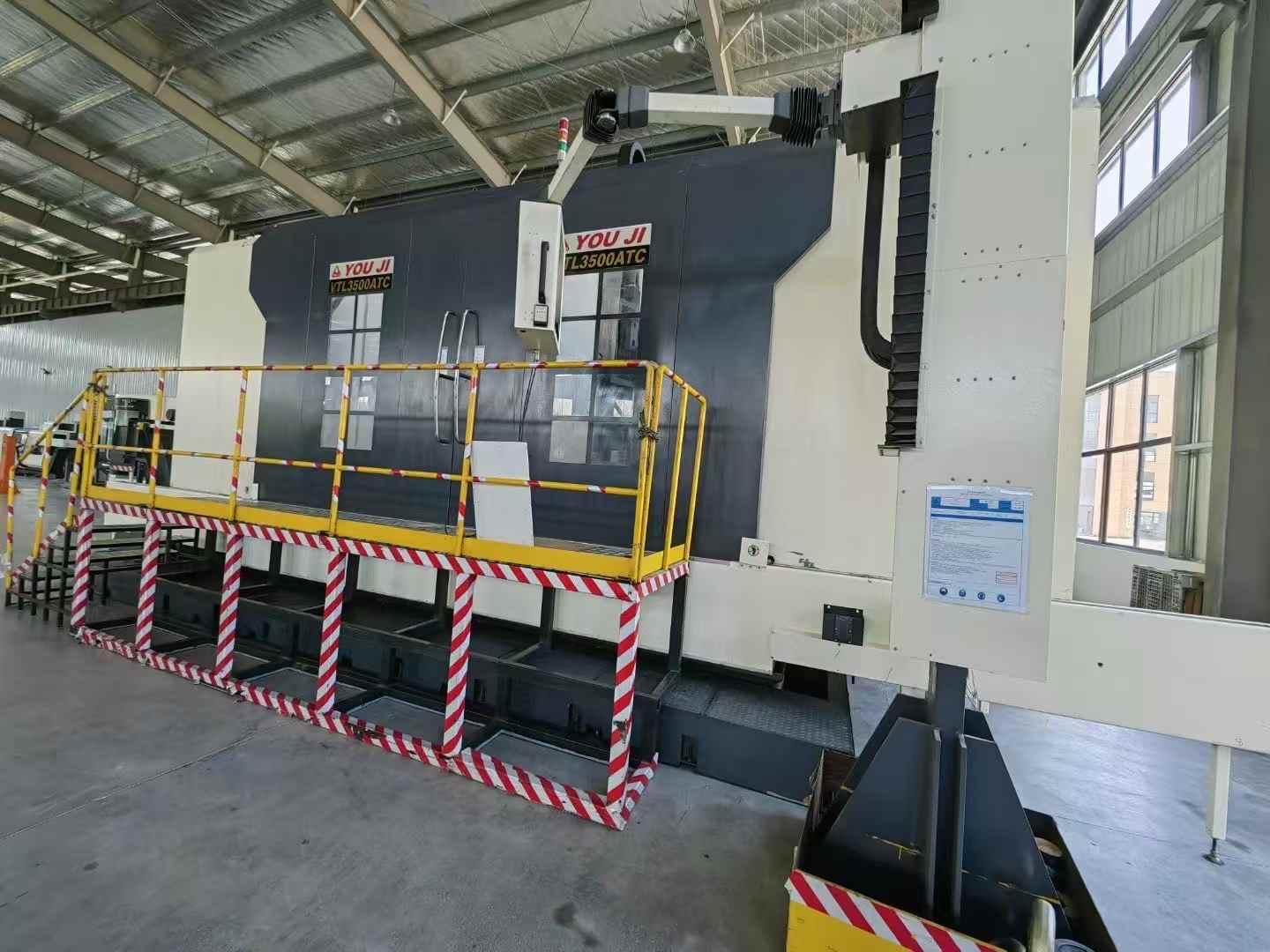

YouJi VTL3500ATC CNC vertical lathe

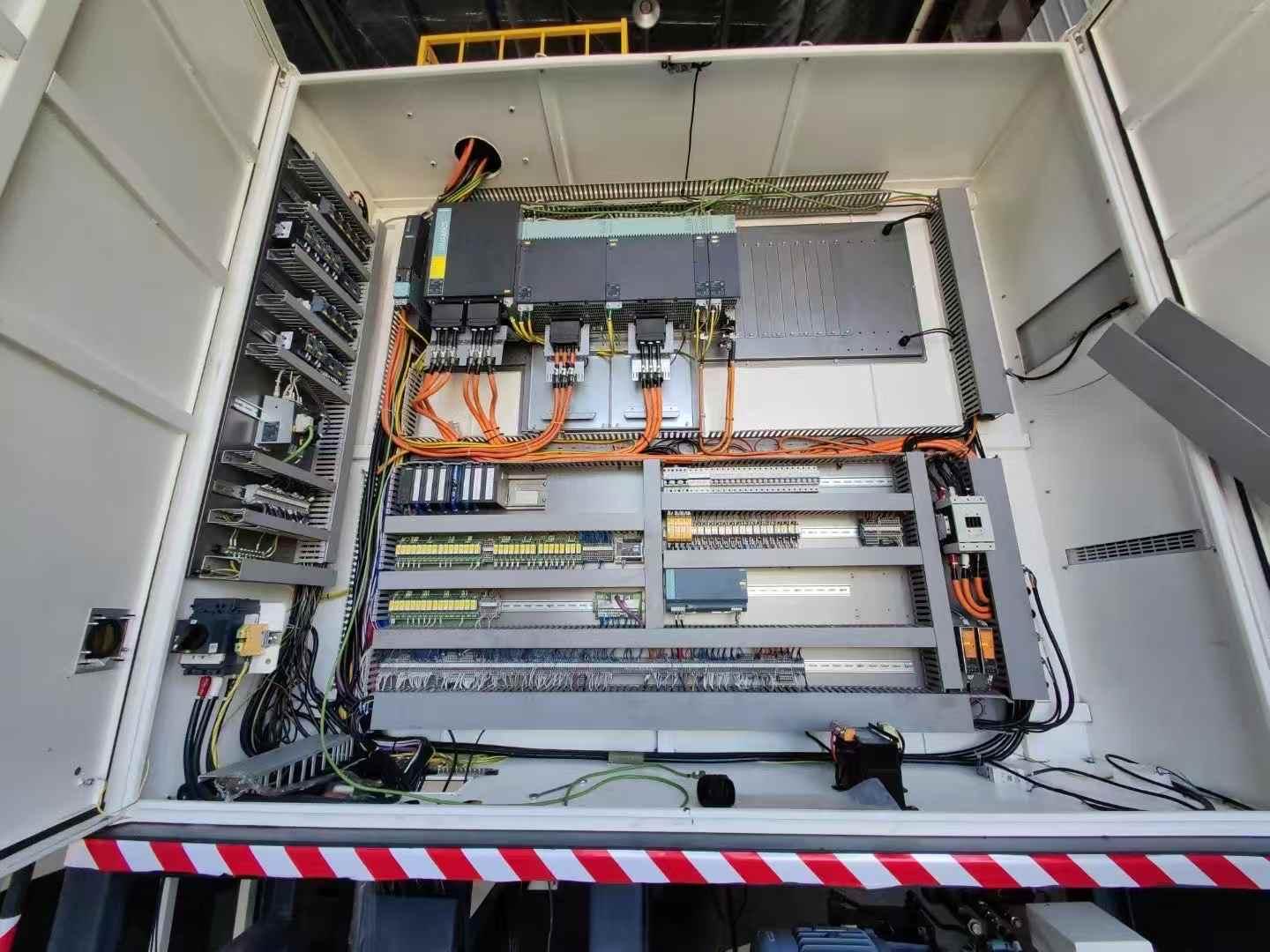

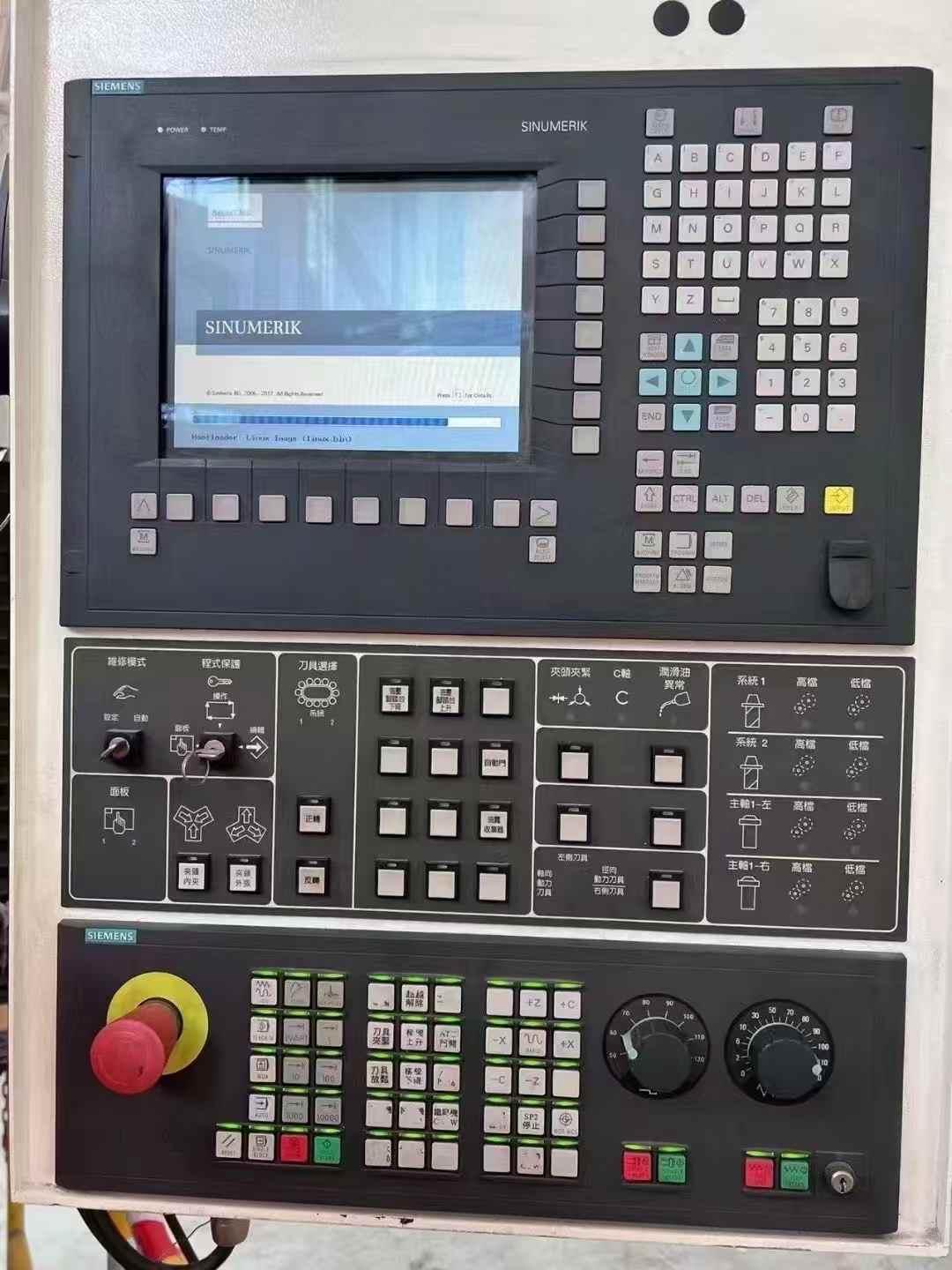

CNC CNC System: Siemens 840DSL

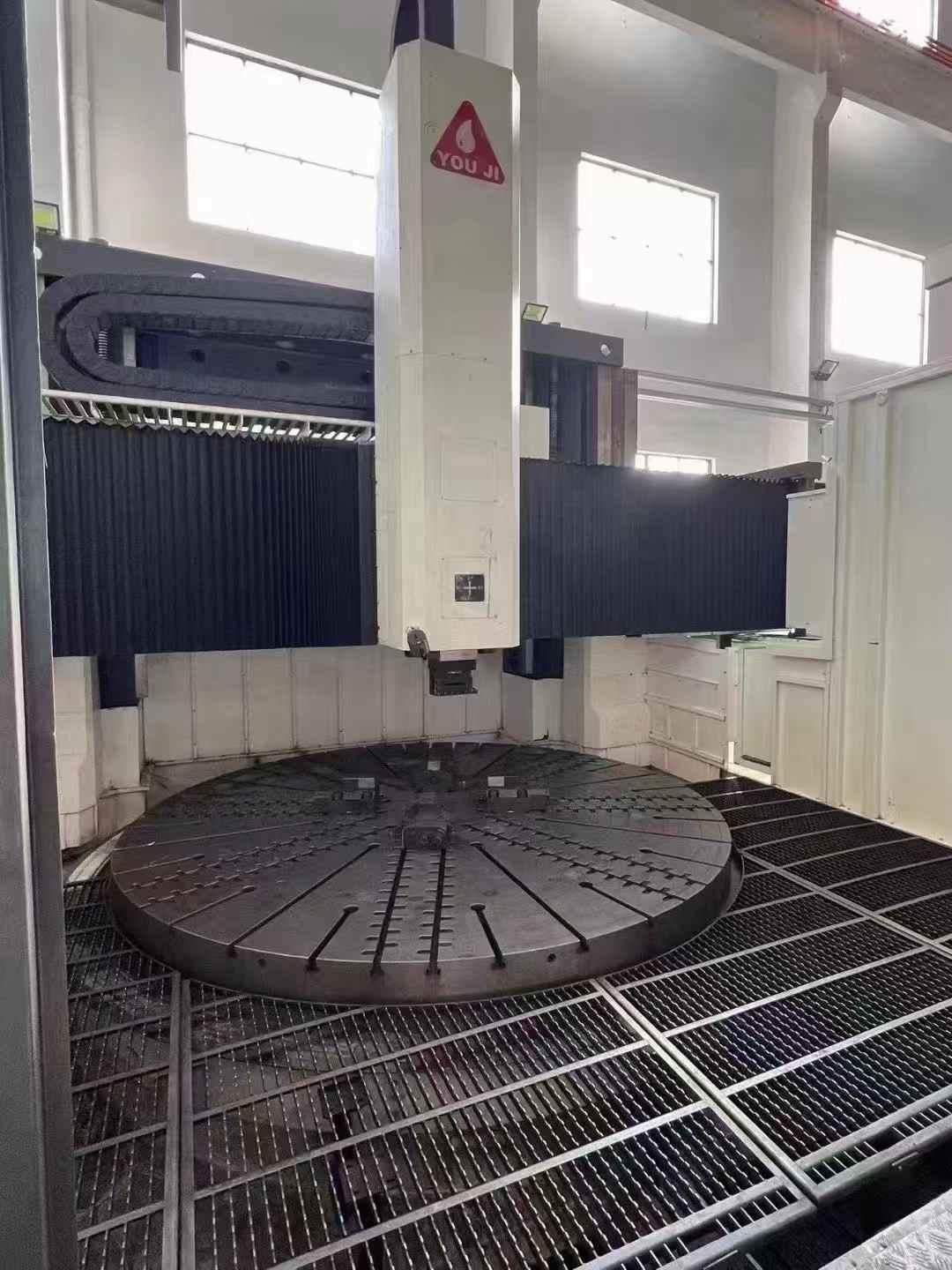

WorkWorktable size: Φ3500mm

Maximum diameter: Φ4100mm

Maximum turning diameter: Φ3800mm

Maximum machining height: 1600mm

Maximum load: 20000kg

Maximum torque: 167,000nm

X axis travel :-1750+2160mm

Z-axis travel :1500mm

spindle gear: 2

Spindle speed :1-14/14-60

feed rate X axis: 6m/min,

feed rate Z-axis: 10m/min

remote control box feed rate X, Z-axis: 0-6m/min

Cutting rate: 1-2000mm/min

Main motor power: 58KW

X-axis motor: 7.7KW

Z-axis motor: 7.7KW

Cooling pump motor: 3KW

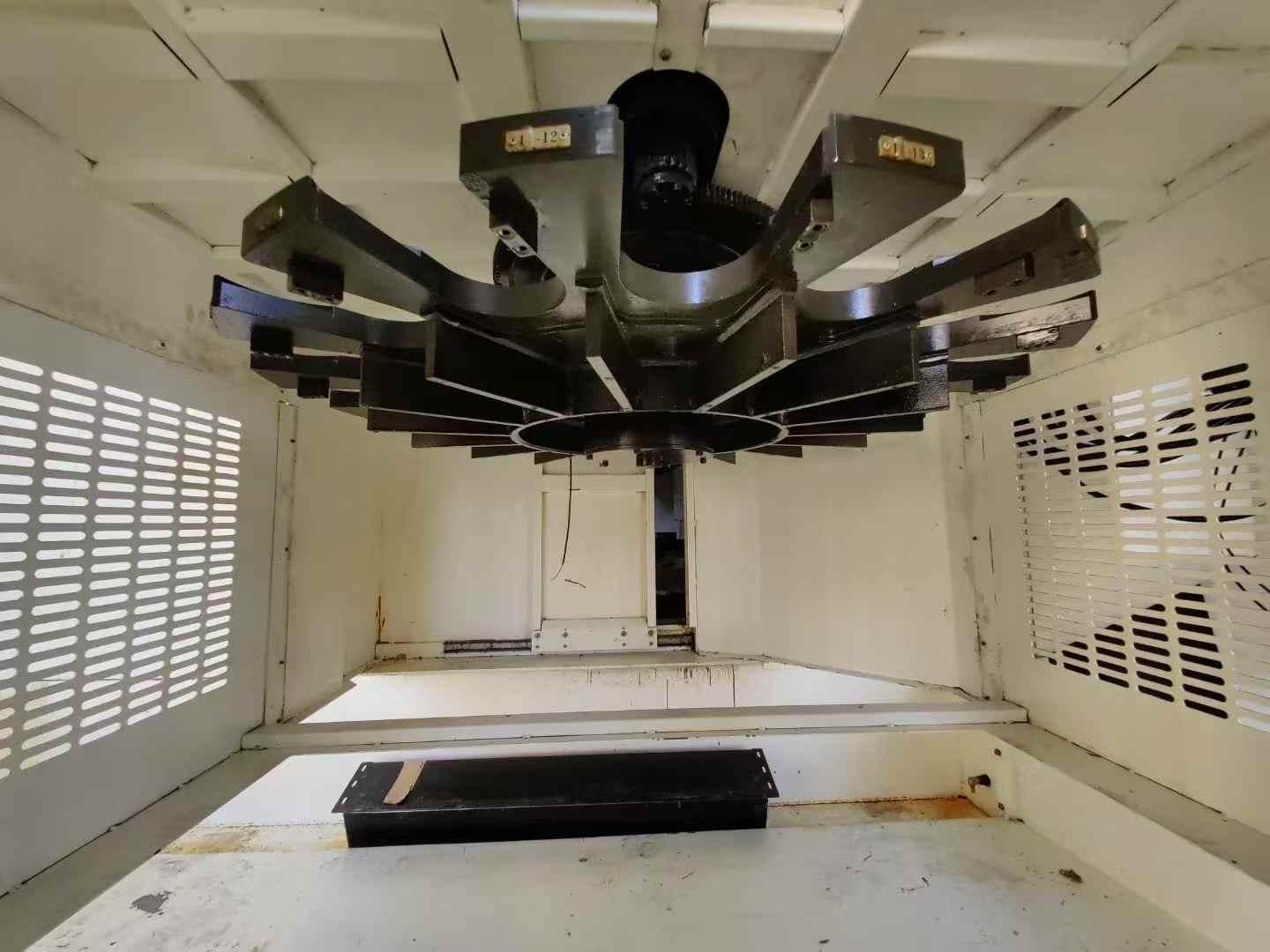

tools magazine: 16

Maximum Tool size: 280W*150T*400L

Maximum Tool magazine capacity: 800kg

Maximum Tool weight: 50kg

glass scale with two axes
