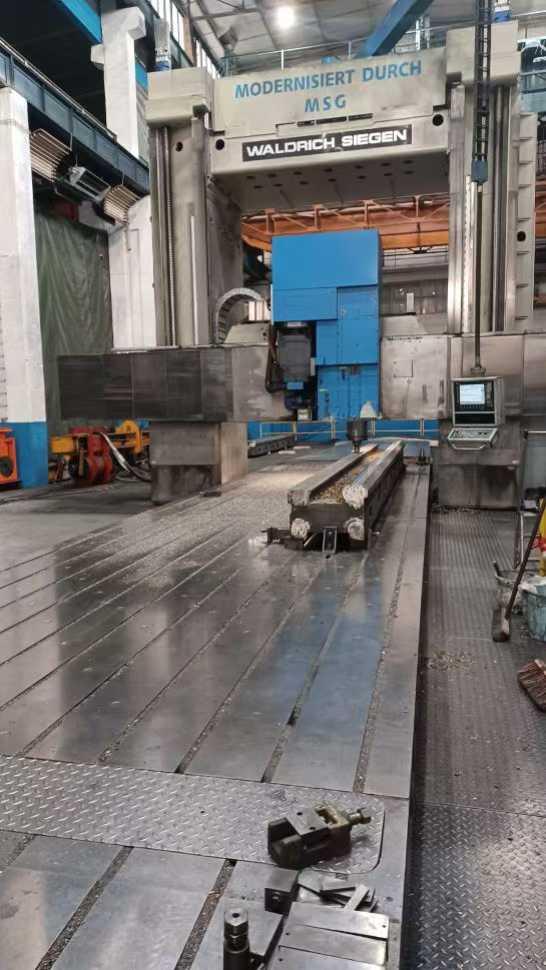

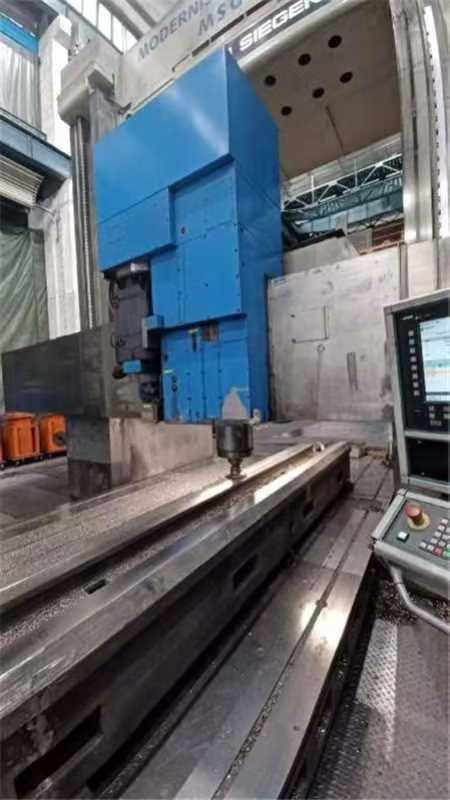

Waldrich Siegen LF35504000CS CNC gantry milling machine

Worktable X axis: 14000mm

Worktable Y axis: 4480mm

The vertical distance of the Z-B axiseam is 3,000 mm

W shaft sleeve vertical distance 300mm

Maximum clearance: transverse 3200mm, high 3800mm

Length: 14770mm

Width: 3100mm

Maximum load: 145 tons

Tool taper: ISO60

power: 100KW

Maximum torque: maximum speed 600 RPM

X*Y*Z axis fast movement: 12*12*6m/min
