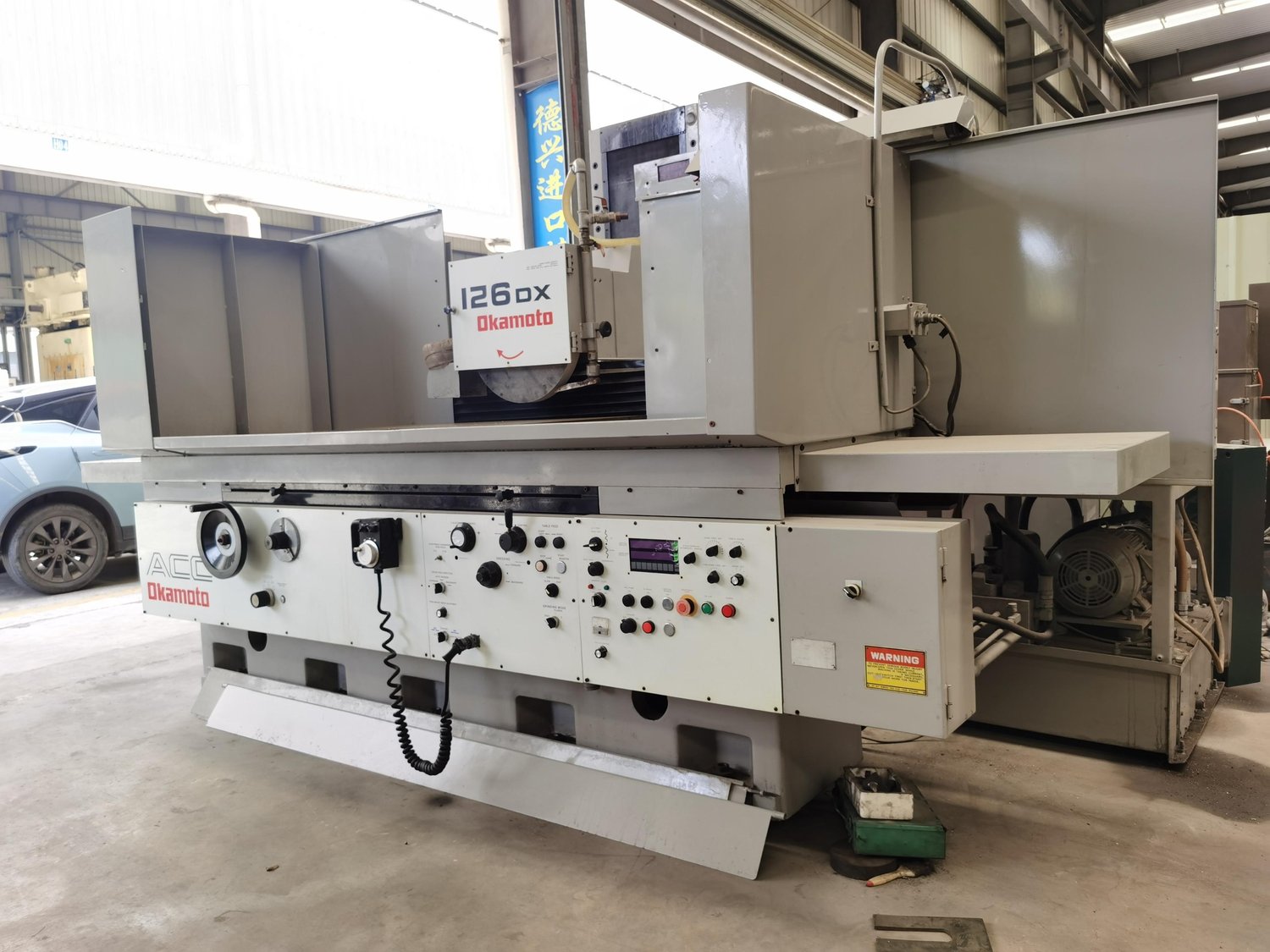

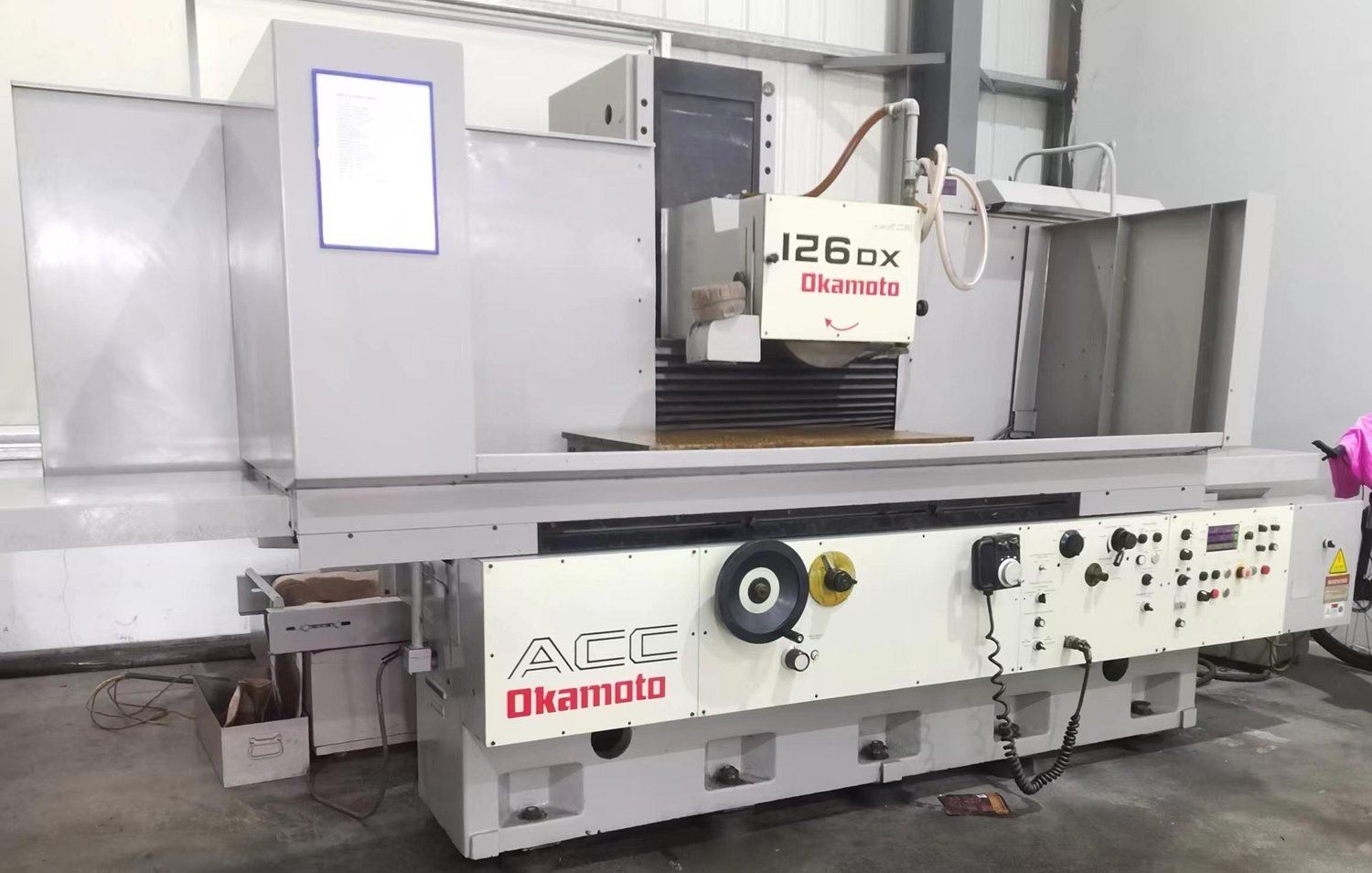

Okamoto 126DX Grinding machines

three-axis travel :1200*600*595mm

Standard Chuck size :1200*600*110mm

Worktable load (including magnetic Worktable) : 2000KG

T-slot (number X width) : 200*3mm

Average longitudinal feed :2-25m/min

remote control box per resolution :25mm

Y-axis maximum travel :660mm

Y-axis single feed :5-35mm

Y-axis continuous feed rate :0.3-5m/min

Feed per change of hand :5mm

Continuous hydraulic feed :0.2mm

Z-axis: Automatic feed :0.001-0.05mm

Fast feed rate :0.36m/min

Feed per hand change :0.1(*1)/1(*10)mm

Dial scale :0.001(*1)/0.01(*10)mm

grinding wheel diameter. Width. Internal diameter :510*50*127mm

spindle speed :980/1100rpm

Machine floor area :5400*2693*2195mm

Overall weight :7800KG
