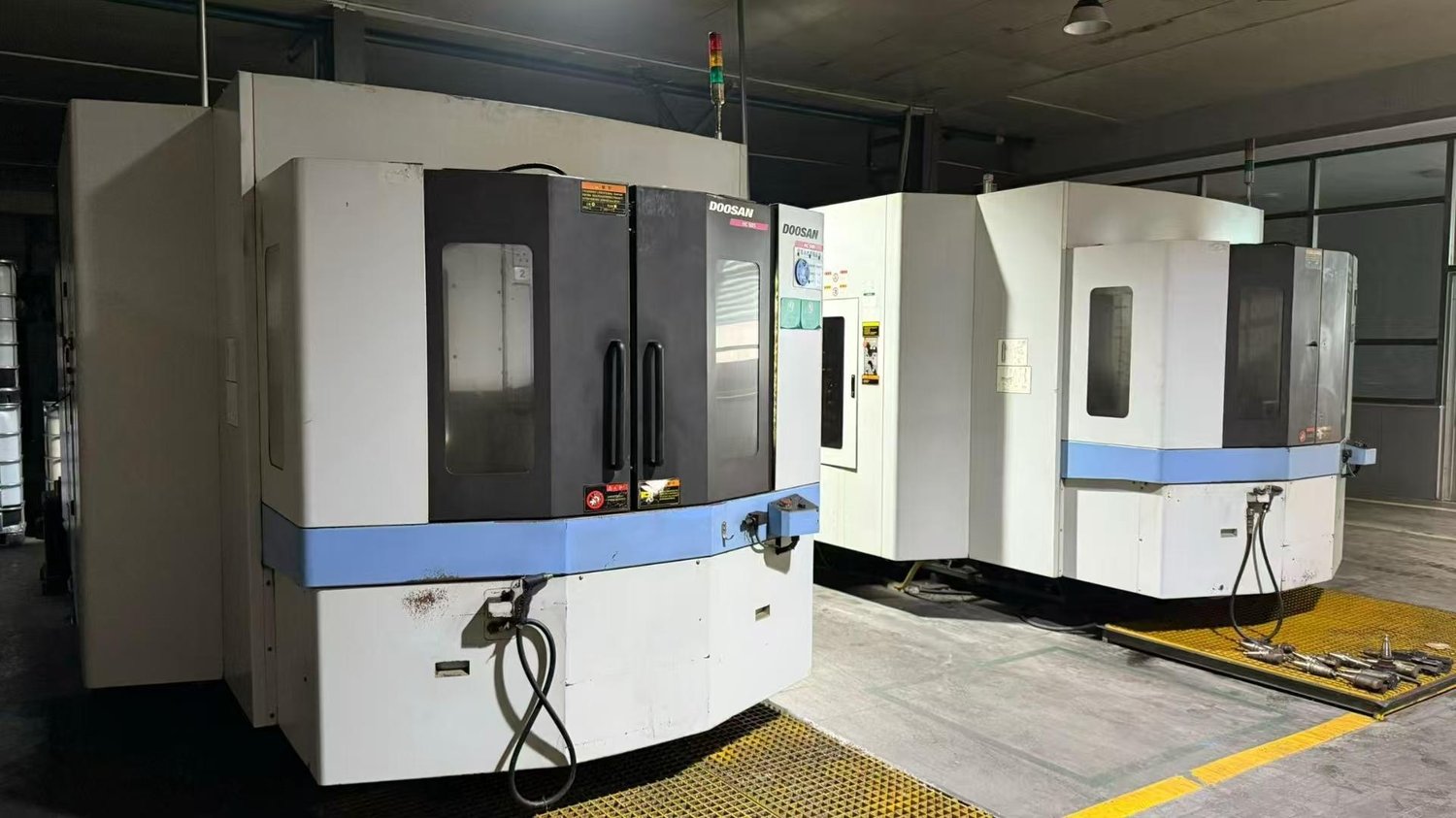

DOOSAN HC505 Horizontal Machining centre
[Product Information]:
- Inventory number：63028
- Brand：DOOSAN
- Model：HC505
- Origin：Korea
- Location：China
- Year：2015
- Create Time：2024-12-28

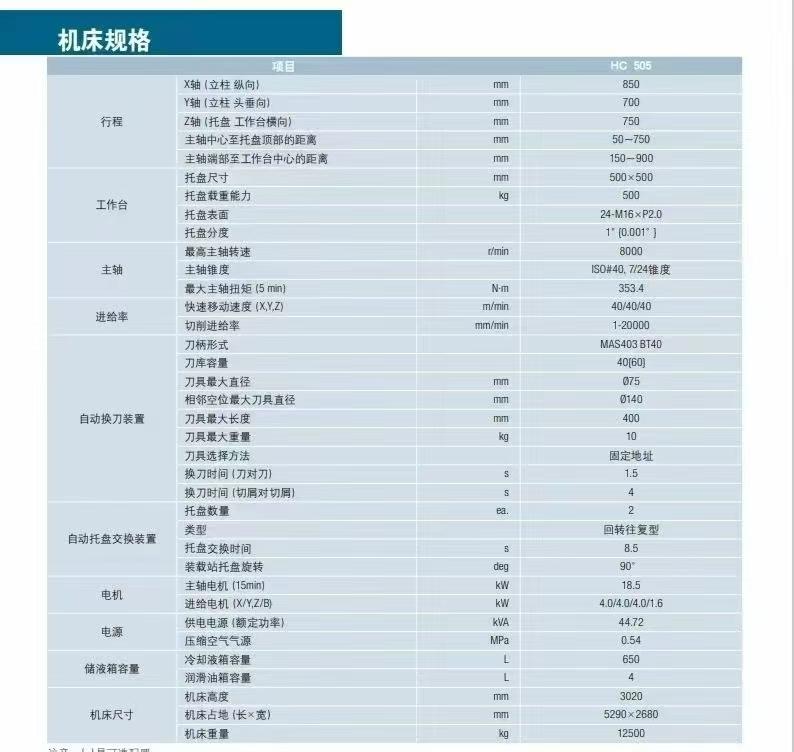

Specifications:
three-axis travel: 850*700*750mm
Distance from spindle center to worktable top: 50-750mm
Distance from spindle nose to workWorktable center: 150-900mm

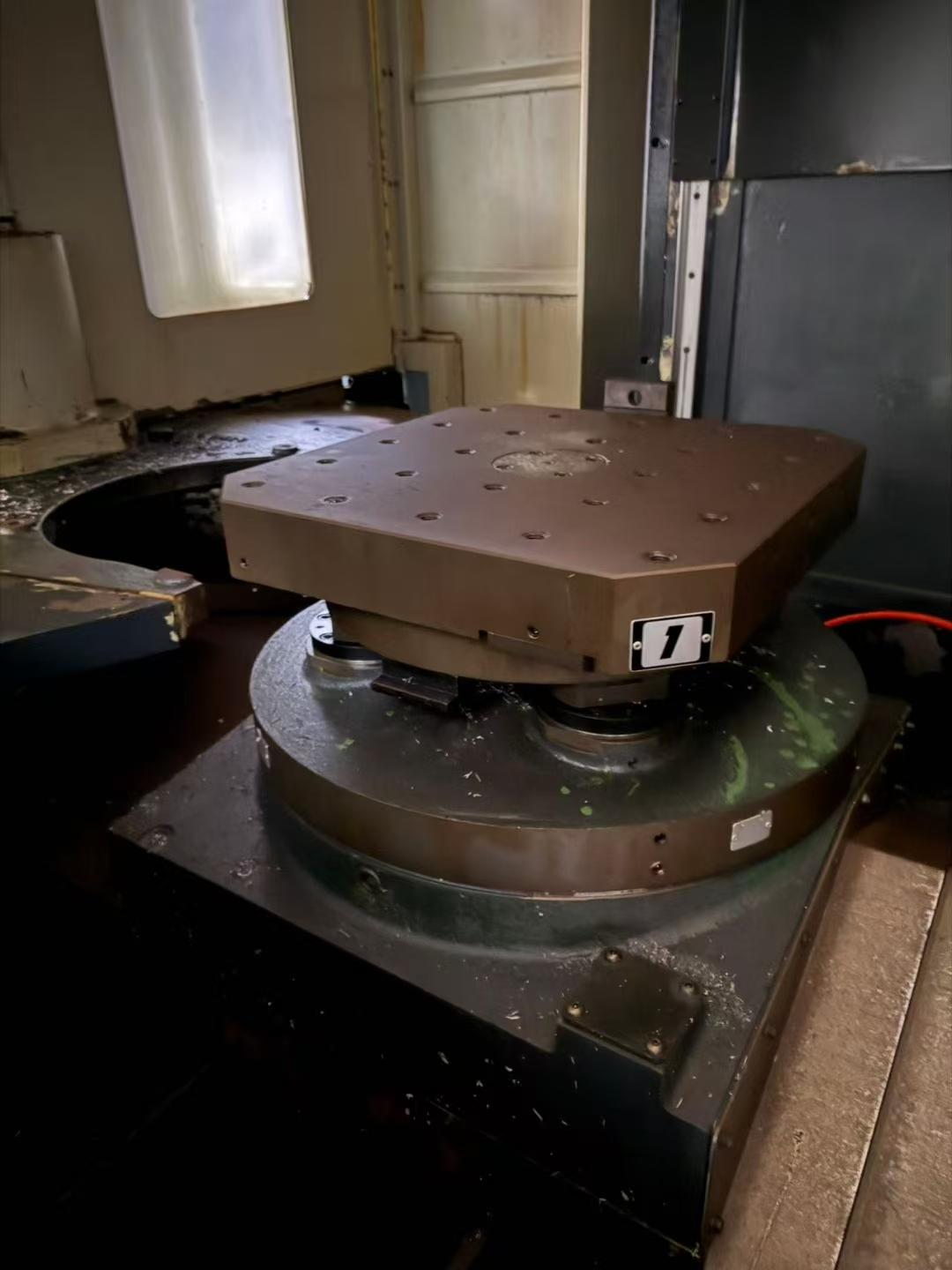

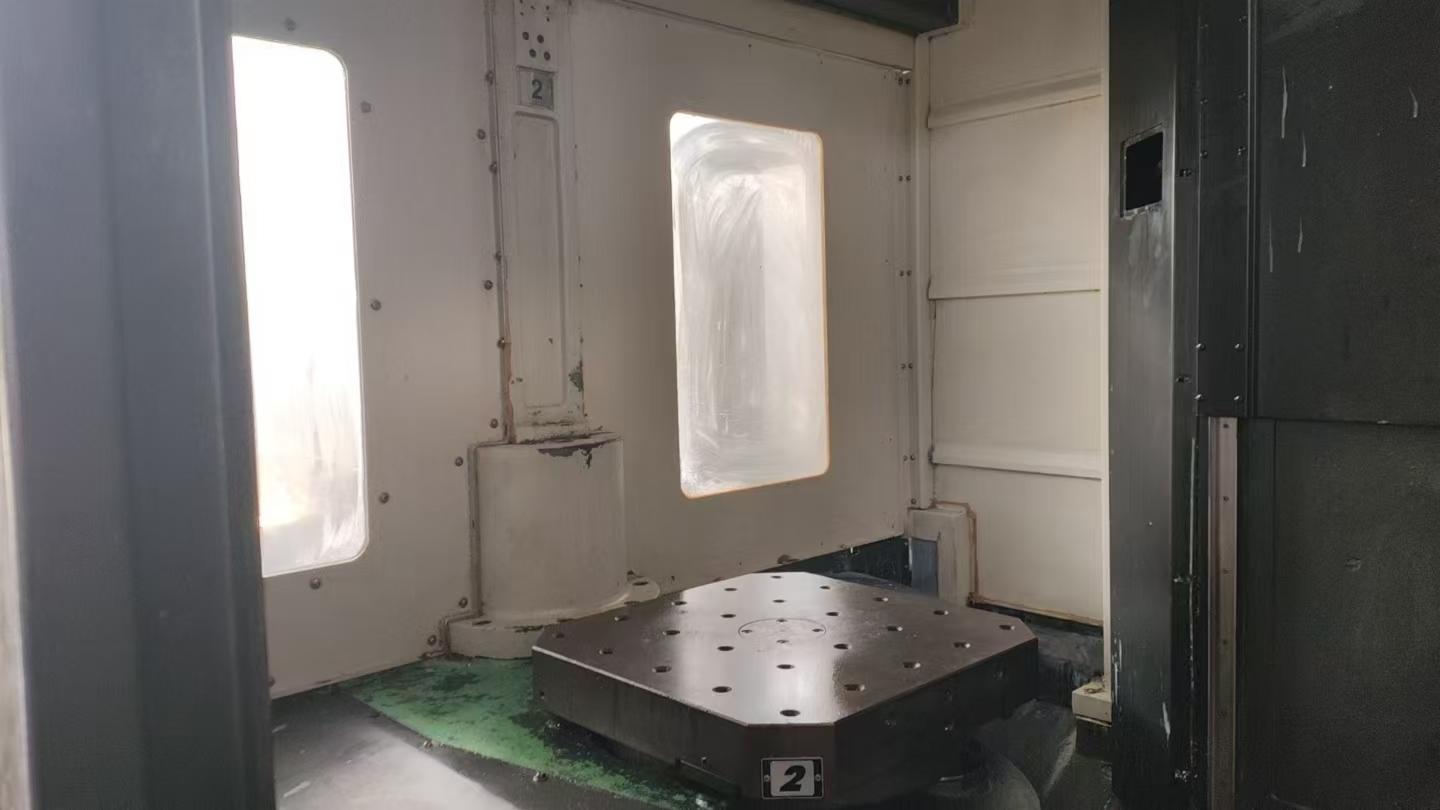

Worktable worktable size: 500*500mm
Worktable worktable Load: 500kg
spindle maximum speed: 8000rpm
Maximum spindle torque: 353.4Nm
X*Y*Z axis fast speed: 40/40/40m/min
Tool holder form: BT40

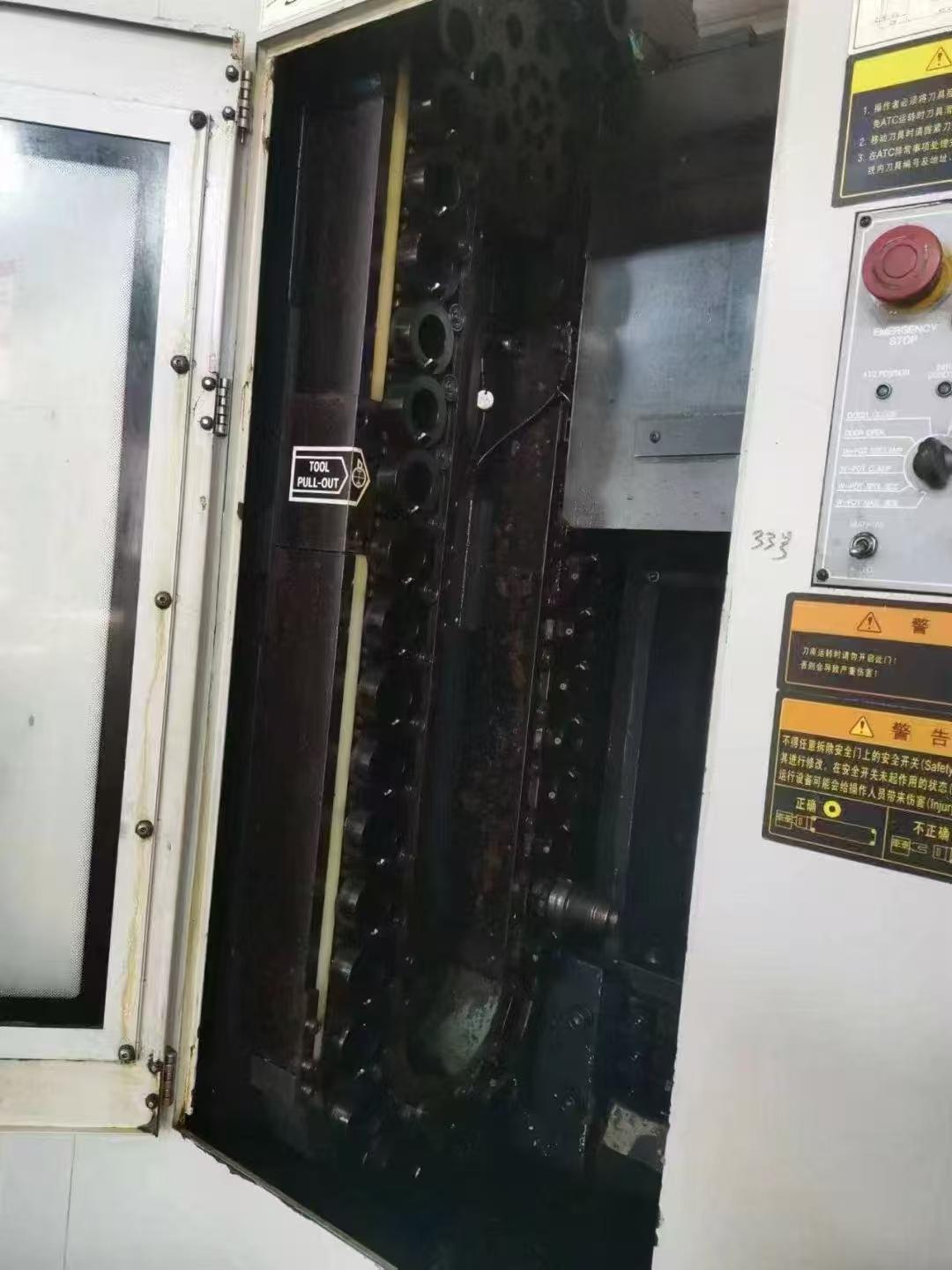

tools magazine: 40 (60)
Tool maximum diameter: φ75mm
Tool maximum length: 400mm
Tool maximum weight: 10kg
spindle motor power: 18.5kw
Footage: 5290*2680*3020mm
Machine weight: 12500kg
