Tsugami M08SY Turn Mill Machining Centre
[Product Information]:
- Inventory number：85783
- Brand：Tsugami
- Model：M08SY
- Origin：Japan
- Location：China
- Year：2022
- Create Time：2024-12-27
Specifications:

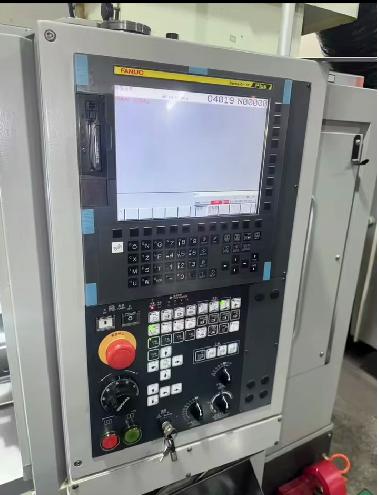

CNC CNC System: FANUC
X/Z/A/Y axis travel: 221*400*506*+-50mm
X/Z/A/Y axis fast speed: 24*27*30*12m/min
Machine Footage (length/width/height) : 2470*1850*1930mm
Maximum machining length: 380mm
Spindle speed: 5000rpm
Through hole diameter: 59mm
spindle motor: 5.5/7.5kw
spindle 8 inch chuck
Secondary spindle 6 inch chuck

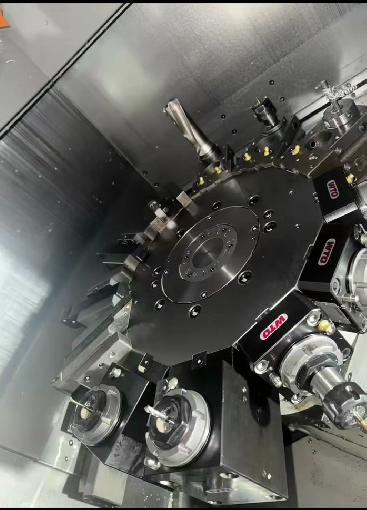

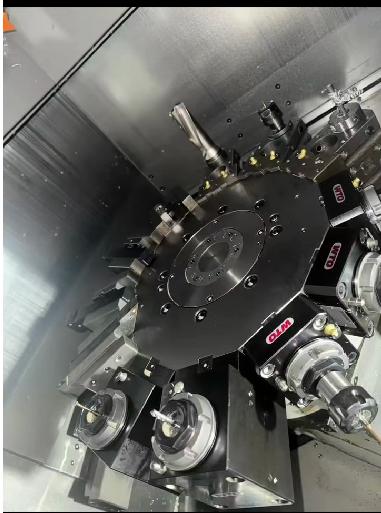

12 positions servo turret
Y-axis
high pressure pump
Tool Aligner
With a chip conveyor
