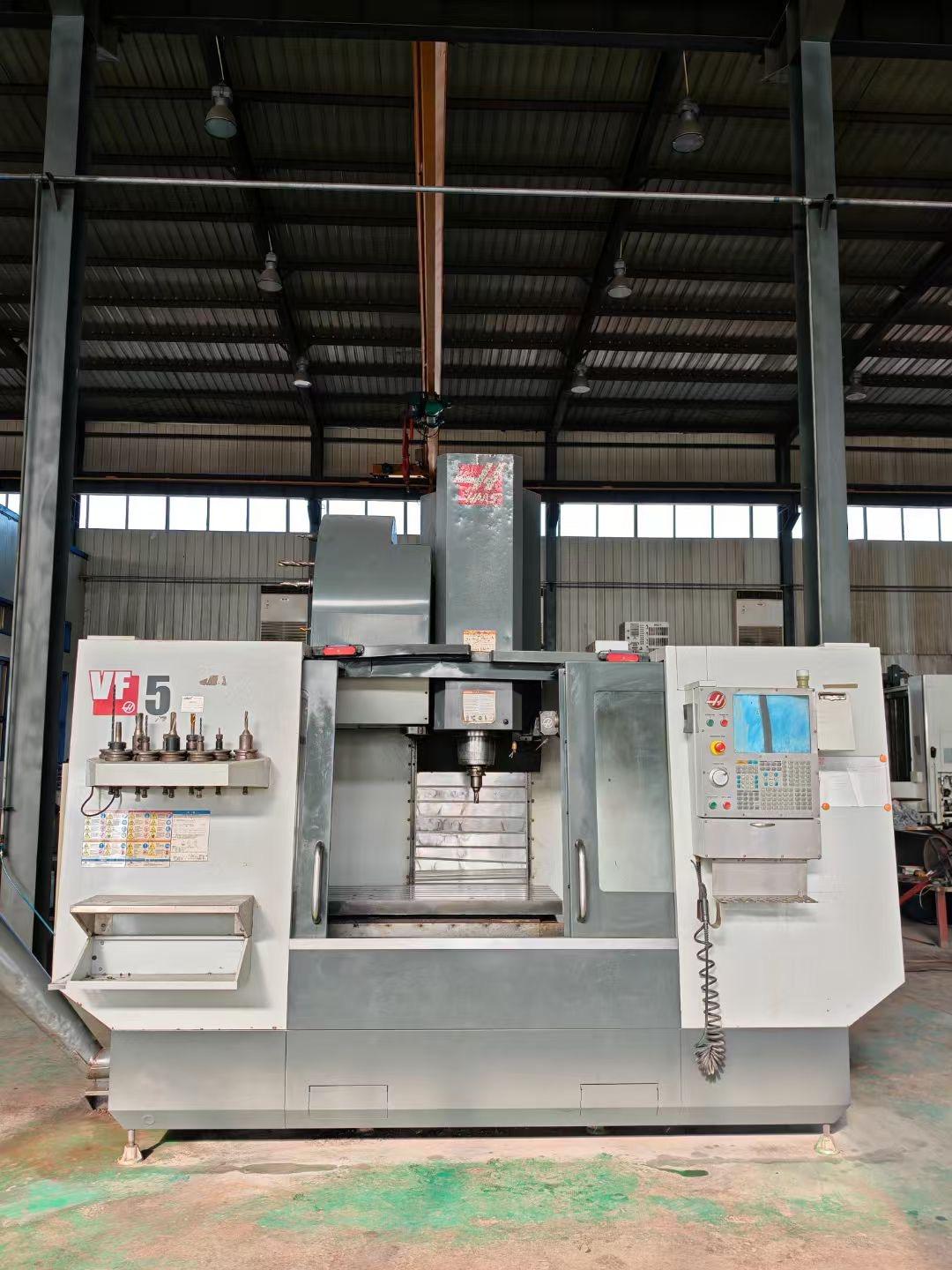

HAAS VF-5/50 Gantry boring and milling machine
[Product Information]:
- Inventory number：85938
- Brand：HAAS
- Model：VF-5/50
- Origin：America
- Location：China
- Year：2014
- Create Time：2024-12-24
Specifications:
three-axis travel: 1524*660*635mm
spindle : Maximum power 22.4kW
Maximum speed: 8100 rpm
Maximum torque: 122.0 Nm
X*Y*Z 3 axes Fast moving rate: 18*18*18m /min
thrust : X axis maximum thrust: 15124N
Y-axis maximum thrust: 18238 N
Z-axis maximum thrust: 24910 N
WorkWorktable Size: 1575* 584mm
Maximum load 1814 kg
Cooling CNC System : coolant capacity 360L
