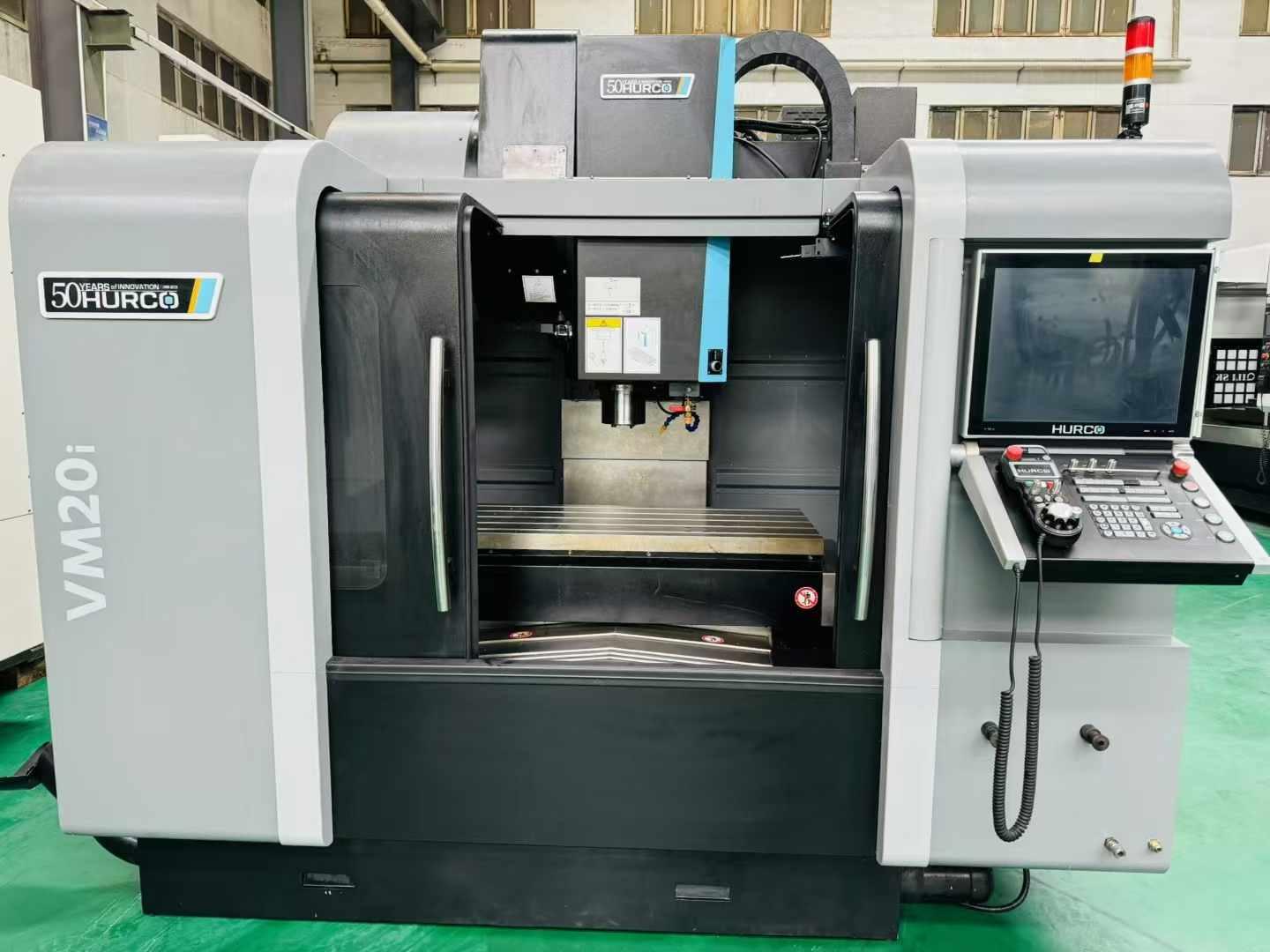

HURCO VM20i Machining centre

[Product Information]:

X axis travel: 1016mm

Y-axis travel: 508mm

Z-axis travel: 508mm

Distance from spindle nose to workWorktable: 102-610mm

WorkWorktable size: 1168*508mm

Maximum load of WorkWorktable: 909kg

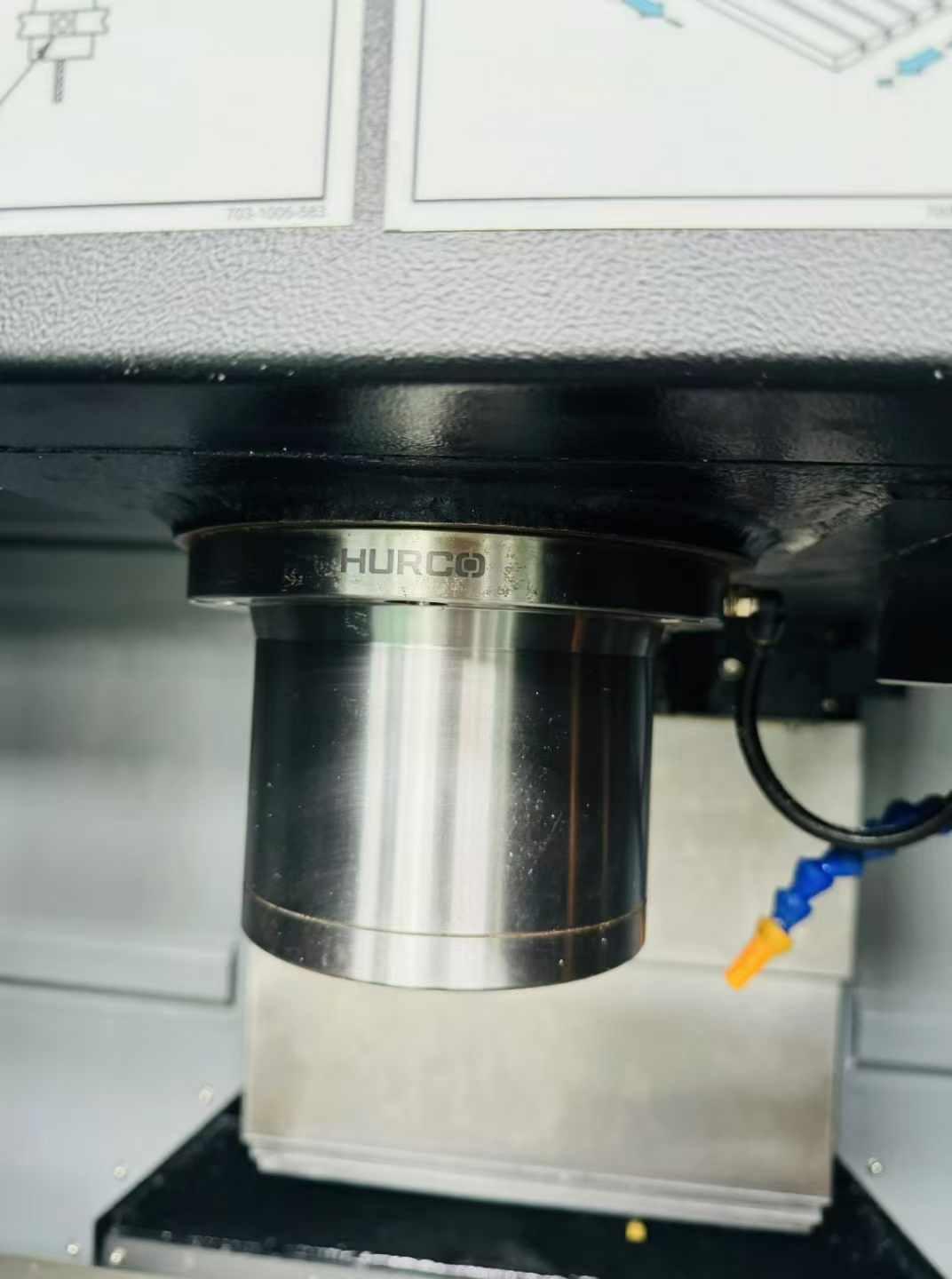

spindle maximum speed: 10000rpm

spindle power: 15/11kw

spindle torque: 102/74N.m

magazine capacity: 20

spindle taper: BBT40

Maximum Tool diameter: 89/127mm

Maximum Tool length: 250mm

Maximum Tool weight: 7kg

Tool changing time: 2.5s

Fast feed rate: 24m/min

Positioning precision: 0.01mm

Repeat Positioning precision: 0.005mm

Footage: 2722*2859*2542mm

Machine weight: 4108kg
