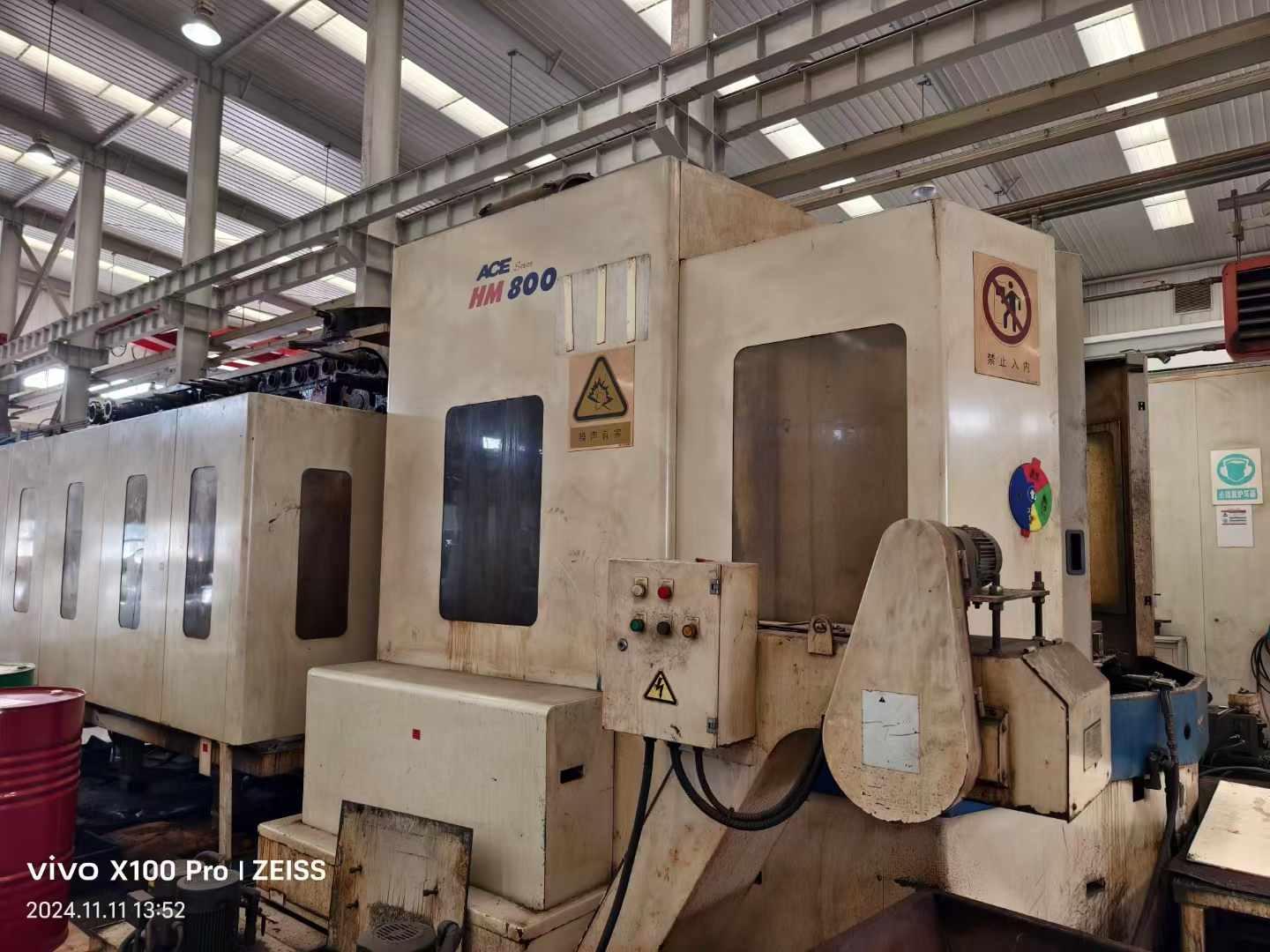

DOOSAN ACE-HM800 Horizontal Machining centre
[Product Information]:
- Inventory number：85664
- Brand：DOOSAN
- Model：ACE-HM800
- Origin：Korea
- Location：China
- Year：2006
- Create Time：2024-12-04
Specifications:
CNC CNC System: FANUC 18i-MB

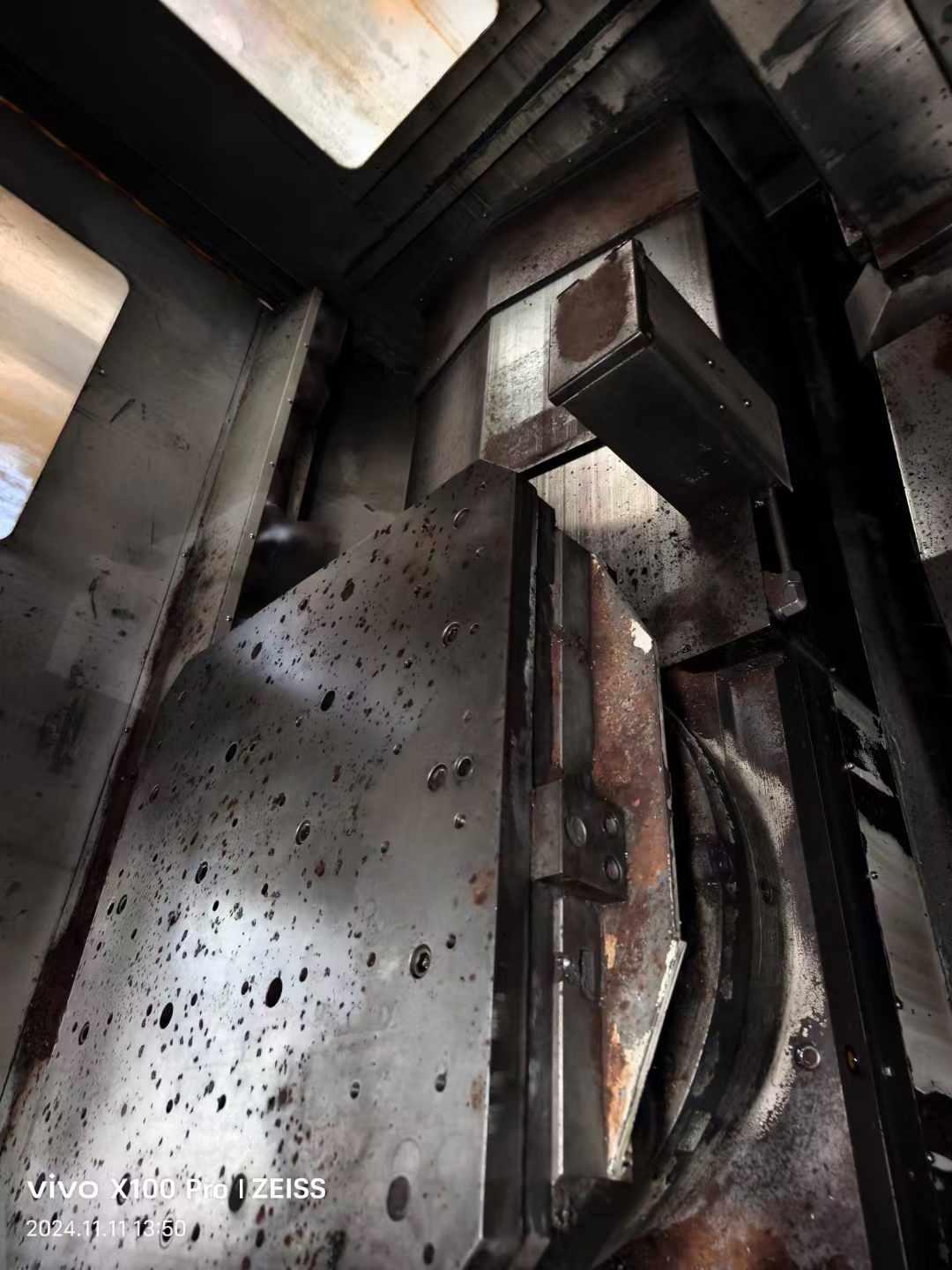

WorkWorktable size :800*800mm double position
three-axis travel :1250*1000*1000mm
Distance from nose of spindle to center of WorkWorktable :200-1200mm
Distance from spindle center to worktable top :75-1075mm
Spindle speed :BT50/6000rpm
WorkWorktable load :1600kg
Main motor power :22/26kw
Footage :3330*4270*7060mm
Weight :20000kg
tools magazine: 60
