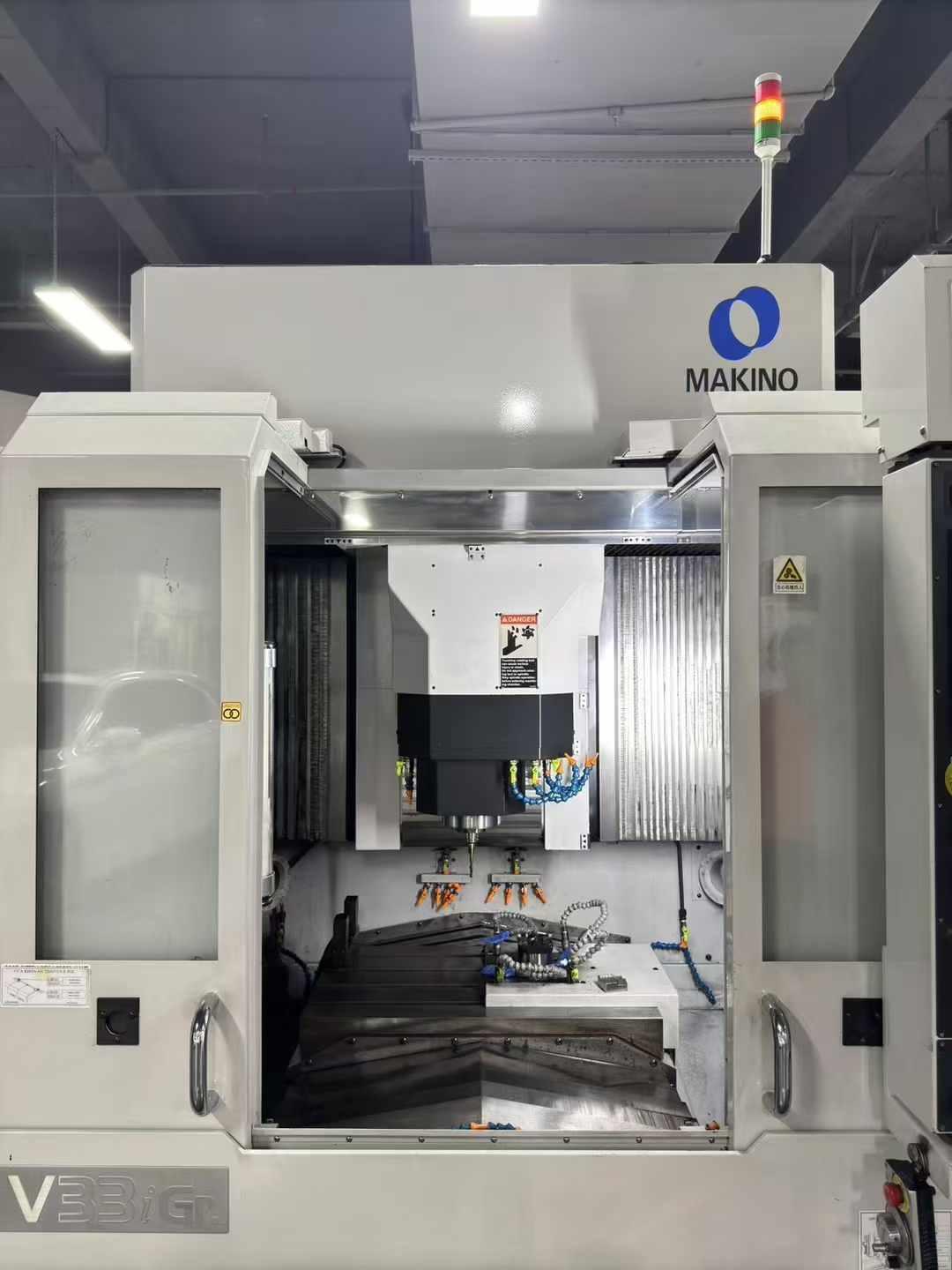

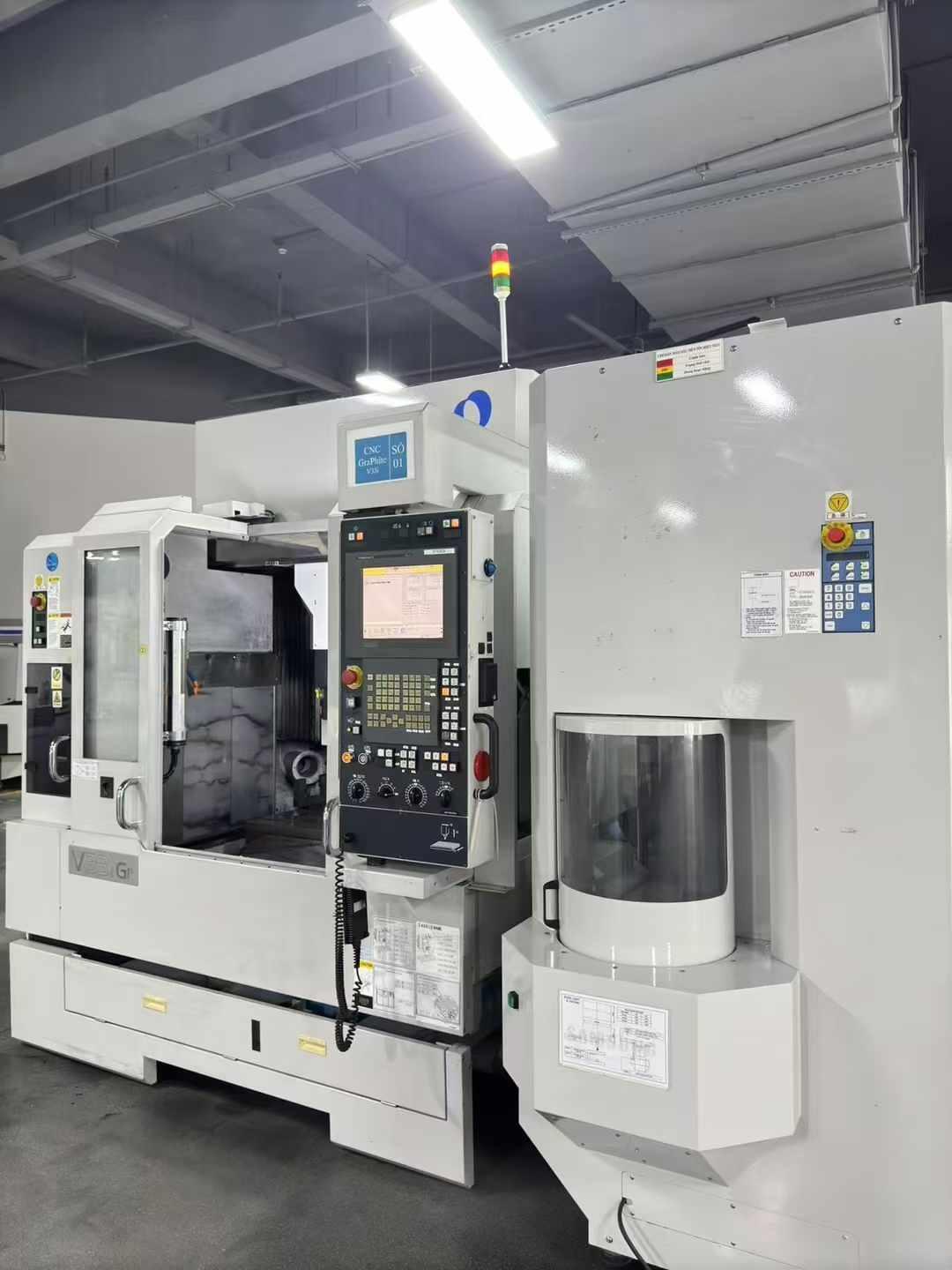

Makino V33i other

three-axis travel: 650*450*350mm

Distance from top of Worktable to end face of spindle: 150-500mm

WorkWorktable size: 750*450mm

Maximum workpiece size: 750*635*250mm

Maximum load: 300kg

Spindle speed: 200-20000rpm

spindle power: 15/11kw

Torque: 45.7/31.1N.m

Tool holder model: BBT40

Bearing Internal diameter: 65mm

Fast moving rate: 20000mm/min

Cutting feed rate: 1-20000mm/min

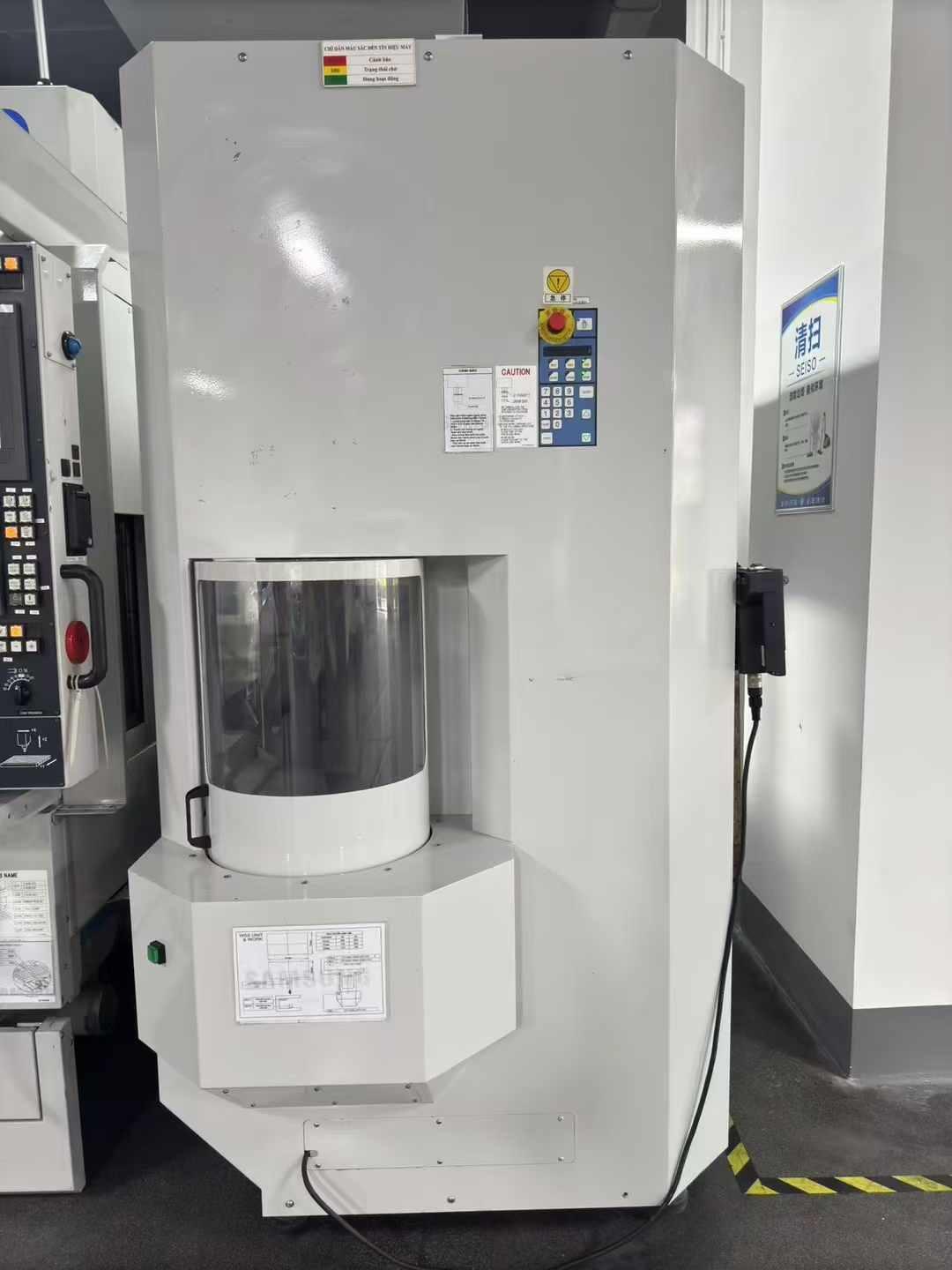

magazine capacity: 15

Maximum Tool diameter: 80mm

Maximum Tool length: 250mm

Maximum Tool weight: 7kg

Footage: 2245*3290*2400mm

machine tool weight: 7400kg
