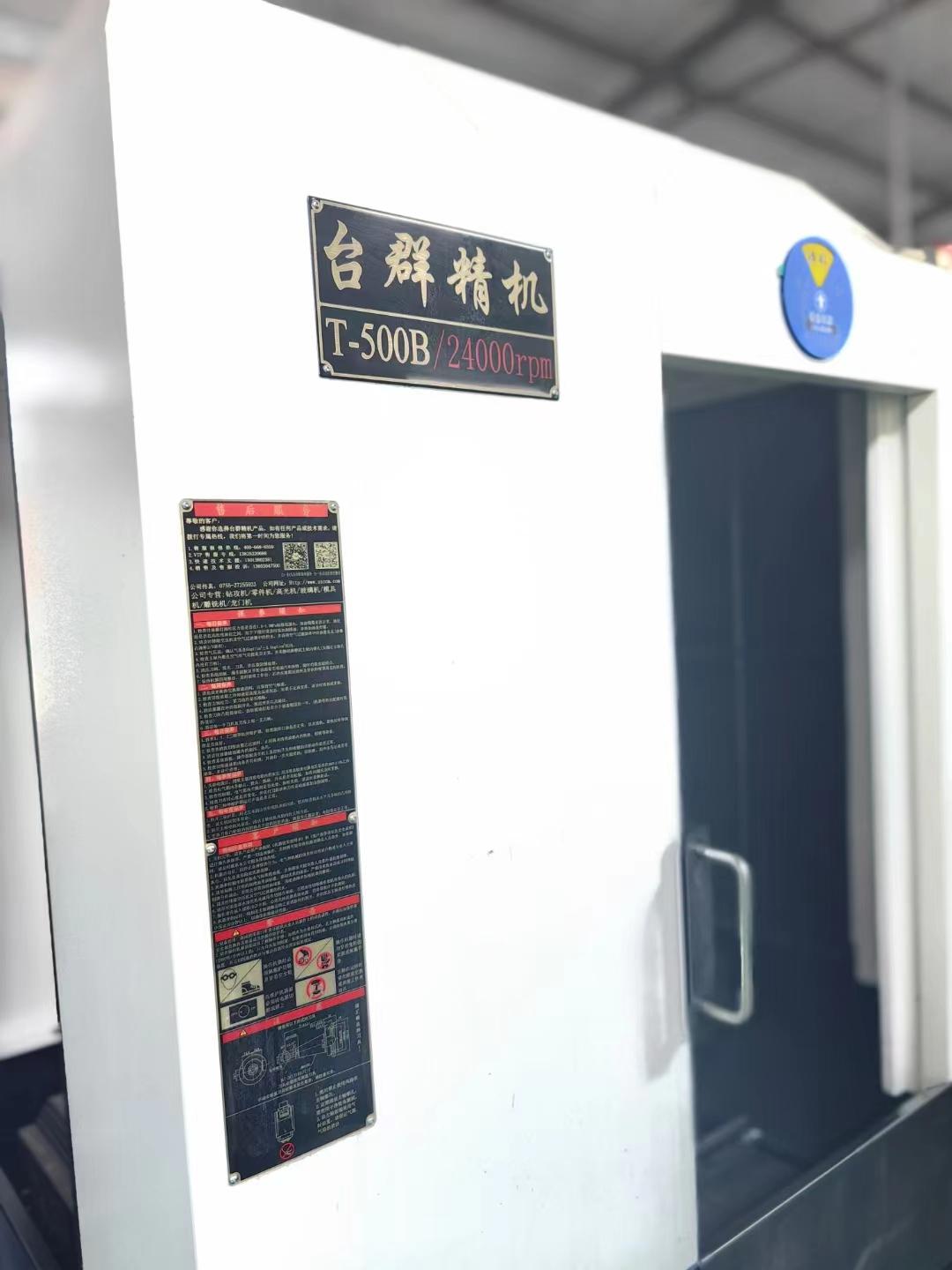

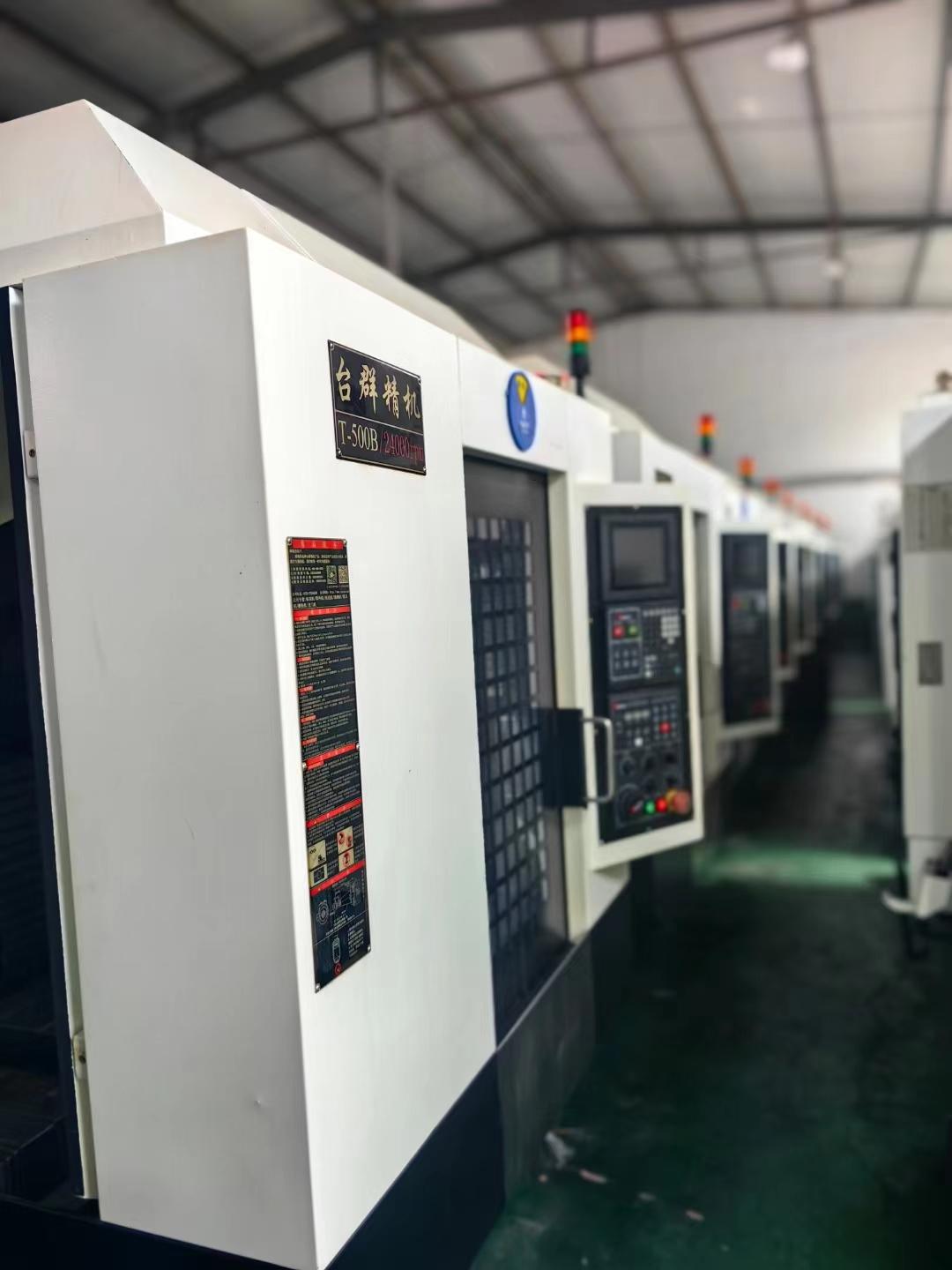

Taikan T500B Tapping machine

three-axis travel: 500*400*320mm

Distance from nose of spindle to WorkWorktable: 160-480mm

Column center support column guideway surface distance: 445mm

WorkWorktable size: 620*400mm

WorkWorktable load: 250kg

T-slot: 3*14*120mm

Motor power: 2.2/3.7kw

Motor torque: 7/17.7Nm

Spindle speed: 24000rpm

Spindle diameter: 100mm

spindle taper: BT30

Cutting feed rate: 1-30000mm/min

3 axes Fast moving rate: 48m/min

Positioning precision: 0.006mm

Repeat Positioning precision: 0.004mm

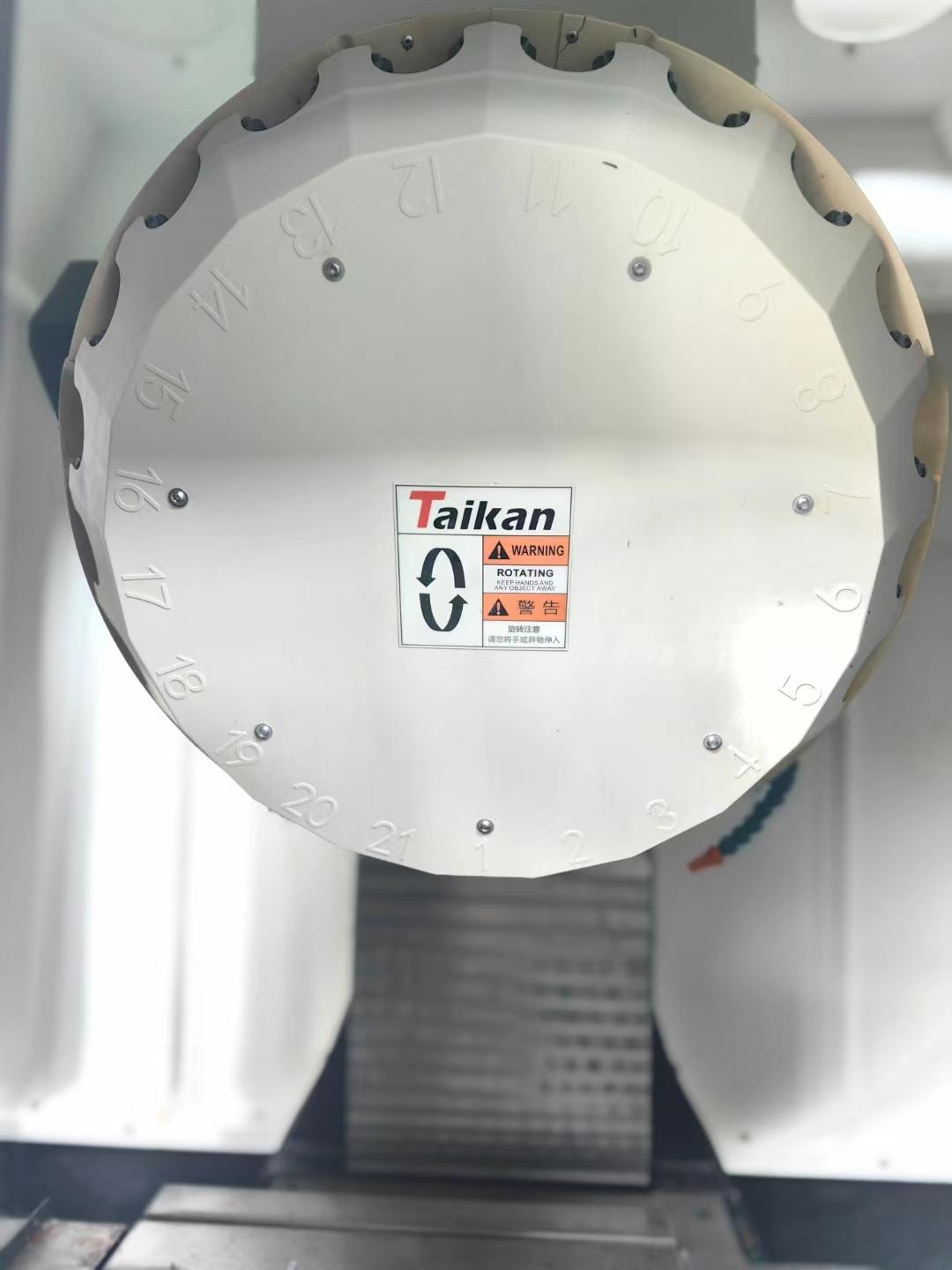

magazine capacity: 21

Tool maximum length: 200mm

Tool maximum diameter: 60/80mm

Footage: 1600*2600*2300mm

Machine weight: 3100kg
