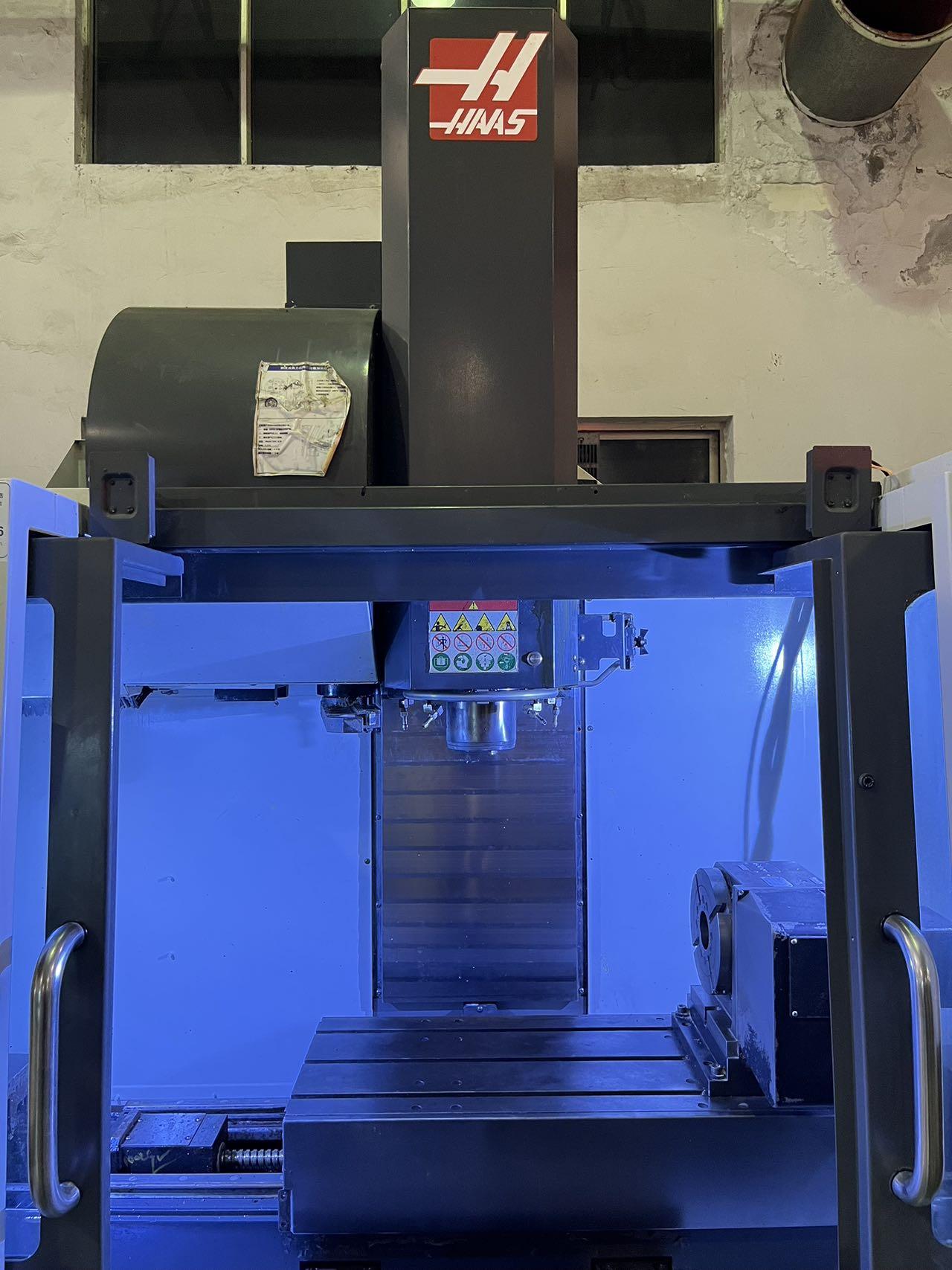

HAAS VF-4SS-V Machining centre

X*Y*Z axis travel: 1270*508*635mm

Length of Worktable: 1321mm

WorkWorktable width: 457mm

Spindle speed: 12000rpm

spindle maximum torque: 122NM

spindle maximum power: 22.4kw

X*Y*Z axis feed rate: 35.6/35.6/35.6m/min

Maximum Cutting rate: 21.2m/min

magazine capacity: 30+1

Tool holder model: SMTC

Maximum Tool diameter: 64mm

Coolant Water tank capacity: 208L
