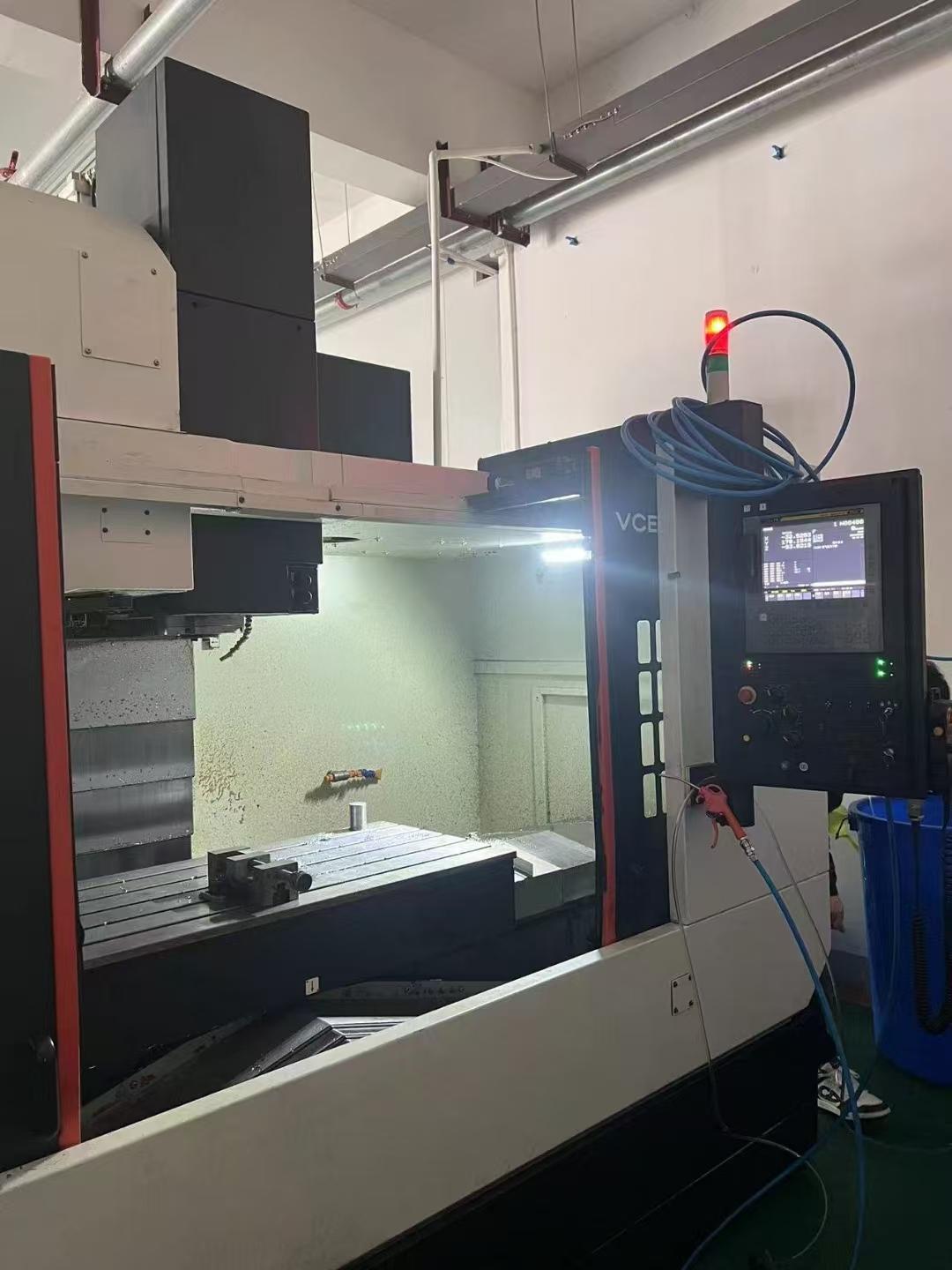

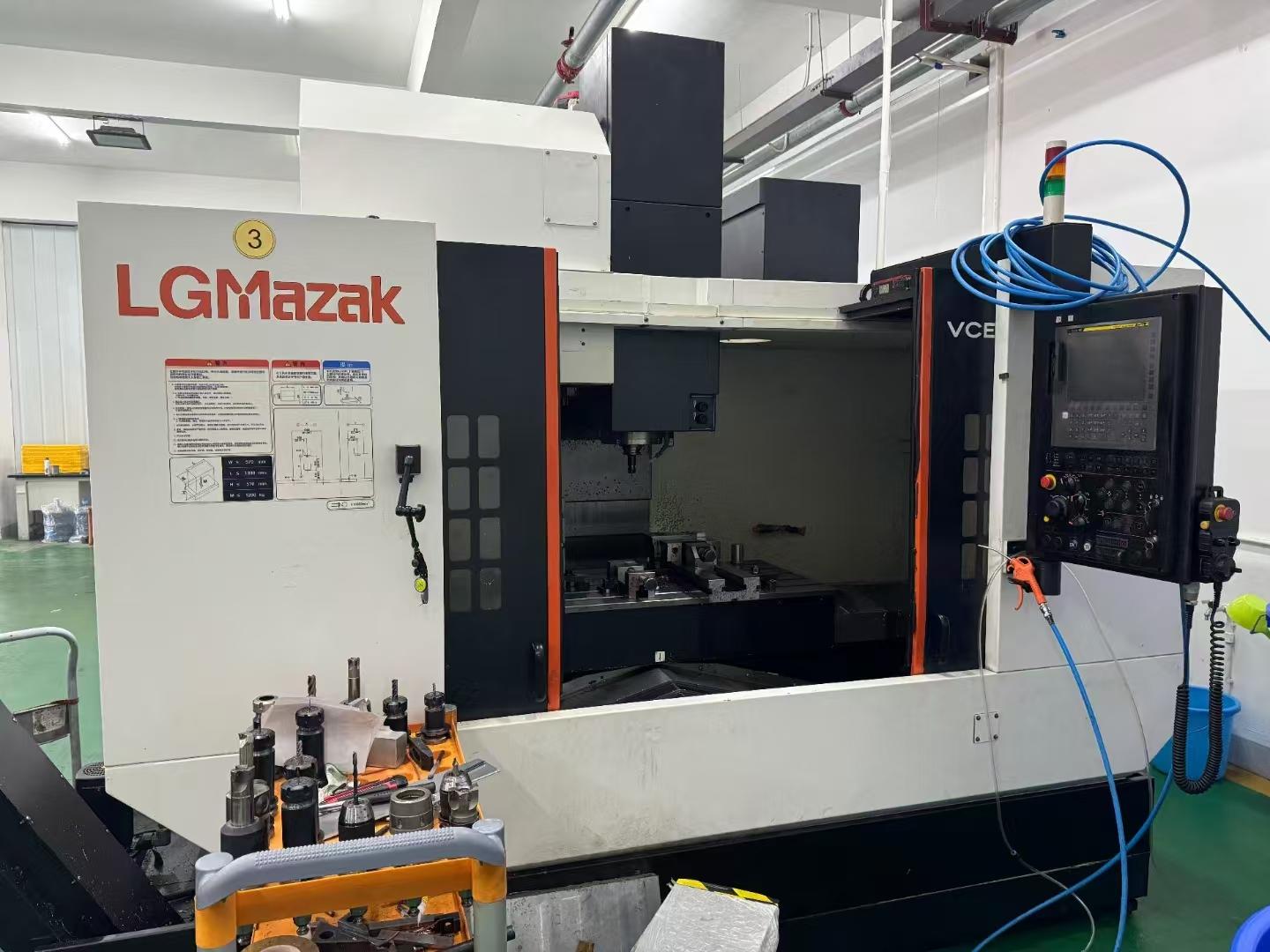

MAZAK VCE-570CL Machining centre

three-axis travel: 1050*570*510mm

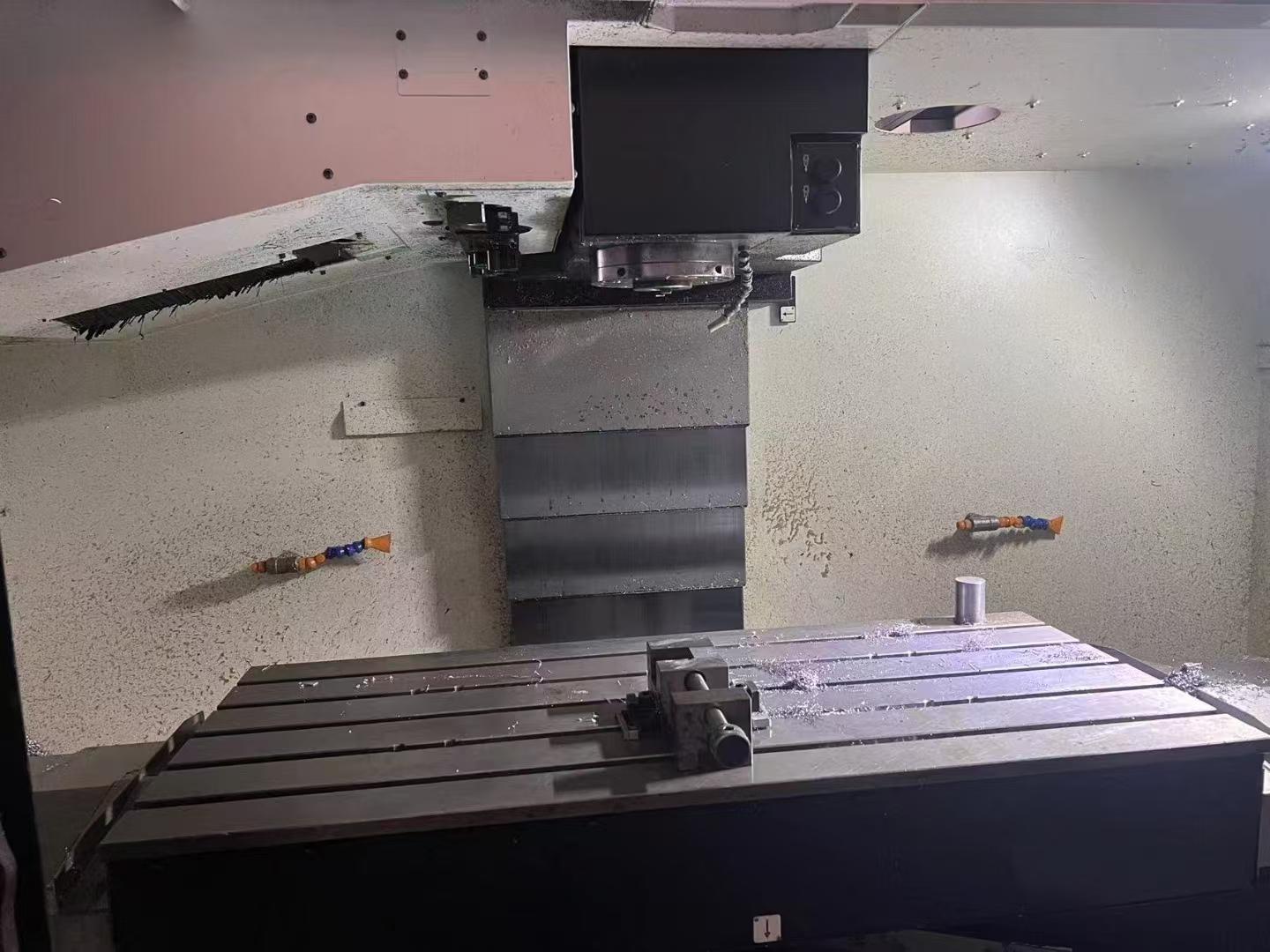

WorkWorktable size: 1300×570mm

WorkWorktable load: 1200kg

Shape of workWorktable: 18mmT slots x 5, 100mm spacing

Spindle speed: 10000rpm

spindle power: 18.5KW

spindle torque: 118N.m

Fast feed rate (X, Y, Z axis) : 42m/min

Cutting feed rate (X, Y, Z axis) : 1-8000mm/min

spindle: MAS BT40

tools magazine: 24

Tool maximum diameter/length/mass: Φ80/350/8kg

Maximum Tool diameter without adjacent Tool: Φ125mm

Tool exchange time (Tool to Tool) : 1.3sec

spindle motor 20%ED/30 point/continuous rating: AC18.5/15/11/7.5KW

Power supply (30 min/continuous rating) KVA: 29.96/26.96

Air pressure source (pressure/flow) MPA/L: 0.5-0.9/200

Cutting water Water tank capacity: 250L

machine tool height: 2808mm

Floor area: 2880×2929mm

machine tool weight: 6800KG
