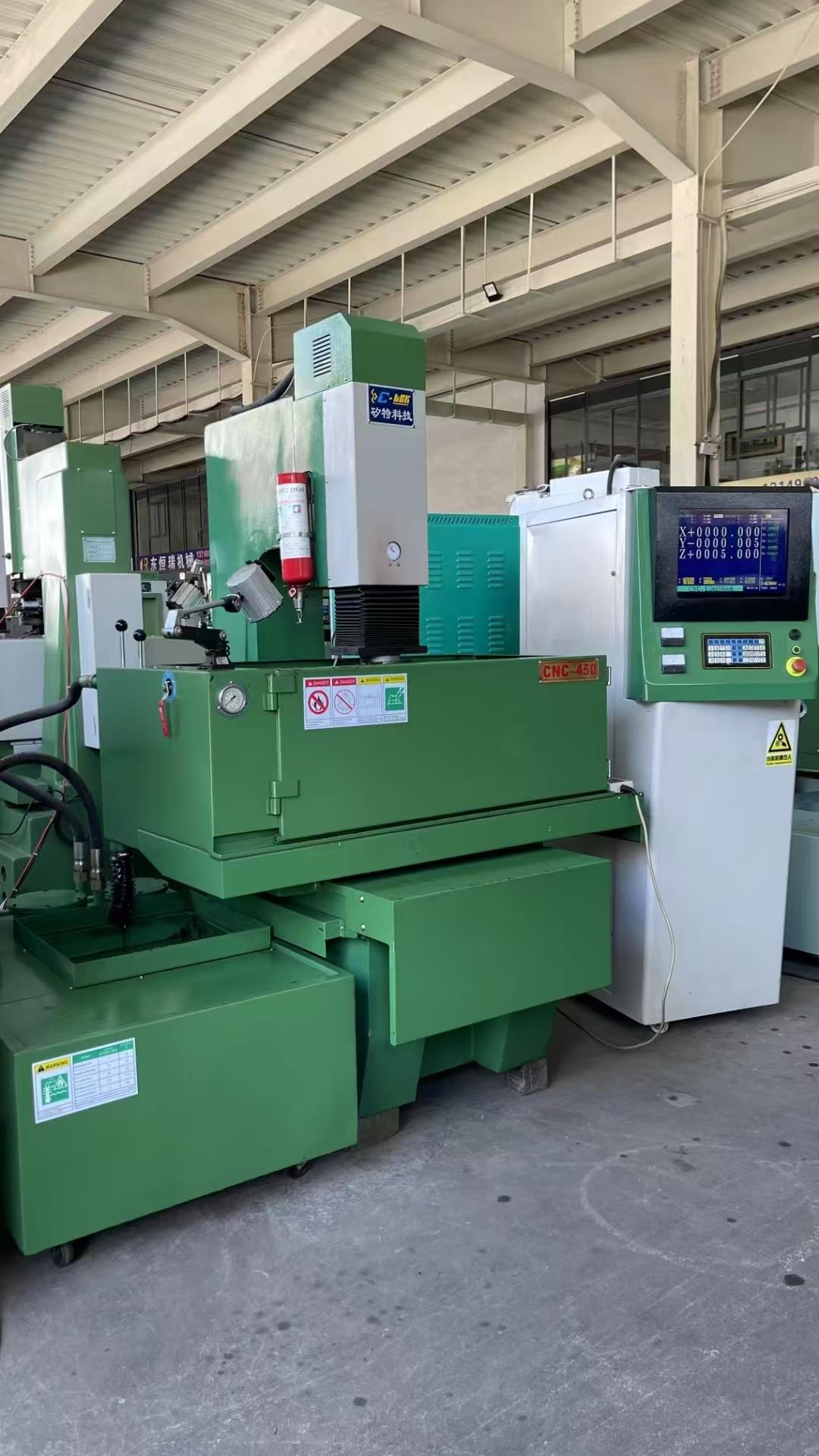

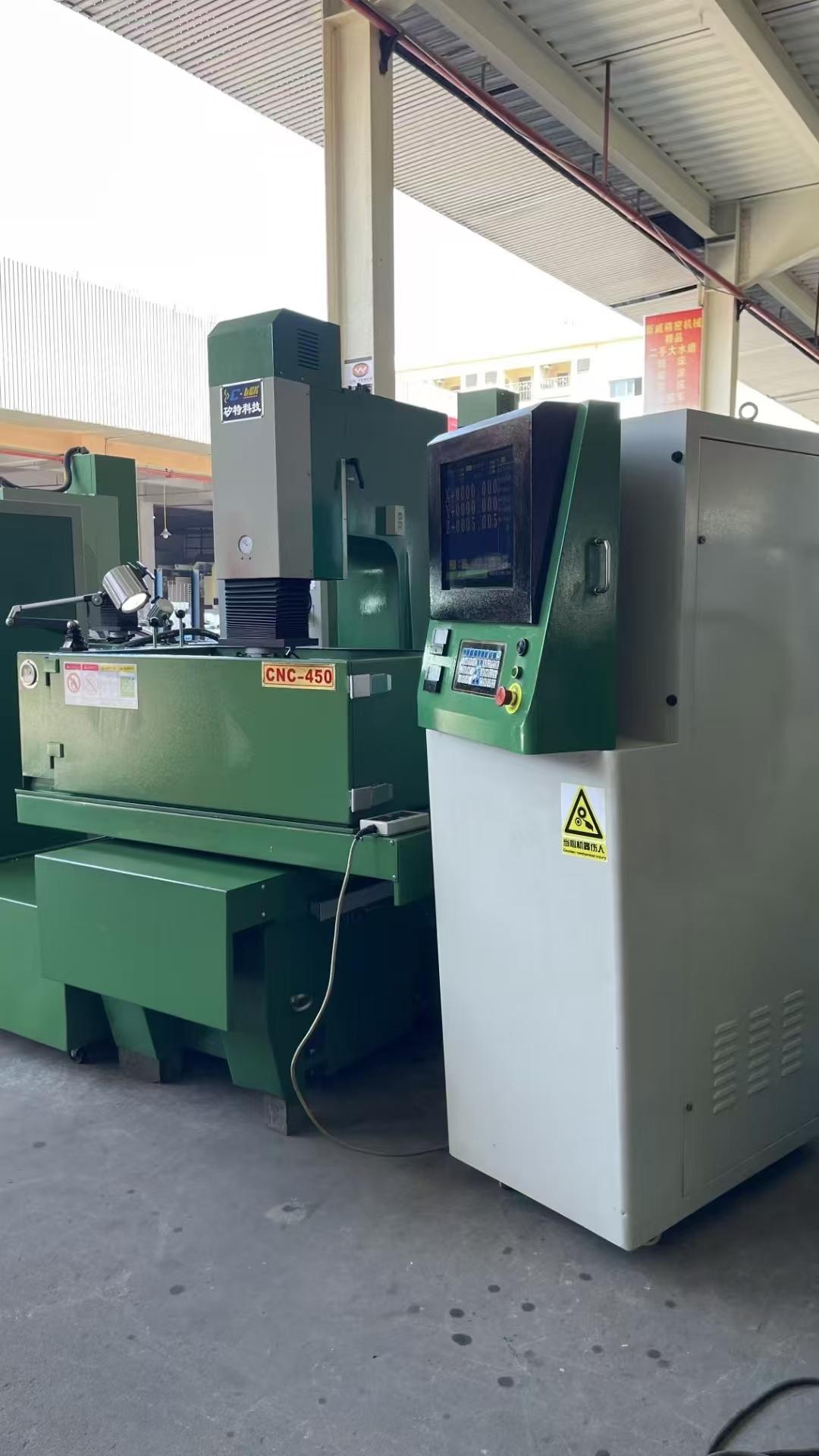

CBCK CNC-450 Spark eroder

[Product Information]:

Maximum workpiece diameter :400mm

Maximum workpiece thickness :350mm

Maximum machining speed :460mm/min

Working oil Water tank size :1450*800*600mm

three-axis travel :500*400*280mm

Maximum cutting thickness :300mm

Maximum load :800kg

Maximum machining current :50A

Surface roughness :0.15um

Footage :3000*1300*2300mm

Weight :1750kg
