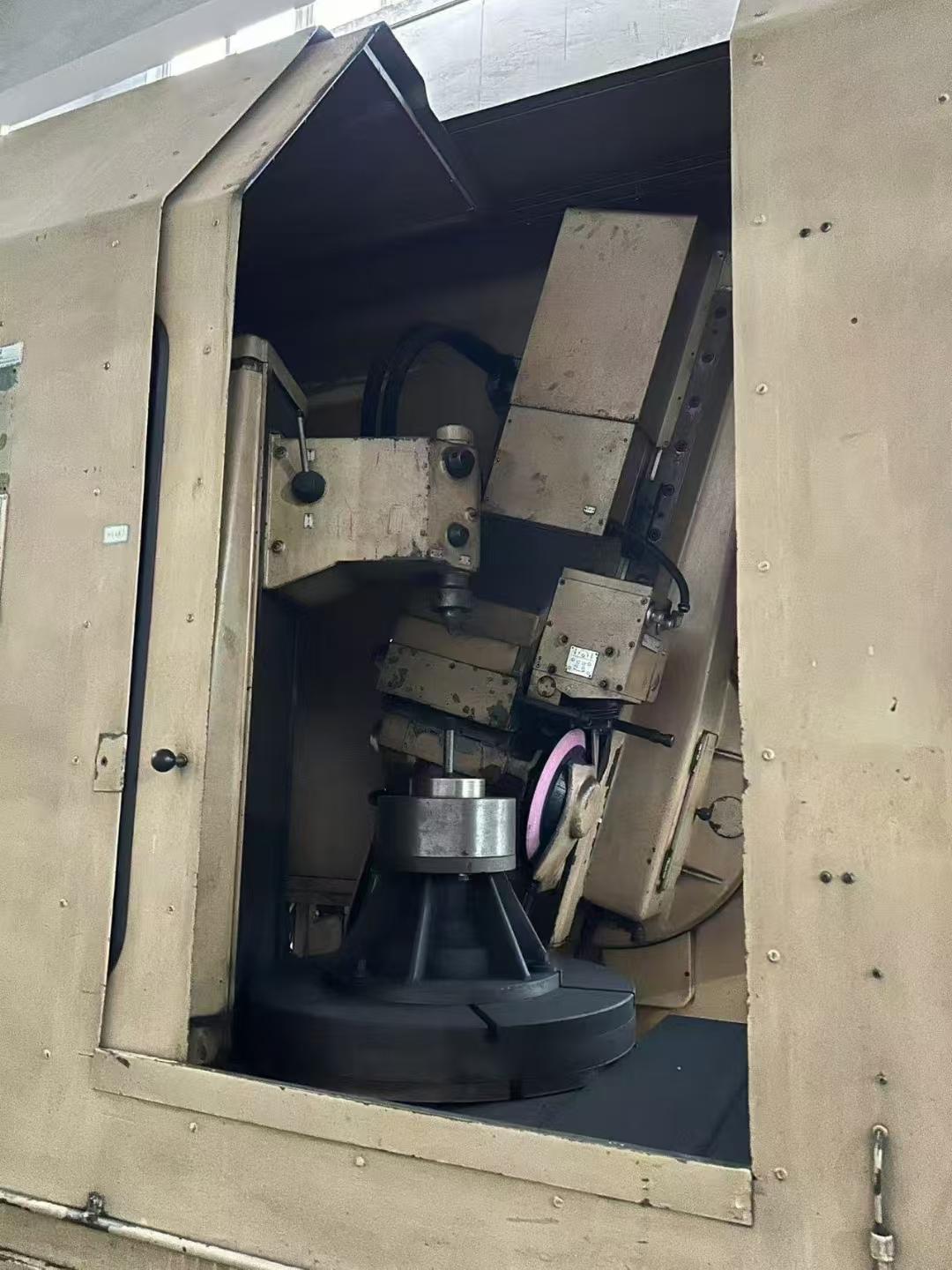

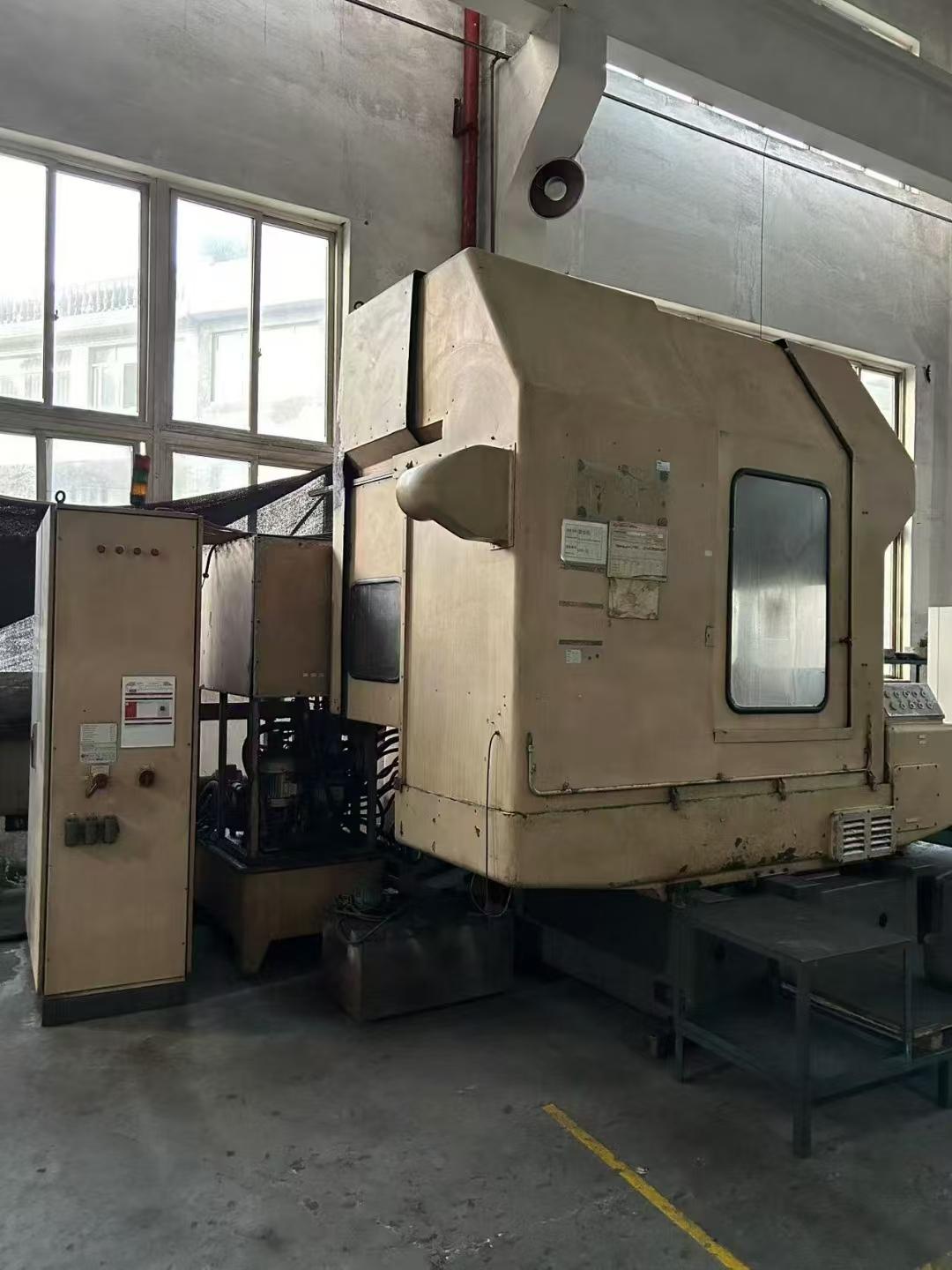

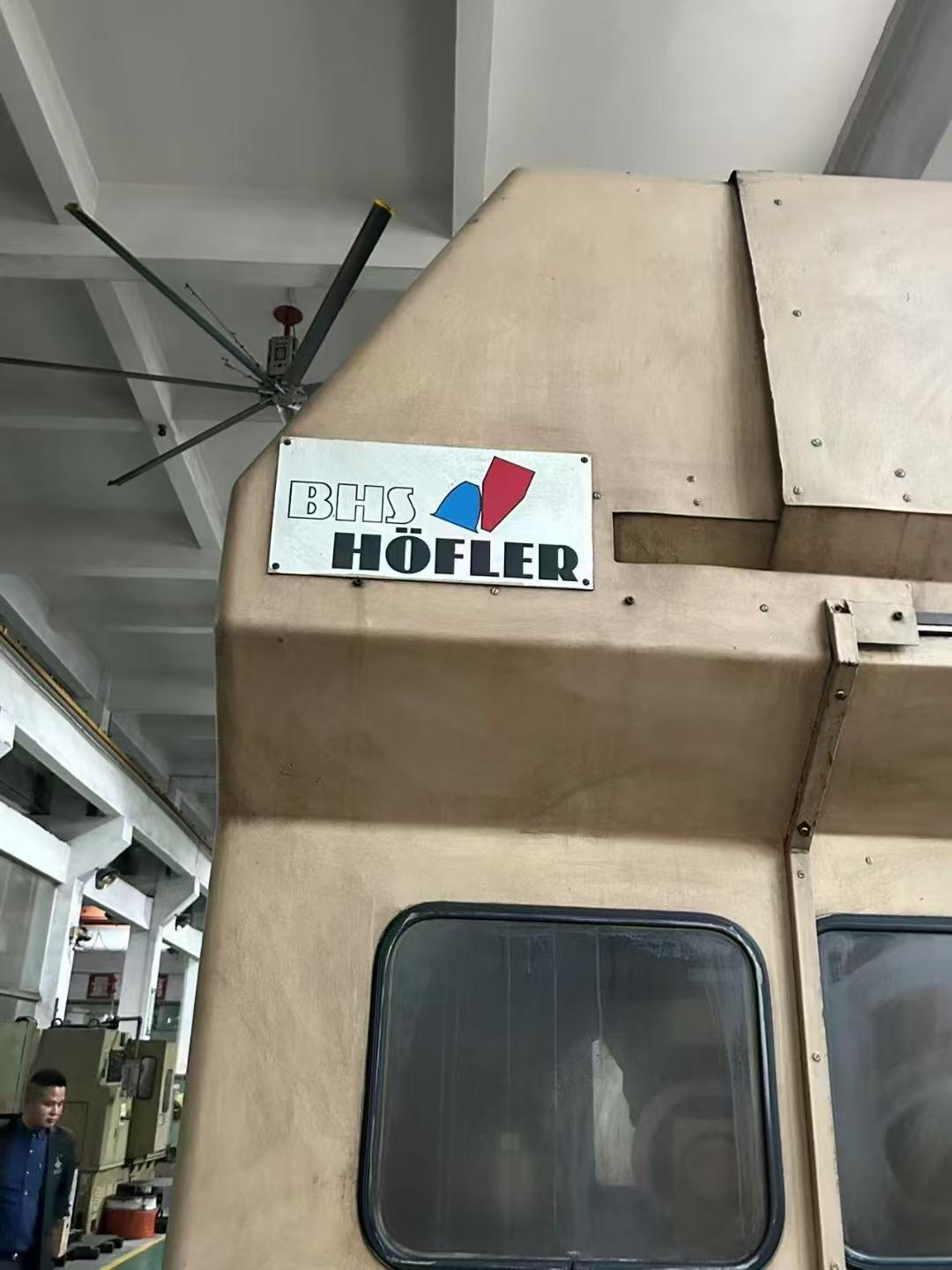

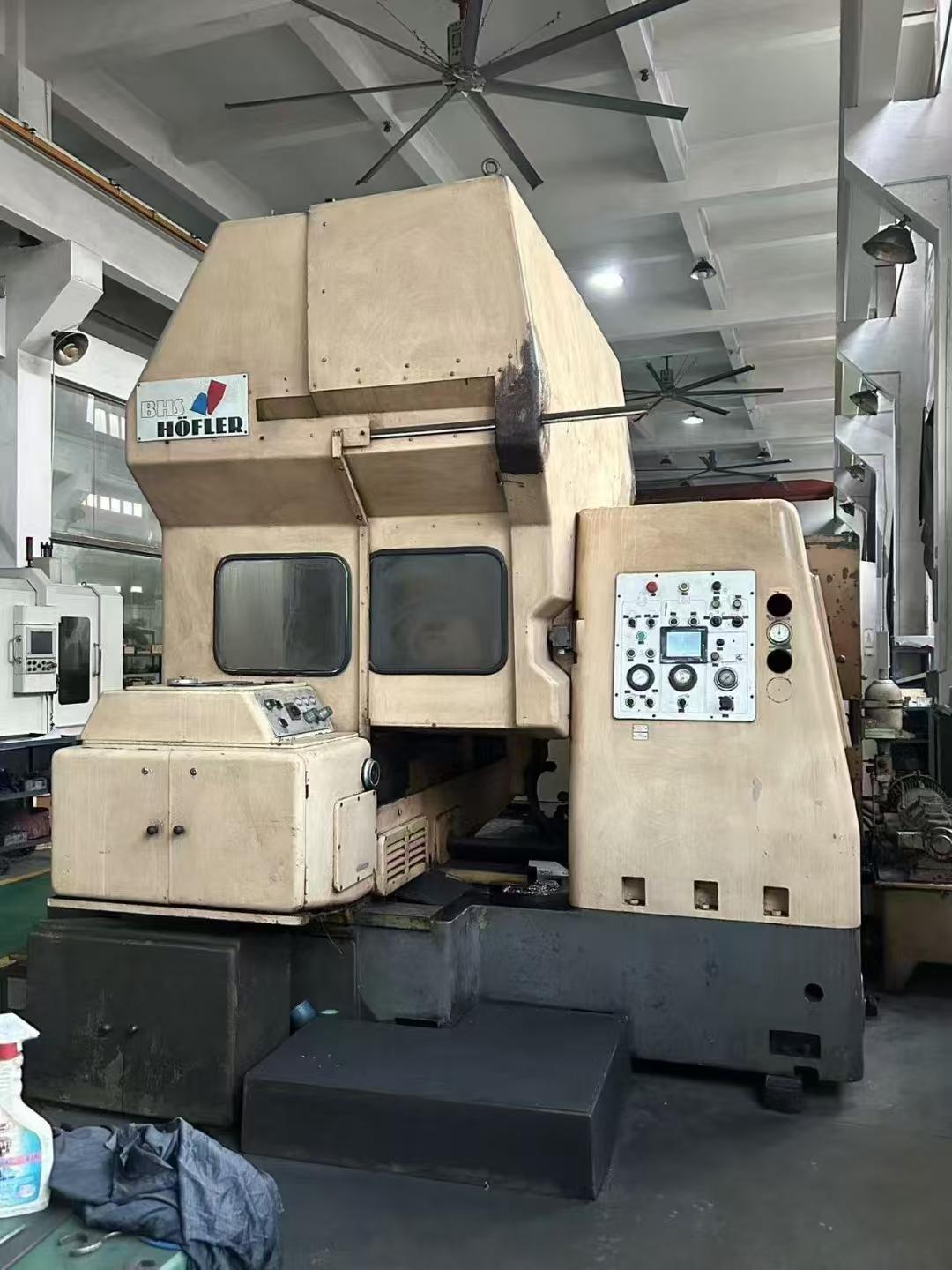

HOFLER 630 Gear grinding machine

Diameter: 630/800mm

gear thickness: 225mm

Modulus: 1.5-14

Number of teeth 12-240

Angle: 45°

Worktable diameter: 650mm

Central moment: 200-670mm

Ram travel range: 20-195mm

travel position adjustment: 115mm

Size of grinding wheel: 270/250x127mm

Grinding grinding wheel diameter: 350/270mm

workpiece weight: 800kg

Total power: 14kw

Weight: 10.8 tons

Footage: 4.2x3.6x3.0m
