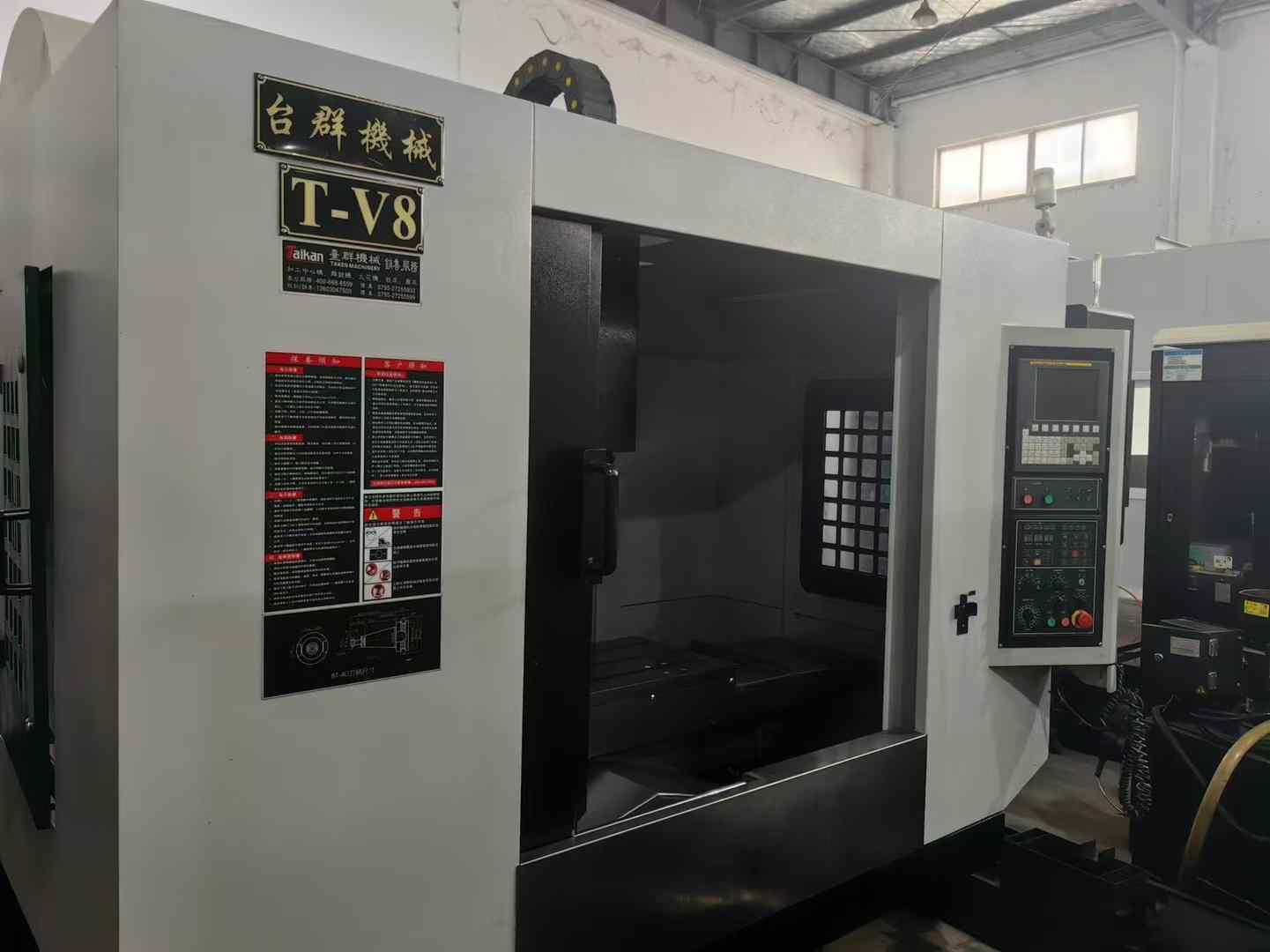

Taikan T-V8 Machining centre

[Product Information]:

WorkWorktable size :900*450mm

three-axis travel :800*500*530mm

T-slot :3*18-130mm

Distance from spindle nose to workWorktable :100-650mm

spindle center to body end :579mm

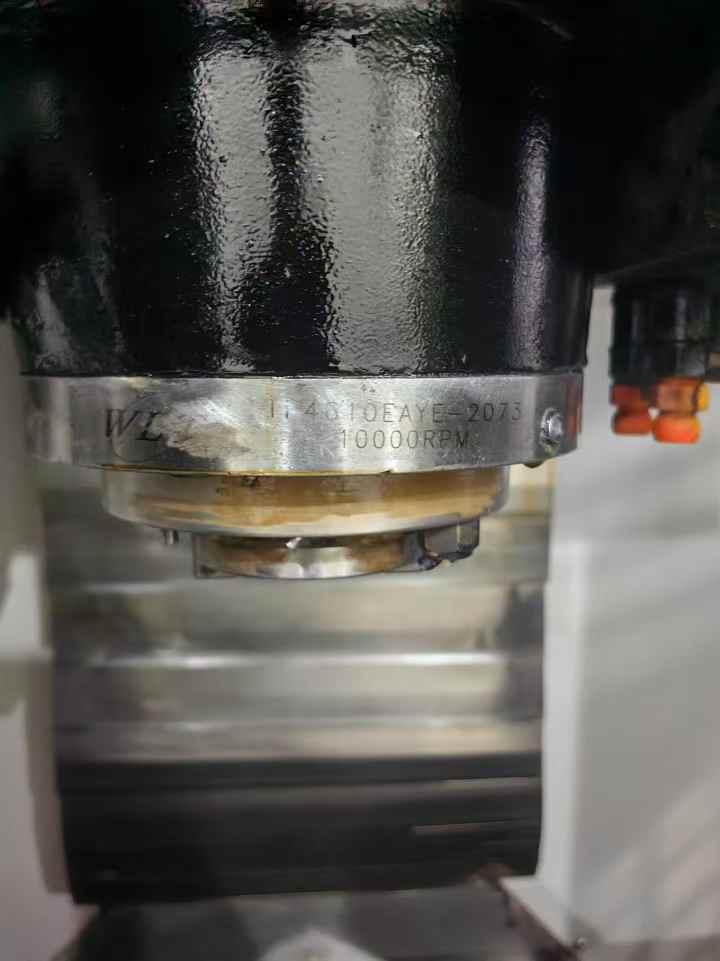

Spindle speed :10000rpm

spindle taper :BT40

spindle power :7.5kw

Fast moving rate :36/36/36m/min

Cutting rate :8000mm/min

Positioning precision :0.003/300mm

Weight :6200kg

PDF Download Click to Contact Seller
