HAUSER S50-DR Grinding machines

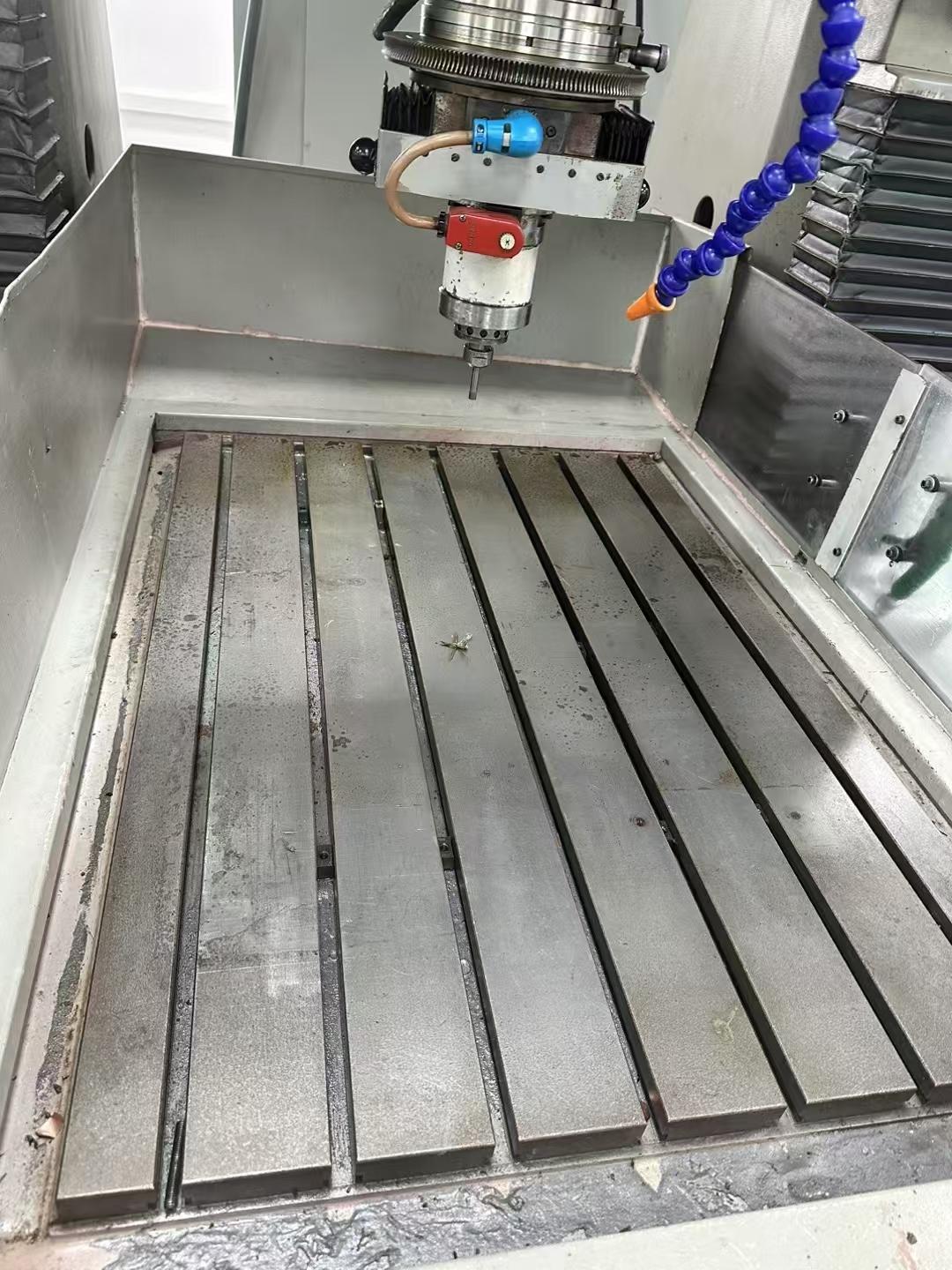

WorkWorktable size: 1020*860mm

Maximum workpiece weight: 800kg

Longitudinal travel (X axis: 900  mm

Horizontal travel (Y-axis) : 600mm

headstock vertical travel: 635mm

Distance from Worktable to grinding head: 750mm

Maximum grinding diameter: 230mm

Double column spacing: 950mm

Maximum Angle of taper grinding: 16  °

travel frequency: 5.5Hz

Overall dimensions (L x W x H) (mm):  3000*2500*2870mm
