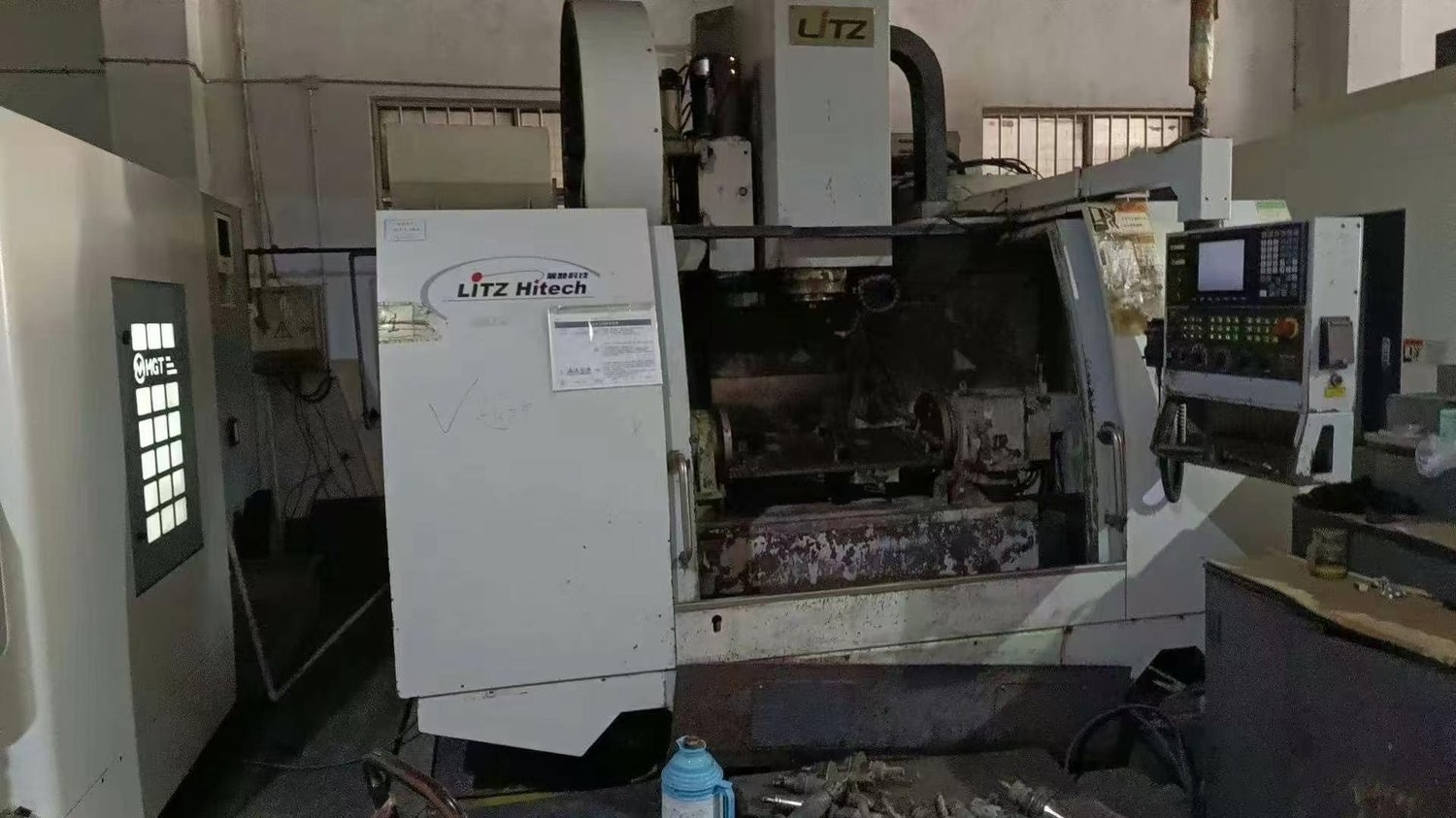

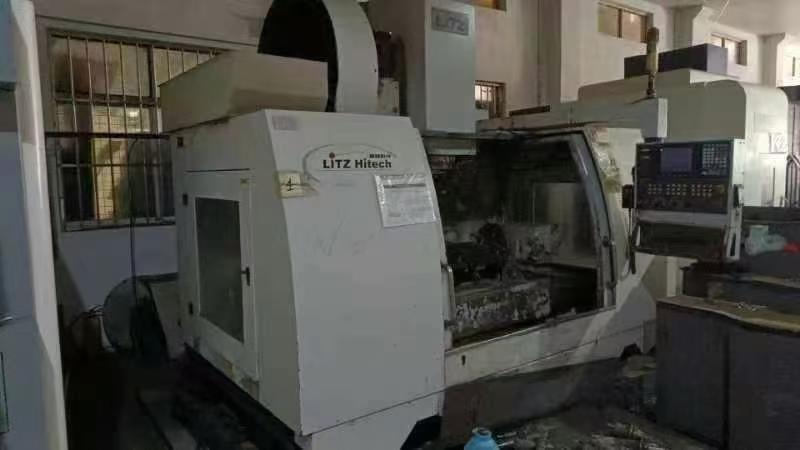

Litz CV-1200B Vertical Machining centre
[Product Information]:
- Inventory number：85412
- Brand：Litz
- Model：CV-1200B
- Origin：Taiwan of China
- Location：China
- Year：2007
- Create Time：2024-11-12
Specifications:
three-axis travel: 1200*600*675mm
Distance from nose of spindle to WorkWorktable: 100-775mm
Spindle speed: 6000rpm

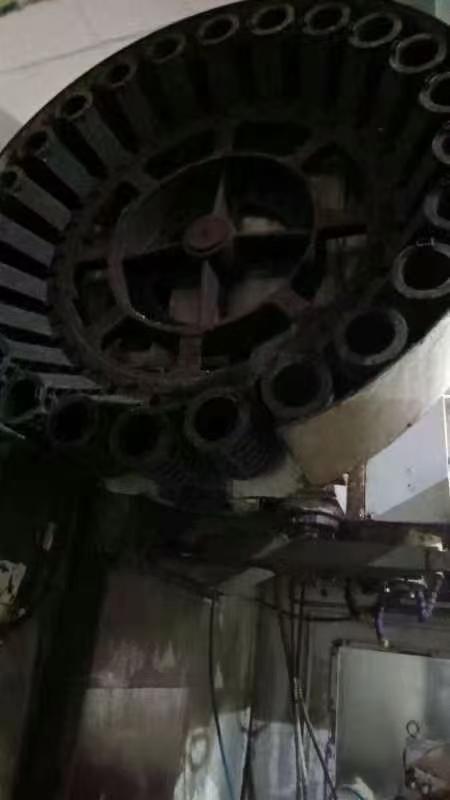

Tool quantity: 24
Maximum Tool diameter: 240mm
Maximum Tool length: 350mm
最大刀具重量：15kg
WorkWorktable size: 1220*620mm
Maximum WorkWorktable load: 1200kg
T-slot: 5*18*100mm
X axis fast displacement: 24m/min
Y-axis fast displacement: 24m/min
Z-axis fast displacement: 18m/min
Cutting feed rate: 1-10000mm/min
Machine weight: 9000kg
