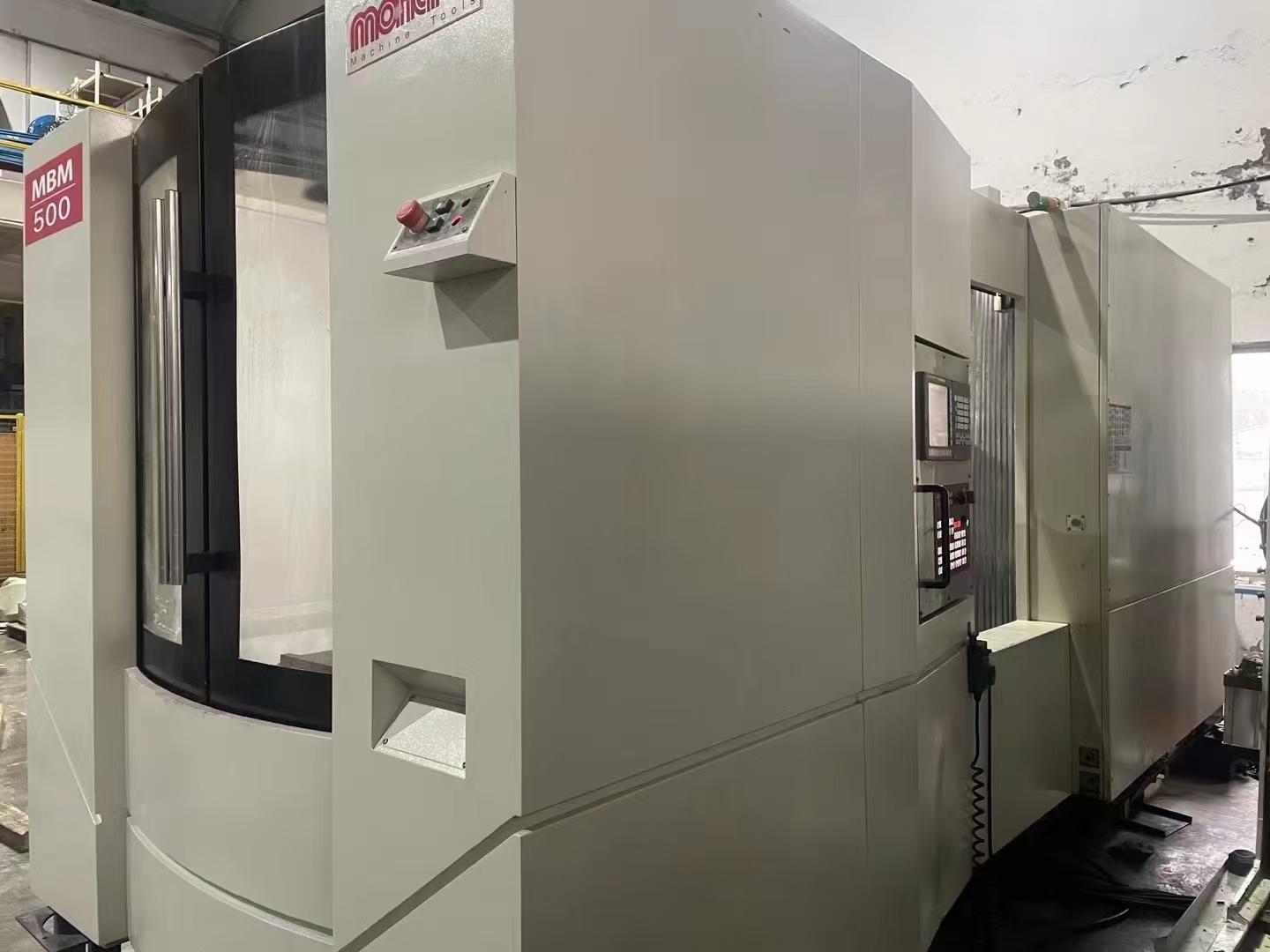

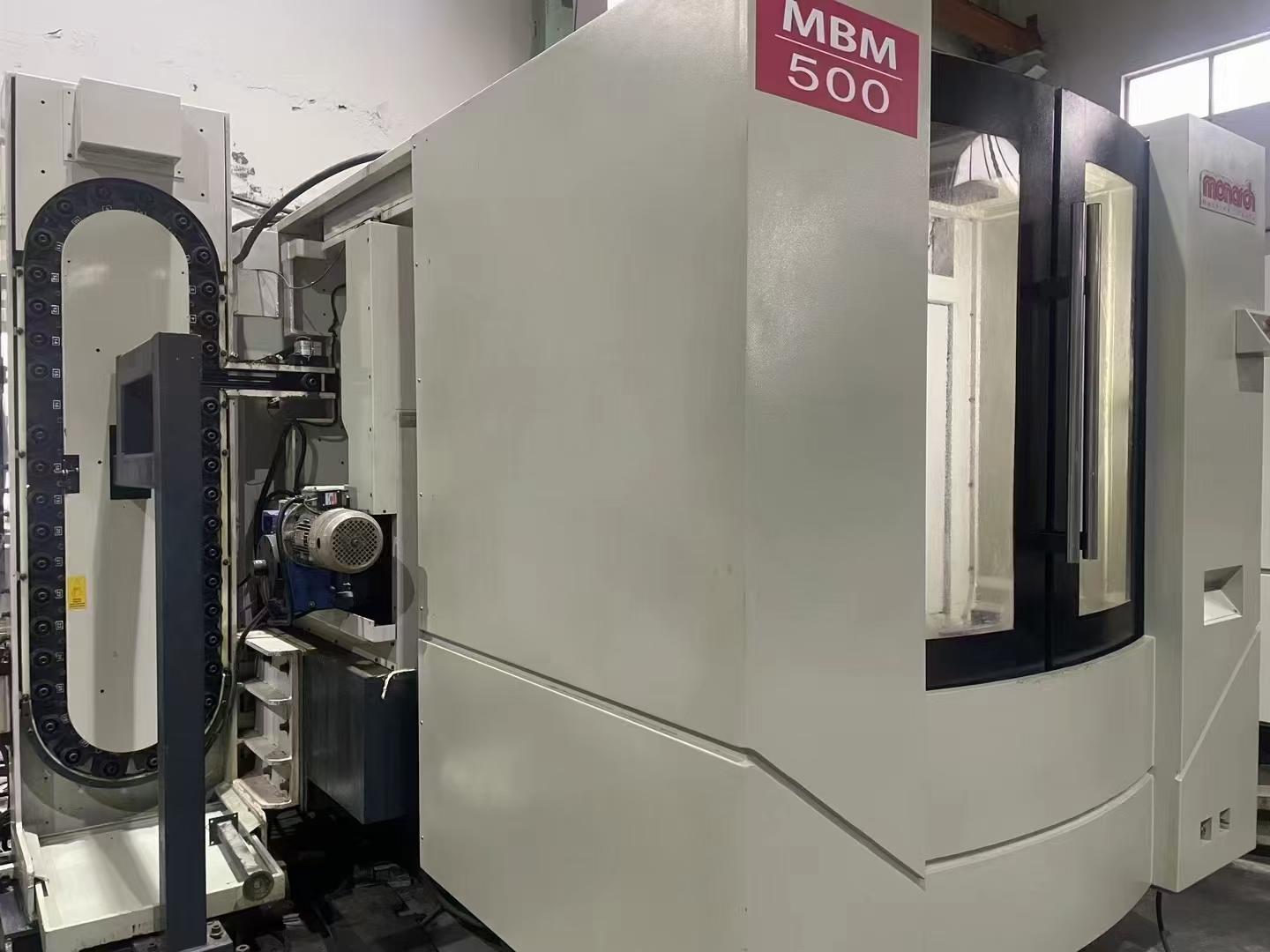

Mecheline MBM-500 Horizontal Machining centre
[Product Information]:
- Inventory number：85372
- Brand：Mecheline
- Model：MBM-500
- Origin：America
- Location：China
- Year：2018
- Create Time：2024-11-07
Specifications:
three-axis travel: 900*720*800mm
3 axes fast feed rate: 60*60*60m/min
3 axes glass scale

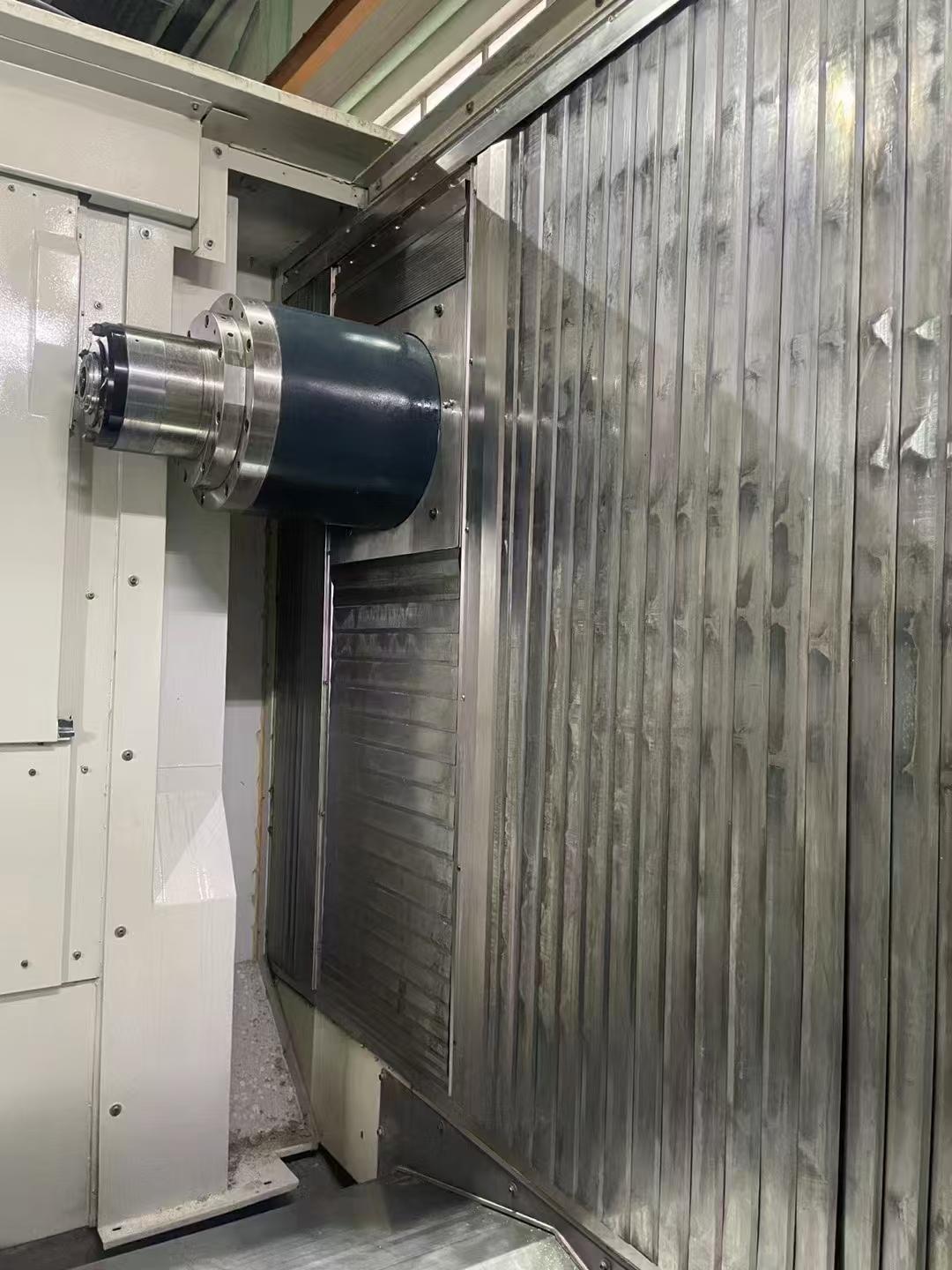

spindle: HSK63
Maximum speed: 14000rpm
Maximum torque: 266NM
spindle power: 22/25KW
spindle nose to WorkWorktable: 100-800mm
With center flushing

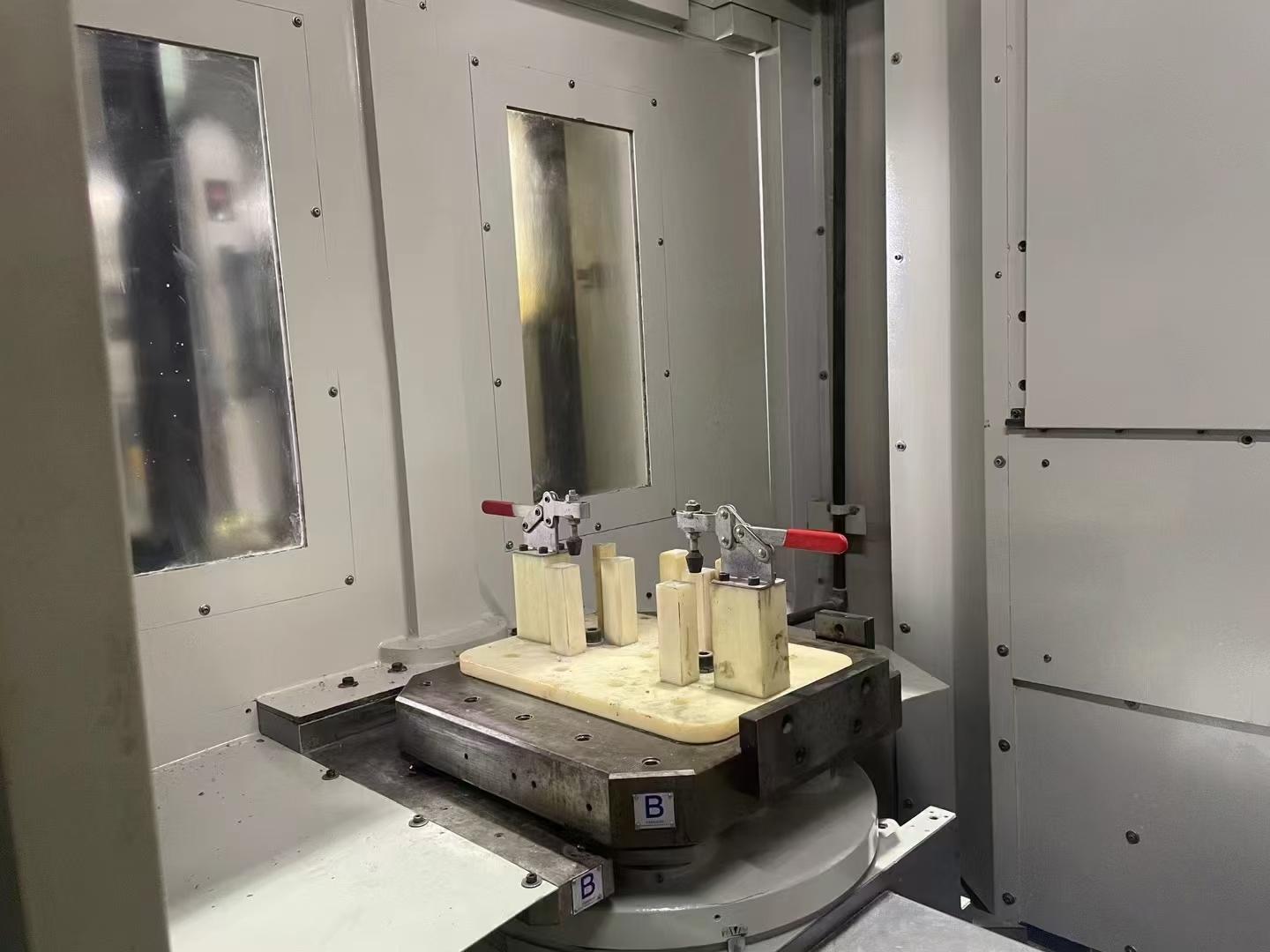

worktable size: 500*500mm
WorkWorktable thousandth of a degree
Maximum Tool weight: 8kg
Maximum length: 500mm
Maximum diameter: 140mm
tools magazine: 40/60
Rear chip conveyor
