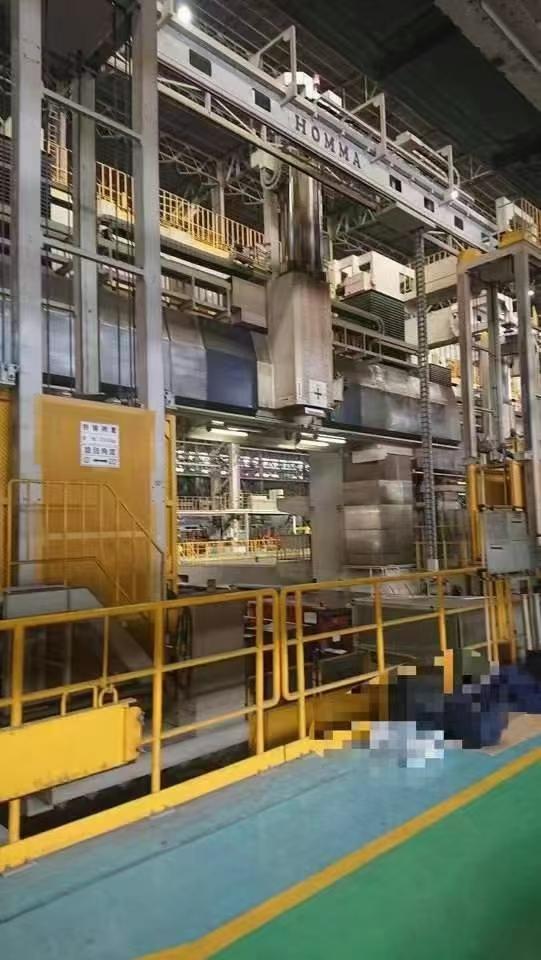

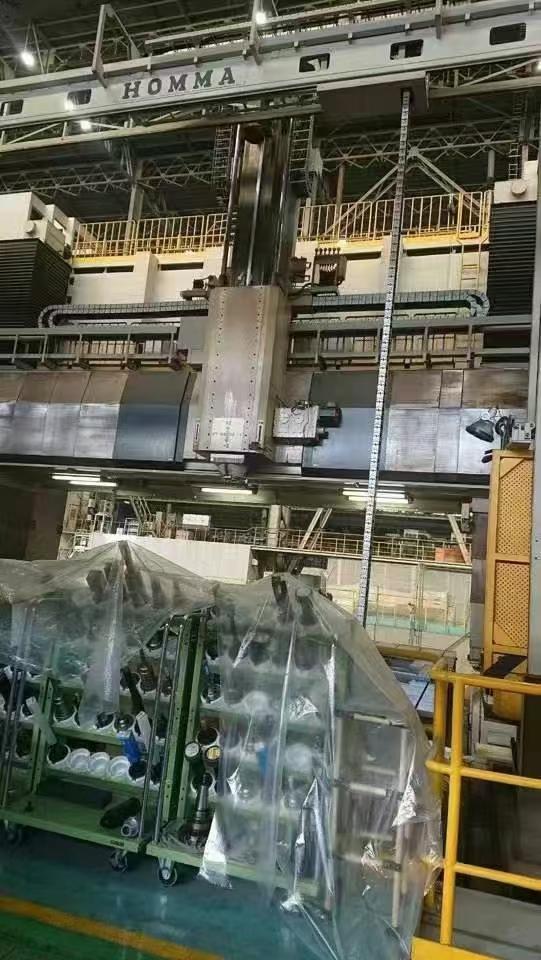

HOMMA HTM-8.0/10.0GTN Turn Mill Machining Centre
[Product Information]:
- Inventory number：92360
- Brand：HOMMA
- Model：HTM-8.0/10.0GTN
- Origin：Japan
- Location：China
- Year：2012
- Create Time：2024-10-29
Specifications:
Gantry height: 7200mm
Gantry width: 10000mm
Maximum load on WorkWorktable :250t
Worktable diameter :8000mm
Worktable speed :1000-20000rpm
Worktable rotary drive motor :AC100kW
X axis travel :15000mm
Y-axis travel :11300mm
Z-axis travel :3000mm
W axis travel :200mm
C-axis cutting unit :0.001 degree
spindle speed of rollback :10~1600m/min
spindle motor :AC100kw
Number of ATC tools :120
(BT60x10 copies, BT50*110 copies)
AAC attachment capacity :10

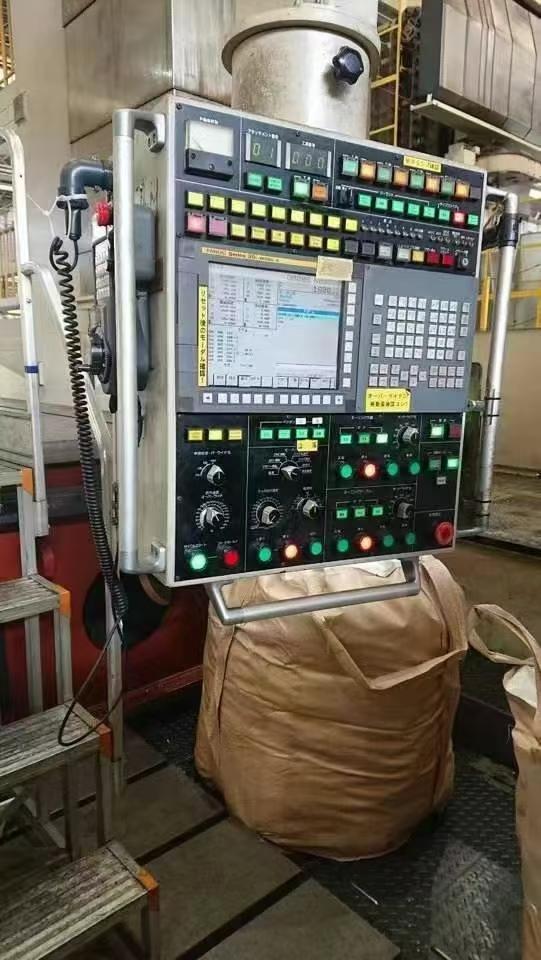

CNC CNC System: FANUC 30i-MODELA
machine tool weight: 700-800t
