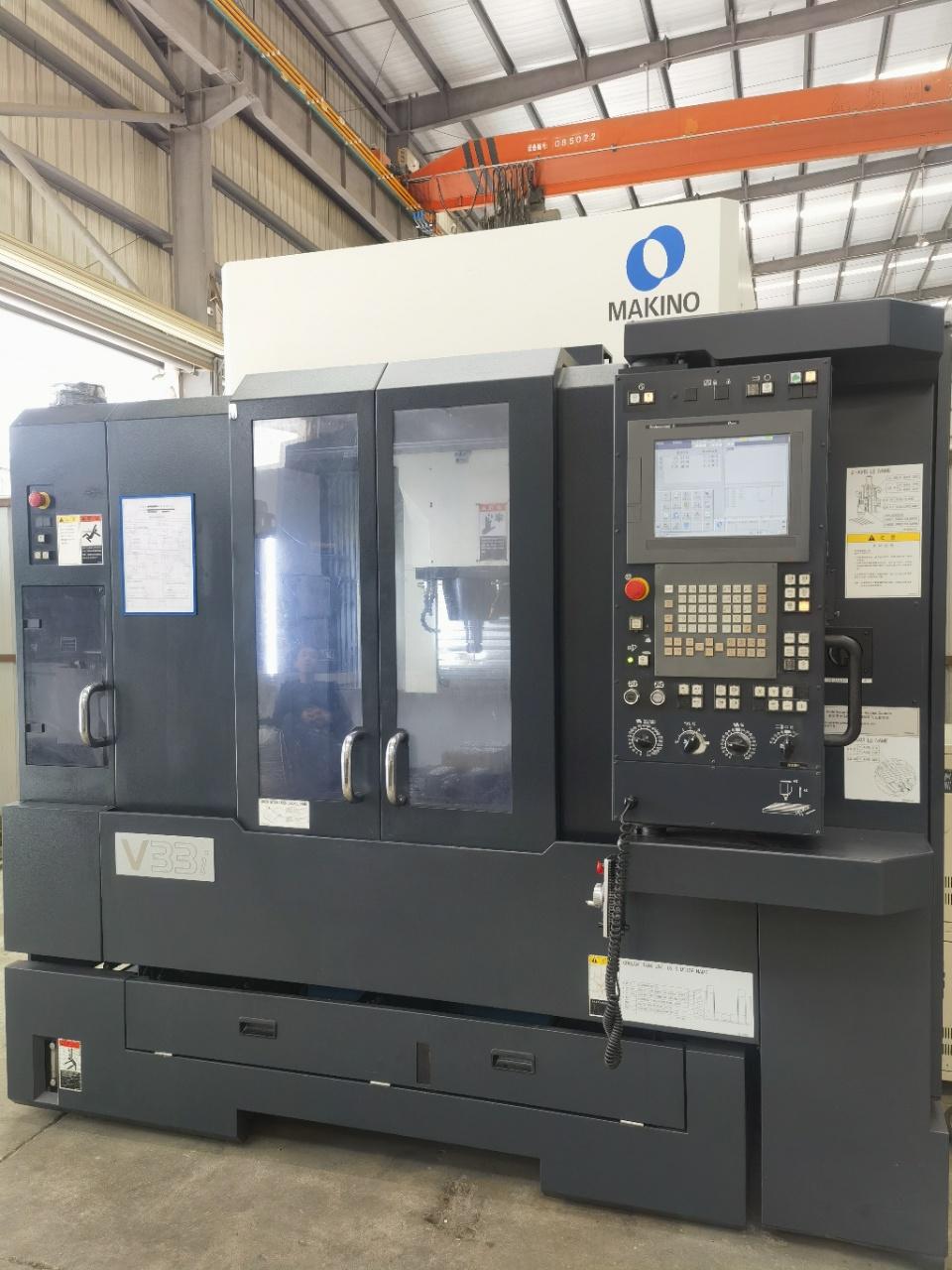

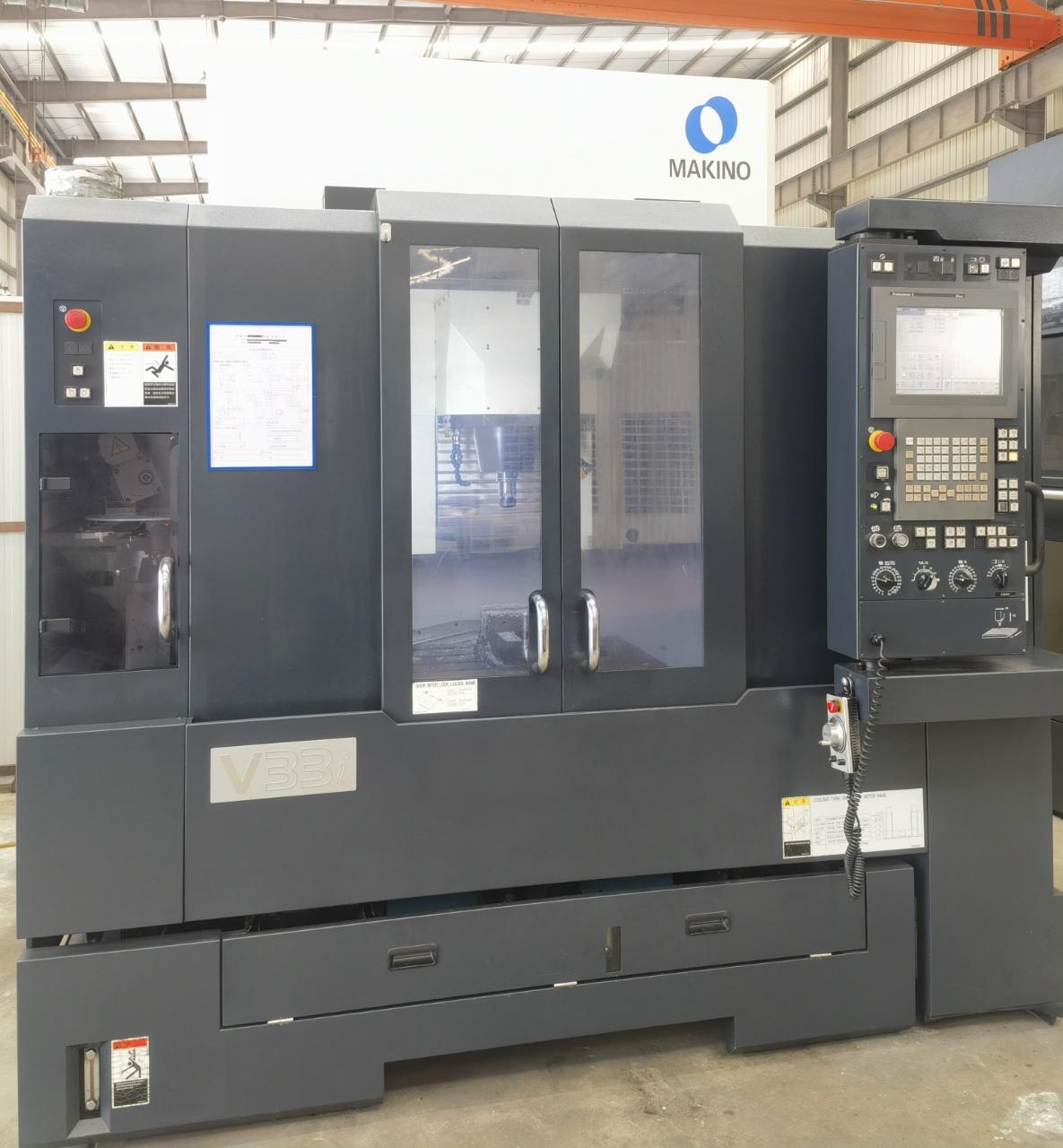

MAKINO V33i Machining centre

[Product Information]:

Inventory number：461514
Brand：MAKINO
Model：V33i
Origin：Japan
Location：China
Year：2013
Create Time：2024-10-24

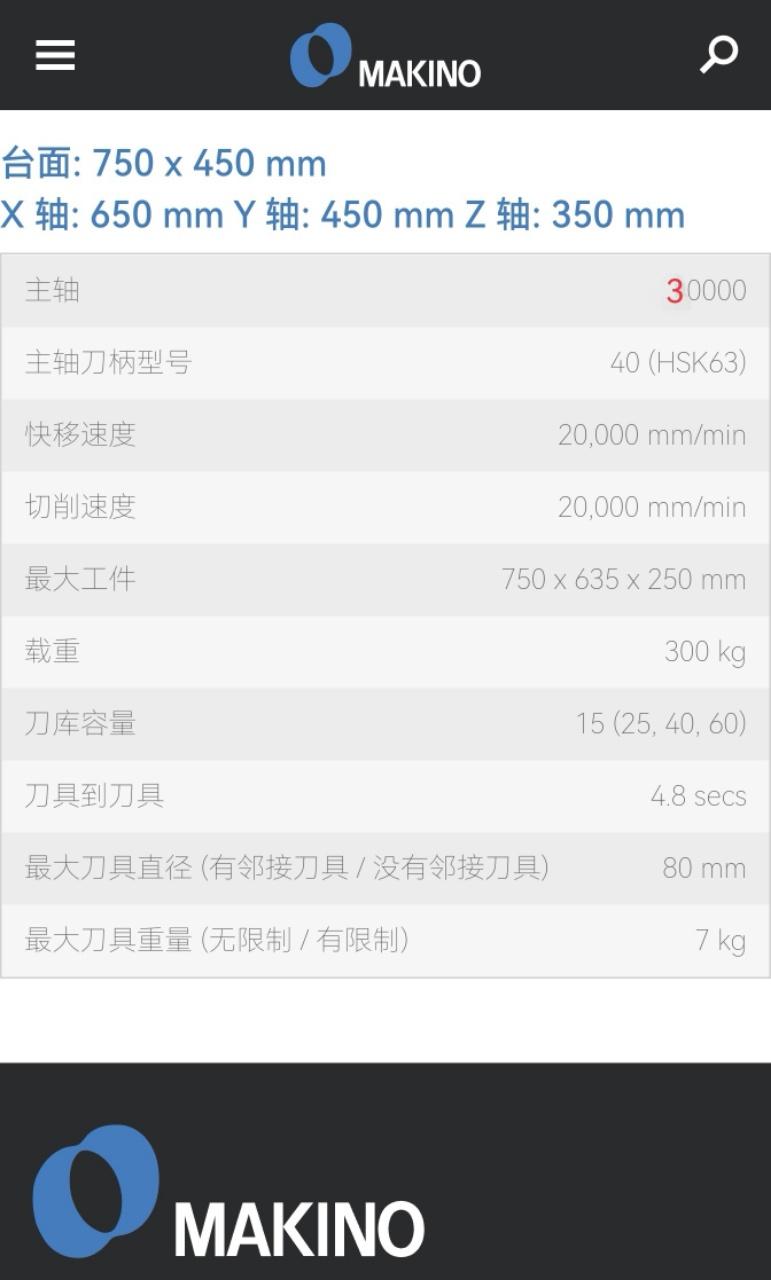

Specifications:

three-axis stroke: 650*450*350mm
Distance from top of table to end face of spindle: 150-500mm
Worktable size: 750*450mm
Maximum workpiece size: 750*635*250mm
Maximum load: 300kg
Spindle speed: 200-20000rpm
spindle power: 15/11kw
Torque: 45.7/31.1N.m
Handle model: BBT40
Bearing inner diameter: 65mm
Fast moving speed: 20000mm/min
Cutting feed speed: 1-20000mm/min
magazine capacity: 15
Maximum cutter diameter: 80mm
Maximum cutter length: 250mm
Maximum cutter weight: 7kg
Dimensions: 2245*3290*2400mm
machine tool weight: 7400kg
