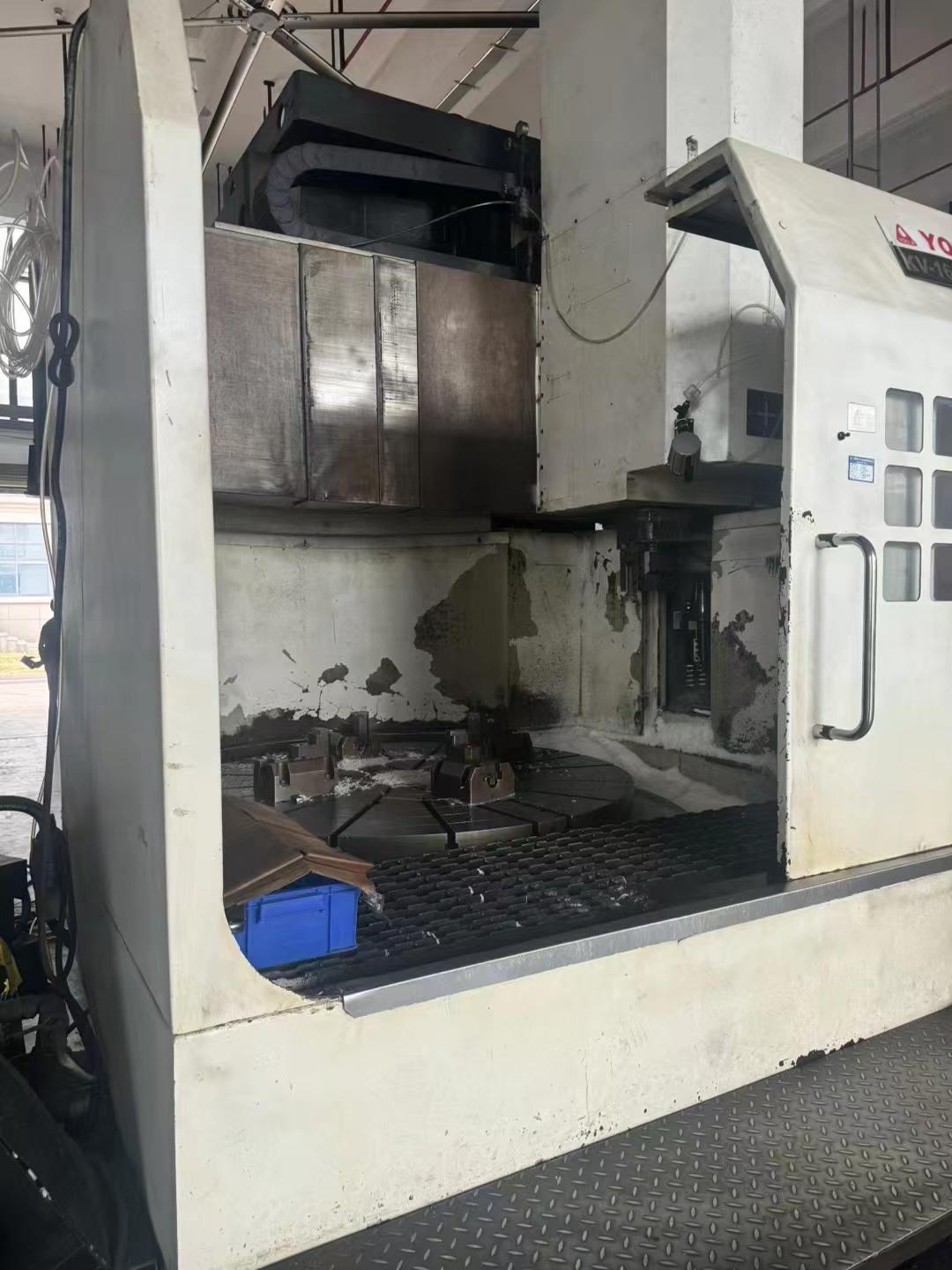

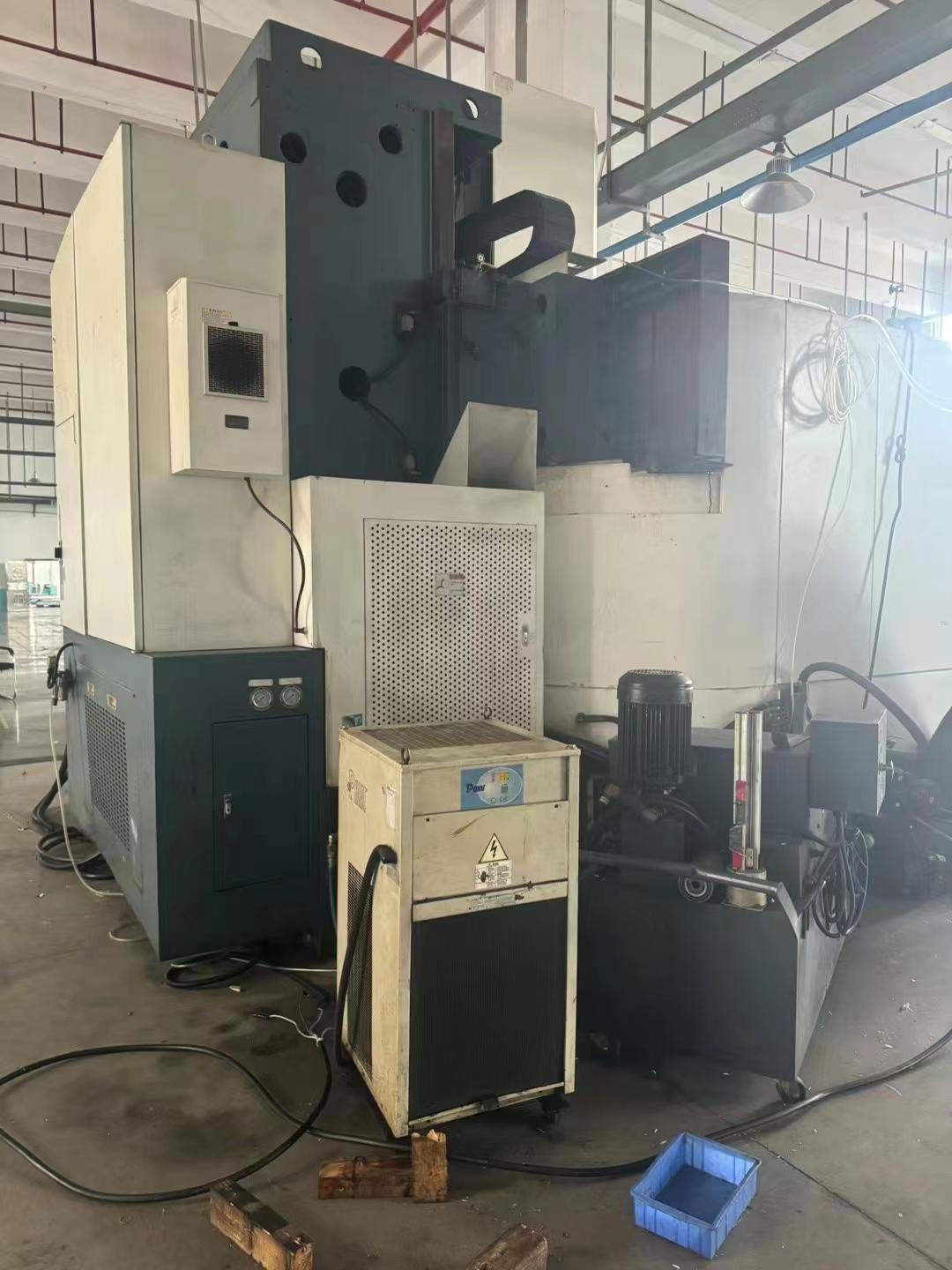

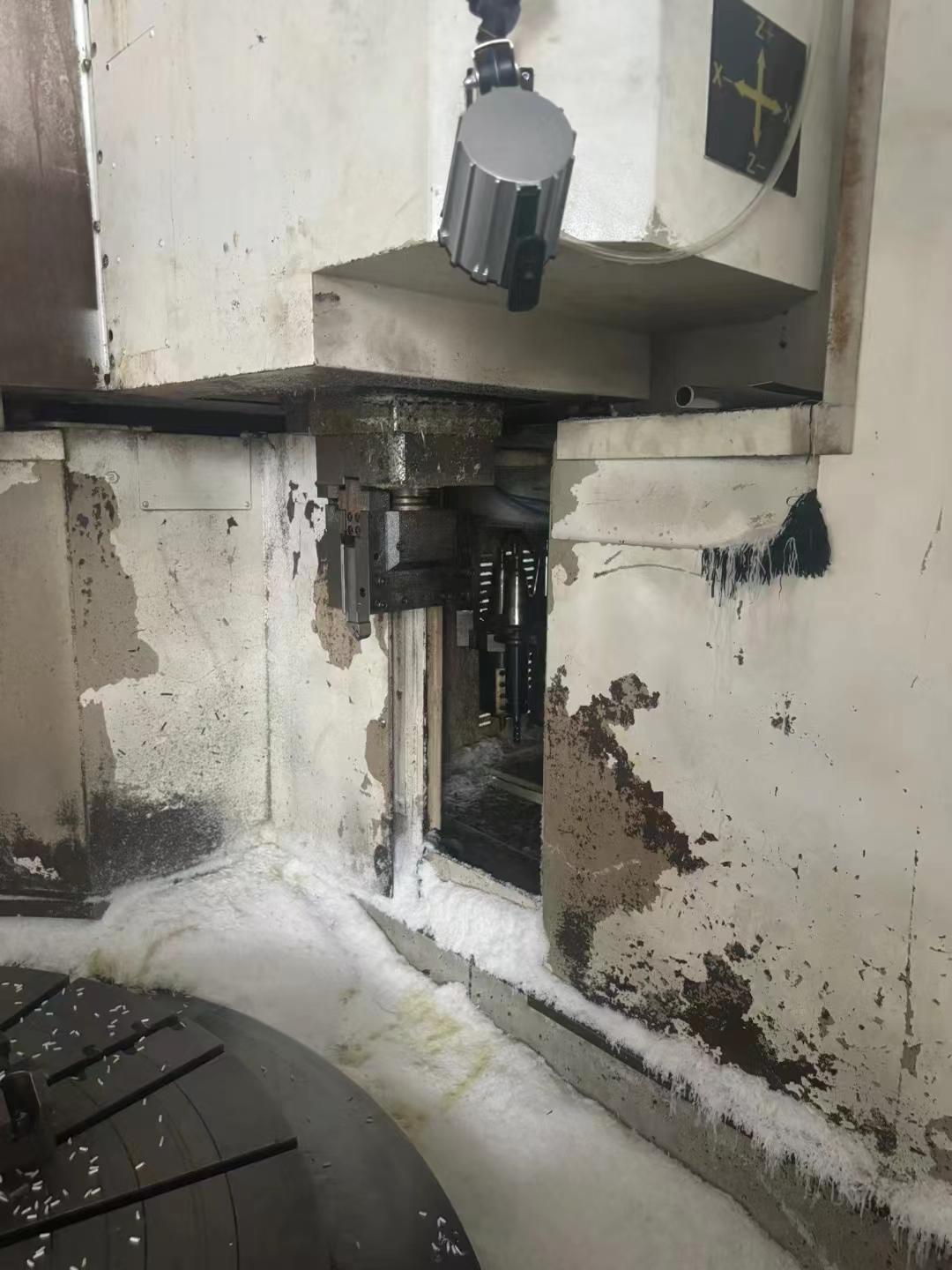

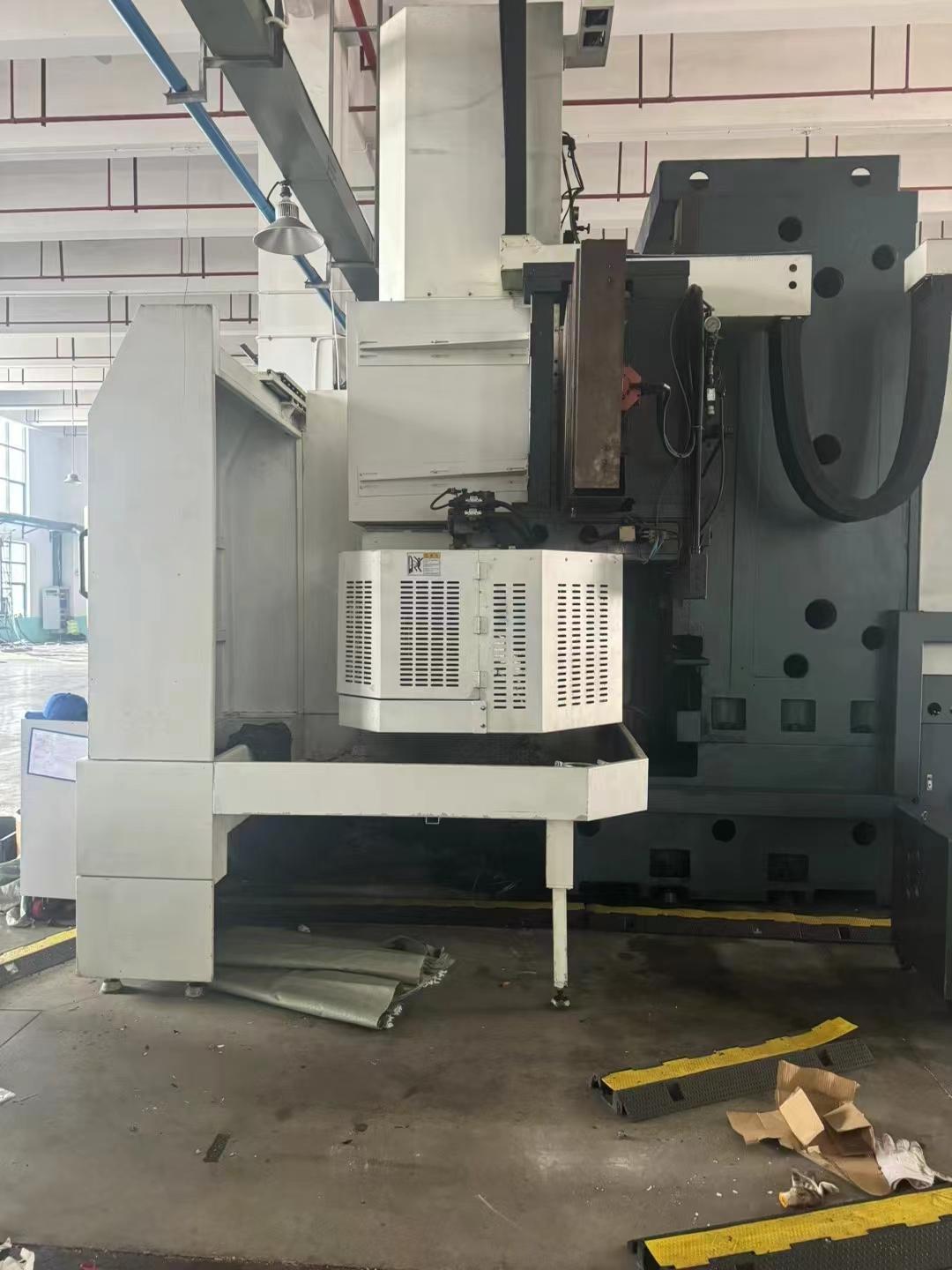

YouJi KV-1600ATC+C Turn Mill Machining Centre

[Product Information]:

Rotating diameter :2000mm

Cutting diameter :1800mm

workpiece height :1200mm

machining weight 8000kg

Manual four-jaw chuck :1600mm

Spindle speed: Low speed :1~62rpm, high speed :62~250rpm

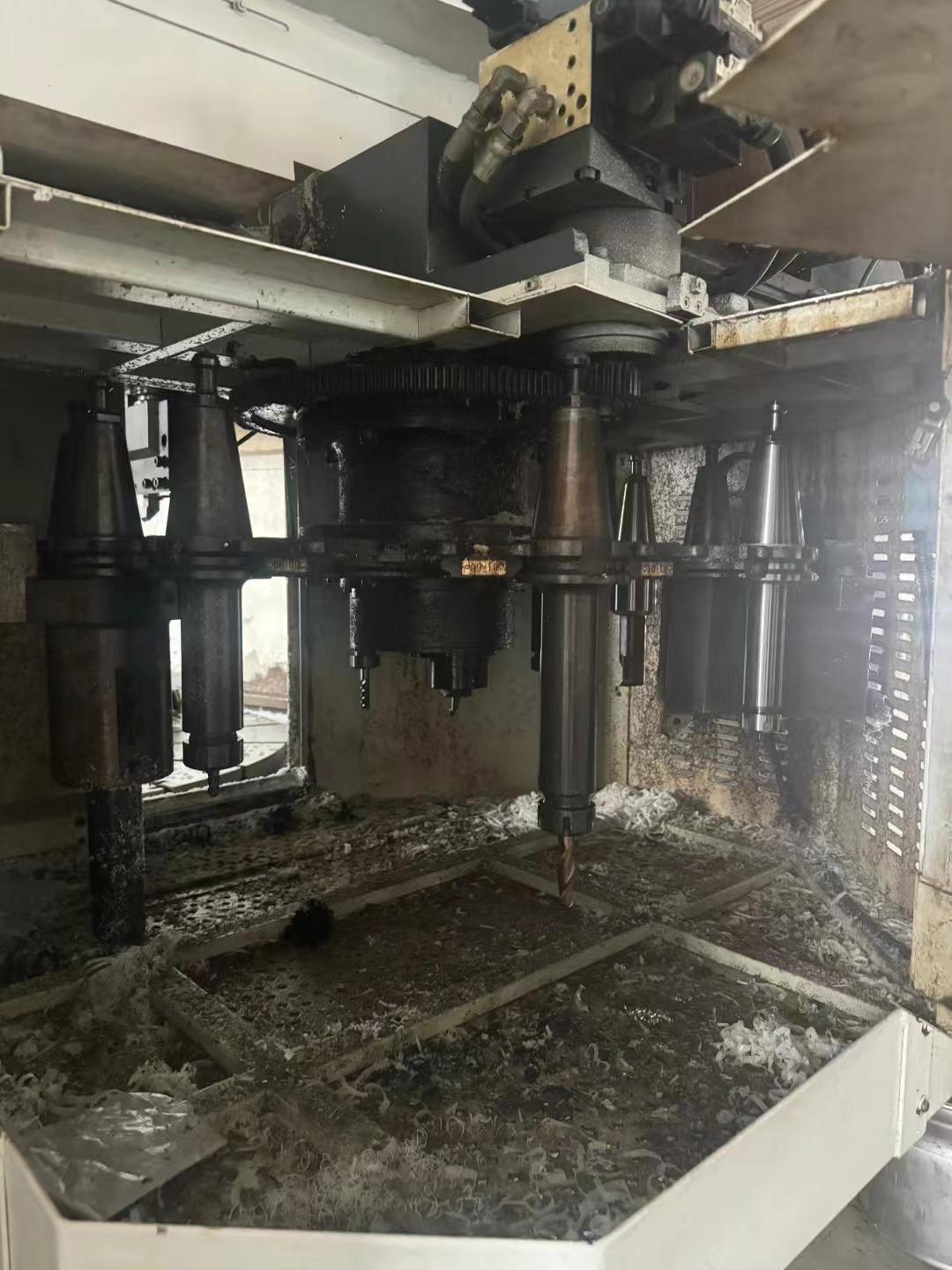

Turret type: Pentagon

tools magazine: 5

X*Z axis travel :1510*900mm

Beam lifting distance: 750mm

X axis fast displacement: 12m/min

Z-axis fast displacement :10m/min

Footage :5550*5300*4800mm
