SW BA322 Horizontal Machining centre

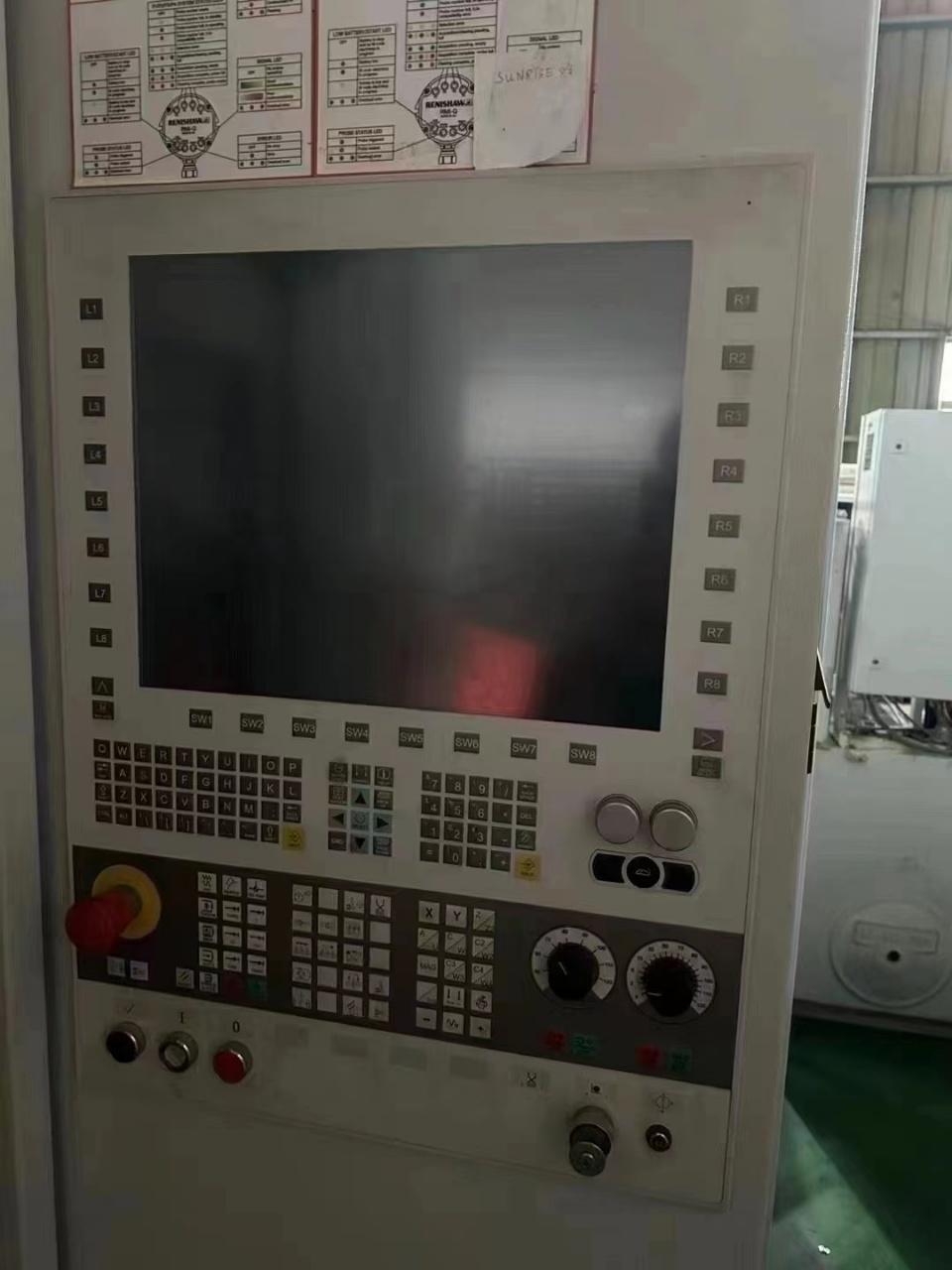

CNC CNC System: Siemens 840D

three-axis travel: 300*450(725)*375mm

spindle distance: 300 mm

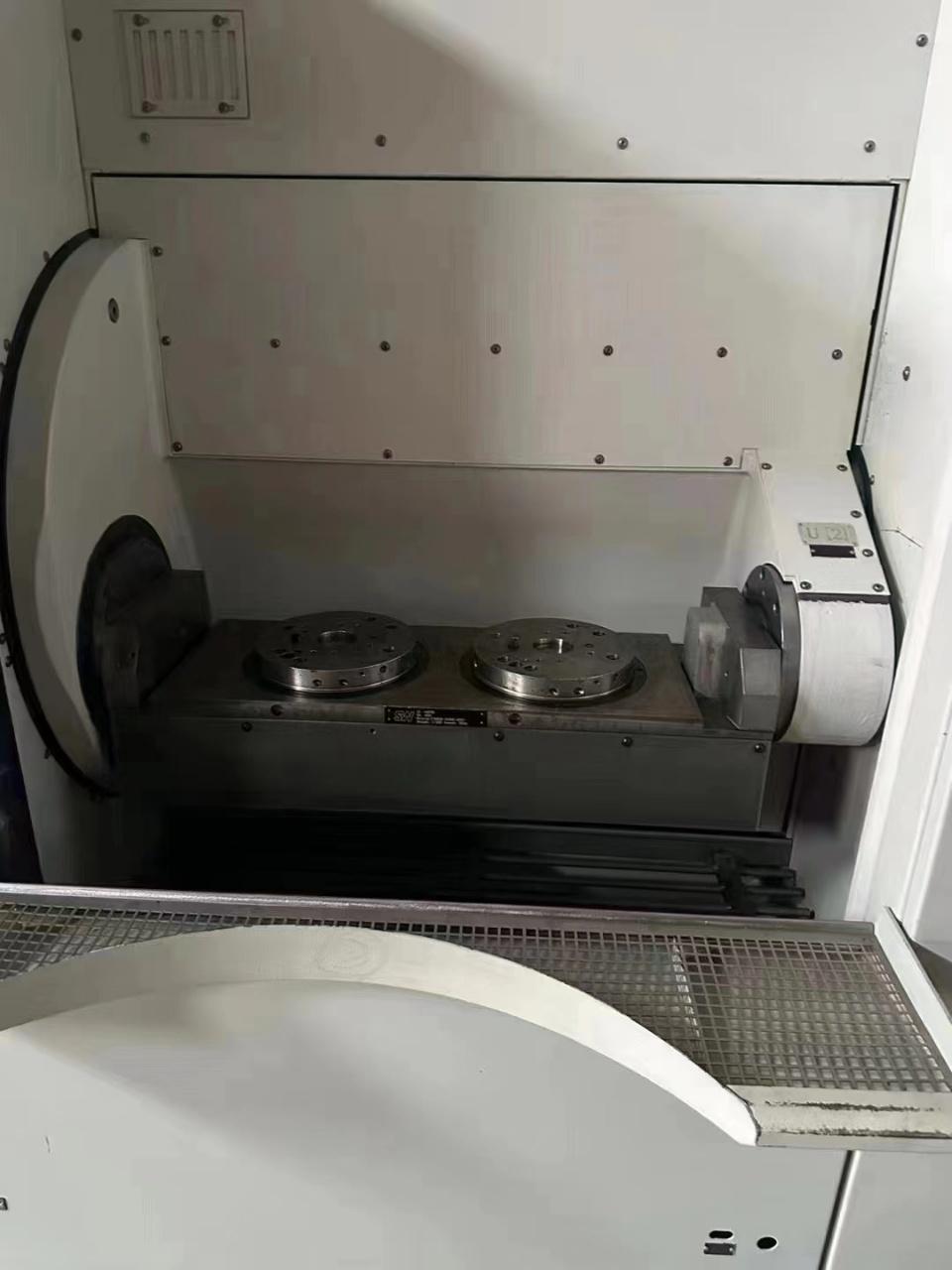

Translation carrier: 0/180°

3 axes feed rate :65*75*75 m/min

3 axes movement time :10*10*15 m/s²

Maximum workpiece length :725mm

Maximum workpiece weight :7.5kg

Footage: 2750*2850*3650mm

tools magazine :2*40

Spindle speed :10000rpm

spindle taper: HSK-A63

Main motor power: 64kw

Machine weight: 12000kg
