TORNOS DECO 13 Basic CNC turning lathe

- Number of axes: 6

- Number of spindle: 2

spindle

- Max machining  diameter: 16[mm]

- Maximum machining  length: 160[mm]

- Spindle speed: 12000[rpm]

- spindle power: 3.7[kW]

-C axis indexing accuracy: 0.1[°]

Reverse rotation

- Max machining  diameter: 16[mm]

- Spindle speed: 12000[rpm]

- spindle power: 2.2[kW]

-C axis indexing accuracy: 0.1[°]

- Number of guide brackets: 1

Guide sleeve bracket 1

- Number of locations: 8

- Number of electric positions: 3

- Moving tool speed: 8000[rpm]

End attachment

- Number of locations: 3

Secondary operation

- Number of locations: 3

Power supply

- Supply voltage: 400[V]

Weight and size

- Machine floor area: 1100 X 7270[mm]

- Machine height: 1950 mm

- Machine weight: 3000[kg]

Machine hour

- Power hours: 17,085 [h]

equipment

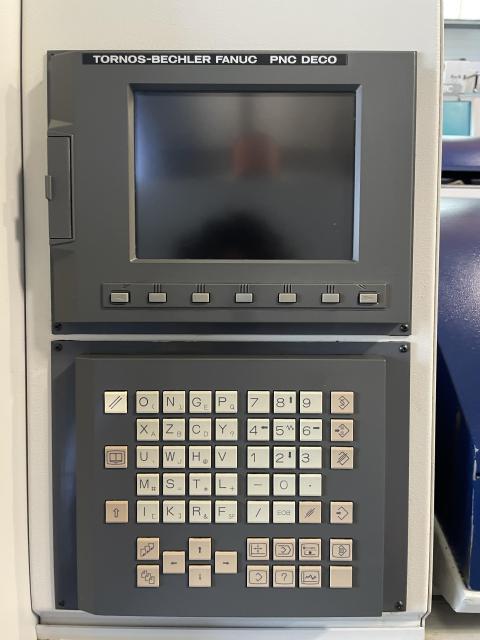

-CNC: FANUC PNS DECO

- Rotary guide sleeveing

- Part grabber

- Parts conveyor belt

- workpiece ejected

- Coolant Water tank

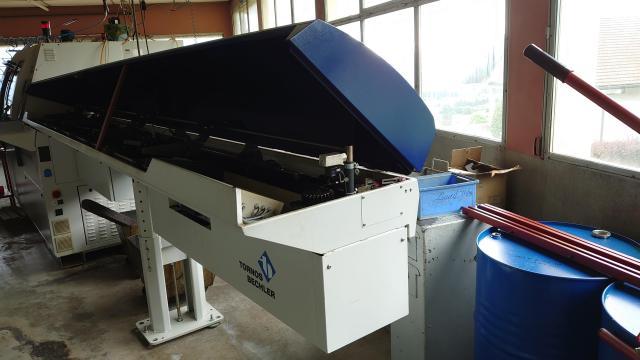

- Bar loader: ROBOBAR SSF
