HYUNDAI WIA KH63G Horizontal Machining centre
[Product Information]:
- Inventory number：484960
- Brand：HYUNDAI WIA
- Model：KH63G
- Origin：Korea
- Location：China
- Year：2008
- Create Time：2024-10-03
Specifications:

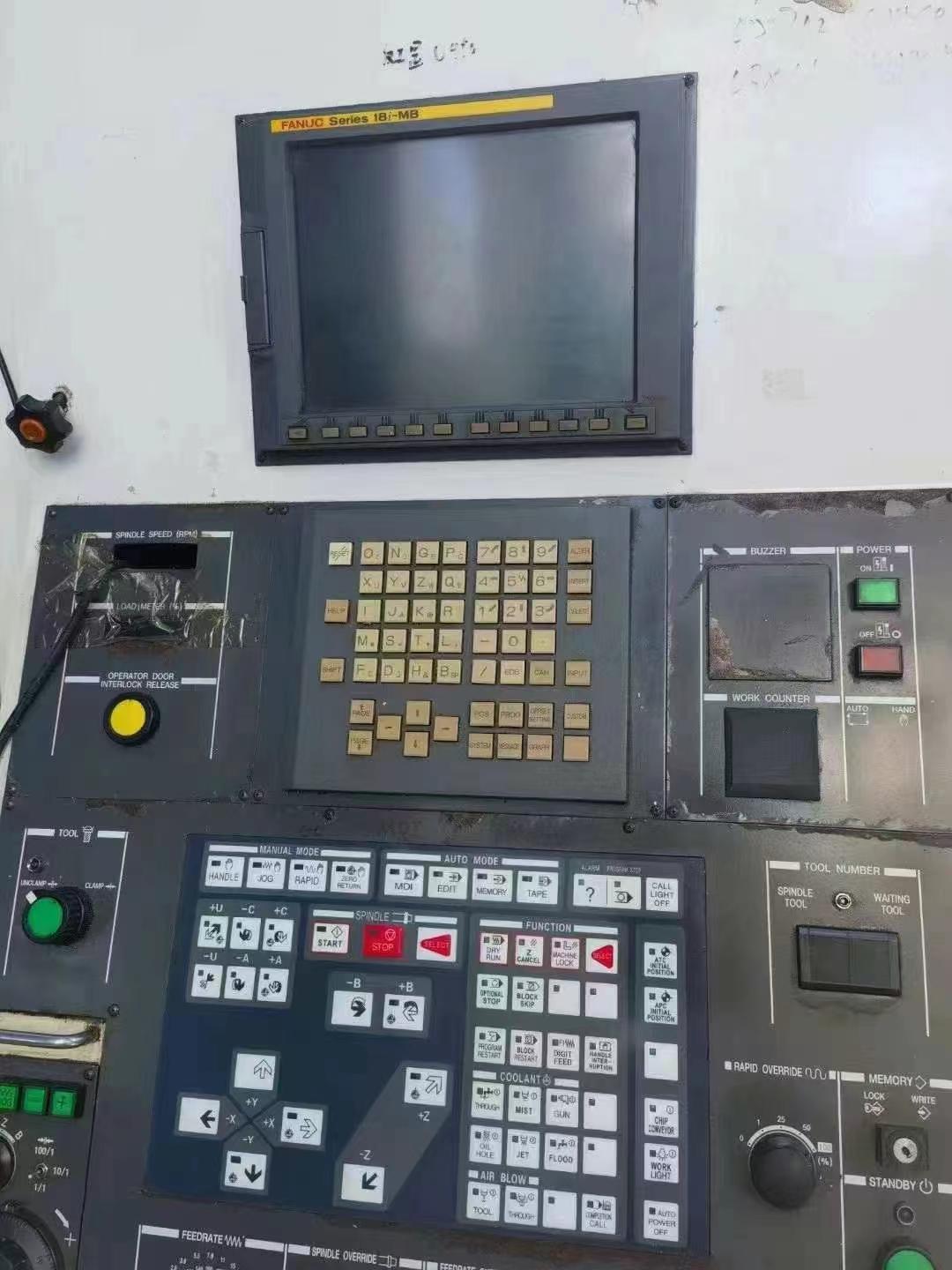

CNC CNC System: FANUC
three-axis travel: 950*825*760mm
Work surface to spindle center: 0-825mm
WorkWorktable center to spindle nose: 175-935mm

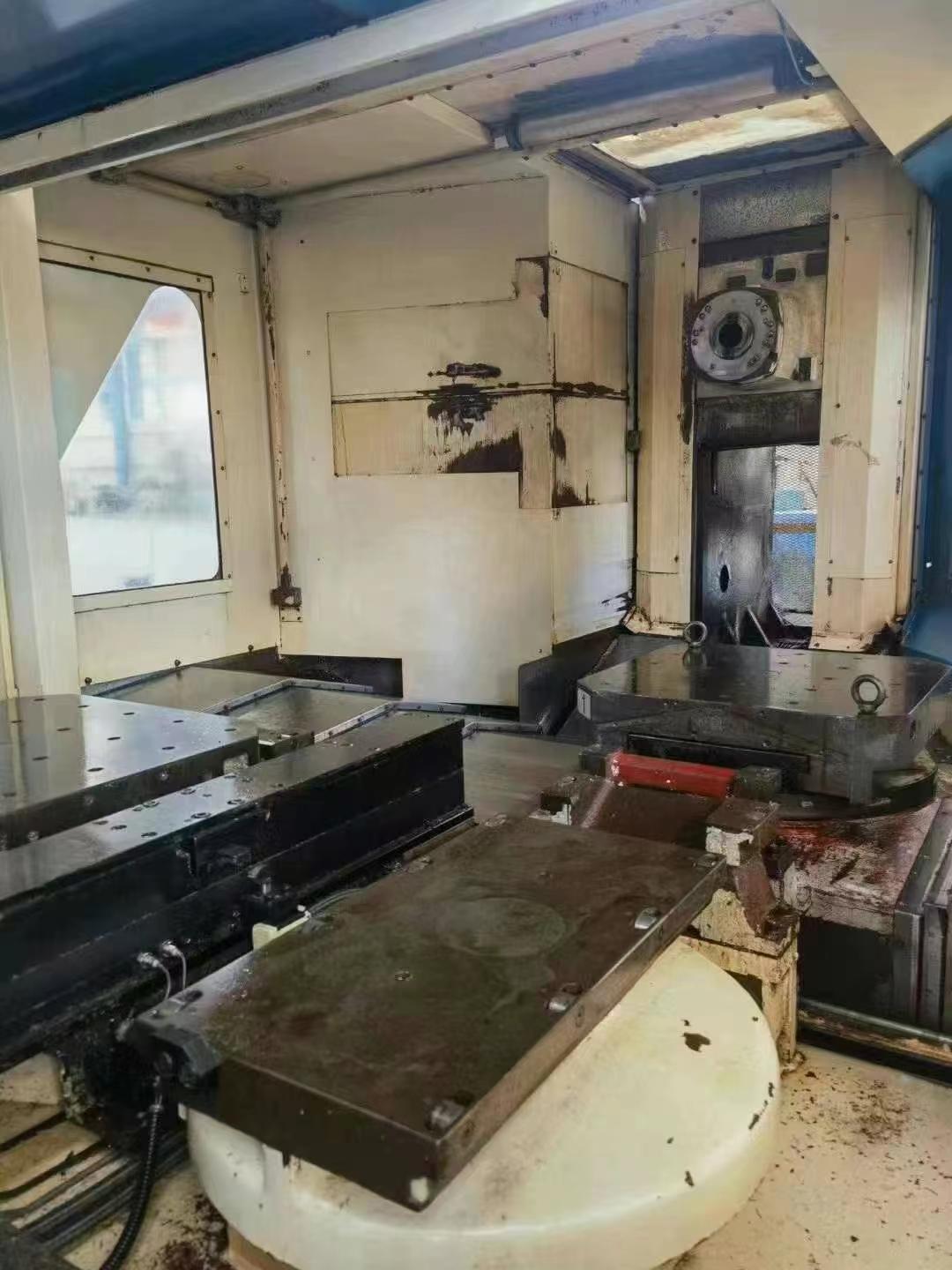

WorkWorktable size: 630*630mm
Maximum load: 1000kg
Worktable 0.001deg one degree
Internal diameter of spindle bearing: 100mm
Spindle speed: 4500rpm
spindle torque: 1071NM
3 axes fast shift: 20/20/20m/min
Cutting feed: 1-5000mm/min
Minimum input unit: 0.001mm
tools magazine: 40
Tool holder size: BT50
Tool diameter: 110mm
Tool length: 600mm
Tool weight: 20kg
