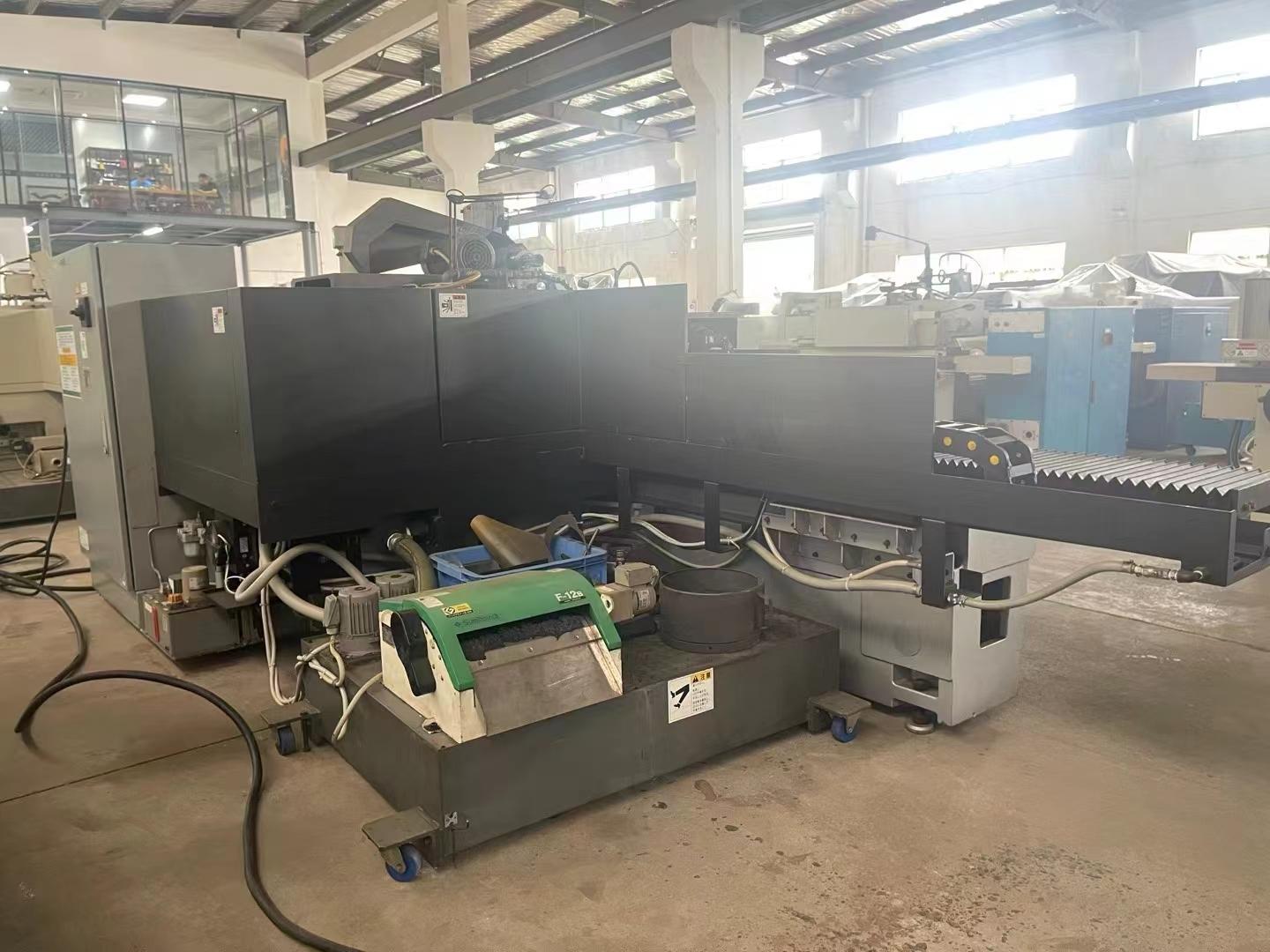

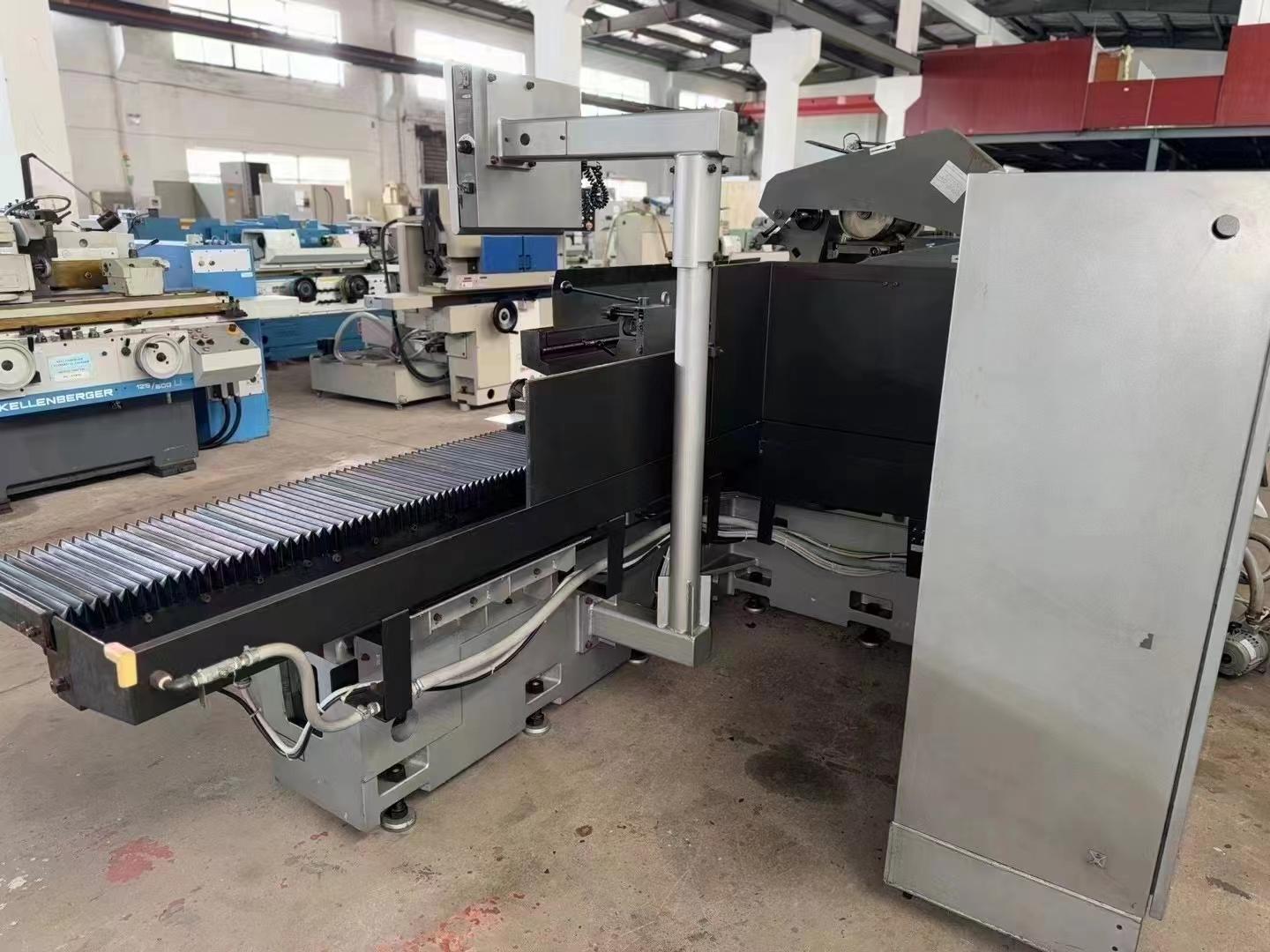

TOYODA GE4Pi-150 other

Rotating diameter of Worktable :320mm

Worktable grinding length :1500mm

Worktable rotation Angle: +8.5°, -0°

Maximum workpiece weight: 150KG

grinding wheel size :405* (75max100) *127mm

Sand wheel shaft speed: (30M) : 1550 min-1

Sand wheel shaft rotation Angle: 90°

grinding wheel speed: 30m/s

workpiece Workhead rotation Angle: +90°, -30°

speed :21 ~ 500rpm

Cardiacaxis travel: 25mm

Machine weight :6000KG

Mechanical size :6130*2035mm
