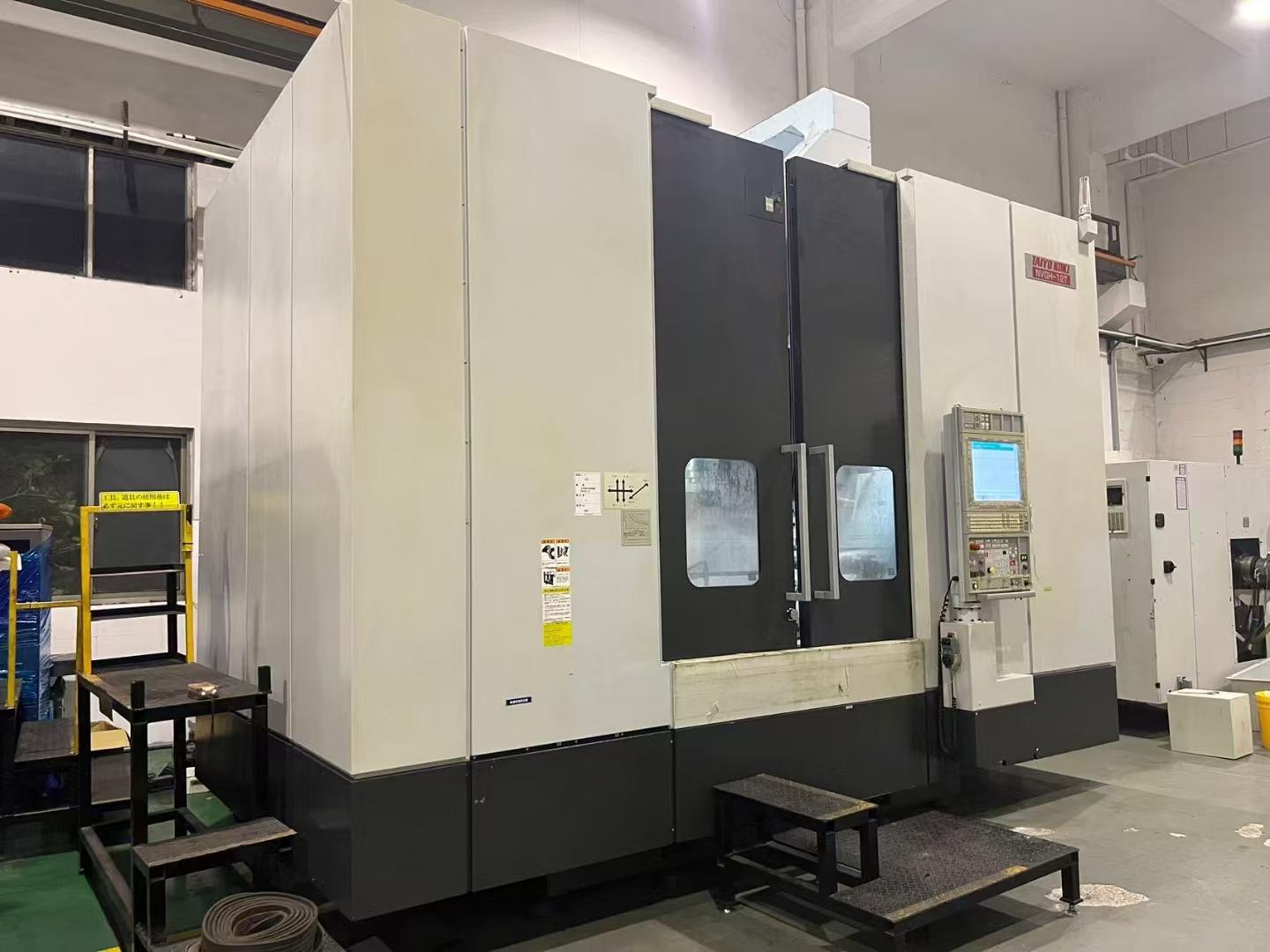

TAIYO KOKI NVGH-12T Grinding machines

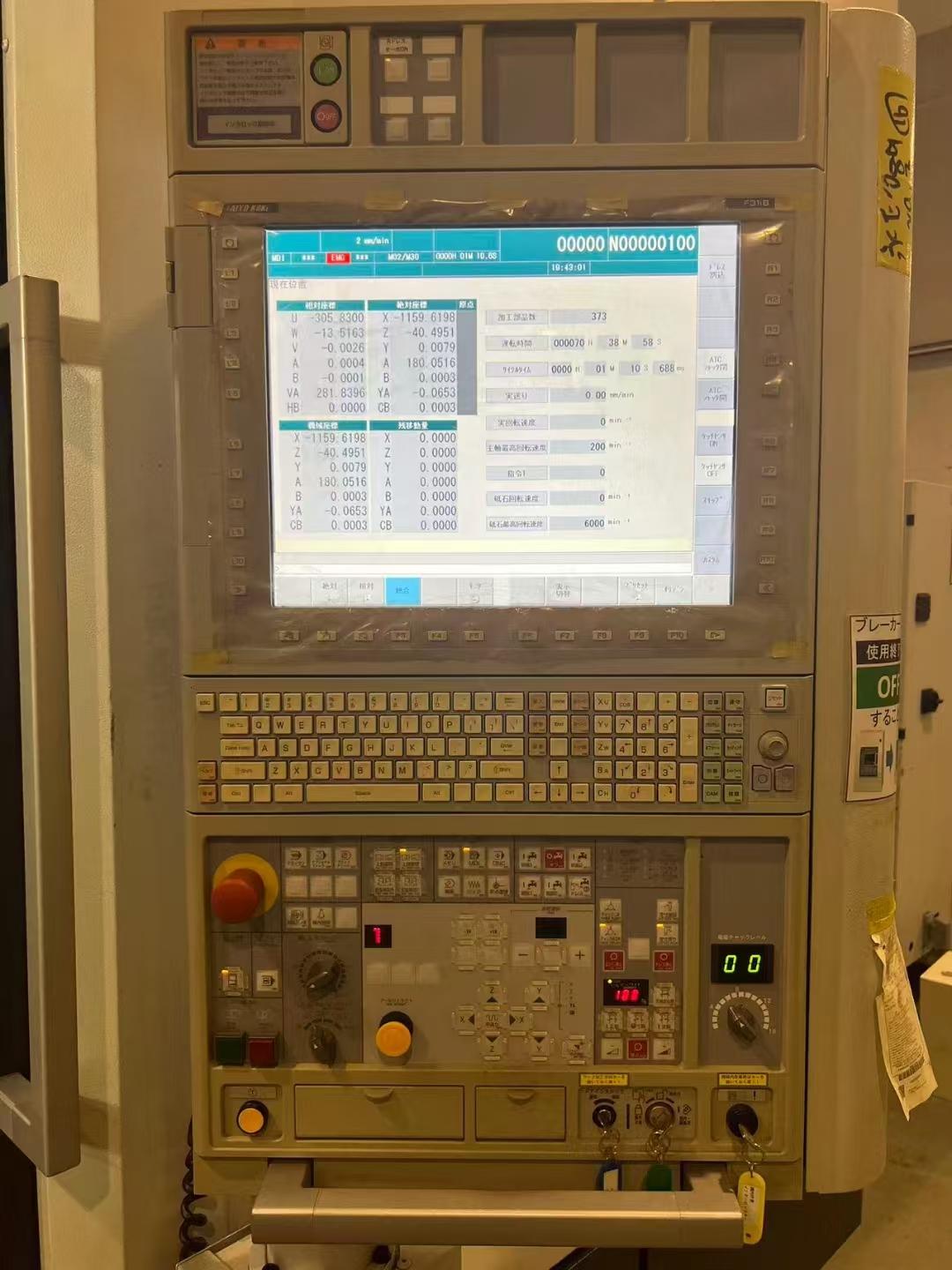

CNC CNC System: FANUC -31i-B

Grindable through hole; Eg. Φ 1100 mm

Sand wheel shaft rotation Angle 15° : maximum Phi 1100mm

Sand wheel shaft rotation Angle 30° : maximum Phi 640mm

Grinding external diameter: ~  Φ 1200 mm

Maximum grinding length (external diameter) : 260 (Φ100~Φ300mm)

600 (Φ300 +)

Maximum grinding length (external diameter) : 600mm straight line

Angle: approx. 150 (Angle of contact: 22.5)

Rotation diameter of spindle: Φ1250mm

Installation of machining  material height: 600mm (1200 permanent magnetic card)

The weight that spindle Worktable can bear; 3000kg

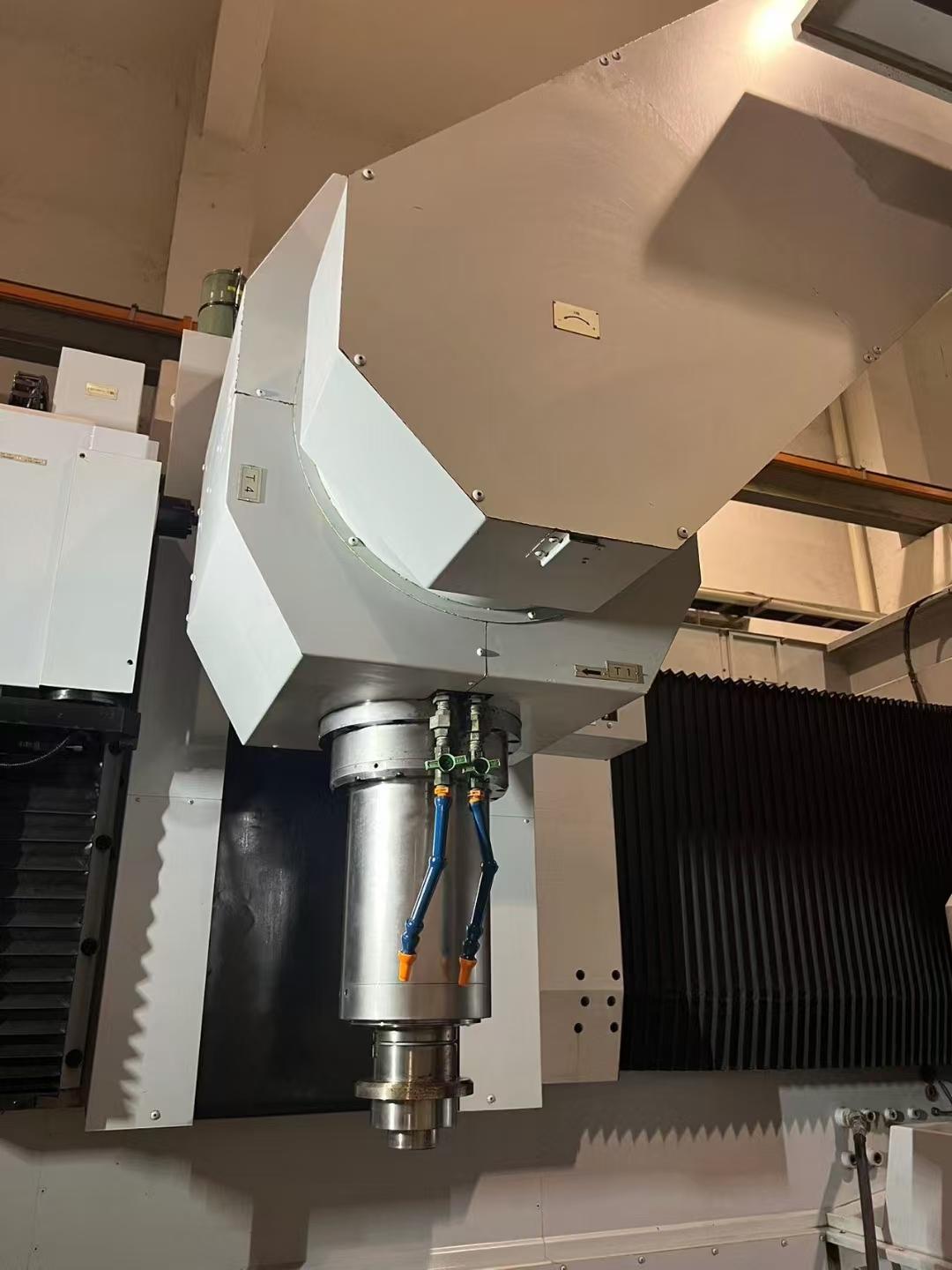

Sand wheel shaft

Maximum indexing Angle: 120°

grinding wheel machining  position: component degree Angle: ±30°

Minimum setting unit: 0.0001°

speed: 1200~6000min-¹

Use grinding wheel: Φ75 ~ Φ355mm

Maximum speed: 2700m/min

spindle taper :HSK-A125 (8 ATC functions)

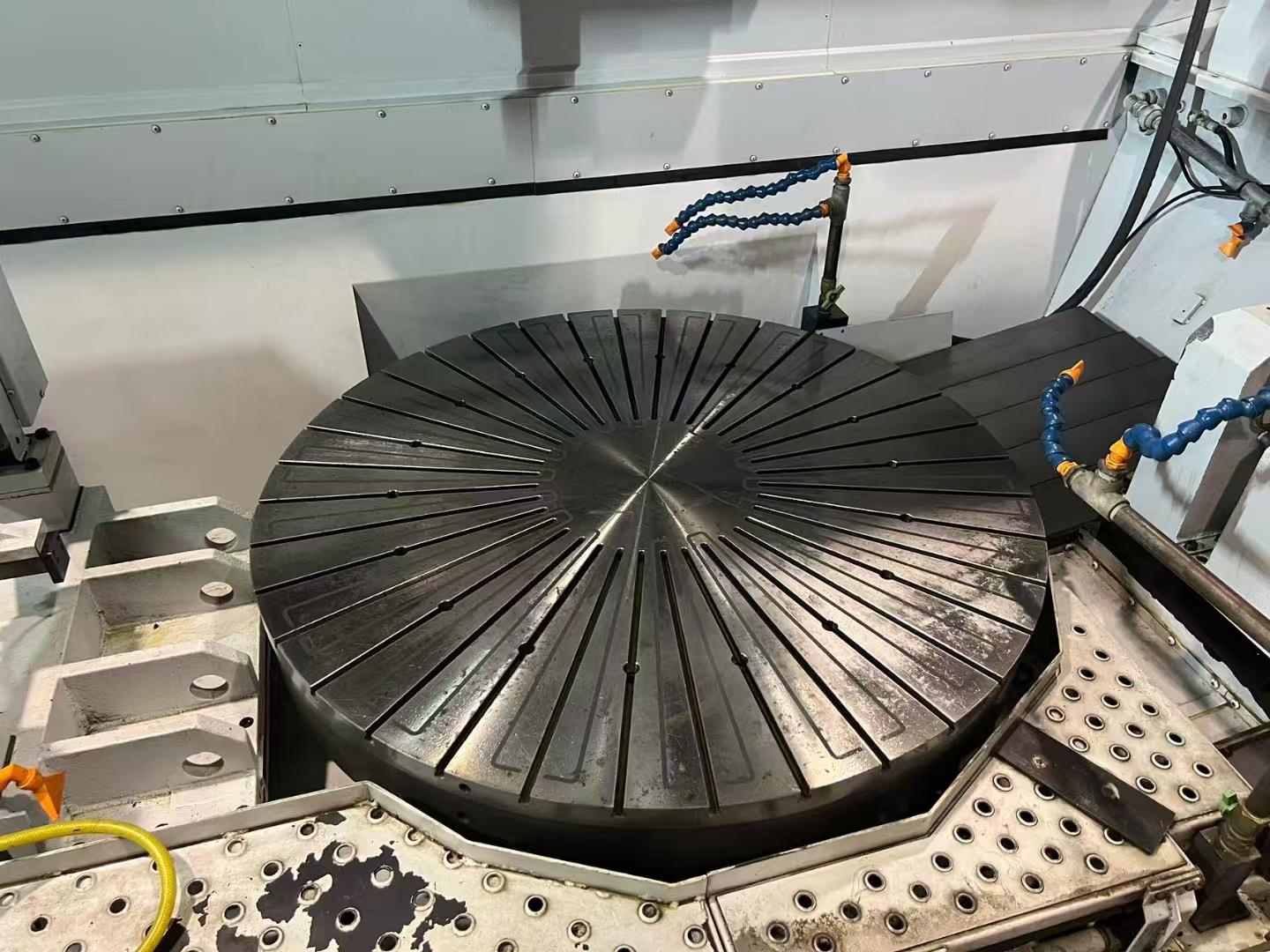

Disk size: Φ1200mm

spindle speed: 200rpm
