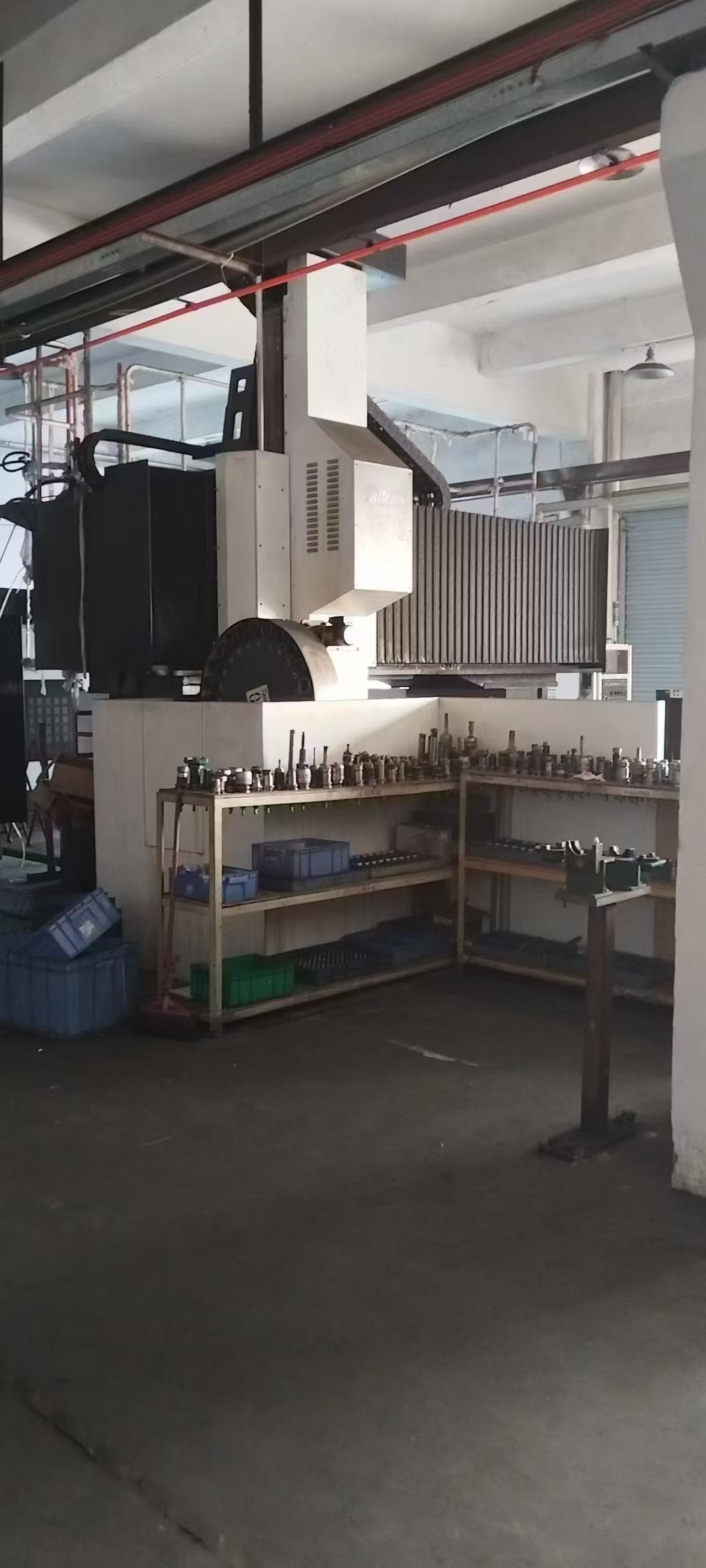

Taikan G-V2040A Gantry machining centre

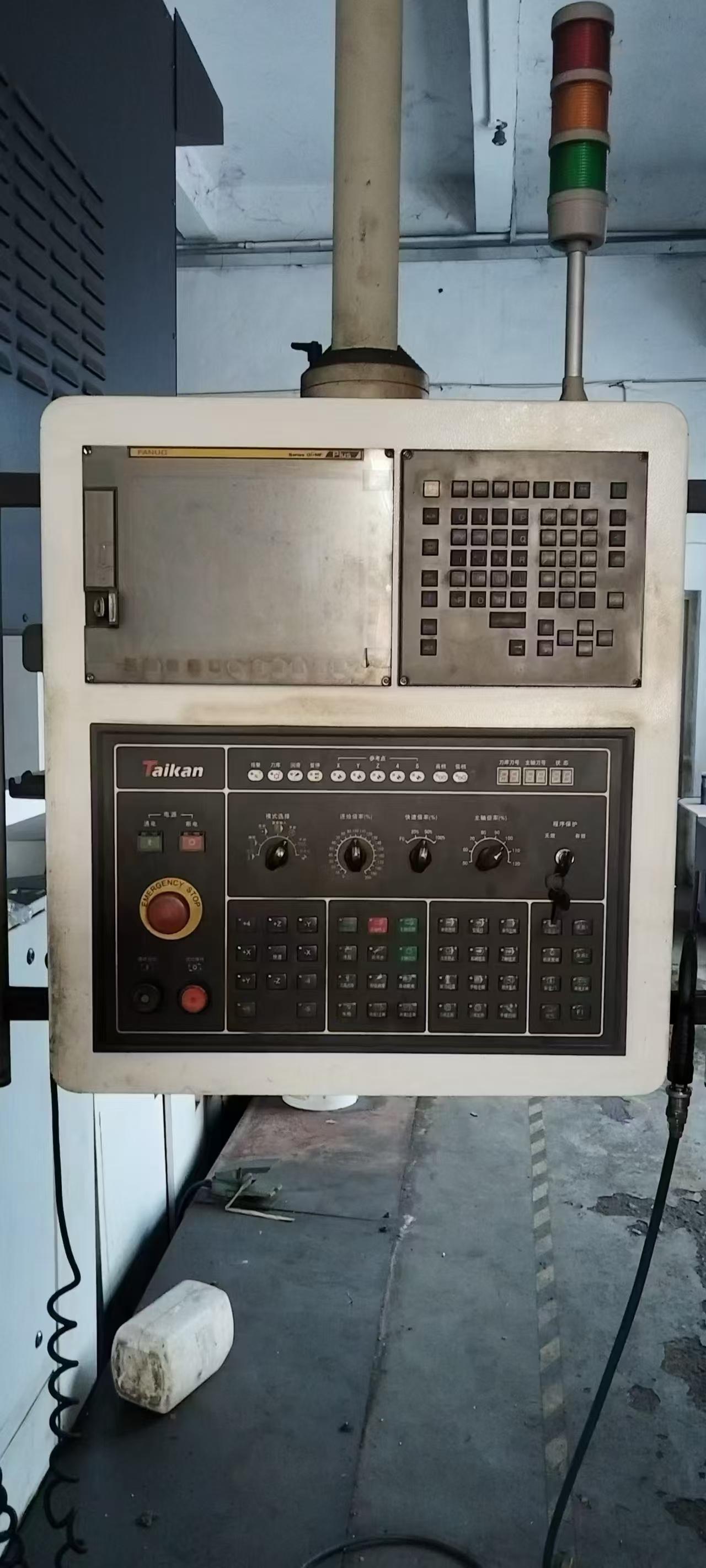

CNC CNC System: FANUC MF

Three line heavy Z axis four linear guideways

spindle taper :BT50

Spindle speed :6000 RPM

190 large diameter spindle with oil cooling /24 disc tools magazine

WorkWorktable size :4000*2000mm

three-axis travel: 4300*2500*1000mm

The gantry is too high: 1400mm

Gantry effective width: 2450mm

Double screw + tap chain chip conveyor

Split drive alpha motor with high speed and high precision die pack
