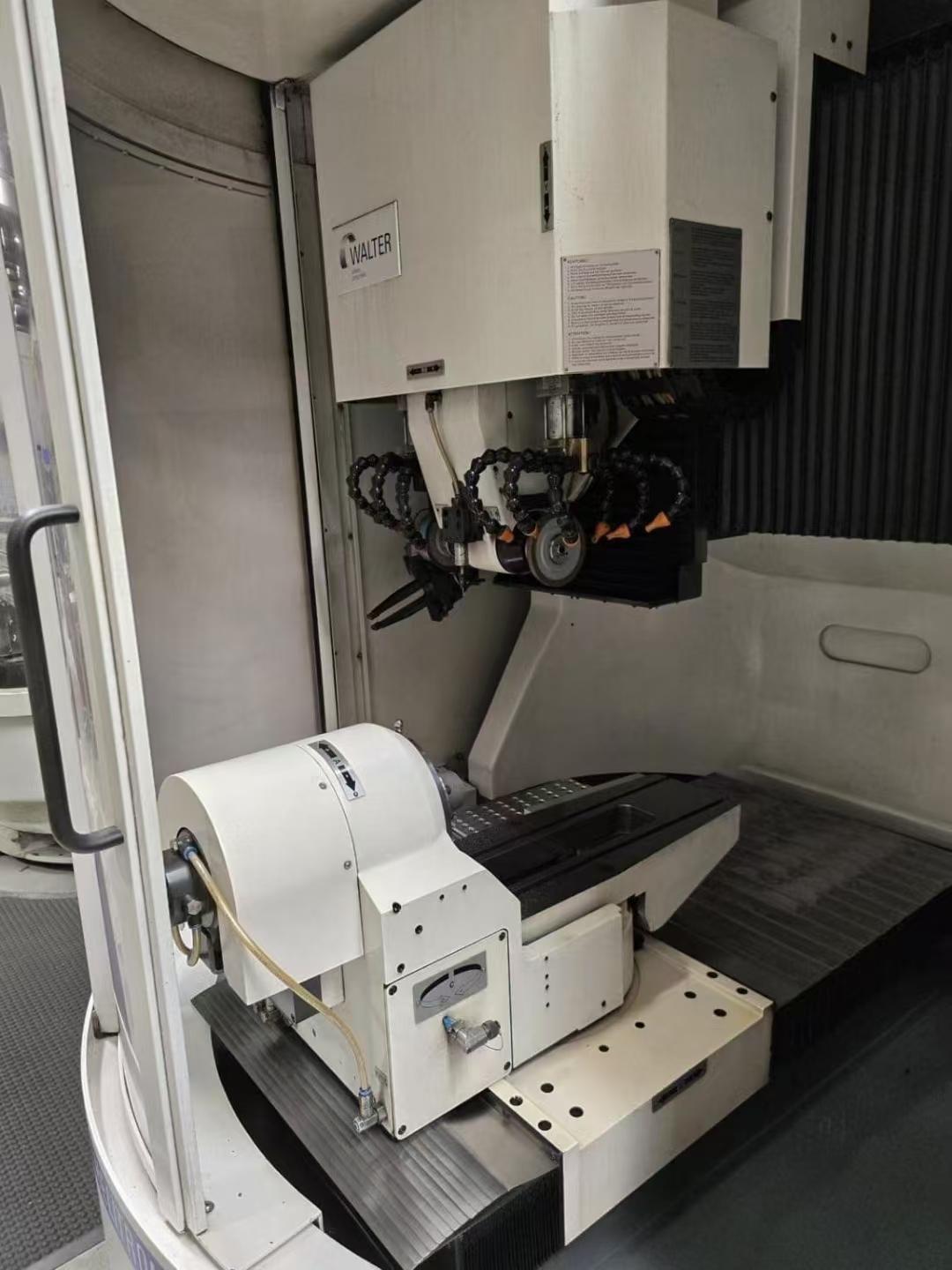

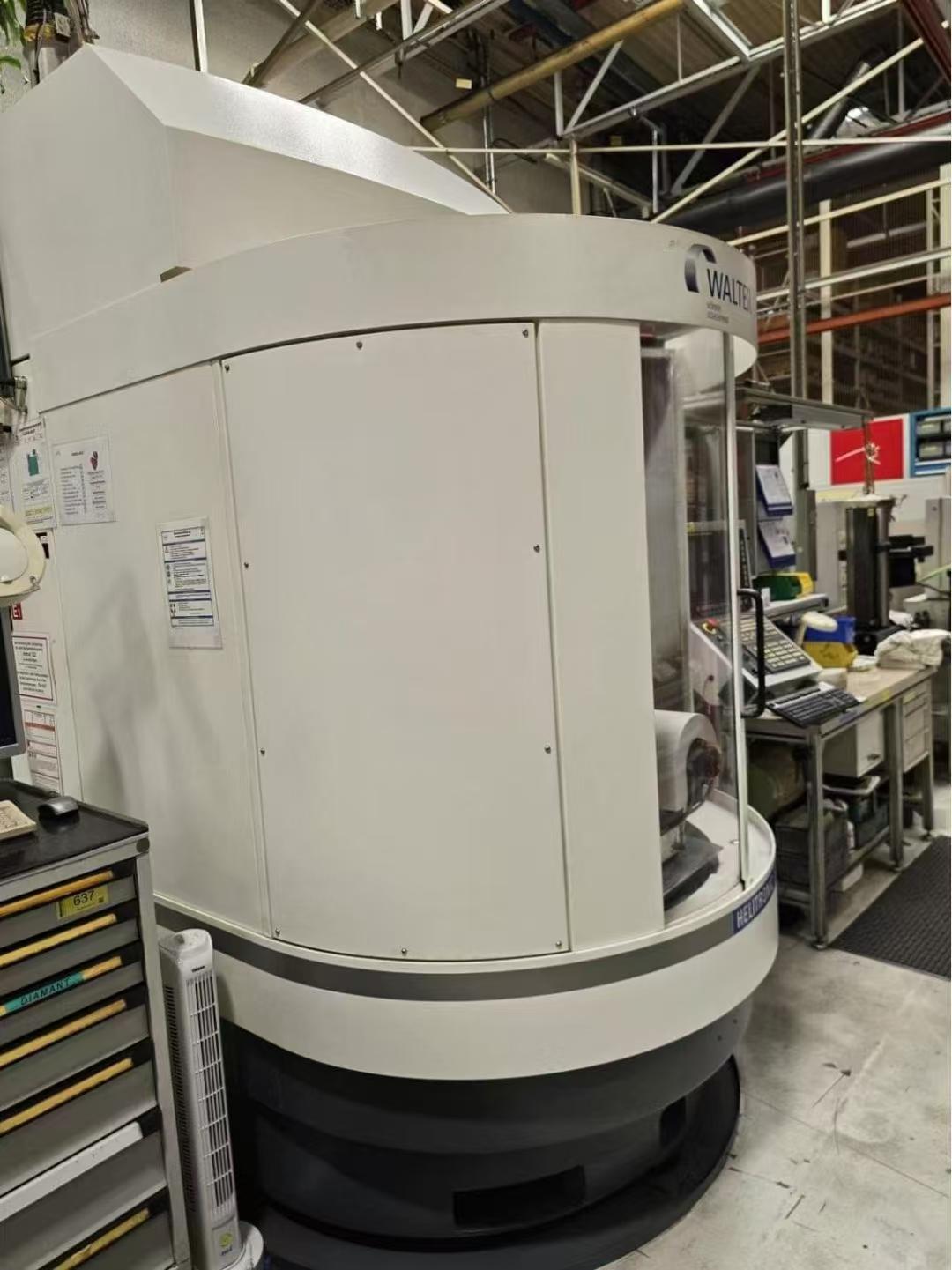

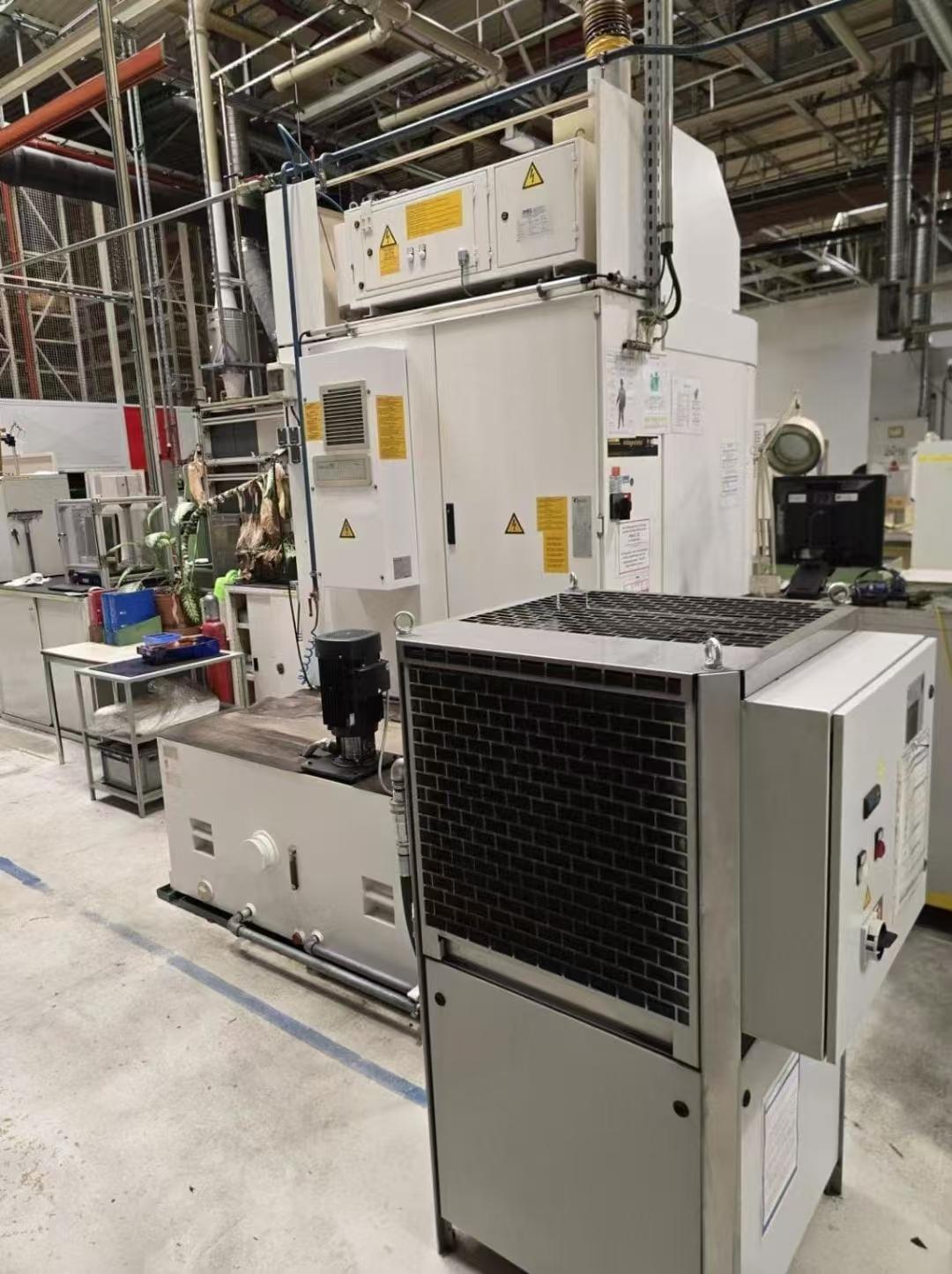

Walter BASIC-F Grinding machines

Min/Max Tool diameter: 3-320  x 350mm

X axis travel: 460 mm

Y-axis travel: 320mm

Z-axis travel: 660 mm

Maximum moving rate: 15 m/min

C axis rotation: ±200 degree /20 RPM/point

A-axis rotation: maximum 60 RPM

Grinding Spindle speed: 9500 RPM

Grinding spindle power: 9 kw

Grinding Spindle diameter: 70 mm

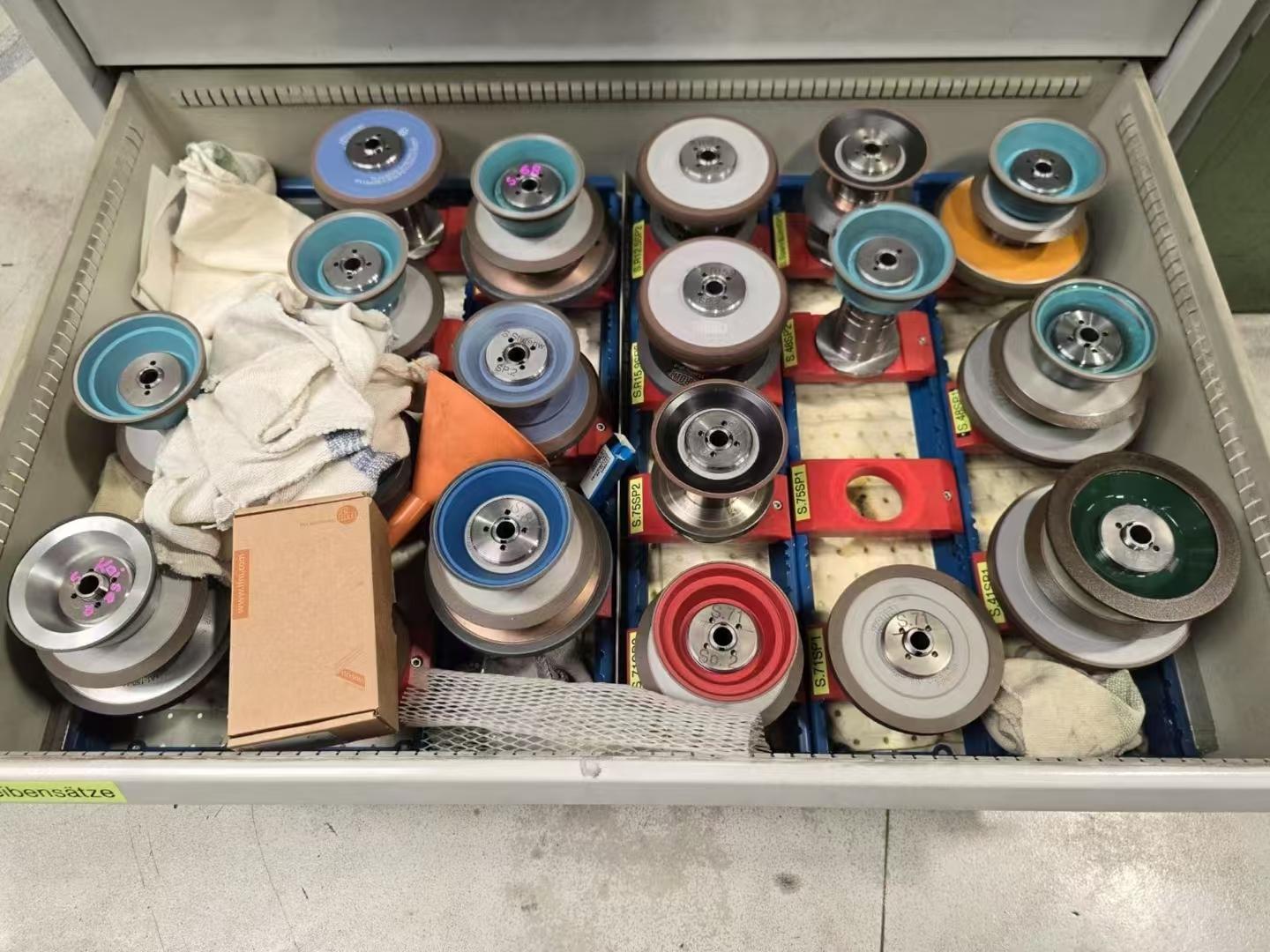

Maximum grinding wheel diameter: 150 mm

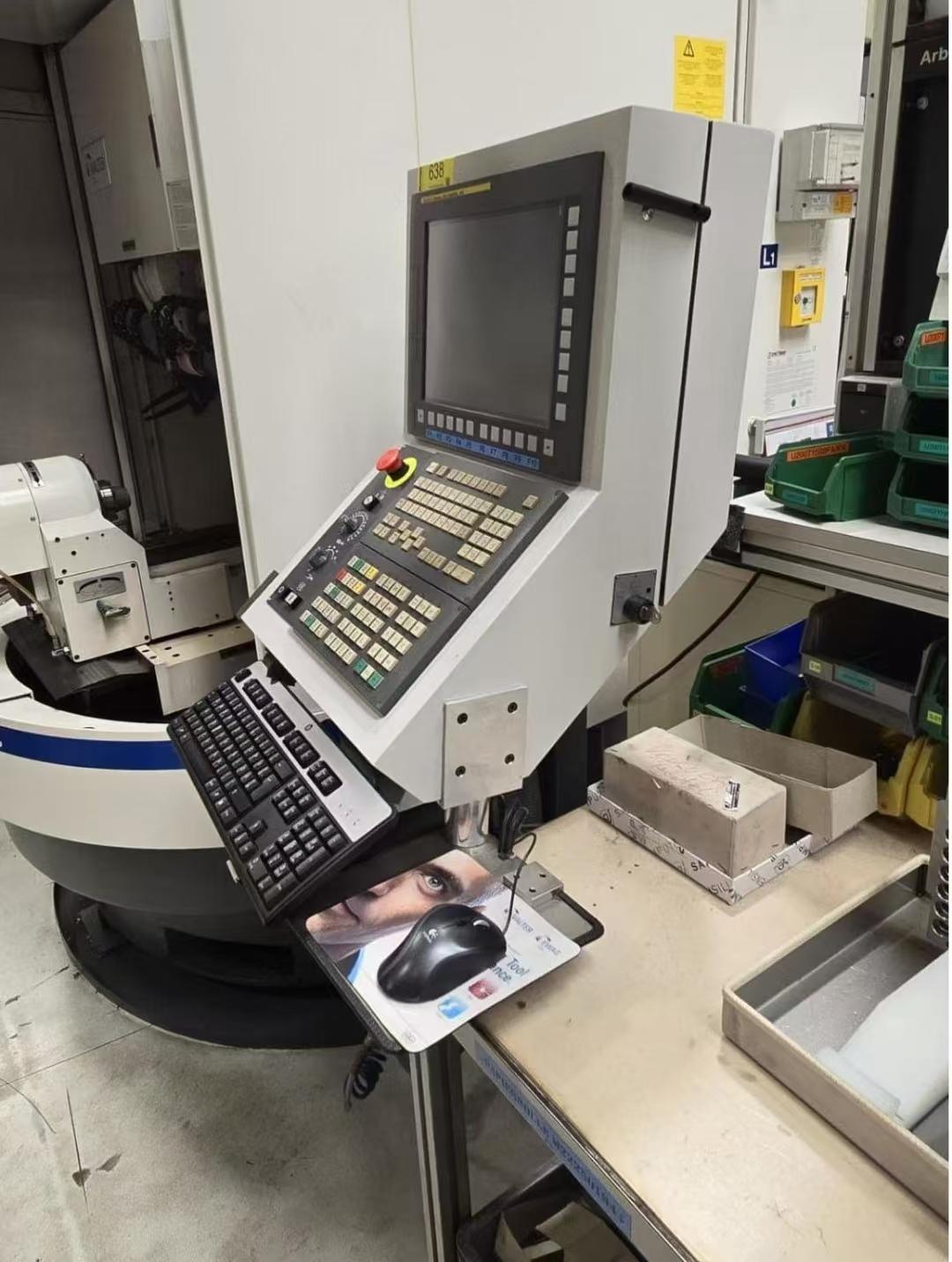

CNC CNC System: FANUC 31i-A5

Power supply: 400 volts v50 hz20 KVA

machine tool Footage: approx. 2600 x 3000x 2300mm

Machine weight: About 4.5tons
