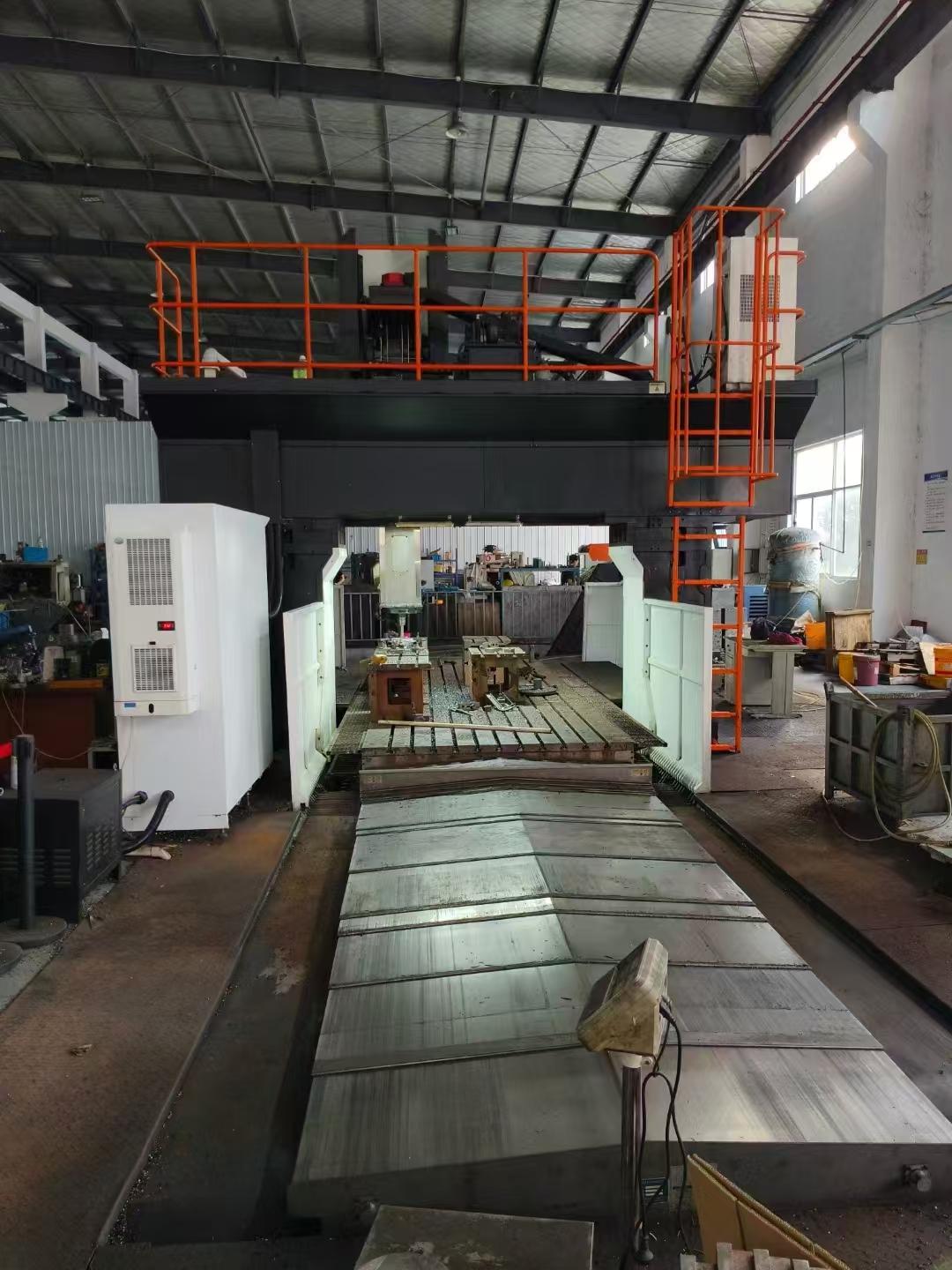

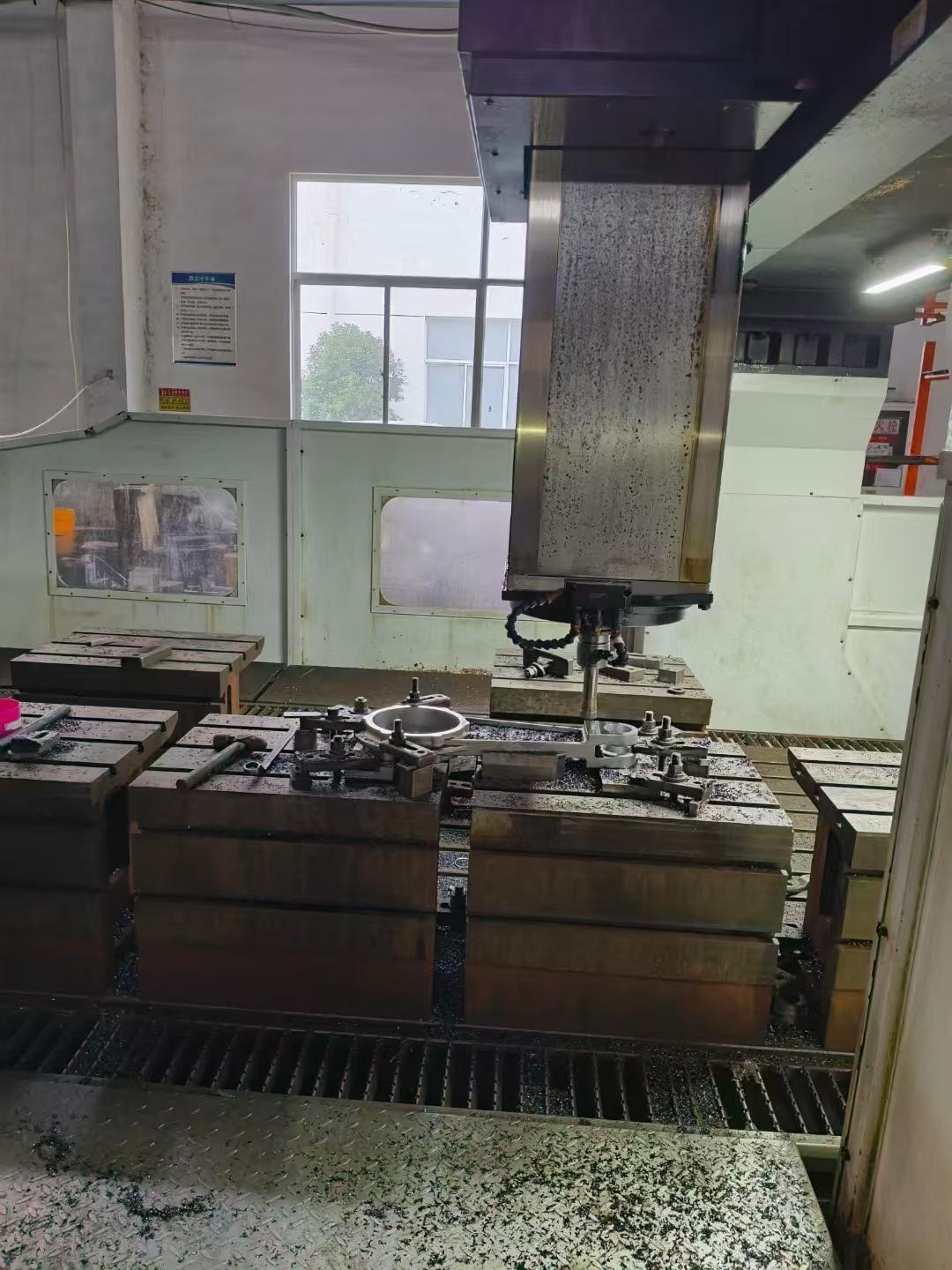

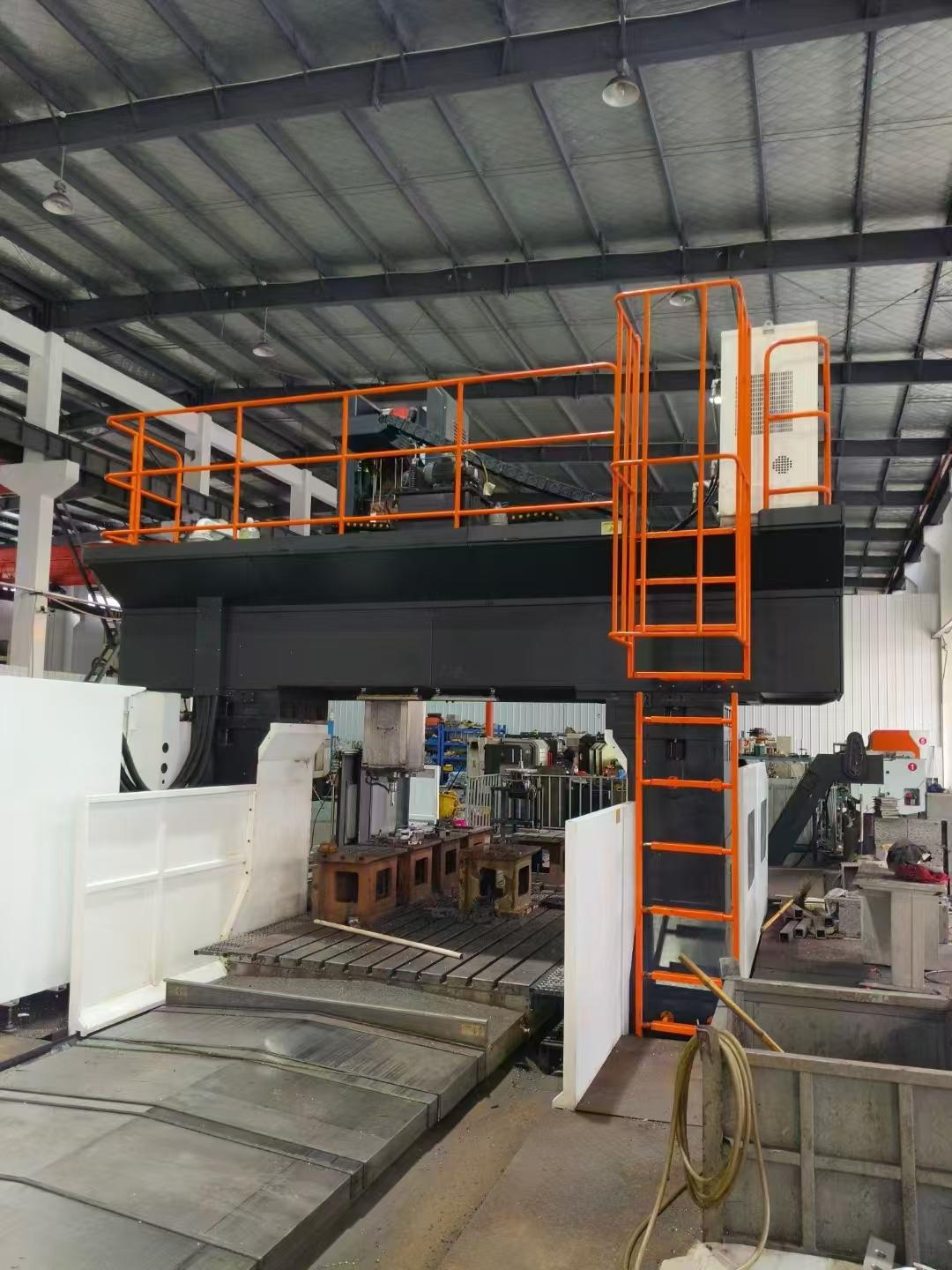

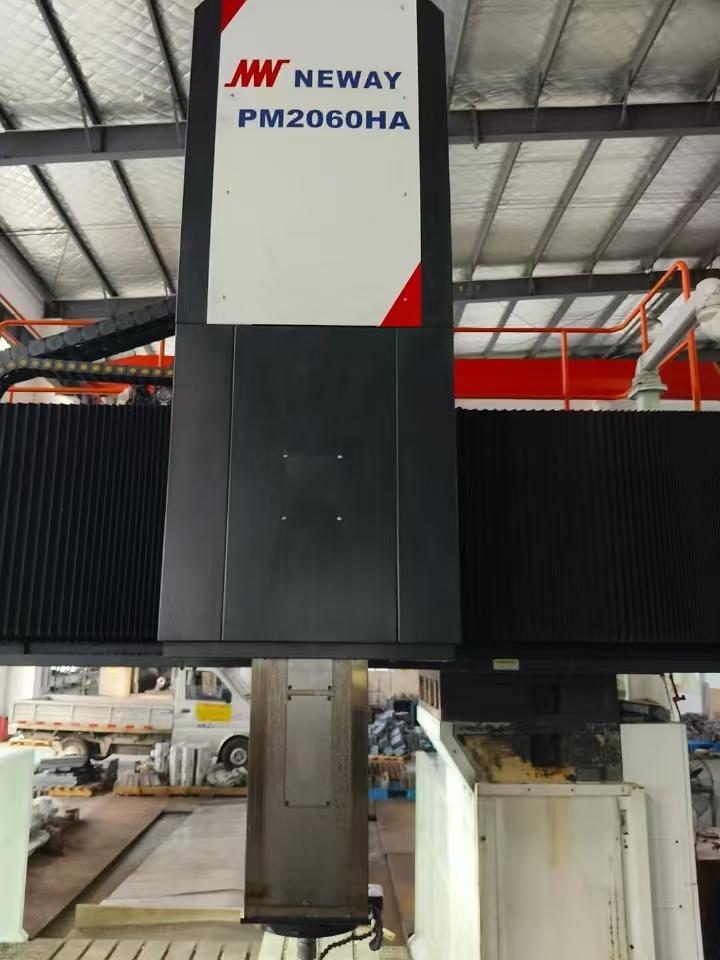

Neway PM2060HA Gantry machining centre

[Product Information]:

Inventory number：84599
Brand：Neway
Model：PM2060HA
Origin：Taiwan of China
Location：China
Year：2020
Create Time：2024-08-28

Specifications:

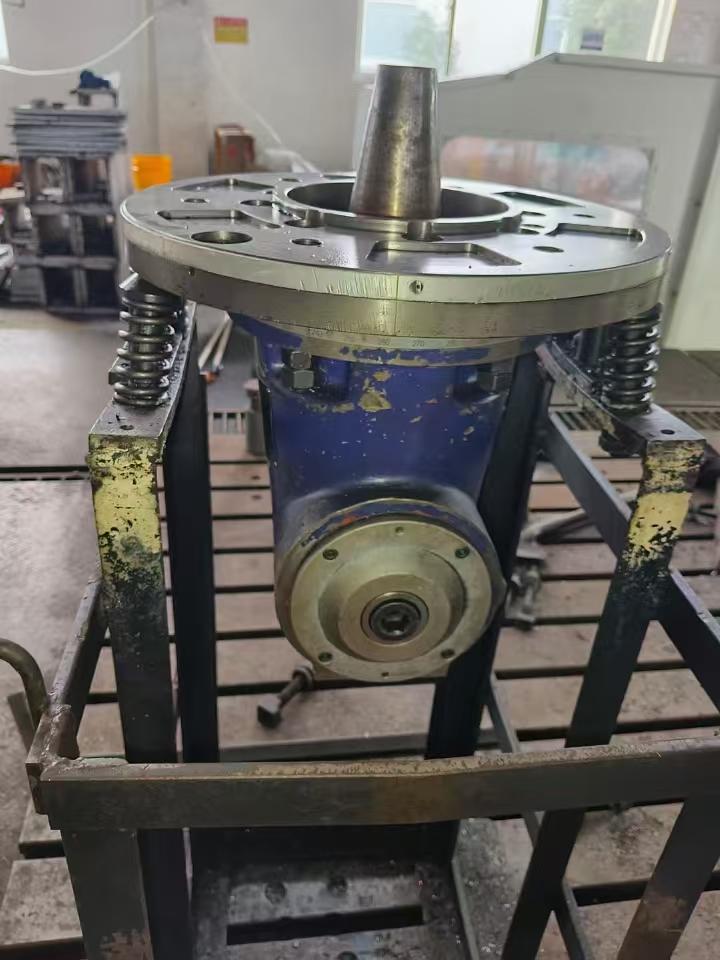

three-axis travel: 6200*3200*1250mm spindle nose distance to workWorktable: 1200mm gantry width: 3300mm gantry height: 1750mm square ram size: 400*400mm distance between the two columns: 2800mm WorkWorktable size: 2500*6000mm. 26000kg Tool holder specification: BT50 Spindle speed range: 6000rpm spindle power: 22/26kw Footage: 15000*6000*5400mm Weight: 55000kg with automatic milling head
