GOODWAY GLS-2000Le CNC turning lathe

[Product Information]:

Inventory number：84510
Brand：GOODWAY
Model：GLS-2000Le
Origin：Taiwan of China
Location：China
Year：2021
Create Time：2024-08-20

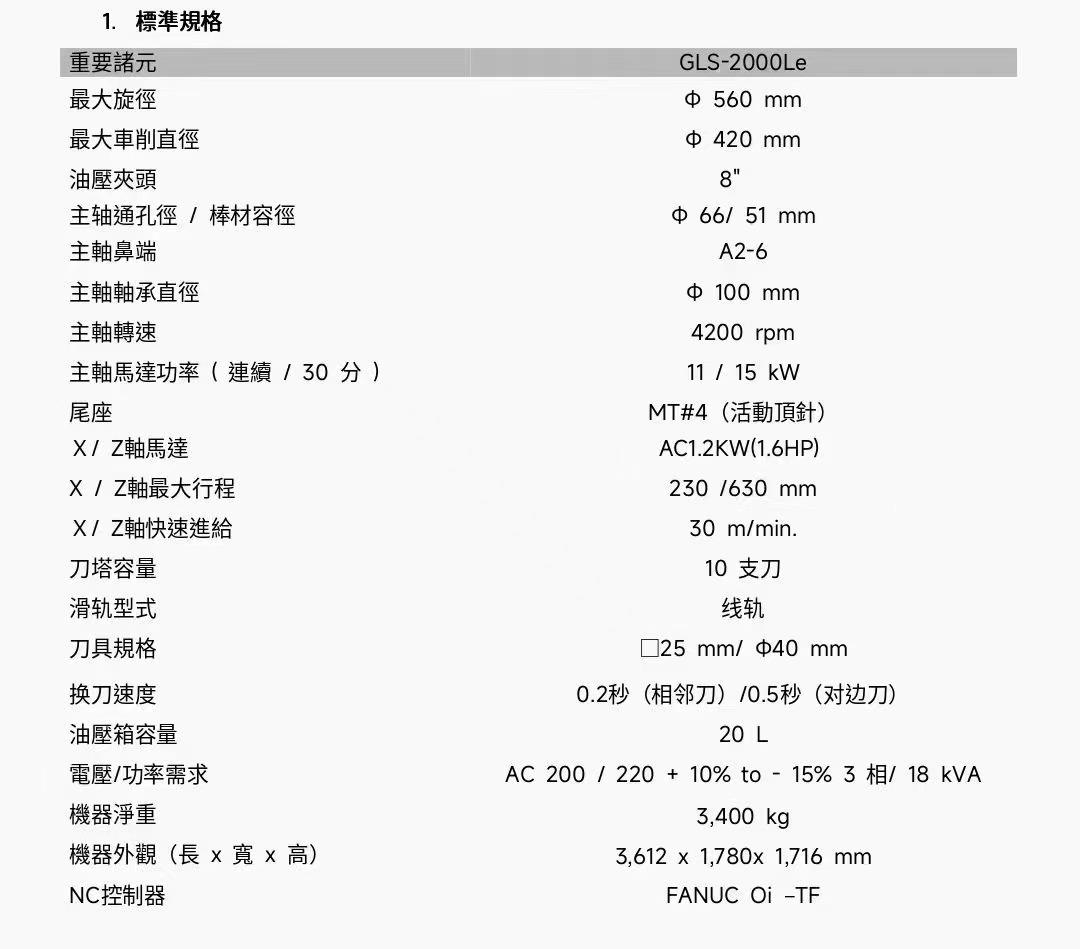

Specifications:

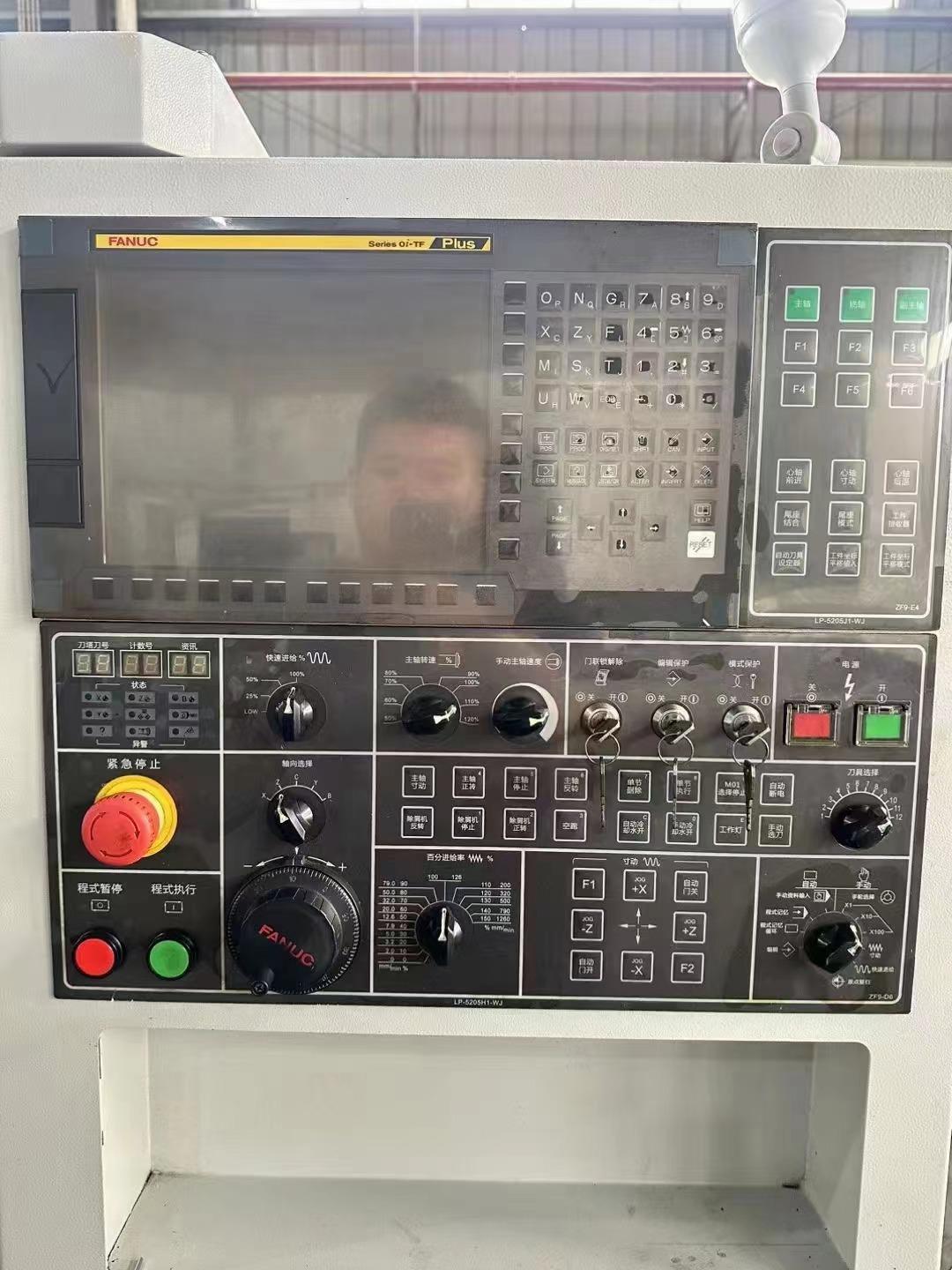

CNC system: Fanuc oi-TF
Maximum diameter: φ560mm
Maximum turning diameter: φ420mm

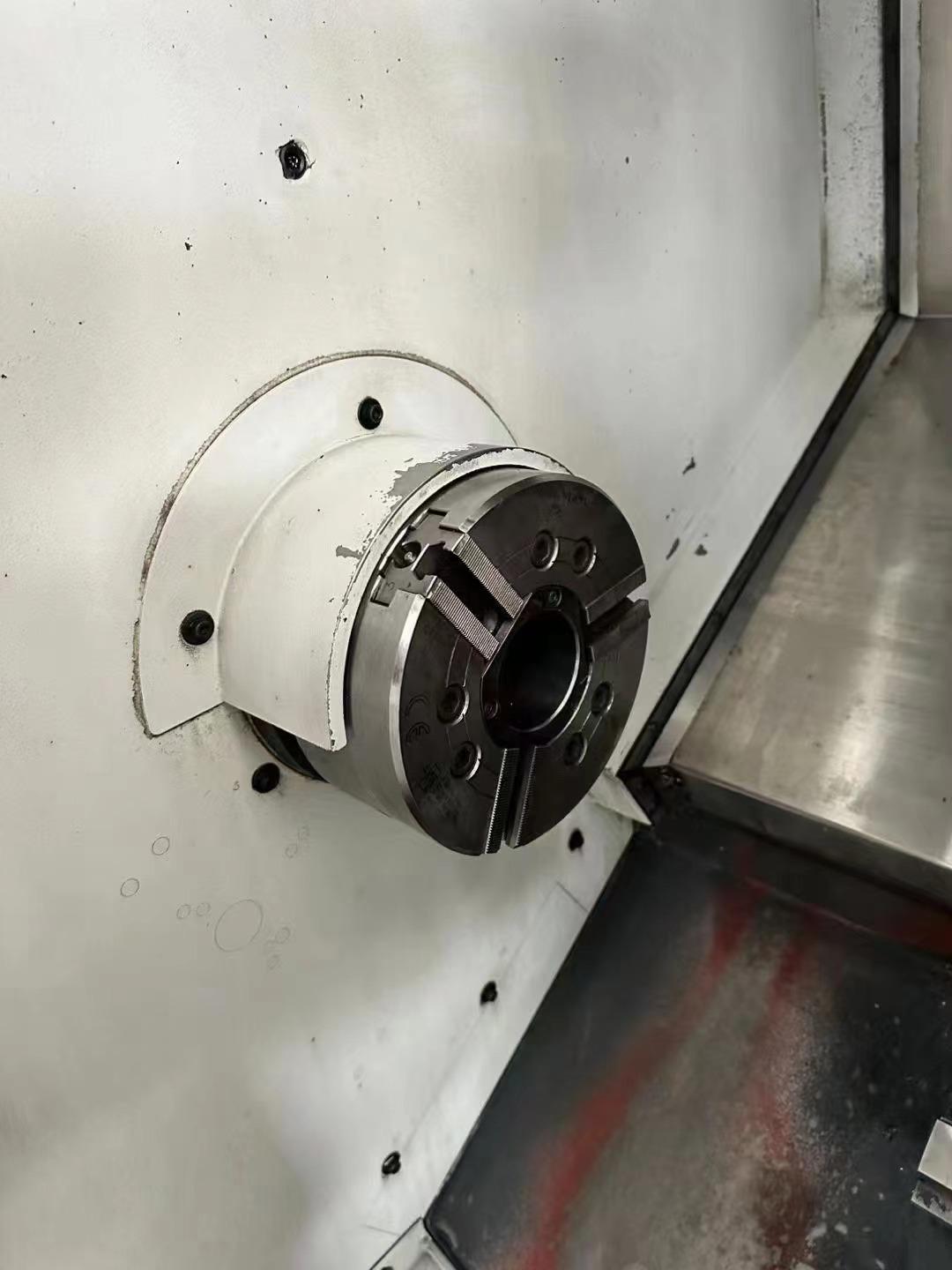

Oil pressure chuck: 8 inches
spindle through hole diameter: φ66mm
Bar capacity: 51mm
spindle nose end: A2-6
spindle bearing diameter: φ100mm
Spindle speed: 4200rpm
spindle motor power: 11/15kw
X*Z axis maximum travel: 230*630mm
X*Z axis maximum feed: 30m/min

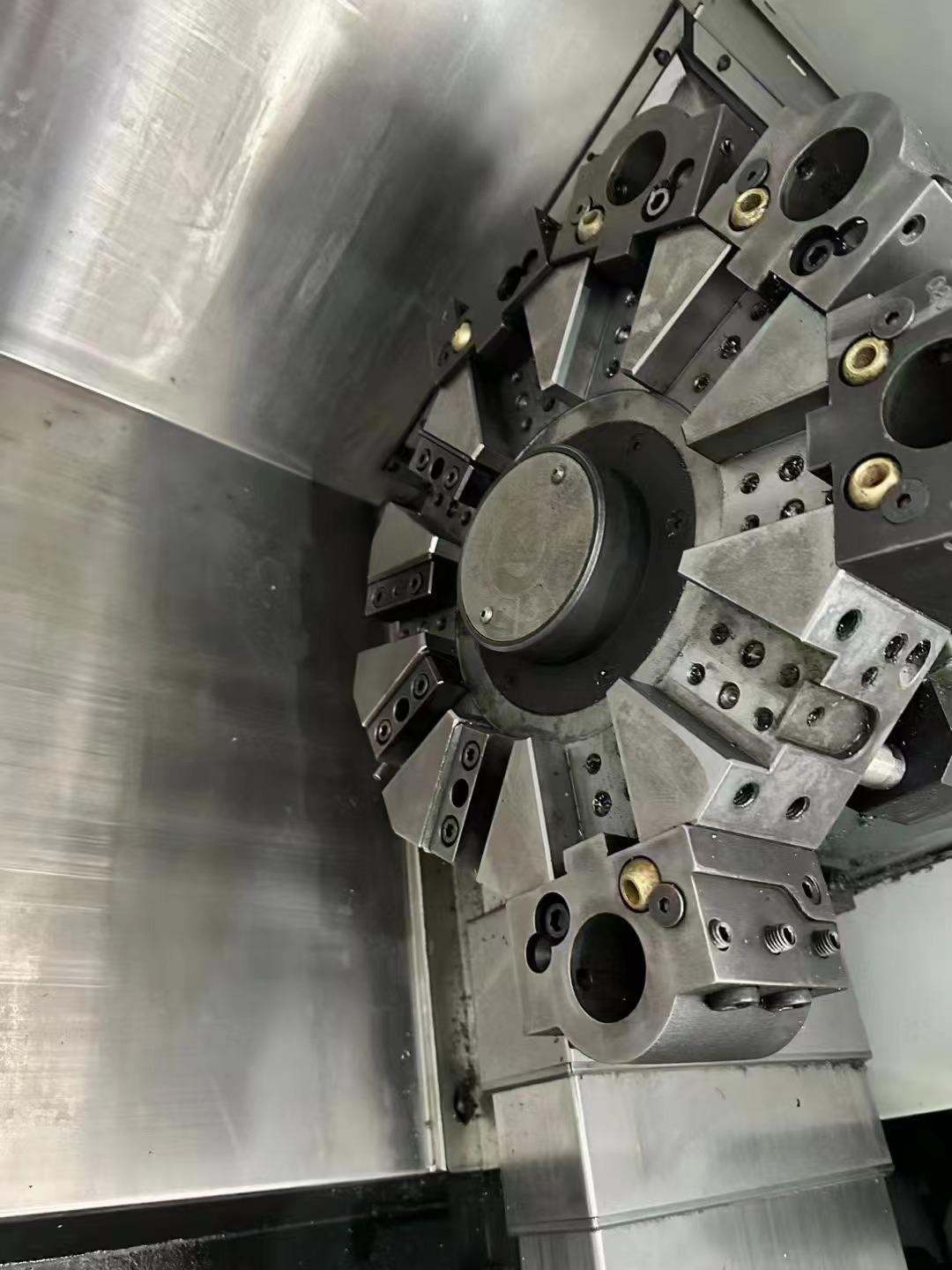

Cutter tower station: 10
lead rail: wire rail
Machine weight: 3400kg
Machine dimensions (length * width * height) : 3612*1780*1716mm
