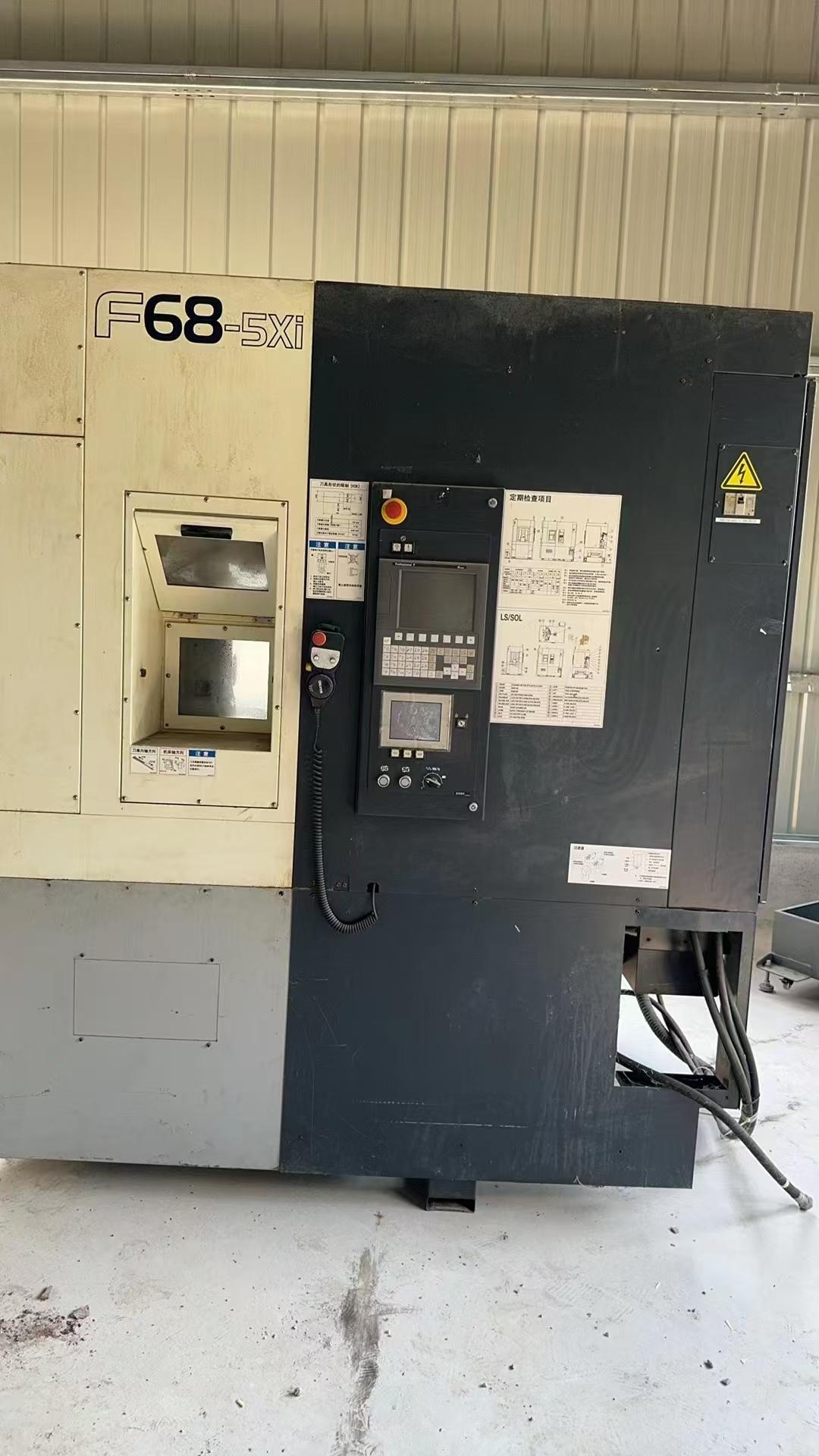

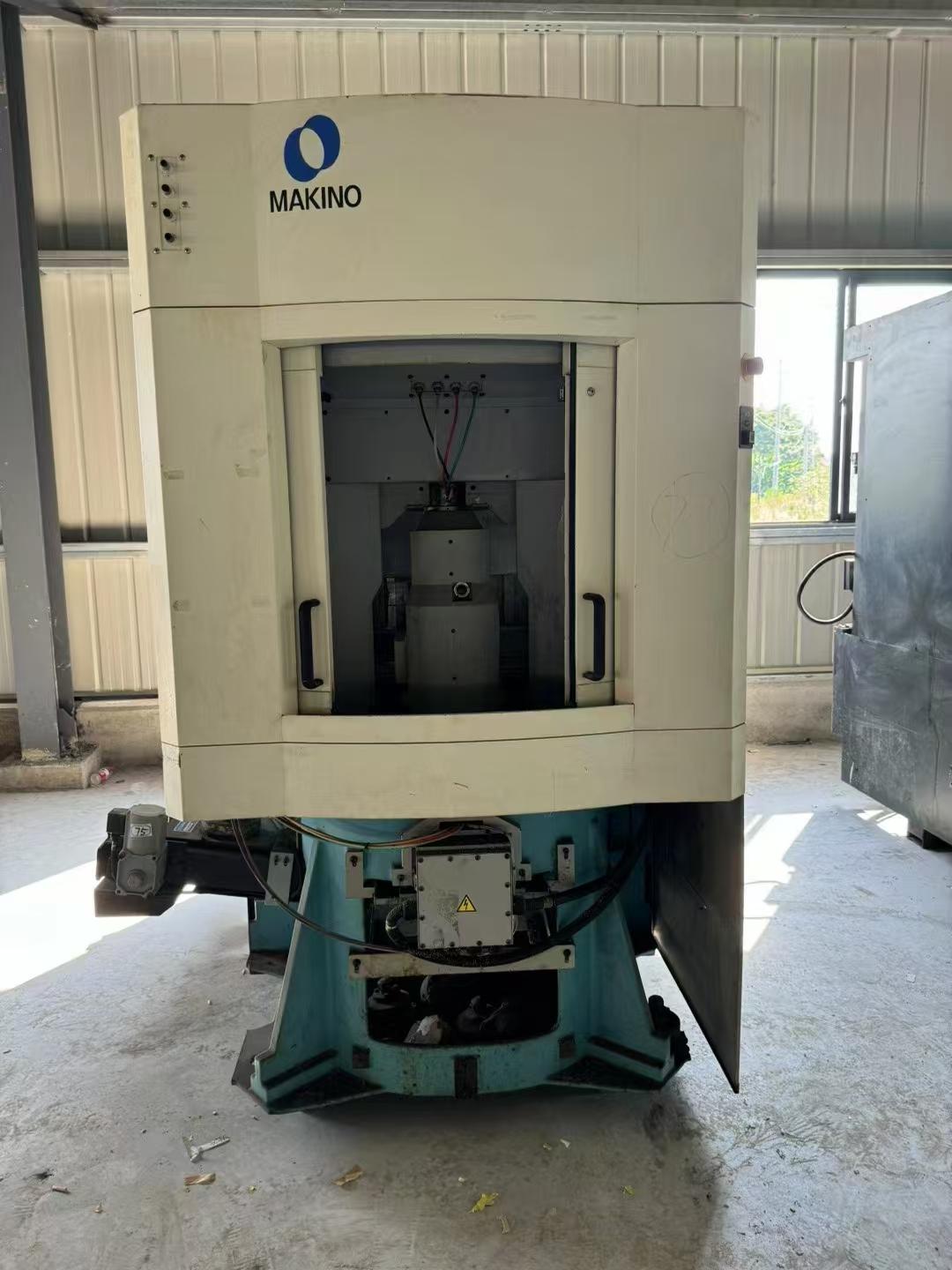

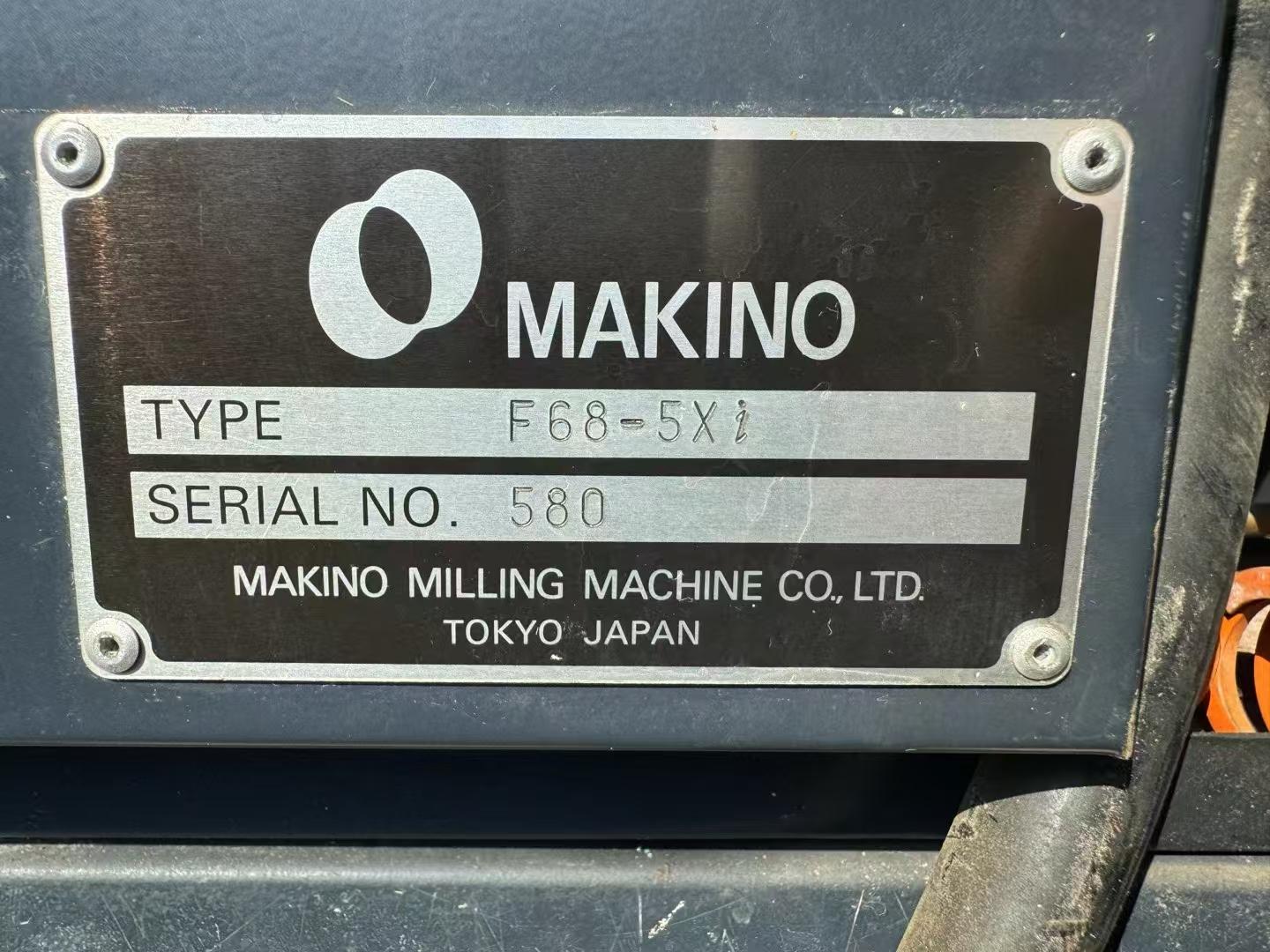

Makino F68-5Xi 5 axis machining centre

three-axis stroke: 400*300*200mm

Worktable size: 230mm

Maximum load: 20kg

allocation precision: 0.01mm

Repeat allocation precision: 0.006mm

Spindle speed: 200-20000rpm

spindle taper hole: HSK-A40A

Fast forward speed: 56000mm/min

Cutting feed speed: 1-32000mm/min

tools magazine: 42

Maximum cutter diameter: 50mm

Maximum cutter length: 130mm

Maximum cutter weight: 2kg

Dimensions: 1650*2100*2300mm

Machine weight: 2600kg
