Neway FB131H-001-2D CNC boring machine
[Product Information]:
- Inventory number：491011
- Brand：Neway
- Model：FB131H-001-2D
- Origin：America
- Location：China
- Year：2011
- Create Time：2024-07-30

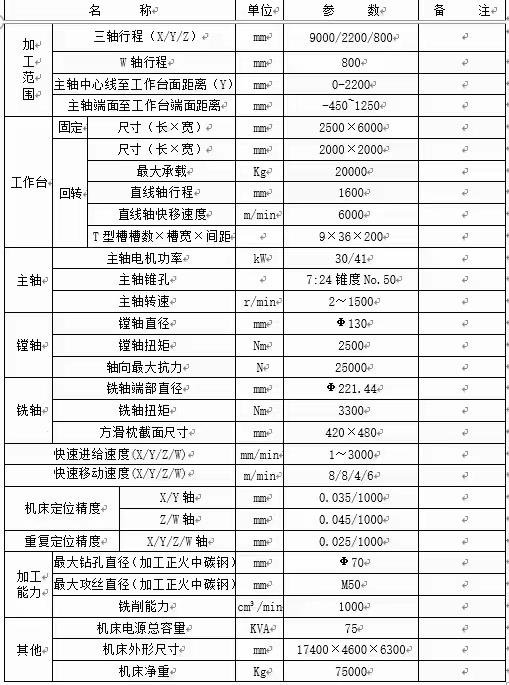

Specifications:
X/Y/Z axes travel: 9000/2200/800mm
W axis travel: 800mm
Distance from spindle nose to worktable surface: -450~1250mm
Worktable size: 2500*6000mm
Worktable rotating size: 2000*2000mm
Maximum worktable load: 20000kg
Spindle motor power: 30/41w
Spindle speed: 2~1500rpm

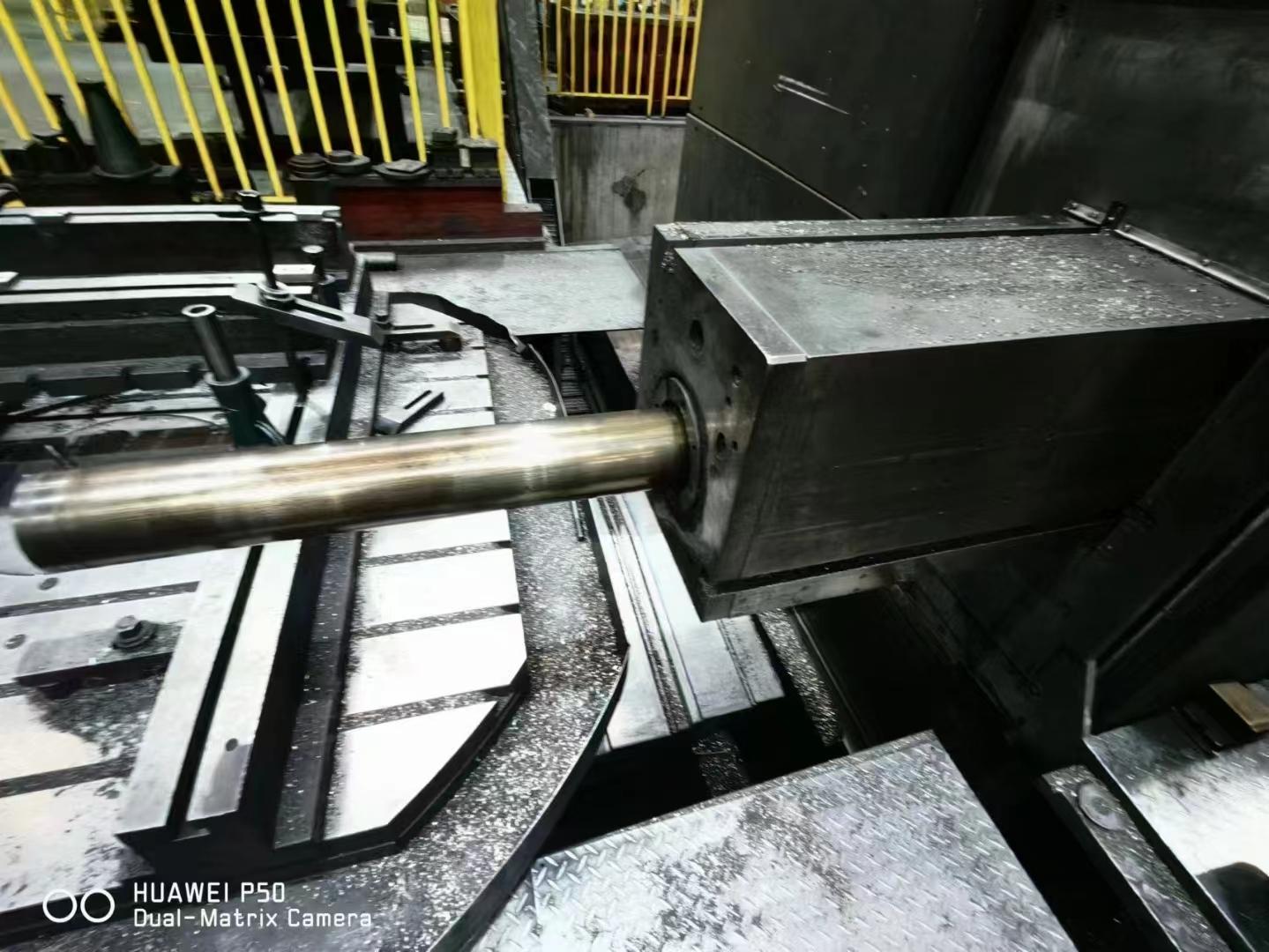

Boring spindle diameter: 130mm
Boring spindle torque: 2500Nm
X/Y/Z axes feed rate: 1~3000mm/min
Machine dimensions: 17400*4600*6300mm
Machine weight: 75000kg
With three axes glass scale

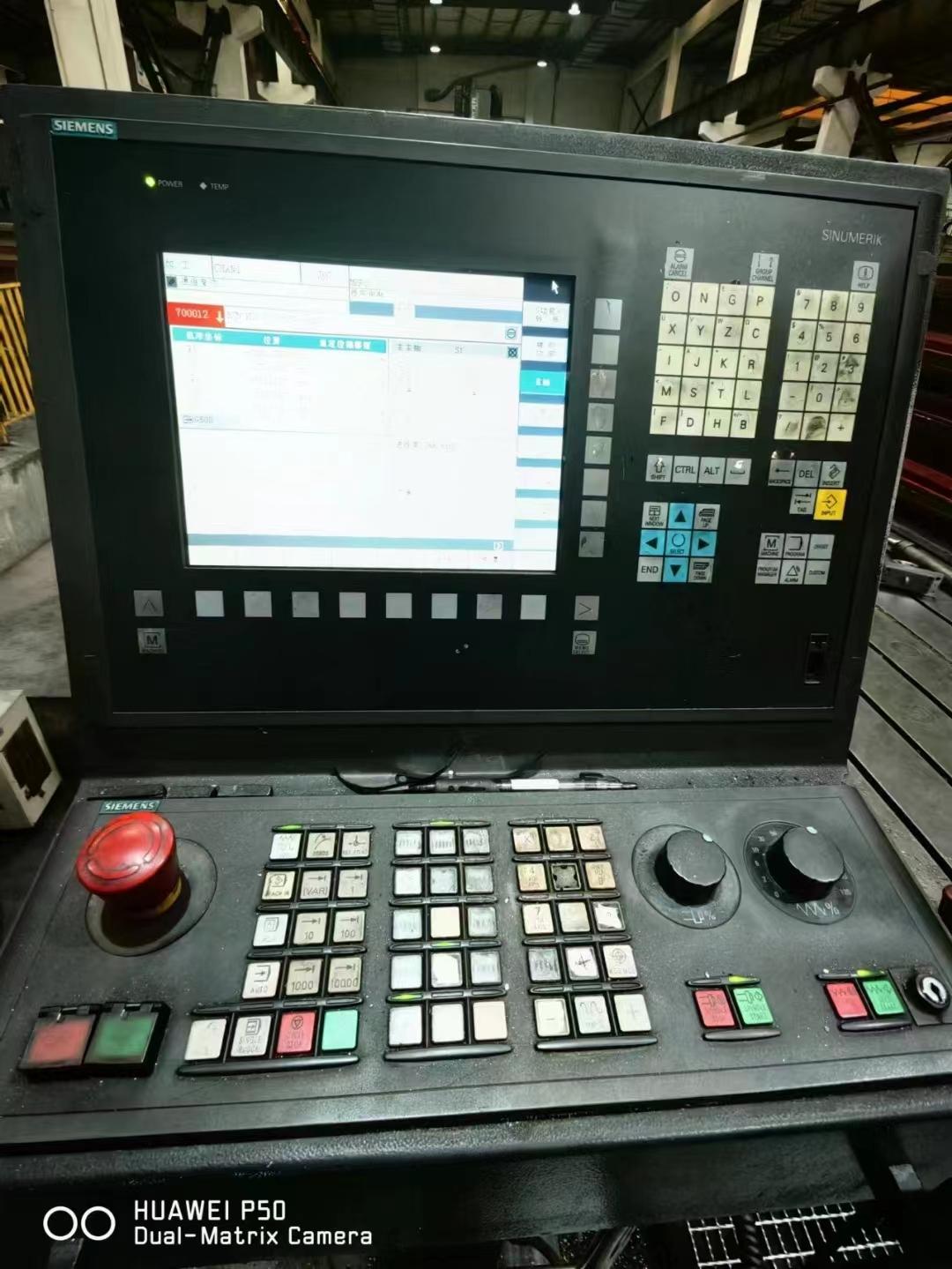

CNC System: Siemens 840D
